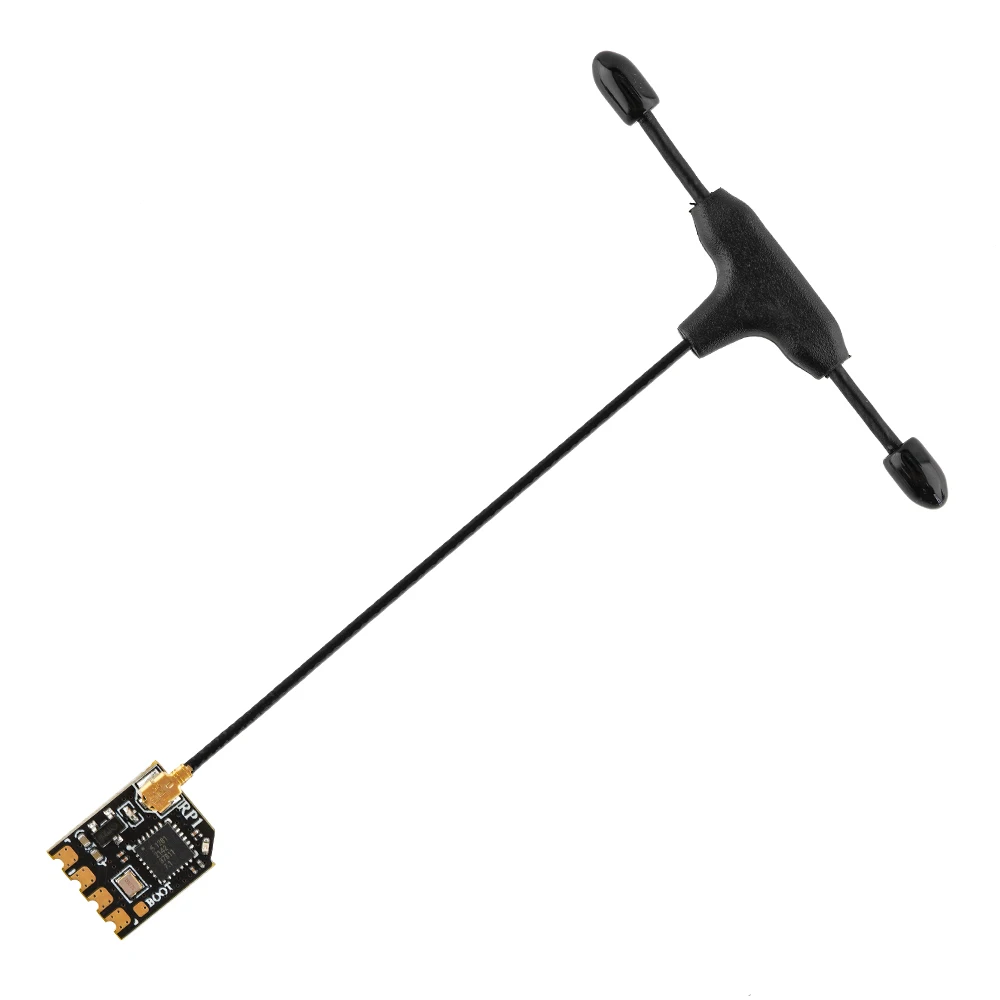

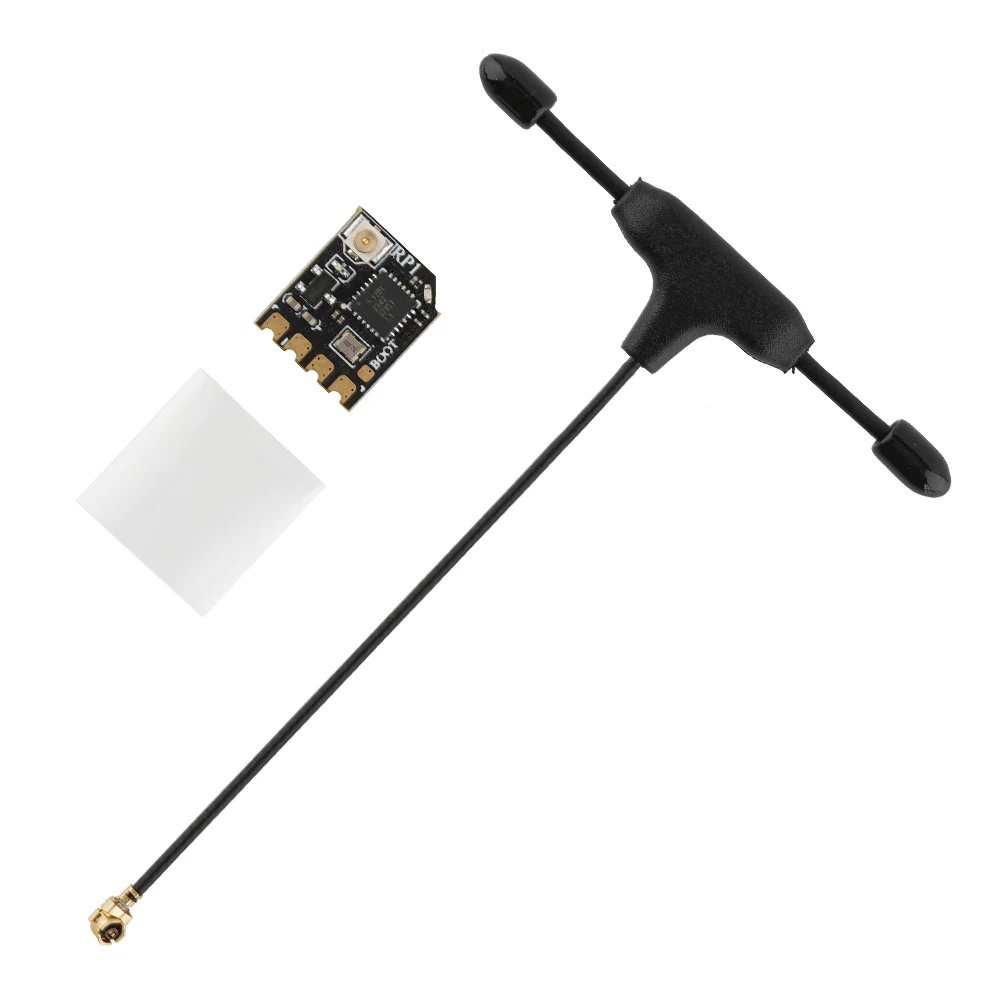

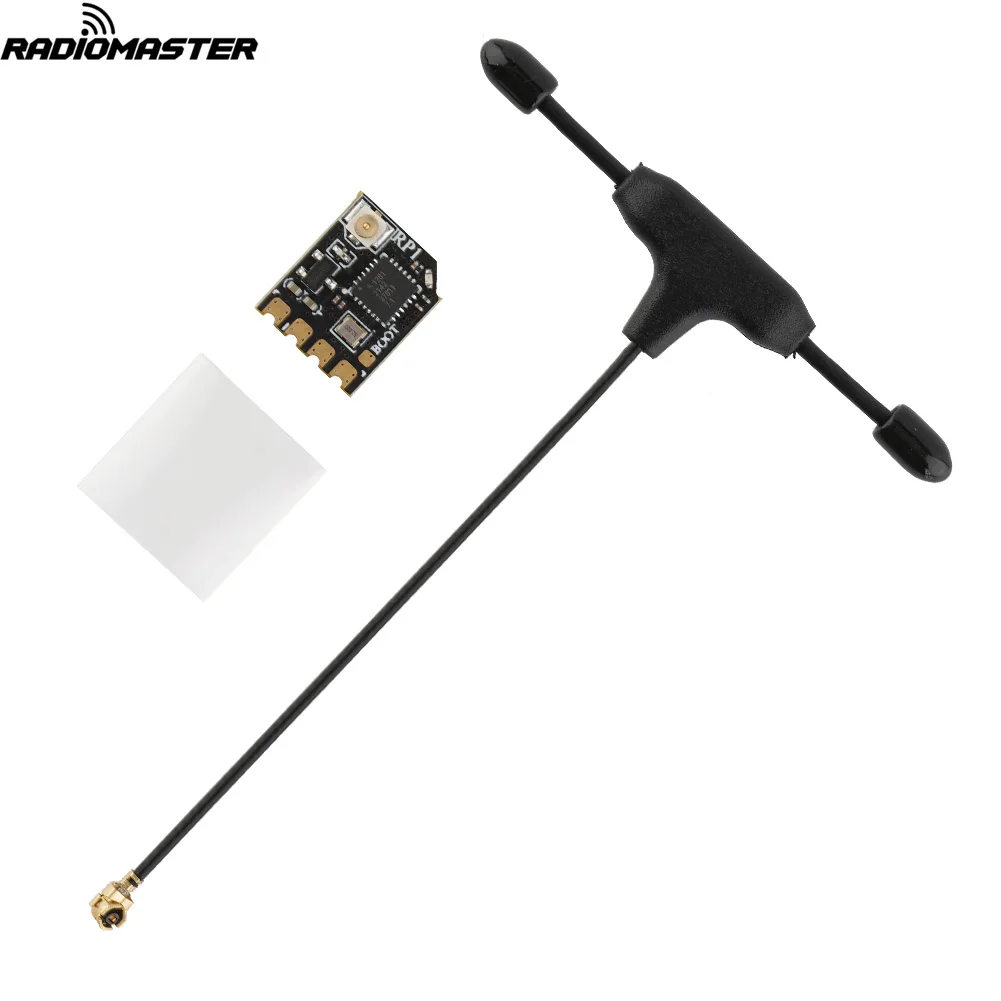

RadioMaster RP1 RP2 V2 2.4ghz ExpressLRS ELRS Nano Receiver T Antenna For TX16S TX12 ZORRO ELRS RC Radio Transmitter

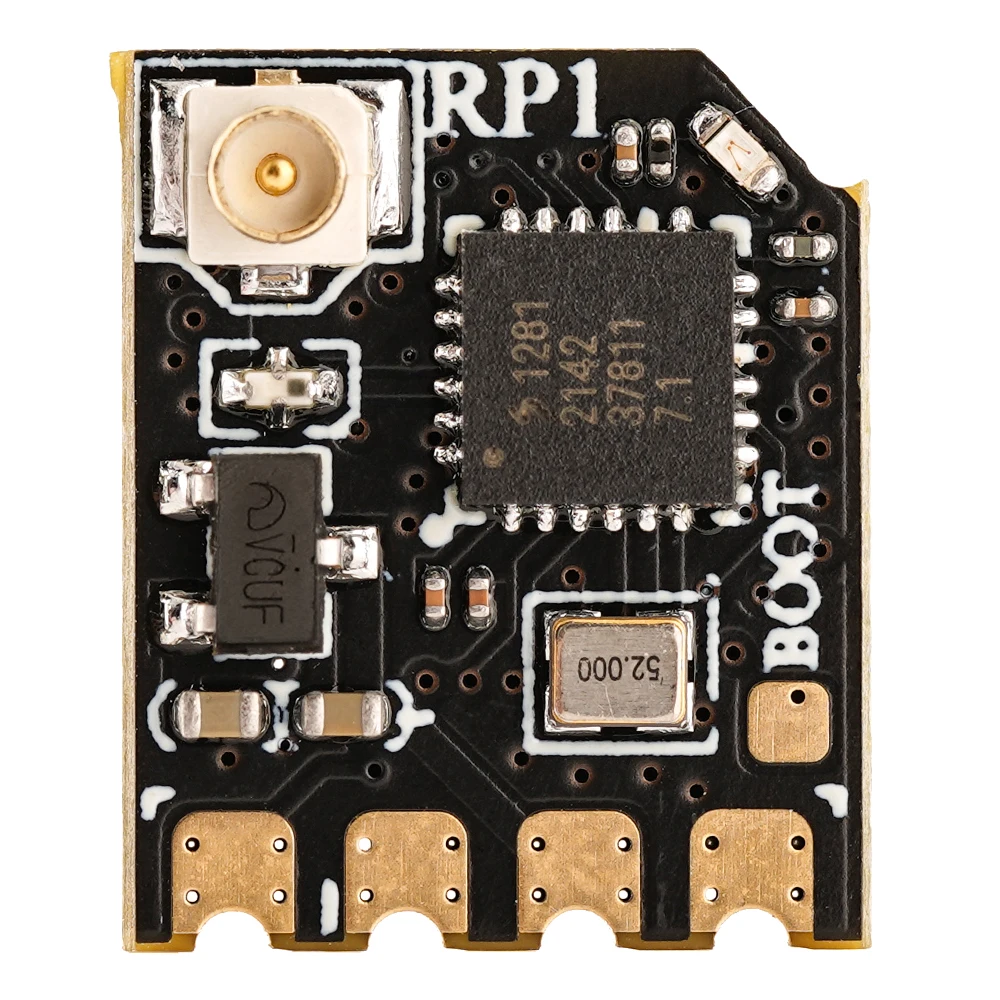

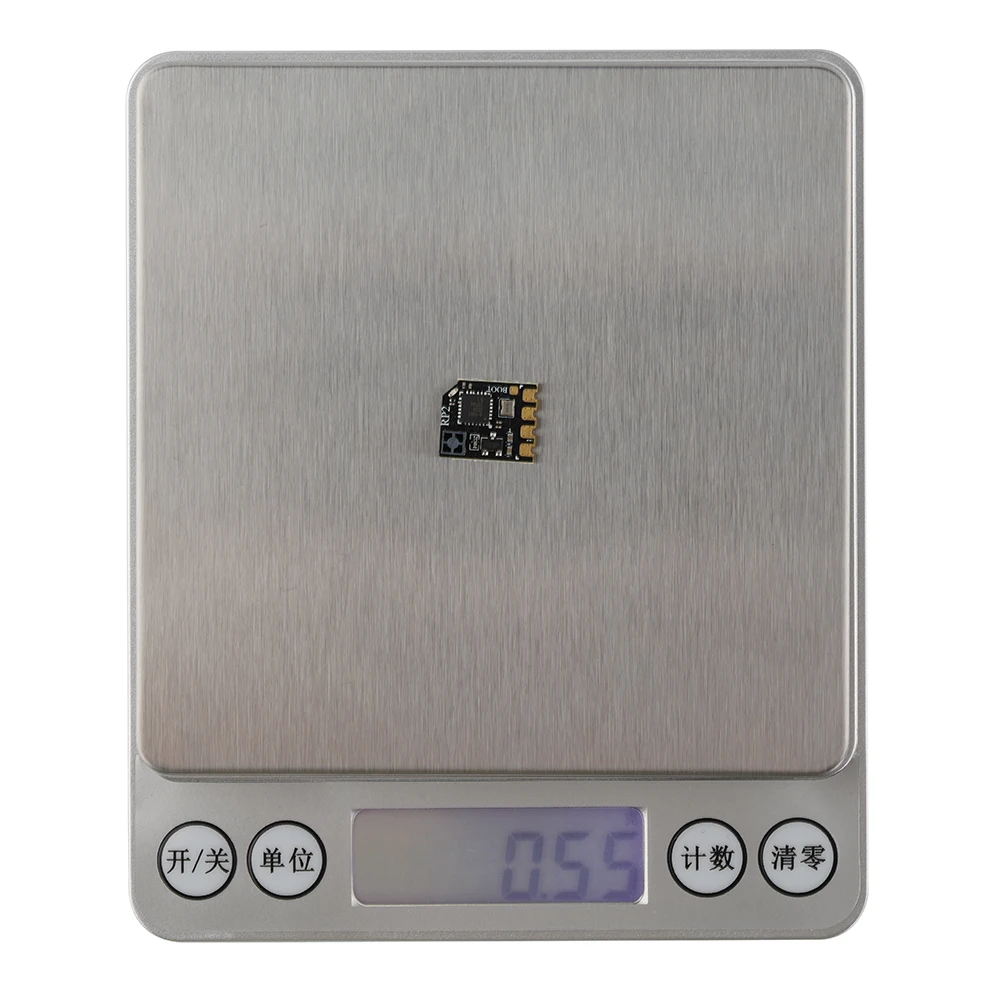

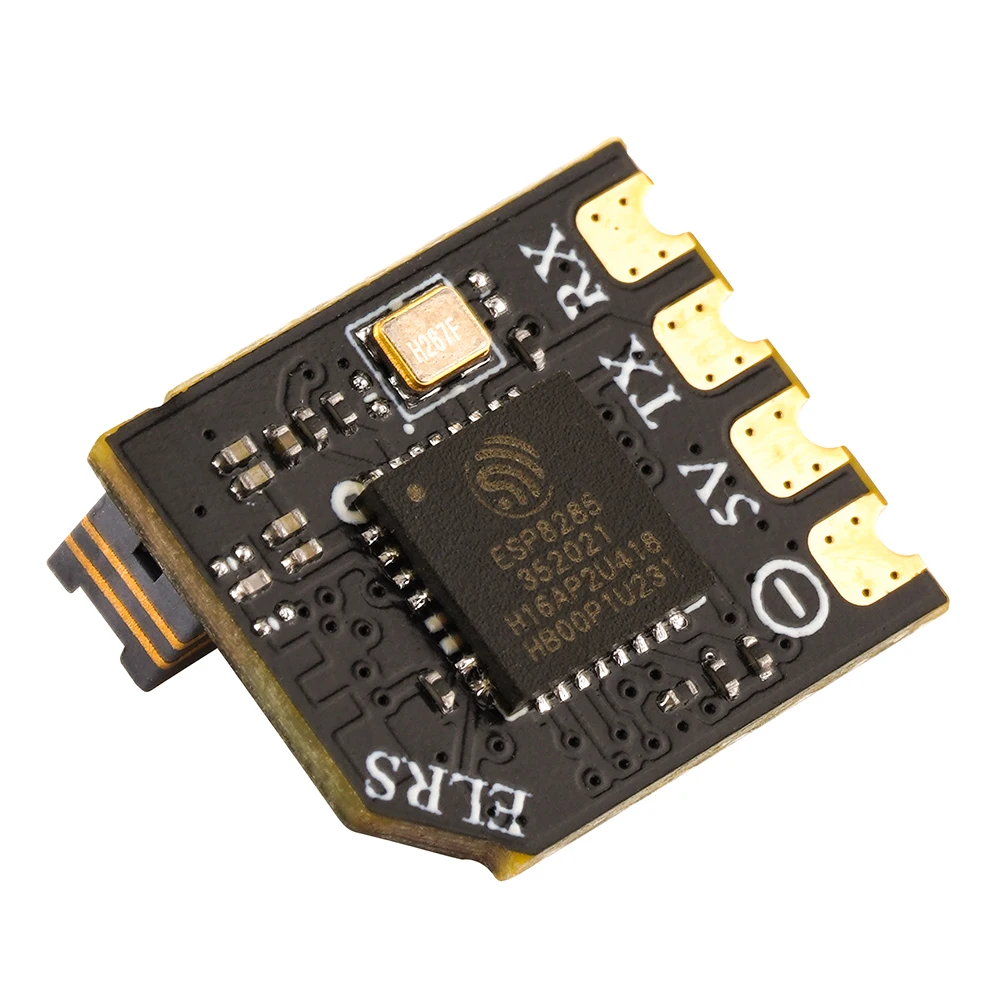

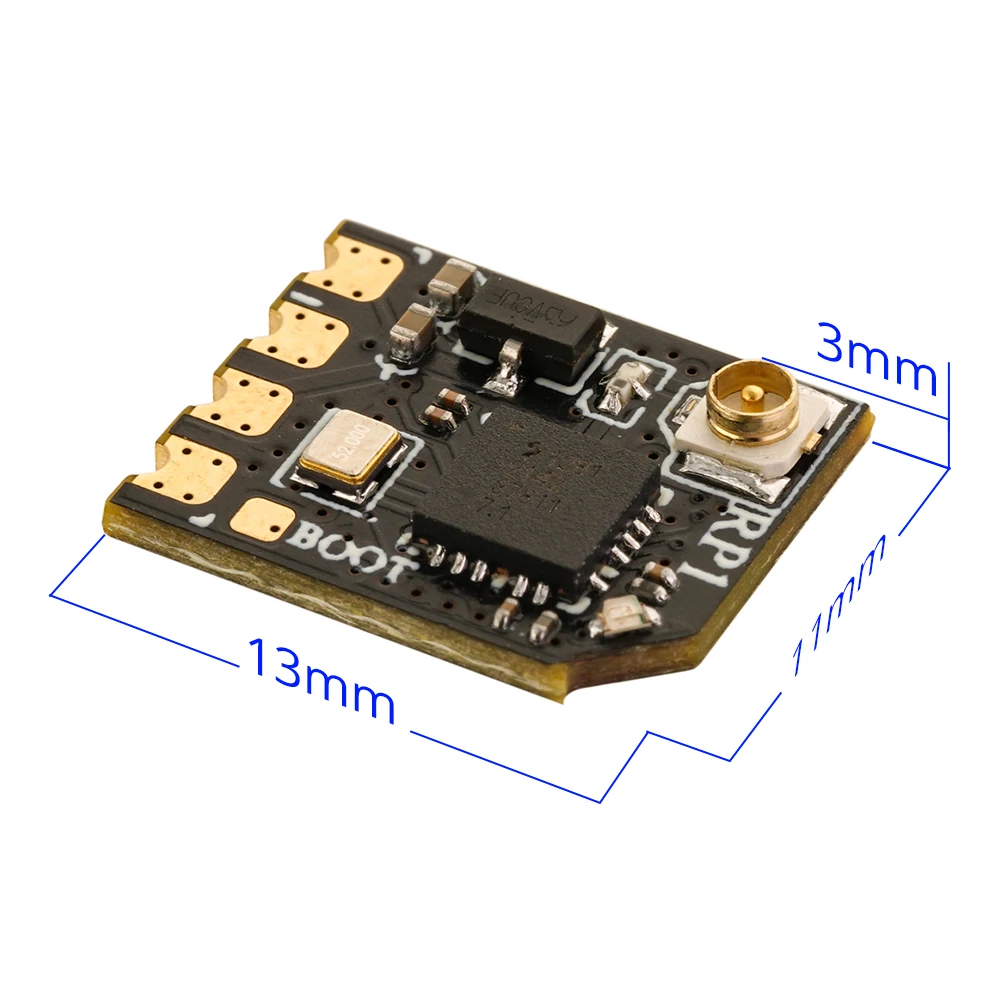

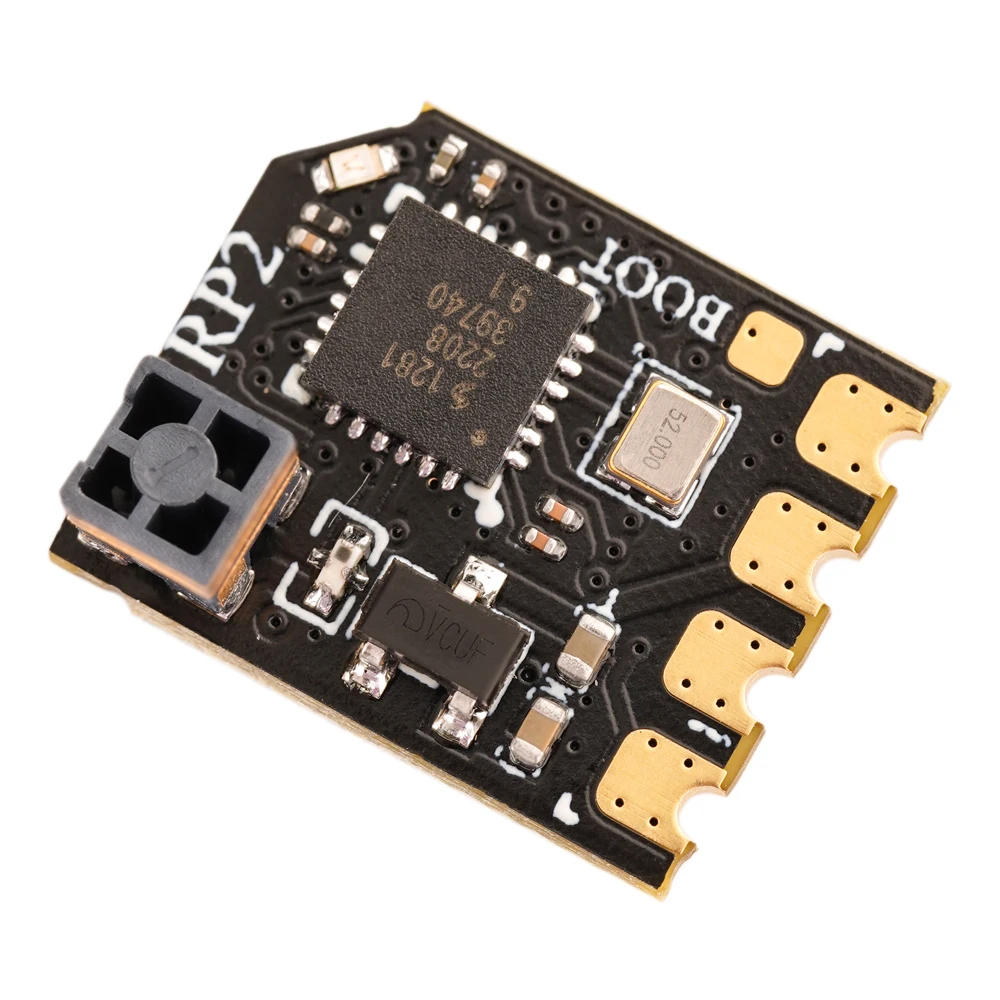

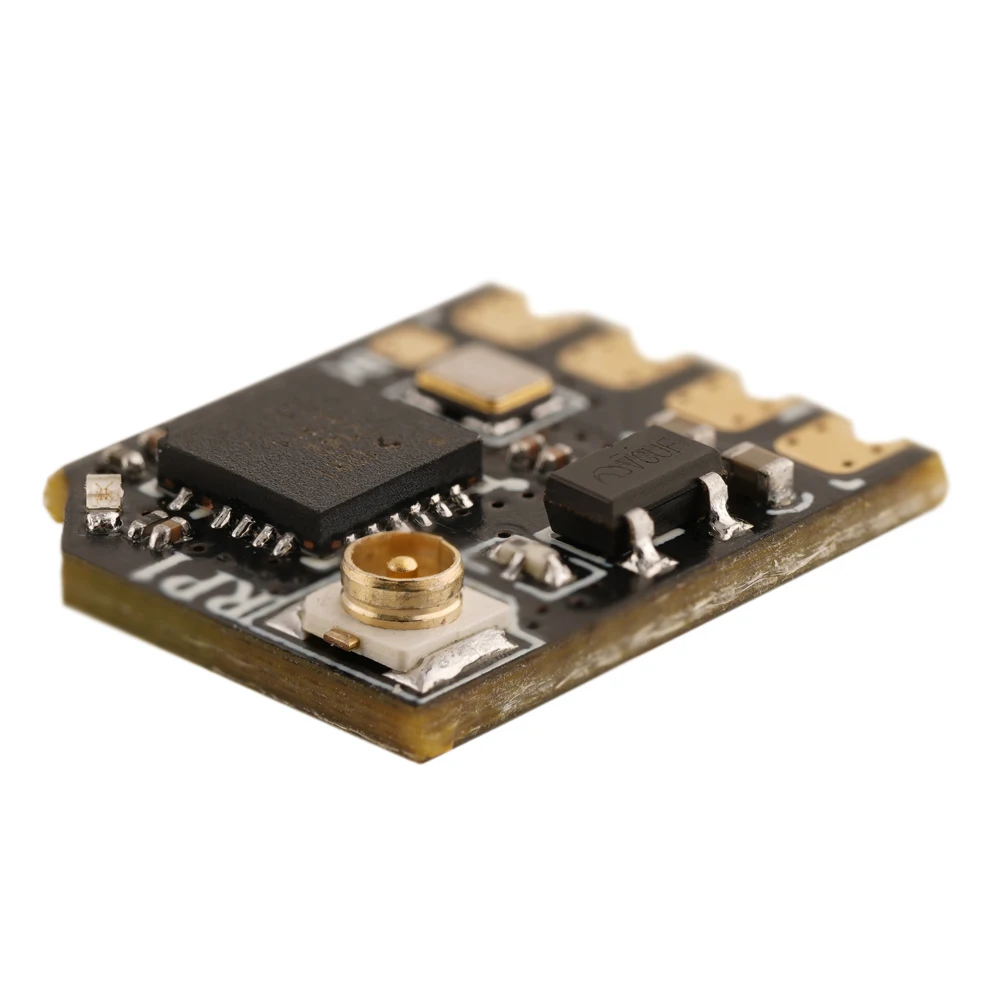

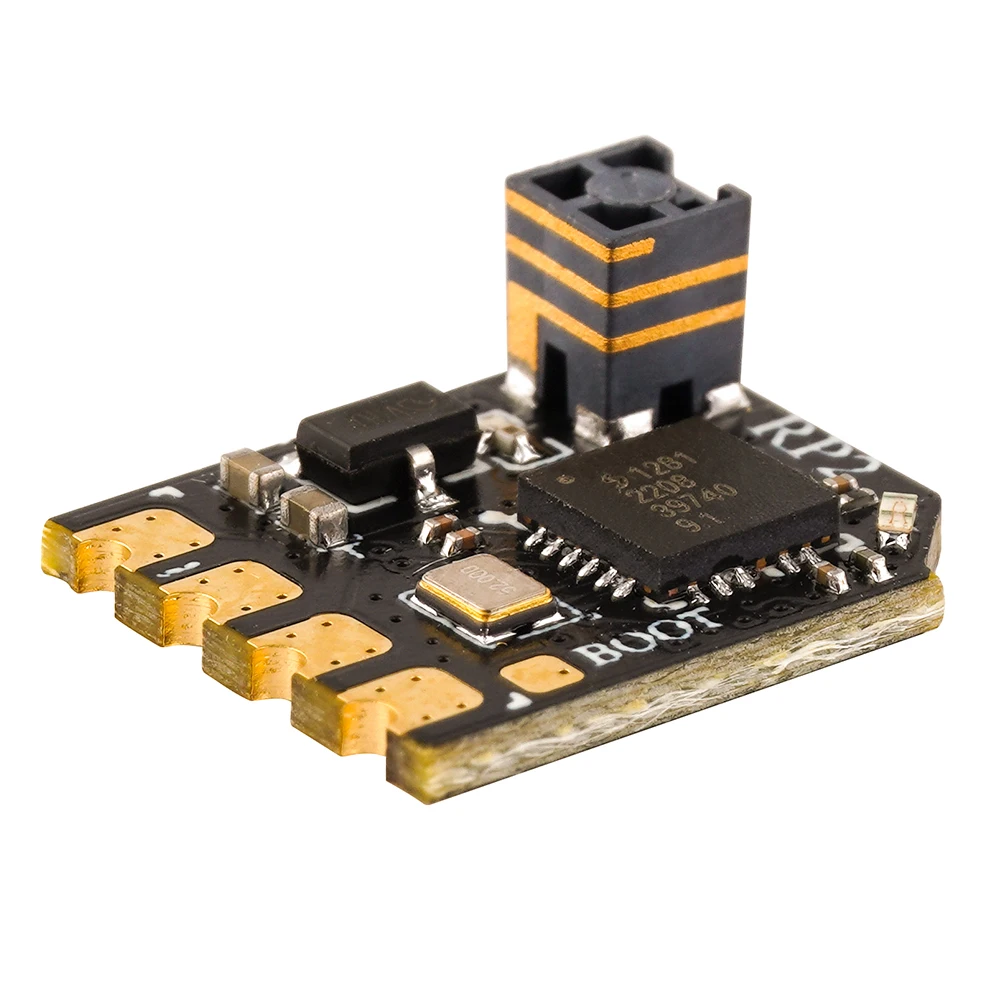

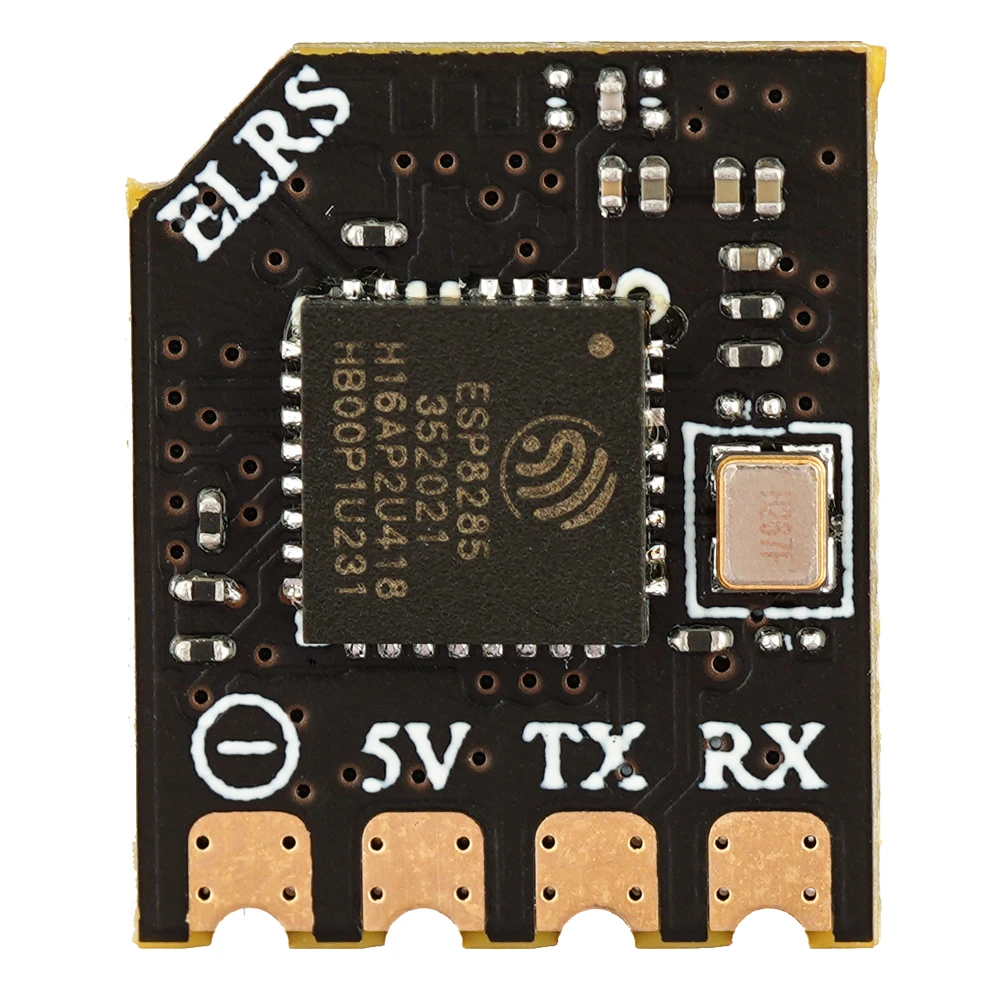

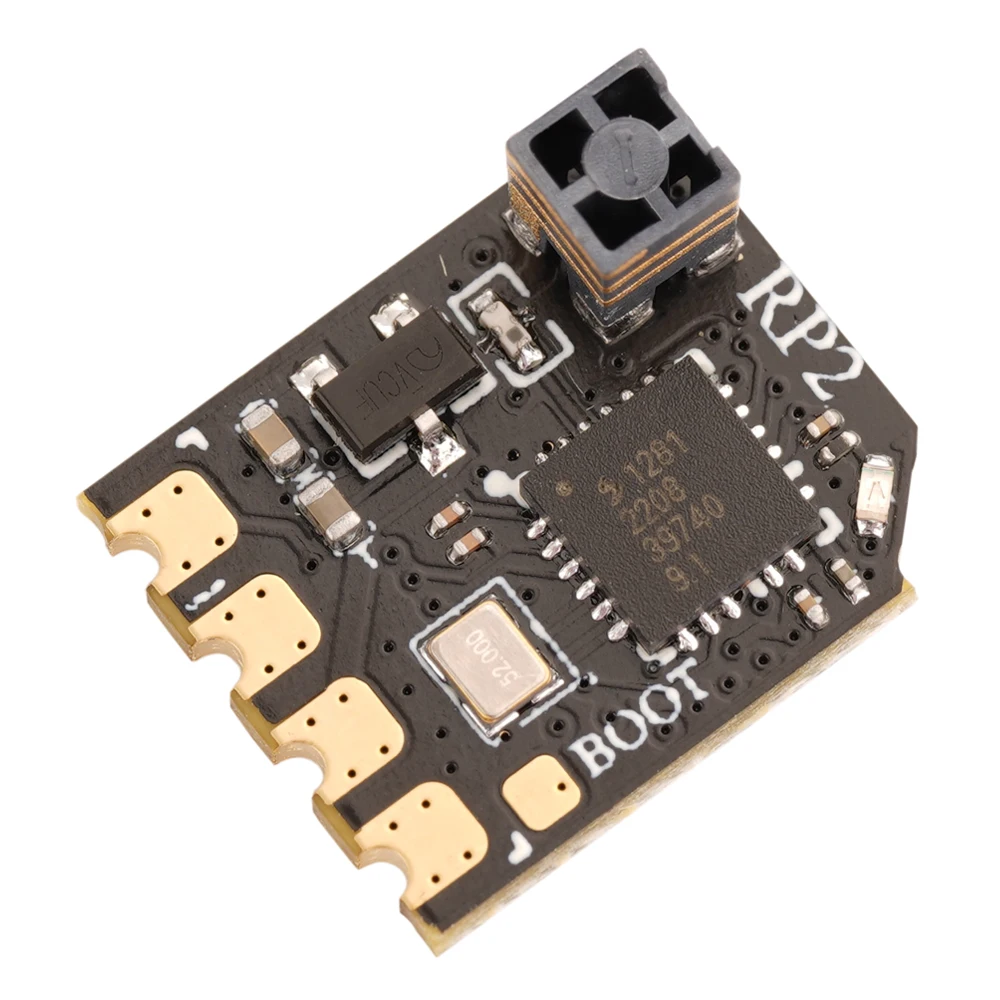

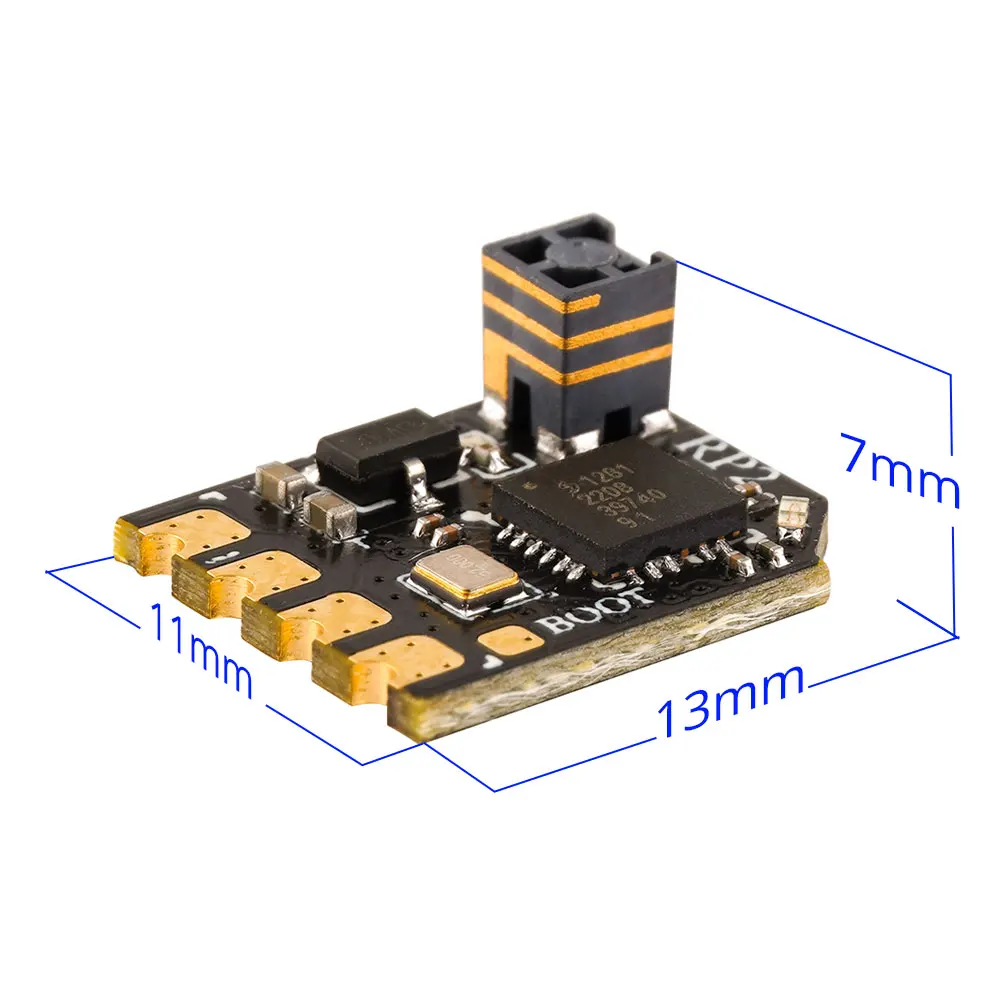

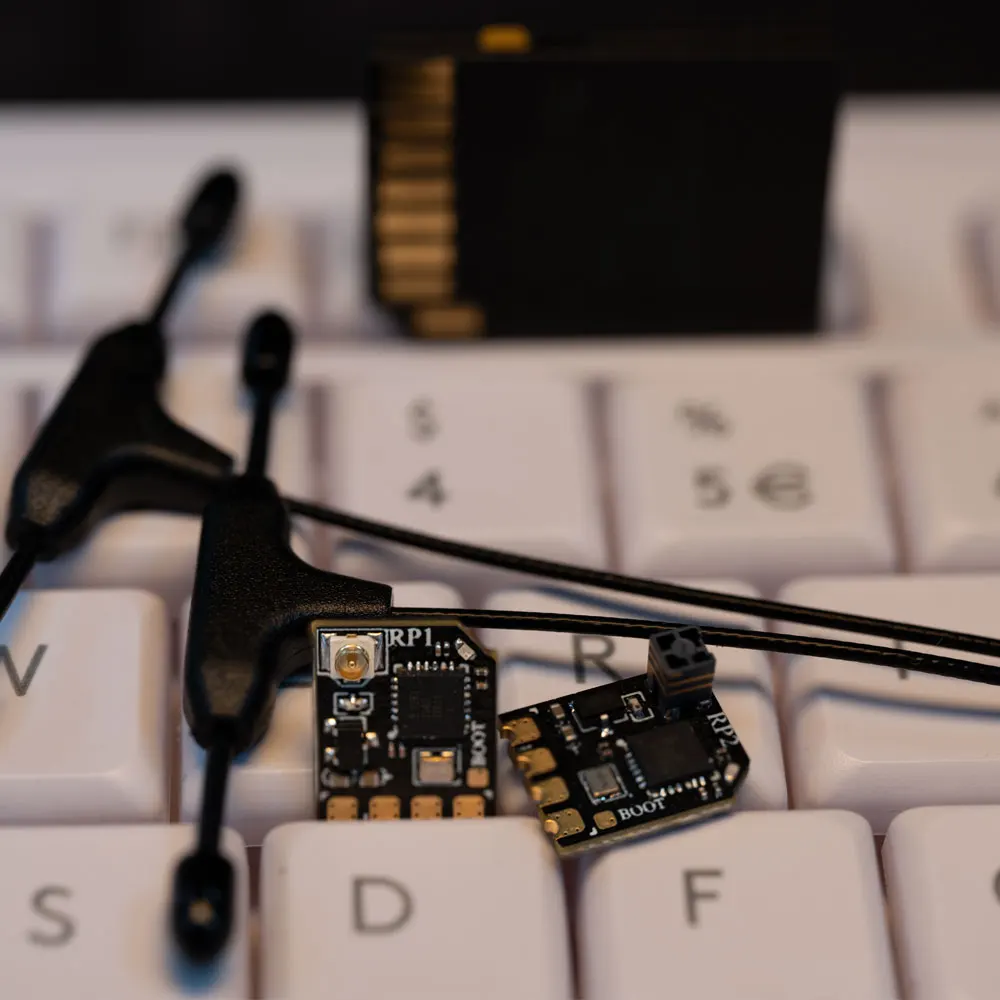

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery. Tiny in size yet big on features and range the RP series of receivers have you covered. What's new on the RP2 Improved PCB design is better for heat dissipation. Solder pads are improved and easier to solder to. LED on top side of PCB.Specifications:Item Name: RP2 Nano ReceiverType: ISM ESP8285 MCU SX1280IMLTRT RF Module Antenna: On Board SMT Antenna Frequency Range: 2400 MHz to 2480 MHz Maximum receive refresh rate: 500Hz /F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.55g Dimension: 13mm*11mm*7mm Item Name: RP1 Nano ReceiverType: ISM ESP8285 MCU SX1280IMLTRT RF Module Antenna: 65mm 2.4ghz T Antenna Frequency Range: 2400 MHz to 2480 MHz Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.53g (without antenna) Dimension: 13mm*11mm*3mm
