Description
Specifications:

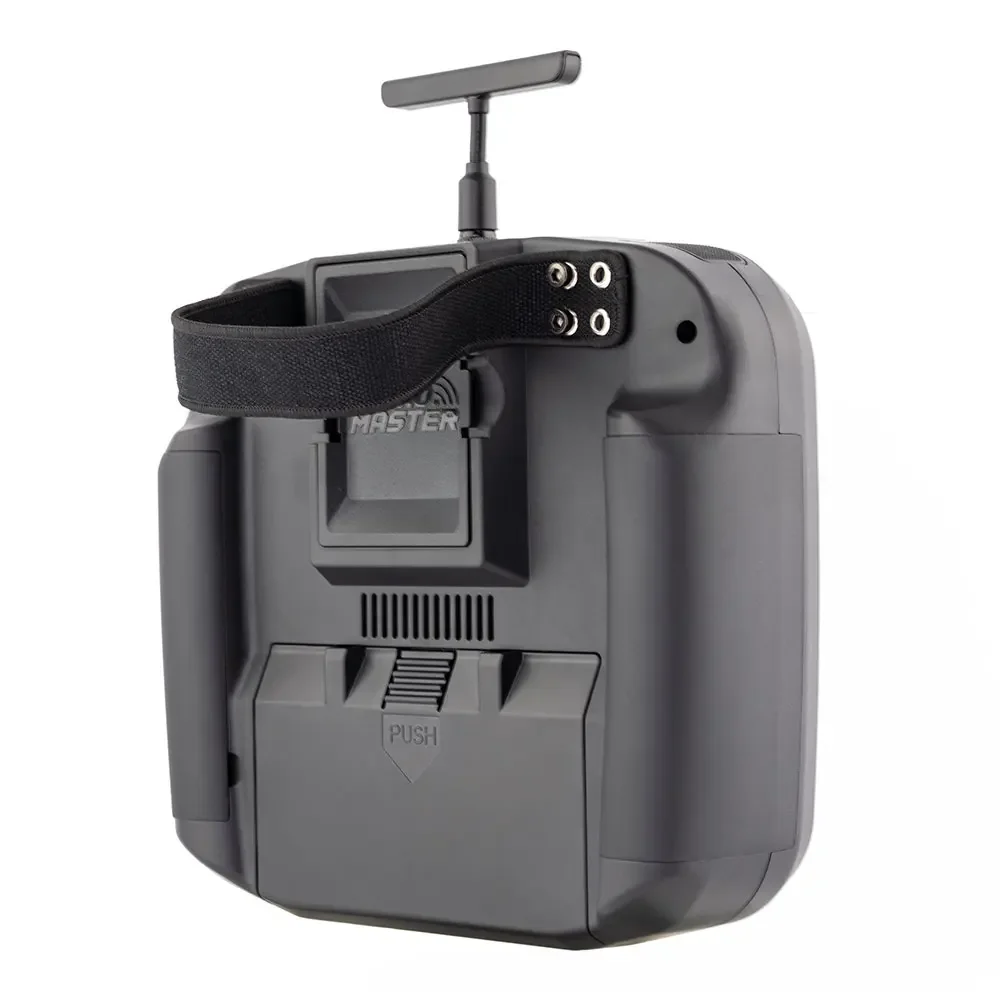

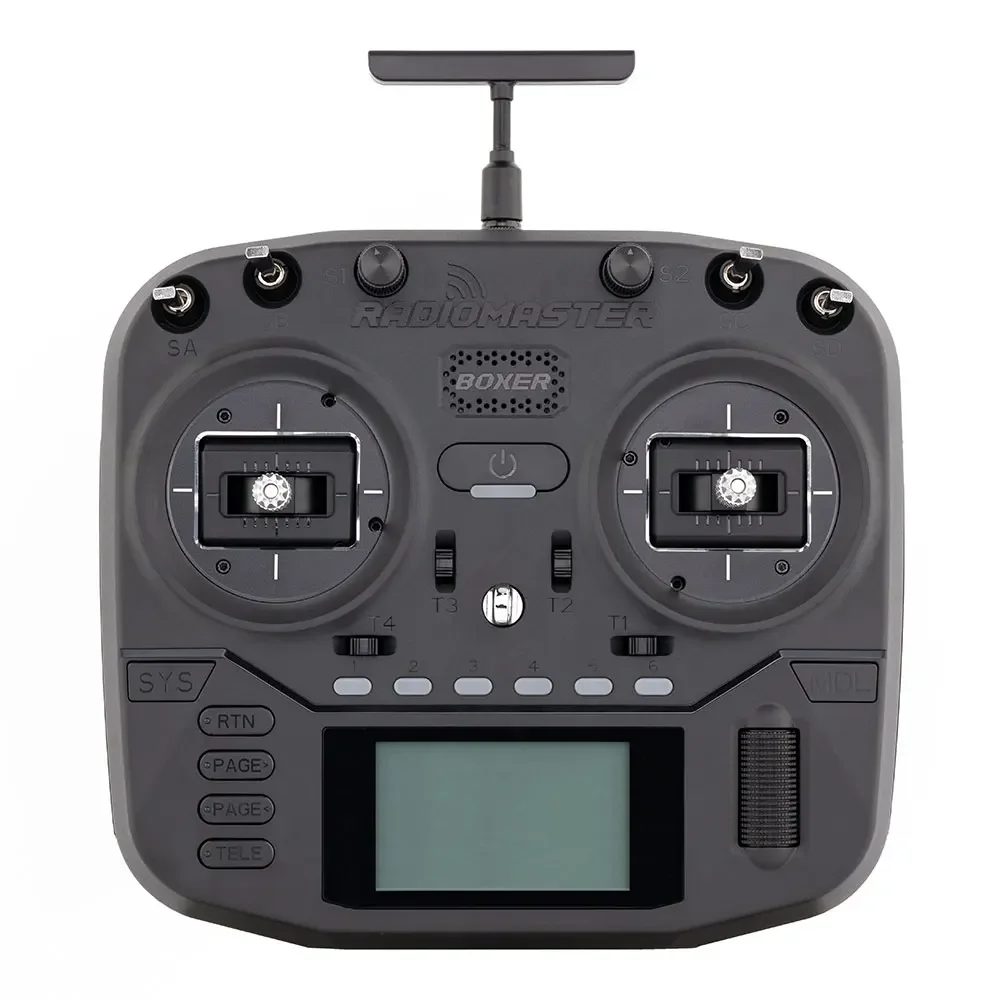

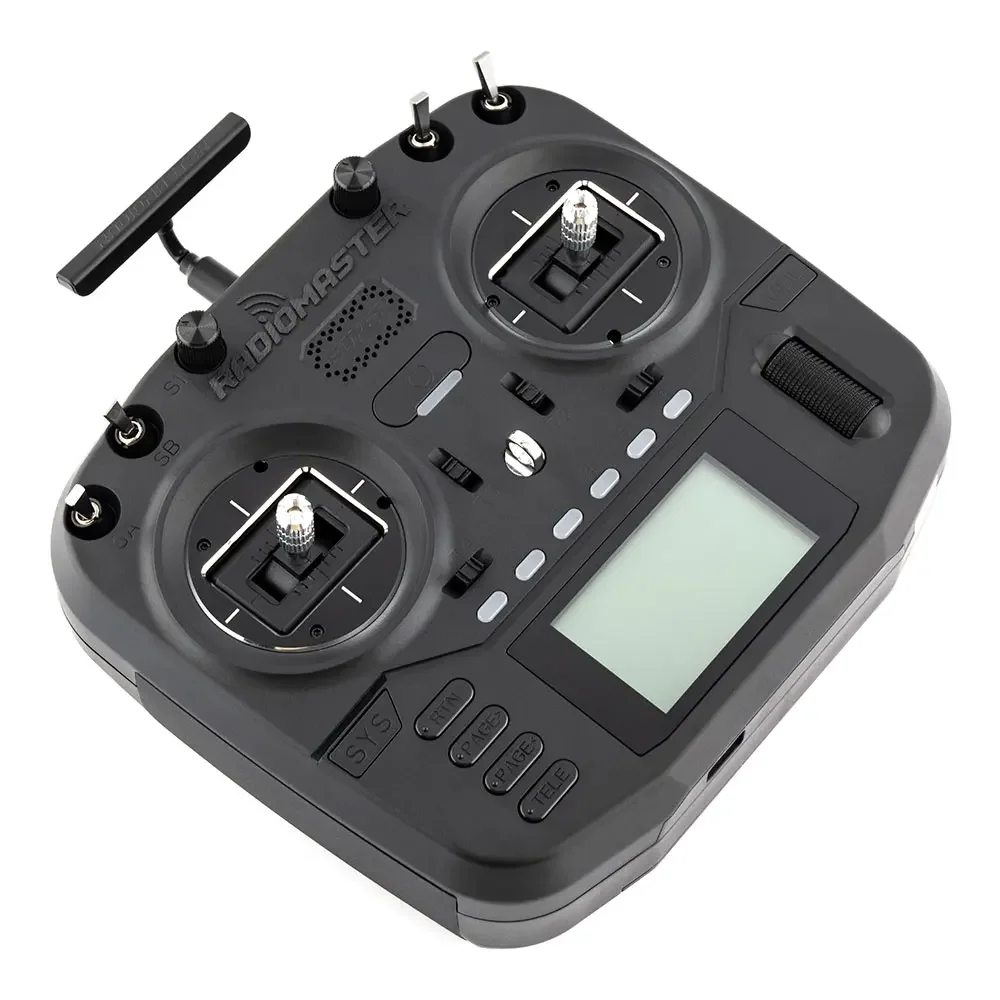

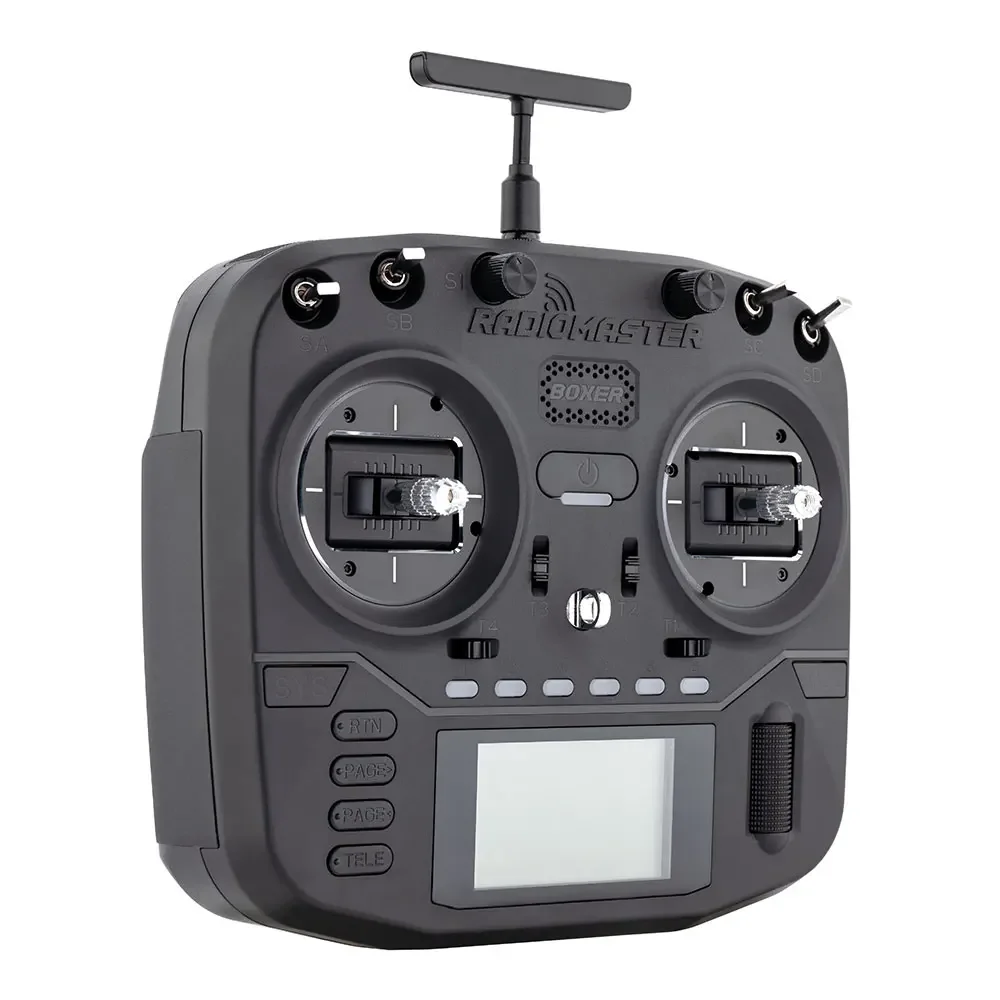

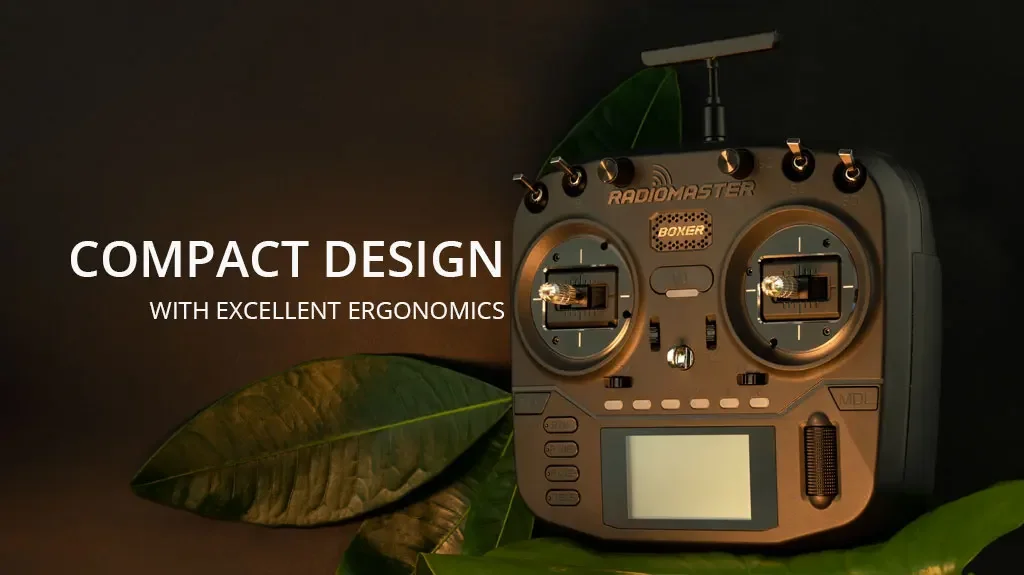

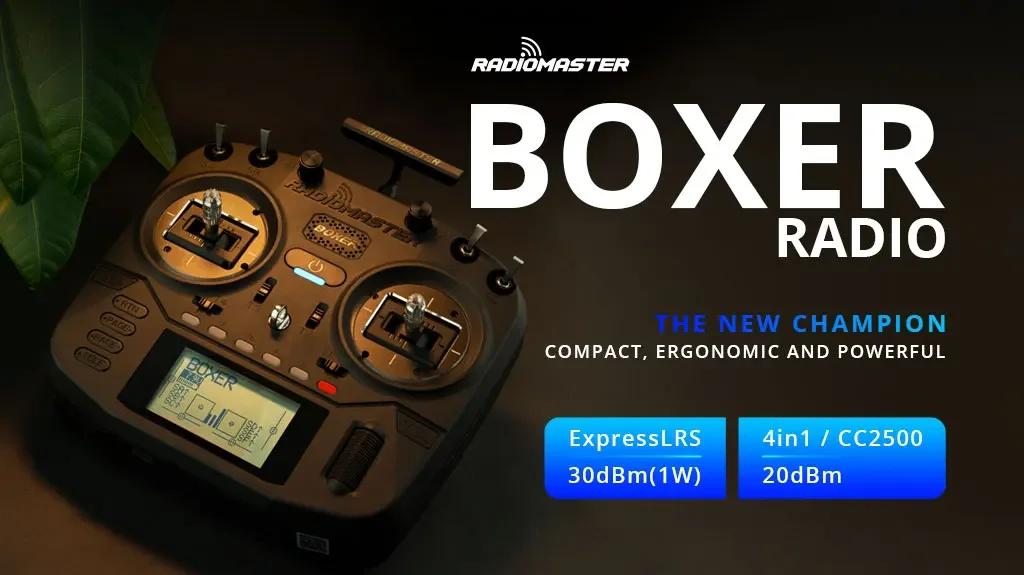

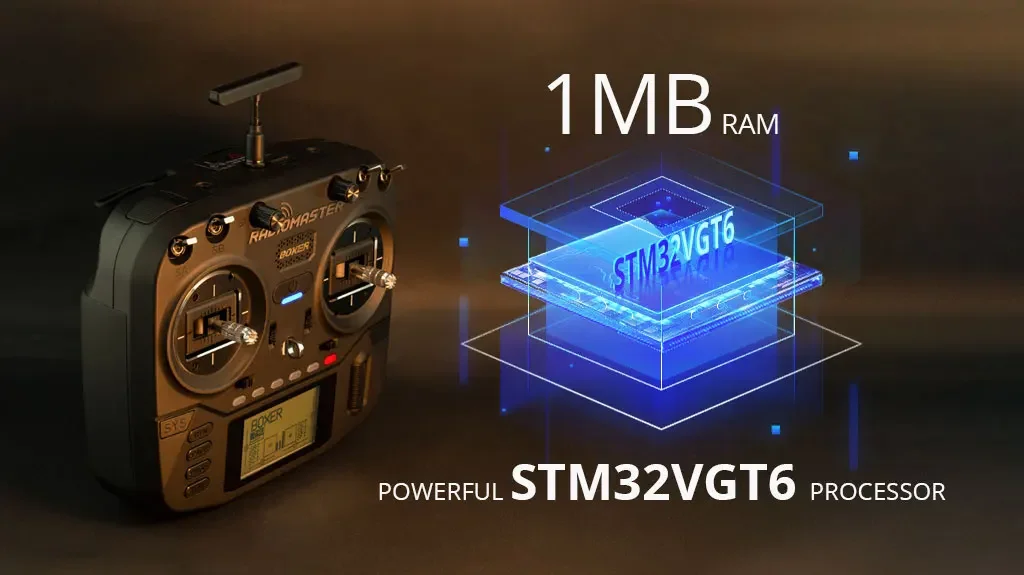

Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol(CC2500 Version)/4-in-1 multi-protocol (4in1 version) / ELRS 2.4GHz (elrs verion)
Supported protocols: Module dependent
Transmitting Power 4IN1 or CC2500 : Max 20dBm
Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)

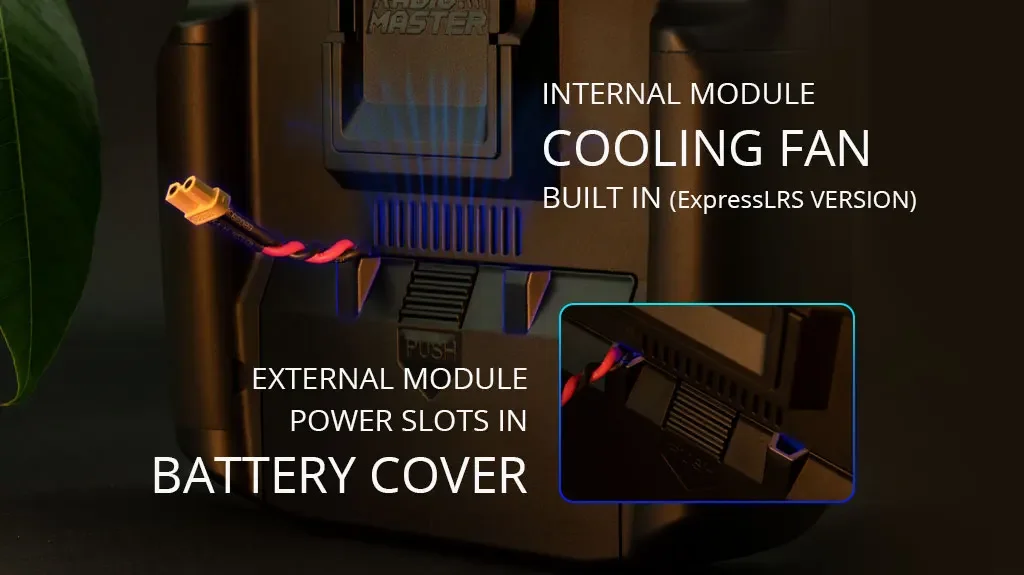

Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC

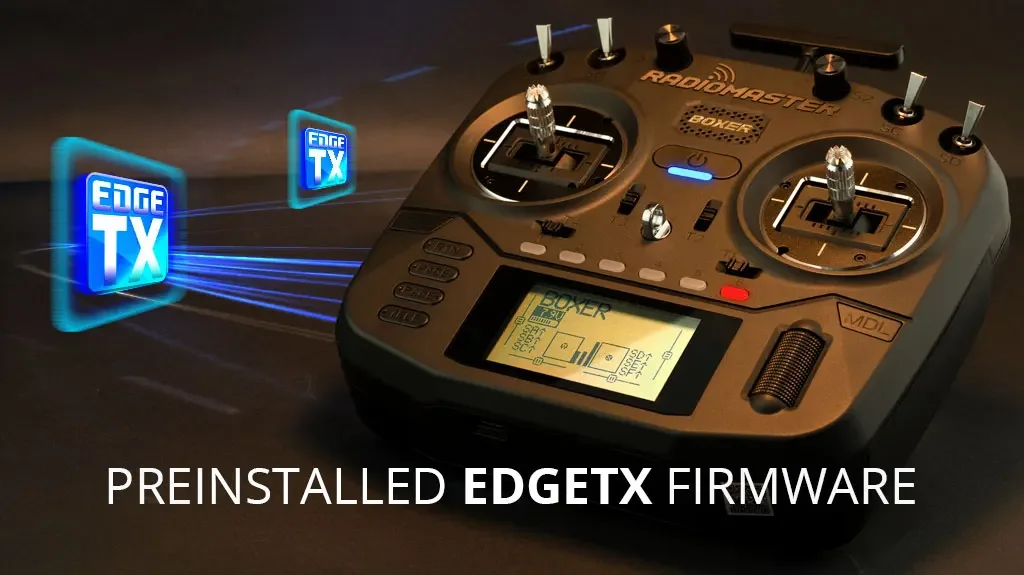

Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) for 4in1 version and CC2500 Version; EdgeTX (Transmitter) / ExpressLRS (RF module) for ELRS Version
Channels: Max 16 channels (Receiver dependent)

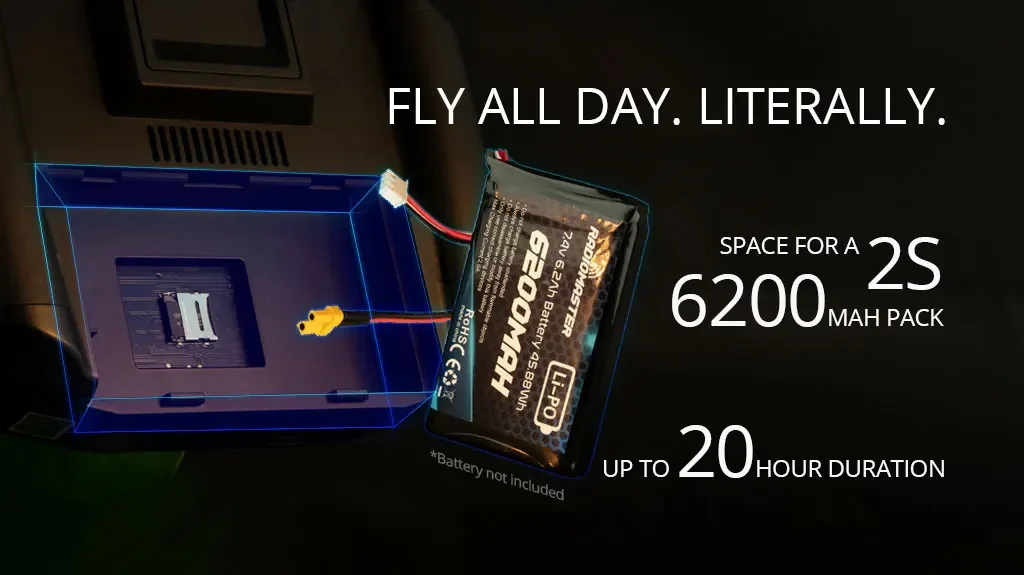

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

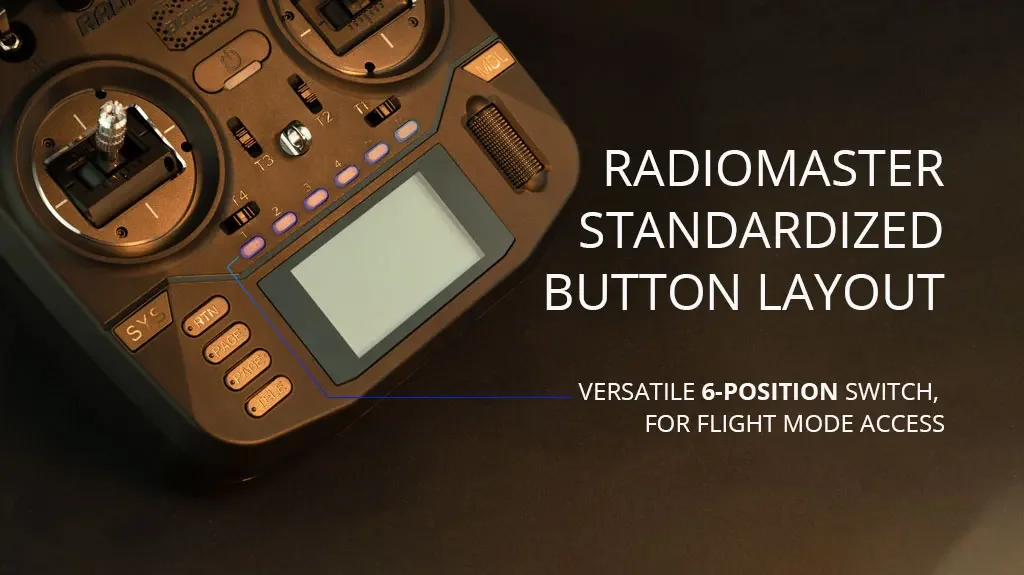

Display: 128*64 Monochrome LCD display

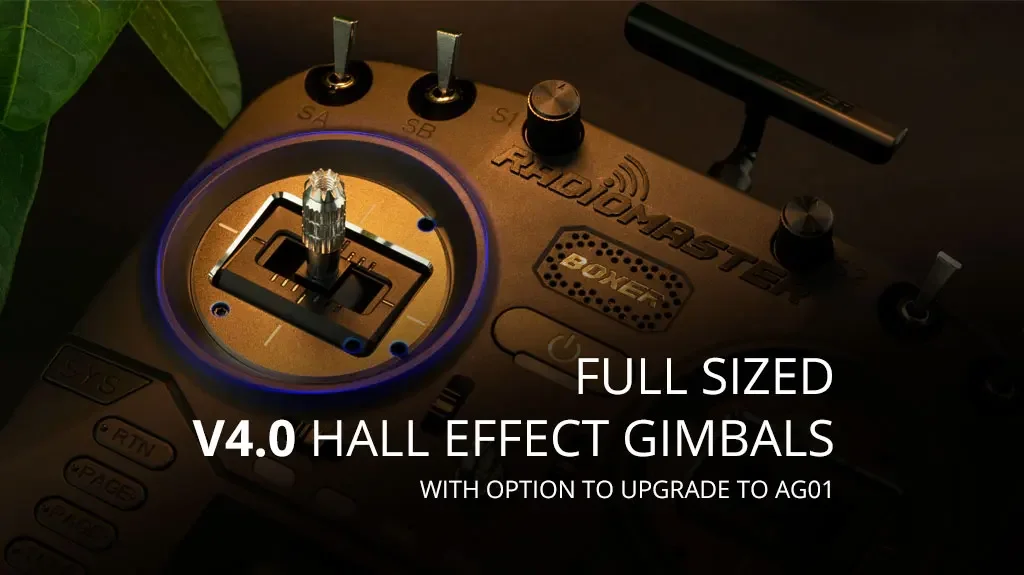

Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

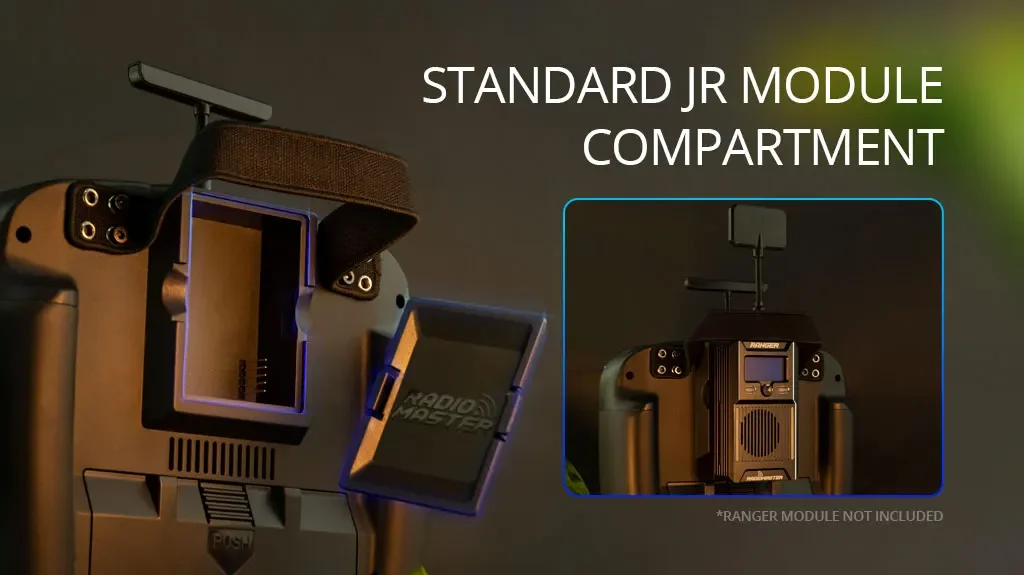

External module: JR / FrSKY / Crossfire compatible

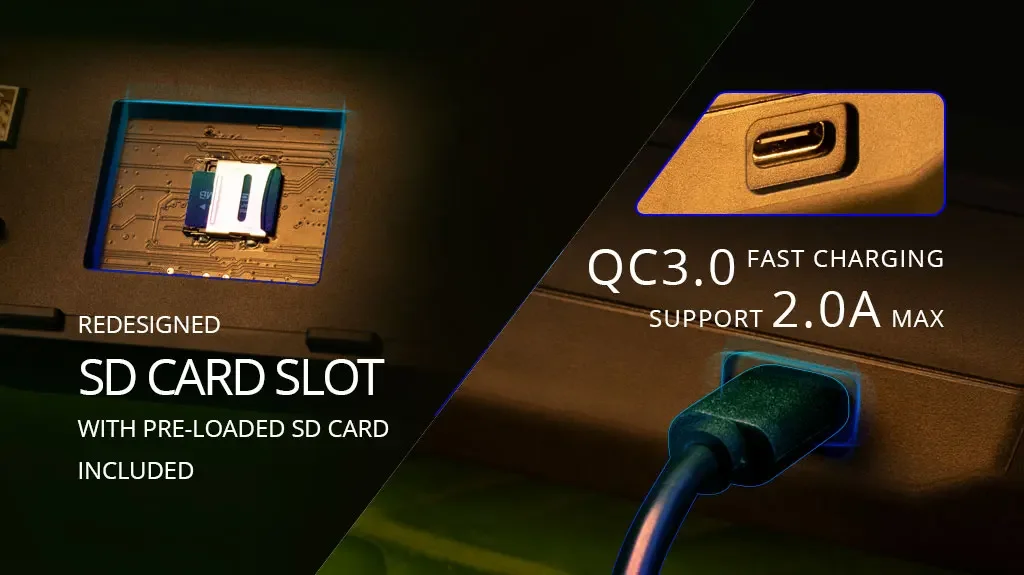

Upgrade Method: USB / SD card & EdgeTX Companion PC software
Package
1 * BOXER Radio

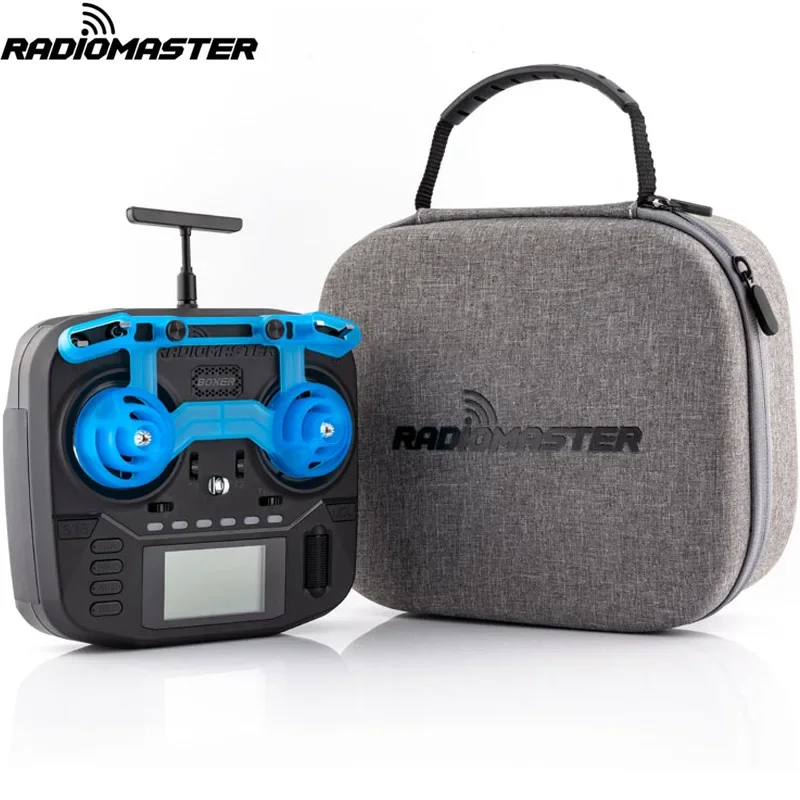

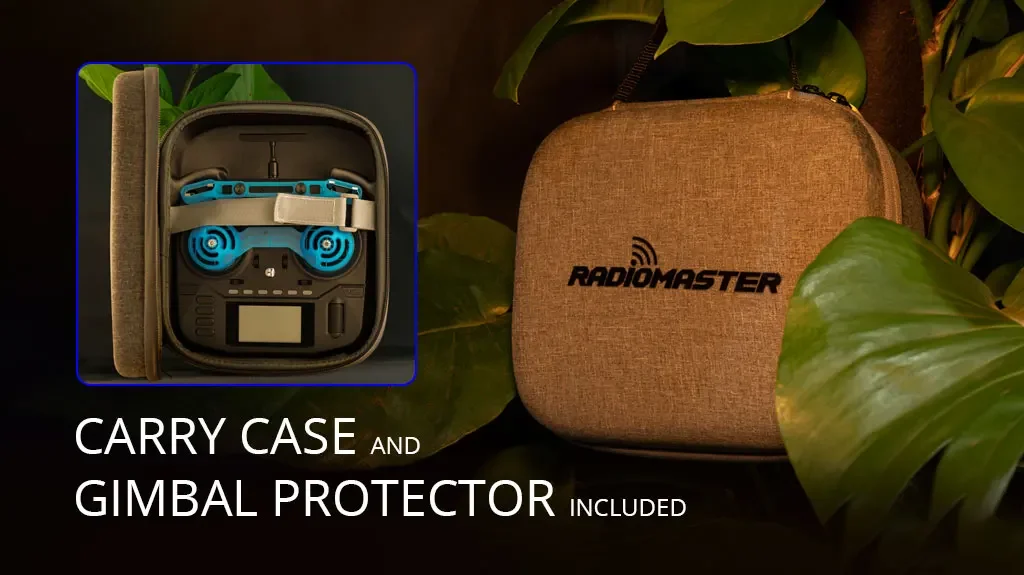

1 * Signature Carry Case

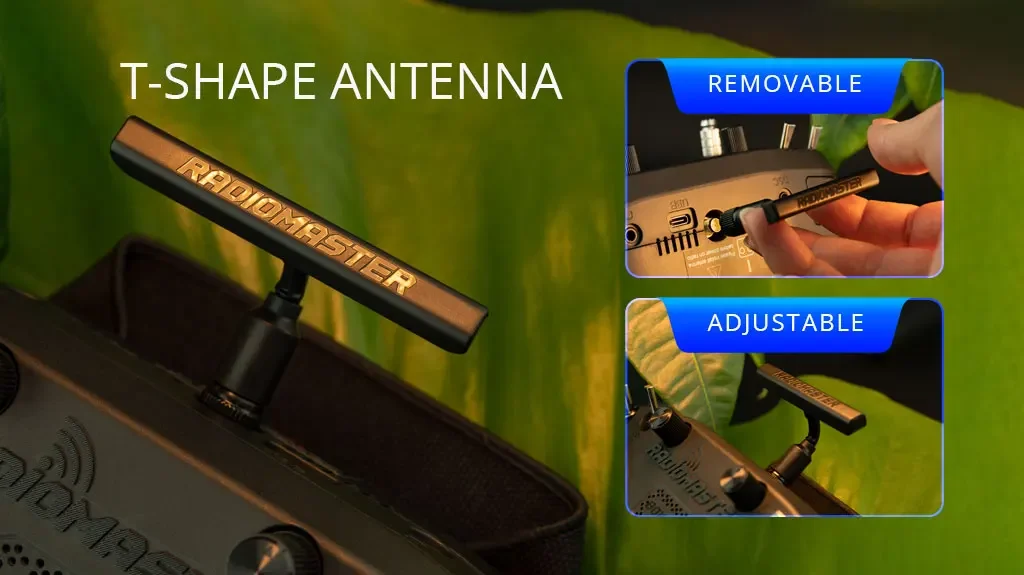

1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual
1 * 18650 Battery tray (Batteries not included)
Notes:
CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
