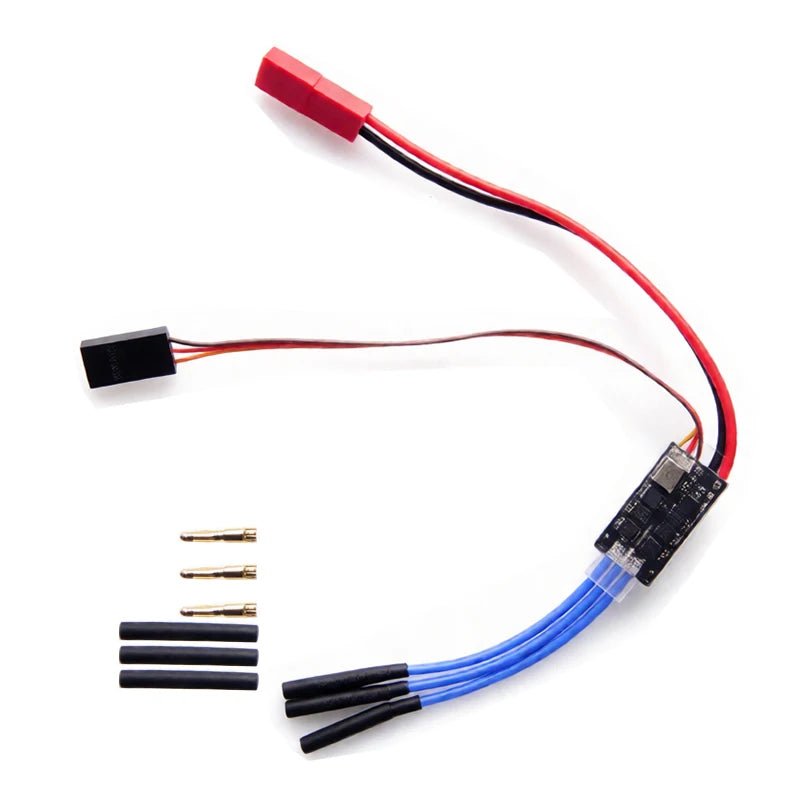

MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 2
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 3
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 4
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 5
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 6
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 7
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 8
MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector - Image 9
FPV Gear

MX-12A Brushless Speed control ESC F3P flight with BEC 2-3S working voltage light BLS four types receiver connector

Price range: $5.50 through $12.50

Description: MX-12A-Lite Brushless ESC Maximum continuous current: 12A Operating voltage range: 2S-3S (7.4V~11.1V) PCB dimensions: 12mm (W) * 22mm (L) * 3.2mm (H) Weight: 4.13g (with leads/wires) There are four options for the connector on the receiver side: MX1.25mm, SH1.0mm, ZH1.5mm, and JR-type plug. The power end uses a red JST connector. The firmware is […]

All Prices Include Import Tax & VAT
Ships from supplier warehouse · Usually within 3 business days

Add $29.00 more for FREE shipping!

Category: , , ,
Free shipping over $29ZoneFPV-style store promise for FPV buyers.
Secure checkoutCart and payment remain handled by WooCommerce.
FPV-focused catalogDrones, parts, power and radio gear grouped for builders.

Buying Notes

Product FAQ

Product Details

Description

Description:

MX-12A-Lite Brushless ESC

Maximum continuous current: 12A

Operating voltage range: 2S-3S (7.4V~11.1V)

PCB dimensions: 12mm (W) * 22mm (L) * 3.2mm (H)

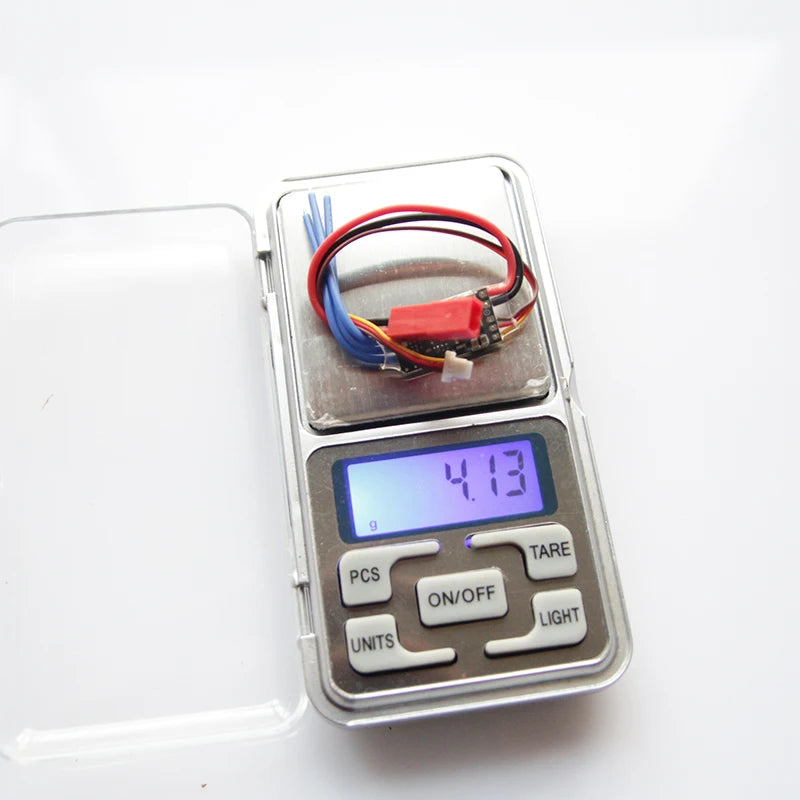

Weight: 4.13g (with leads/wires)

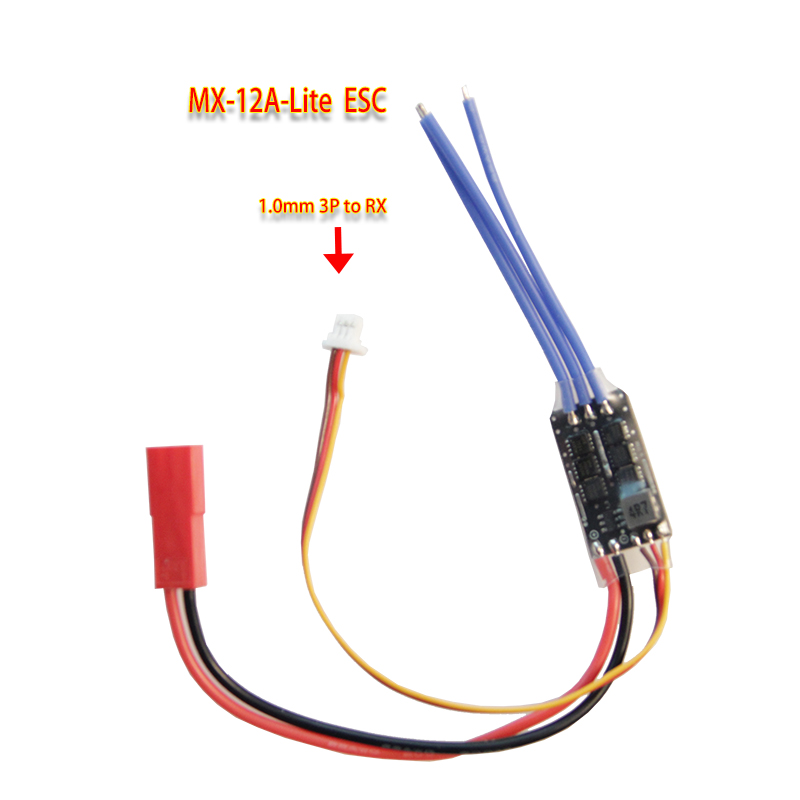

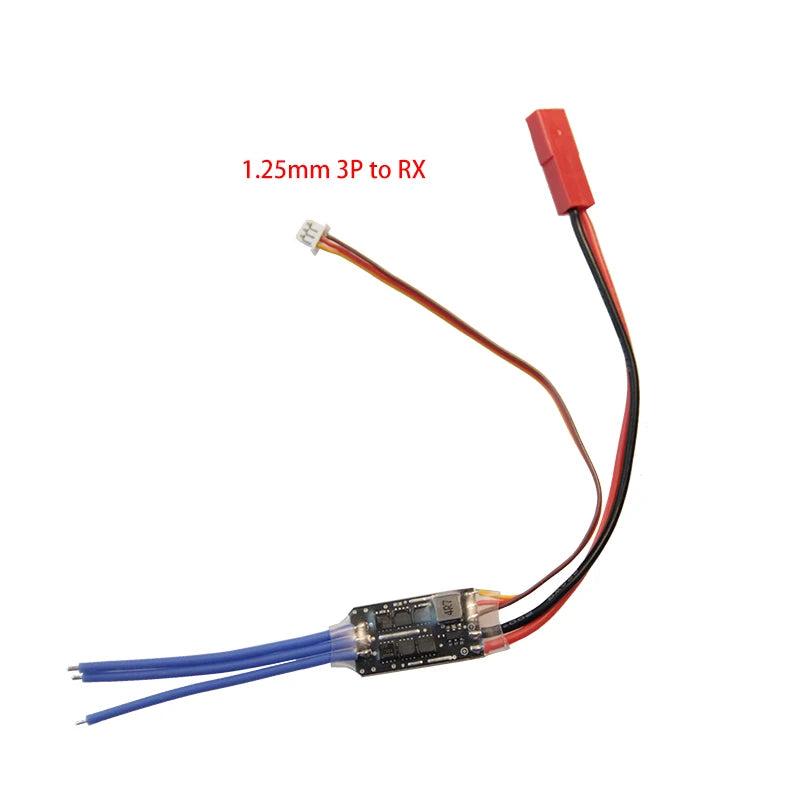

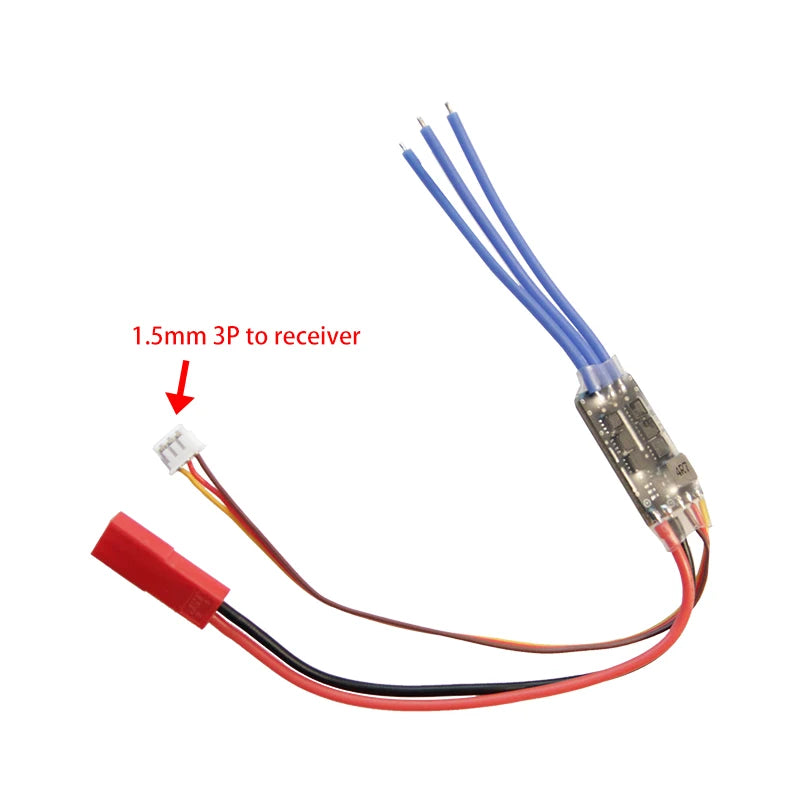

There are four options for the connector on the receiver side: MX1.25mm, SH1.0mm, ZH1.5mm, and JR-type plug.

The power end uses a red JST connector.

The firmware is BLS.

For usage, when powered by a 2S battery, the brushless motor’s KV rating should preferably be 7500KV or lower.

When powered by a 3S battery, the brushless motor’s KV rating should preferably be 5000KV or lower.

Of course, this also relates to the propeller size.

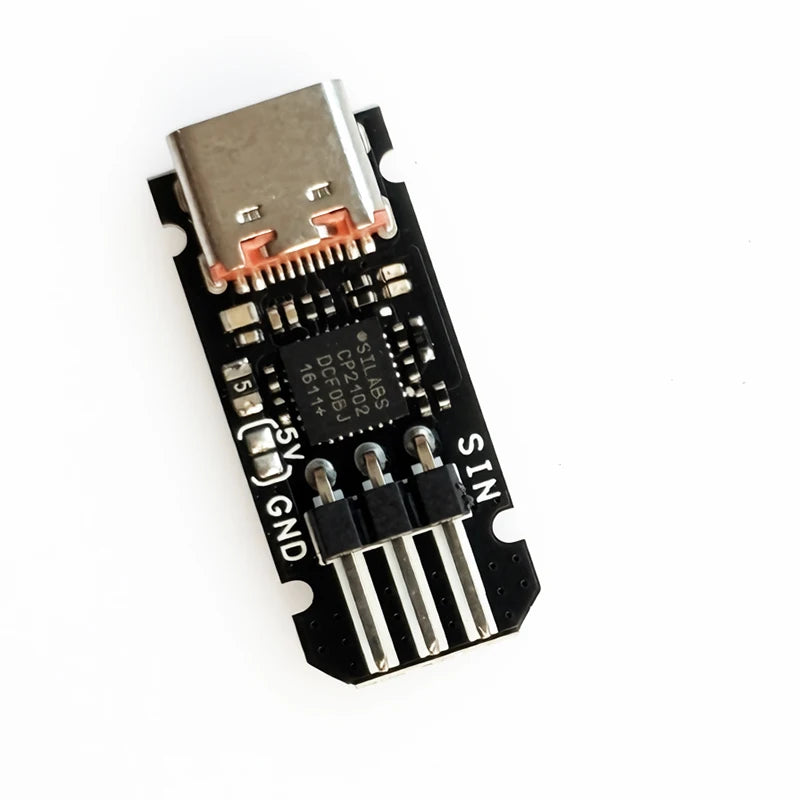

If you have purchased the MX-12A ESC, please note that this ESC does not come with the programmer PG03. If you need the programmer, please purchase it separately. The details of the programmer (PG03) are as follows:

window.adminAccountId=202194285;

Product Details

Additional information

color

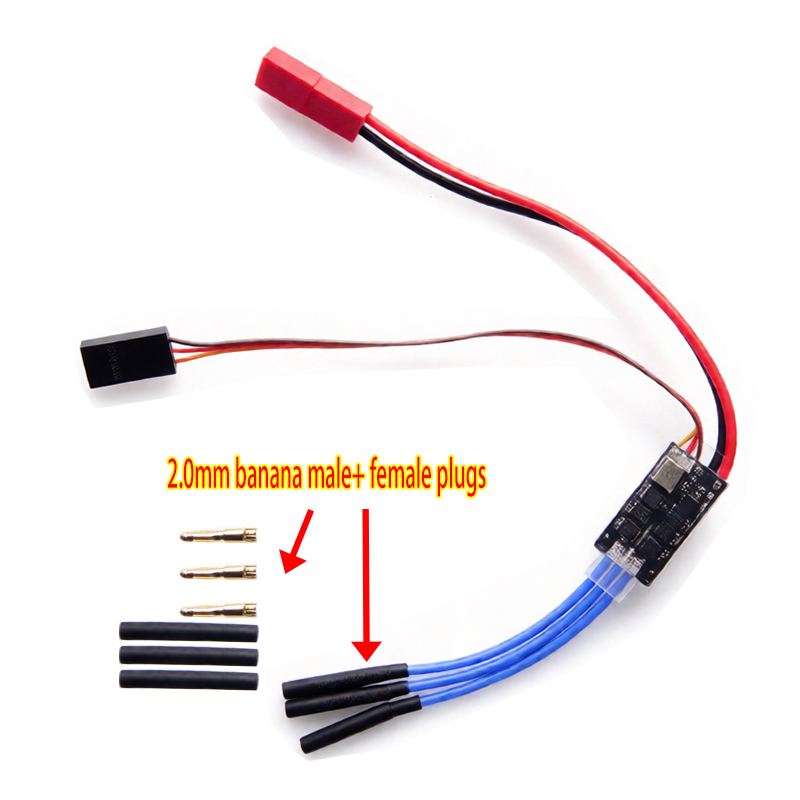

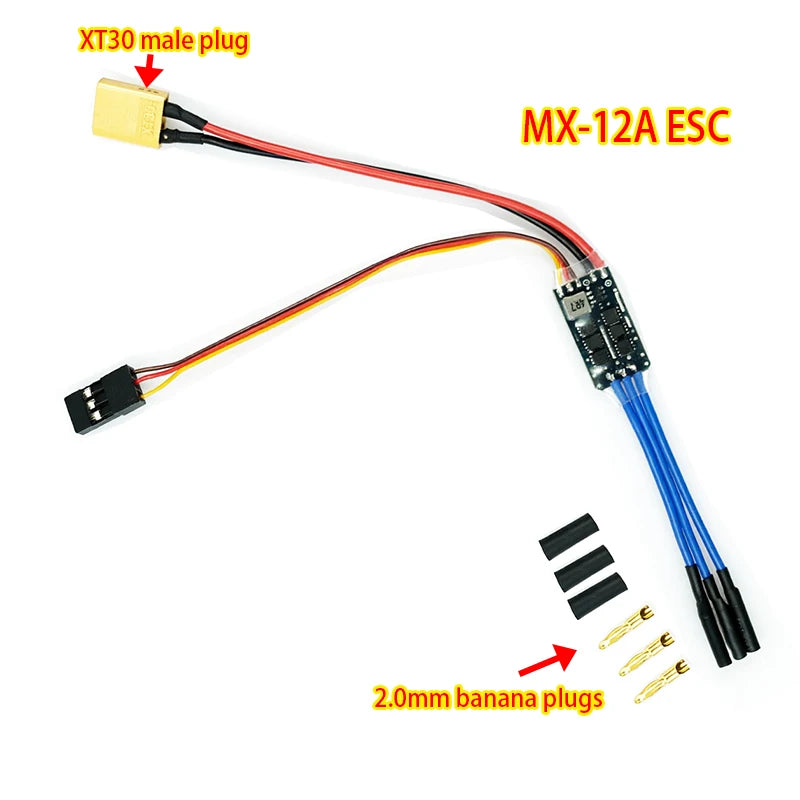

ESC with JR, ESC with 1.0mm, ESC with 1.25mm, ESC with 1.5mm, with JR 2.0mm plugs, Program Tool, with JR 2.0mm XT30
