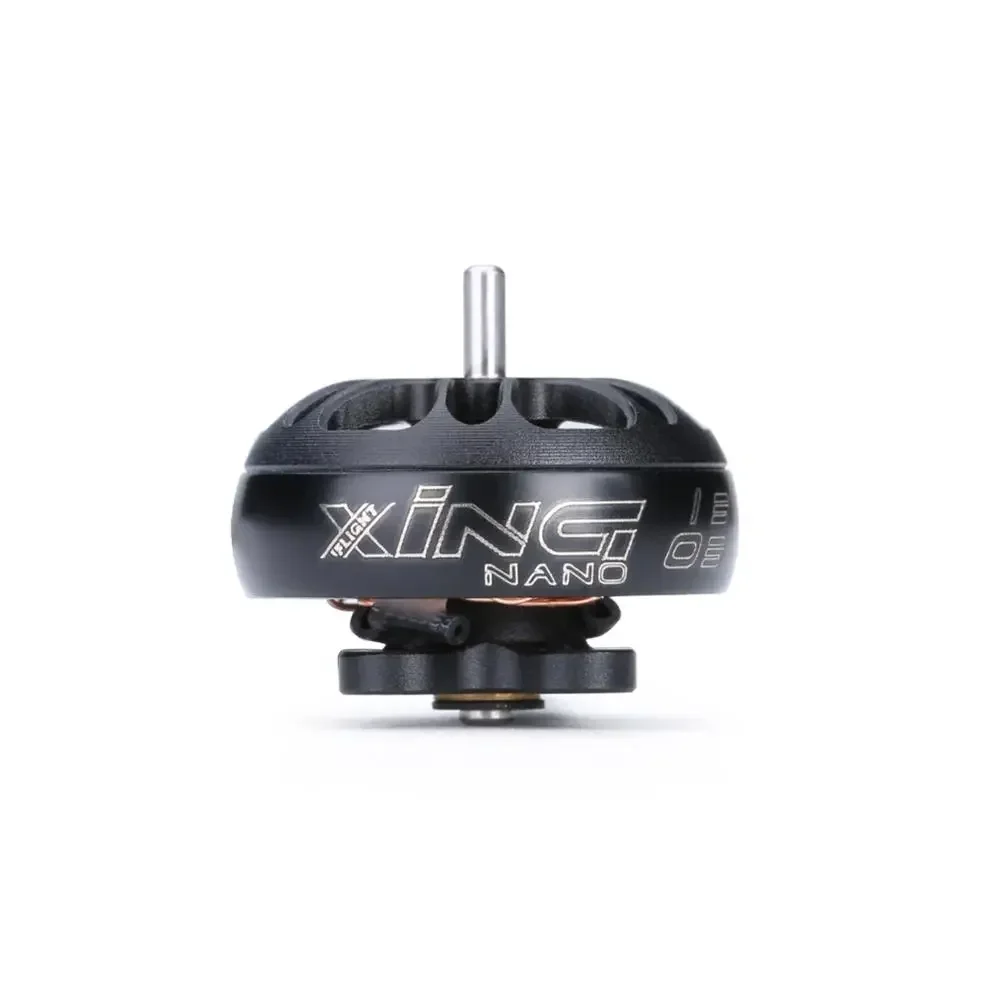

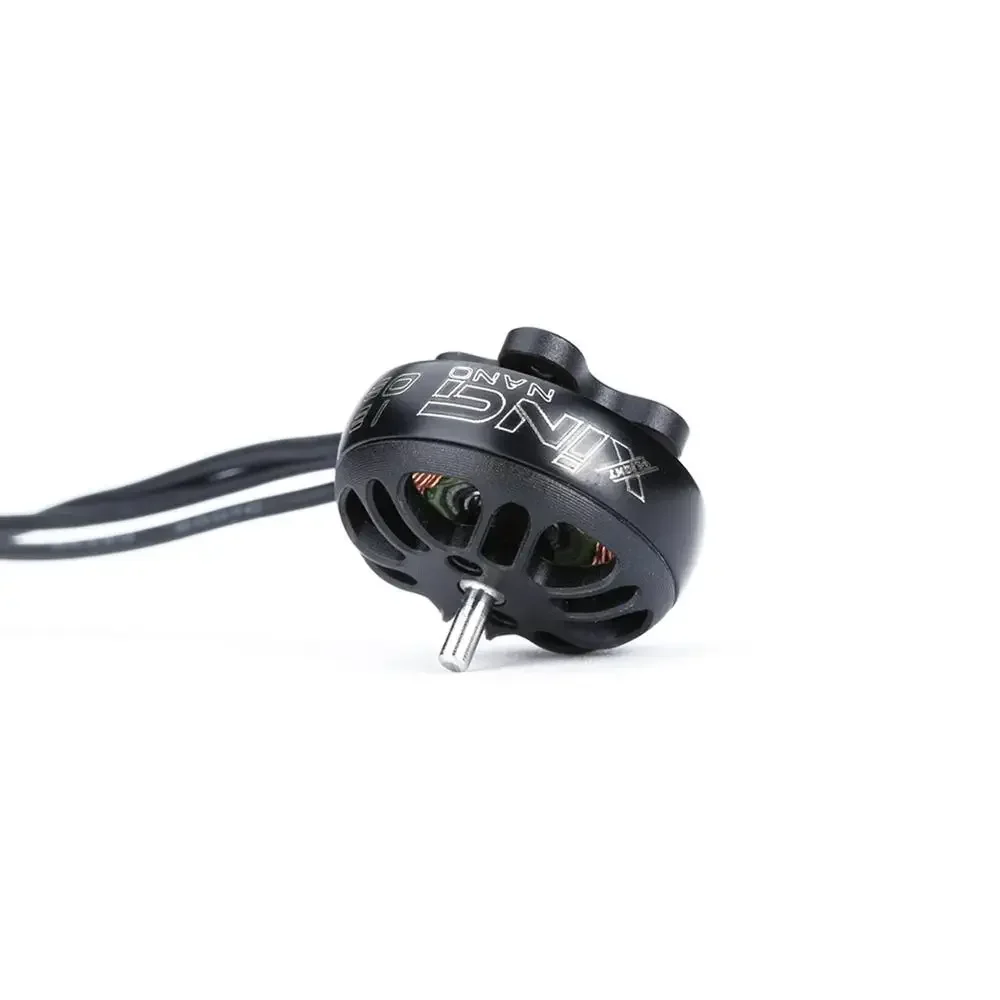

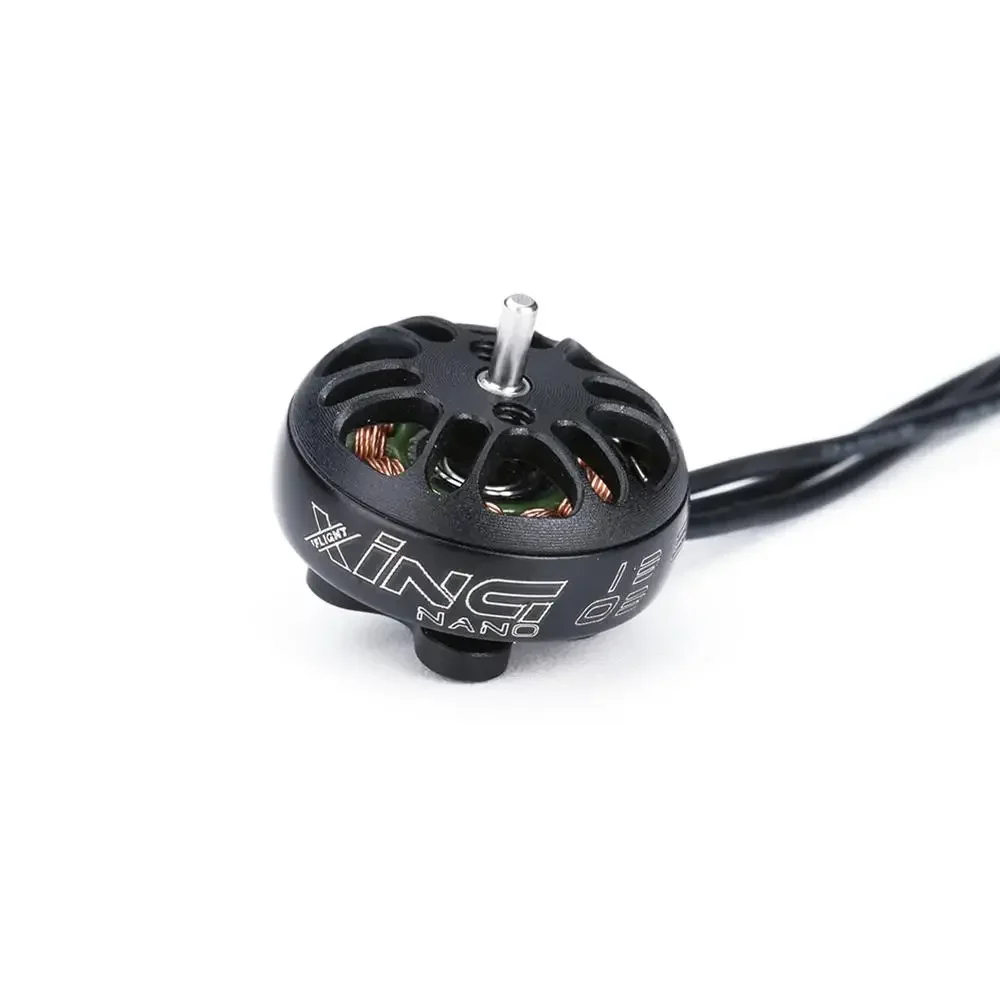

IFlight XING 1303 5000KV 2-4S FPV Micro Brushless Motor with 1.5mm Shaft Compatible 2 Inch Propeller for RC FPV Whoop Drone

+ Free Shipping

Availability: 632 in stock

Contact Us on WhatsApp

IFlight XING 1303 5000KV 2-4S FPV Micro Brushless Motor With 1.5mm shaft compatible 2 inch propeller for FPV whoop Drone
XING 1303 brushless motors are customized for 3~4S brushless whoop drone.

Super durable and ultra-light with only 6.5g on short wires.

Whatever frame you put these motors on, you’ll have your mind blown!

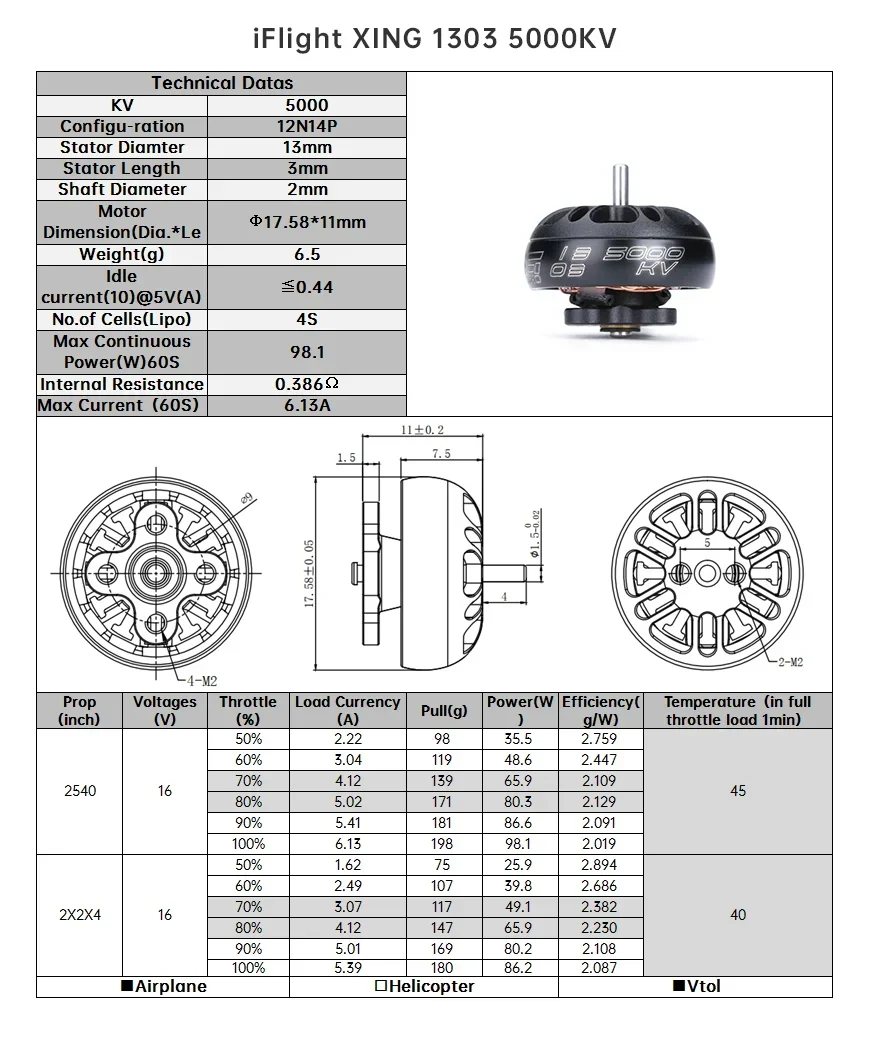

Specifications
Model: XING 1303

KV: 5000KV

Input Voltage: 3-4S

Dimension: Ф17.58*11mm

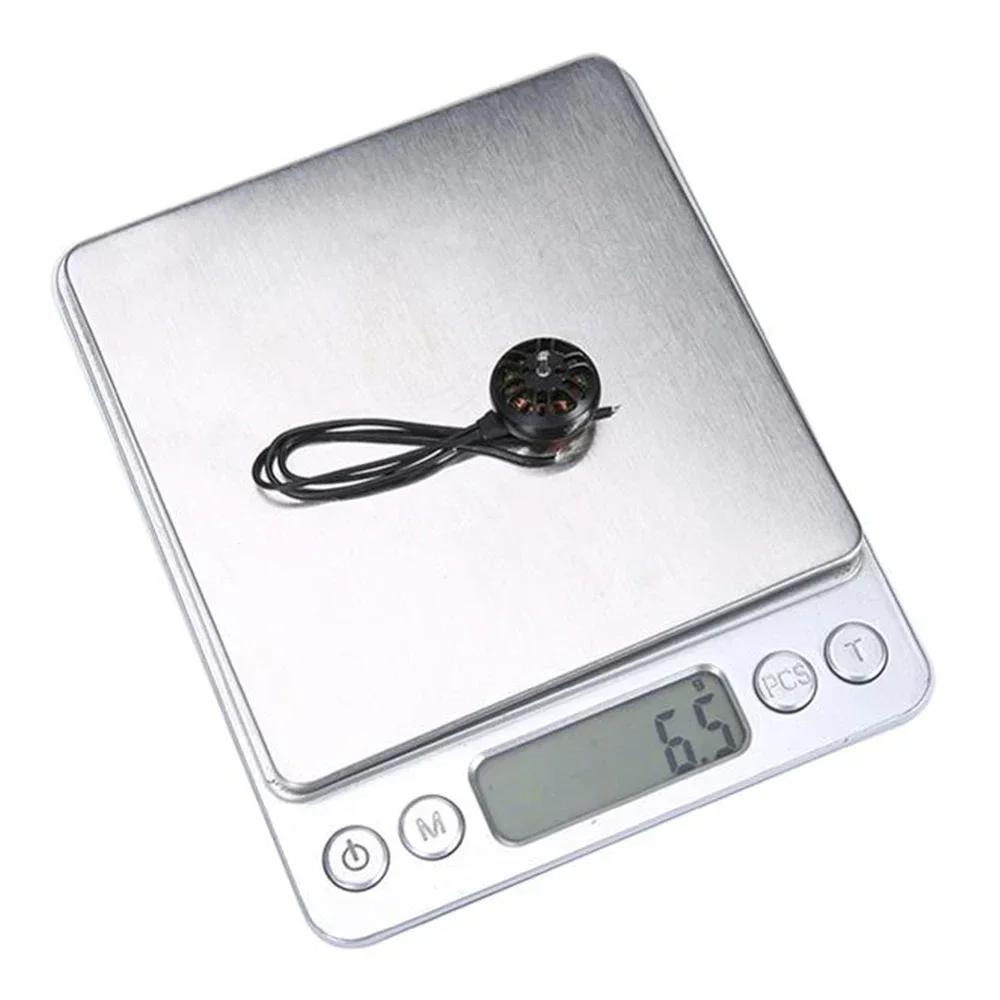

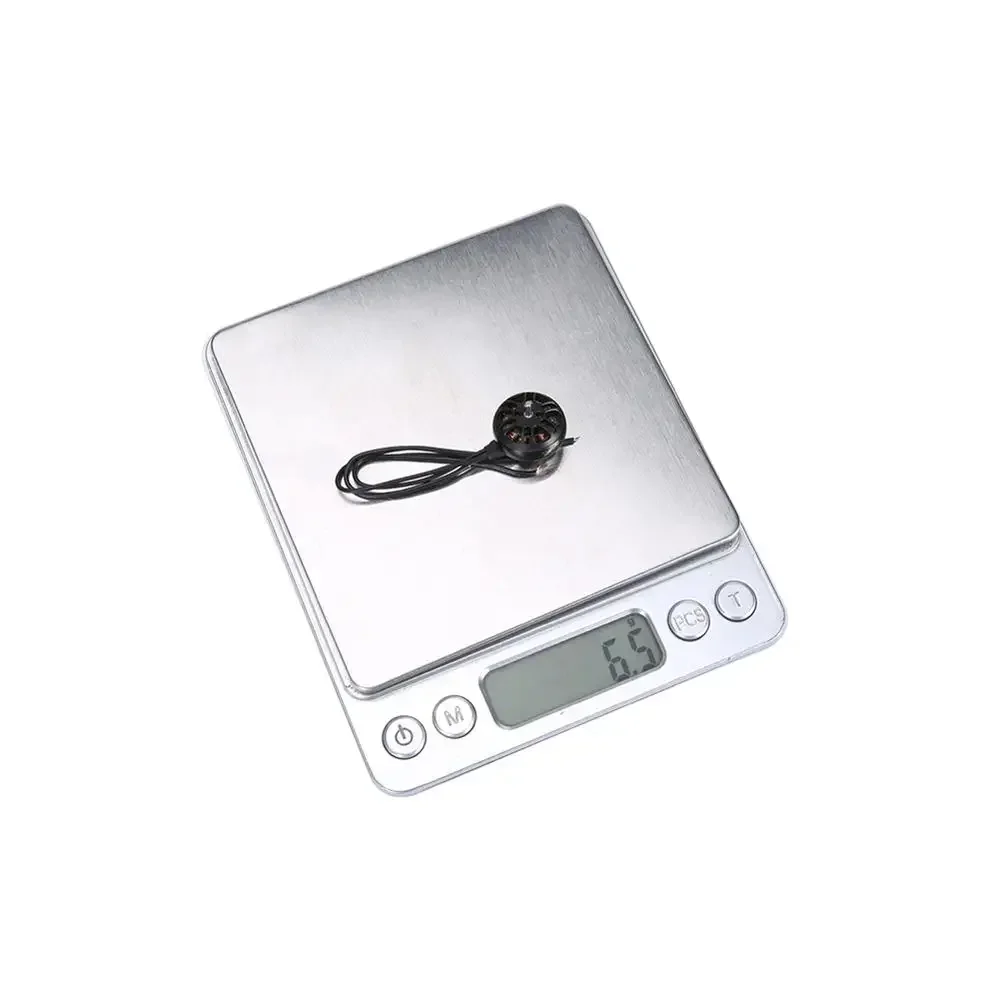

Weight(included wire): 6.5g

Interphase Resistance: 386mΩ

Peak Current: 6.13A

Max Watt: 98.1W

Mounting Holes: 9*9 φ2mm

Shaft Diameter: 1.5mm

Shaft Protruding Length: 4mm

Magnet: N52H Curved

Configuration: 9N12P

Bearing Type: NSK

Winding: Single Strand copper winding
Packing List
1 x XING 1303 Motor

4 x M2*5 screws

4 x M2*7 screws

Weight 0.023 kg
Dimensions 17 × 14 × 2 cm
Hign-concerned Chemical

None

Is Electric

No Battery

Quantity

1 pcs

Wheelbase

Bottom Plate

Is it battery/power supply

N

Is it charger/adapter

N

Is Batteries Included

No

Size

NA

Technical parameters

KV1100

Model Number

IFlight XING 1303

For Vehicle Type

Airplanes

Tool Supplies

Assembled class

Four-wheel Drive Attributes

Assemblage

Remote Control Peripherals/Devices

ESC

Upgrade Parts/Accessories

XING 1303 5000KV

RC Parts & Accs

Brushless Motor

Material

Metal

Origin

Mainland China

Recommend Age

14+y

Use

Vehicles & Remote Control Toys

Certification

CE
