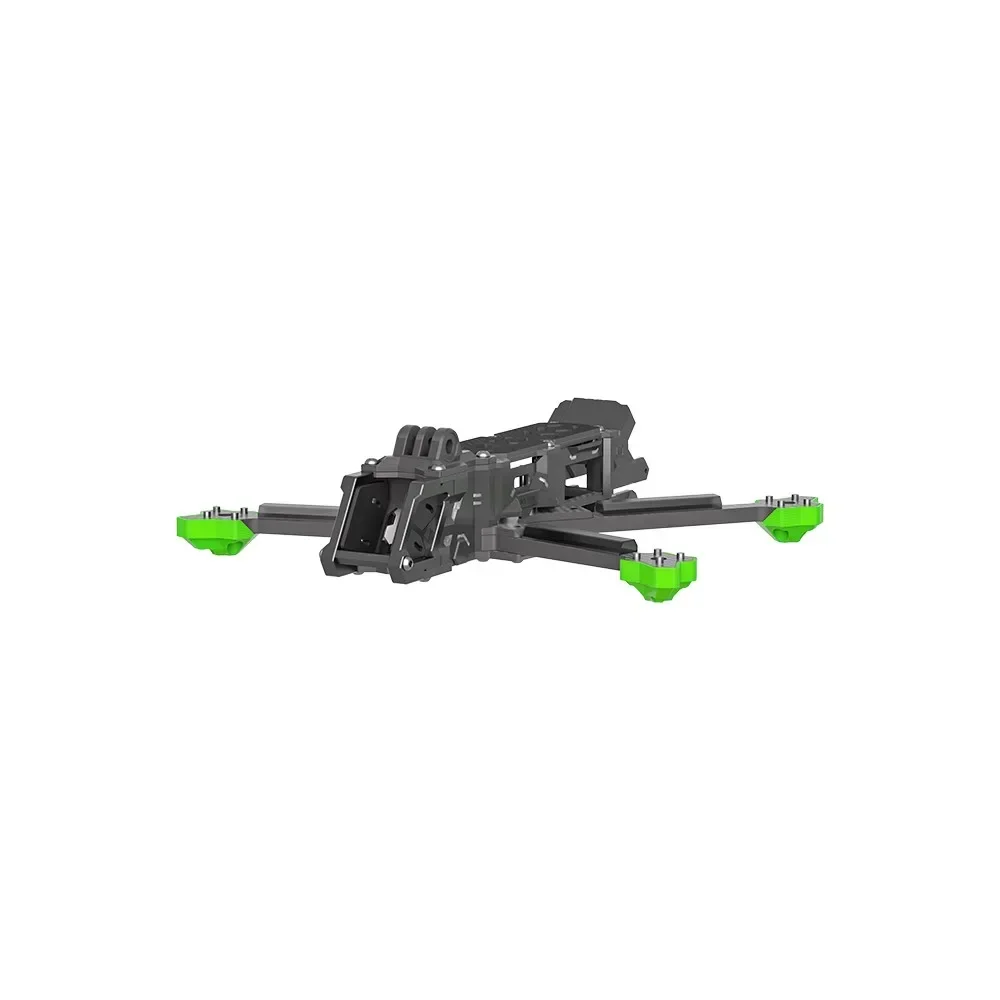

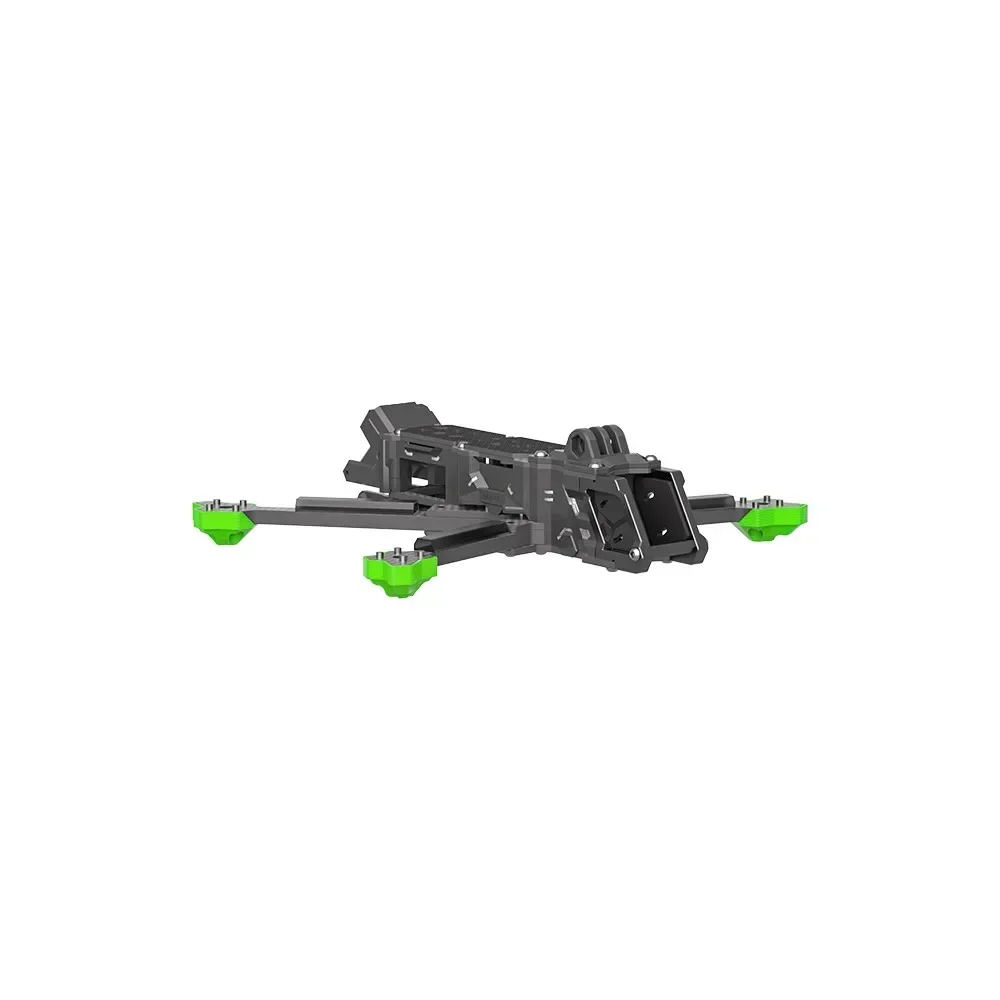

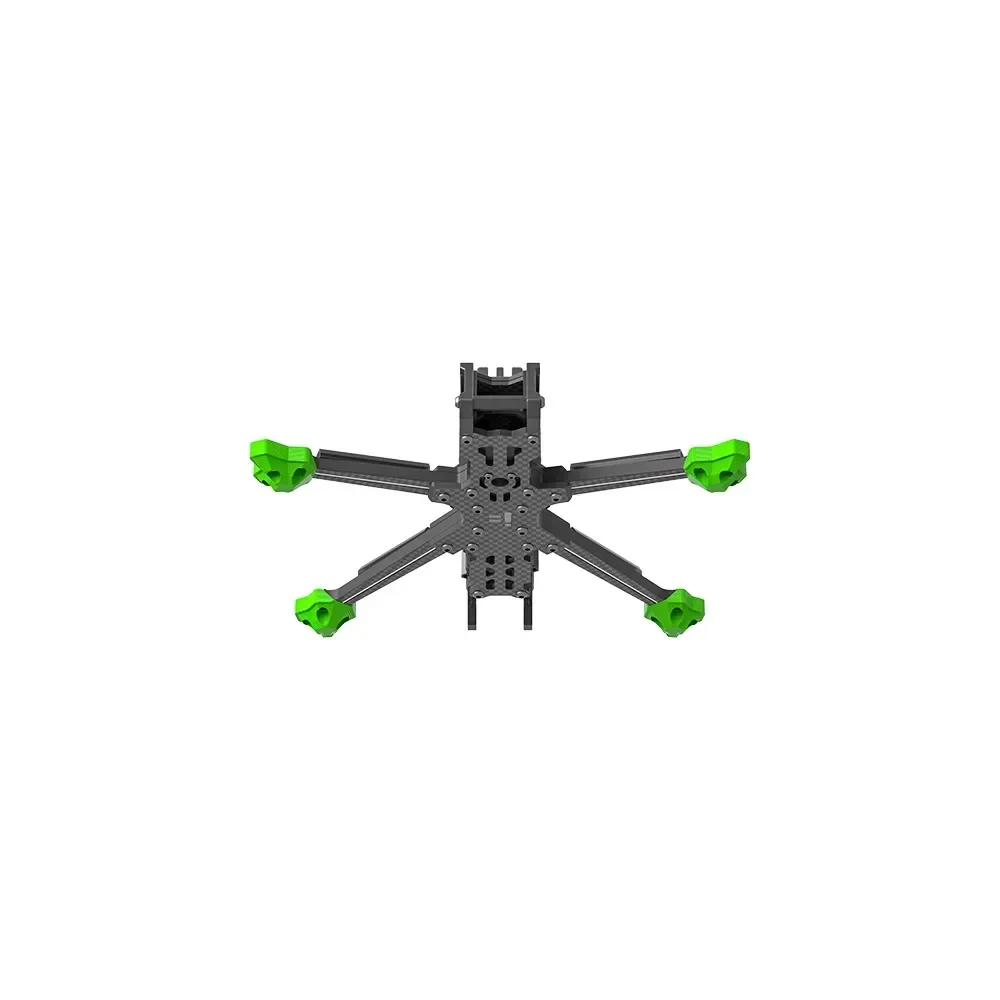

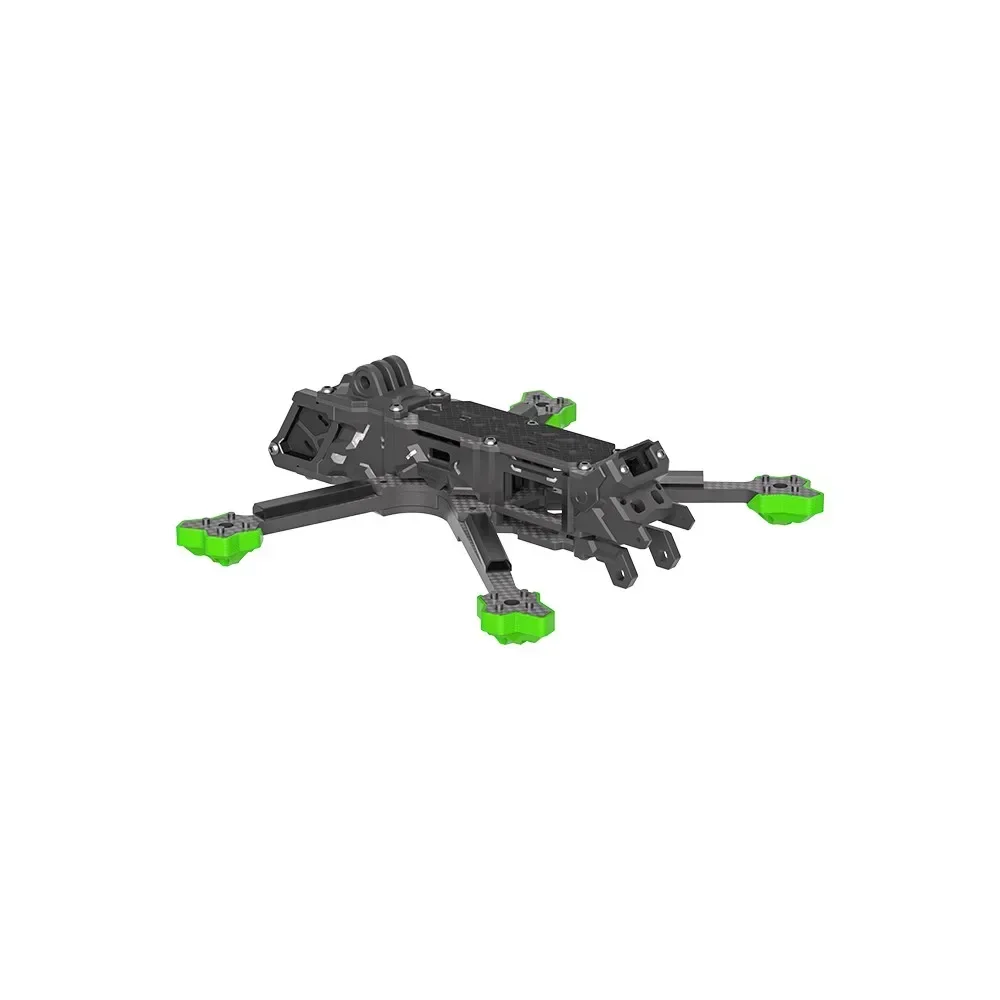

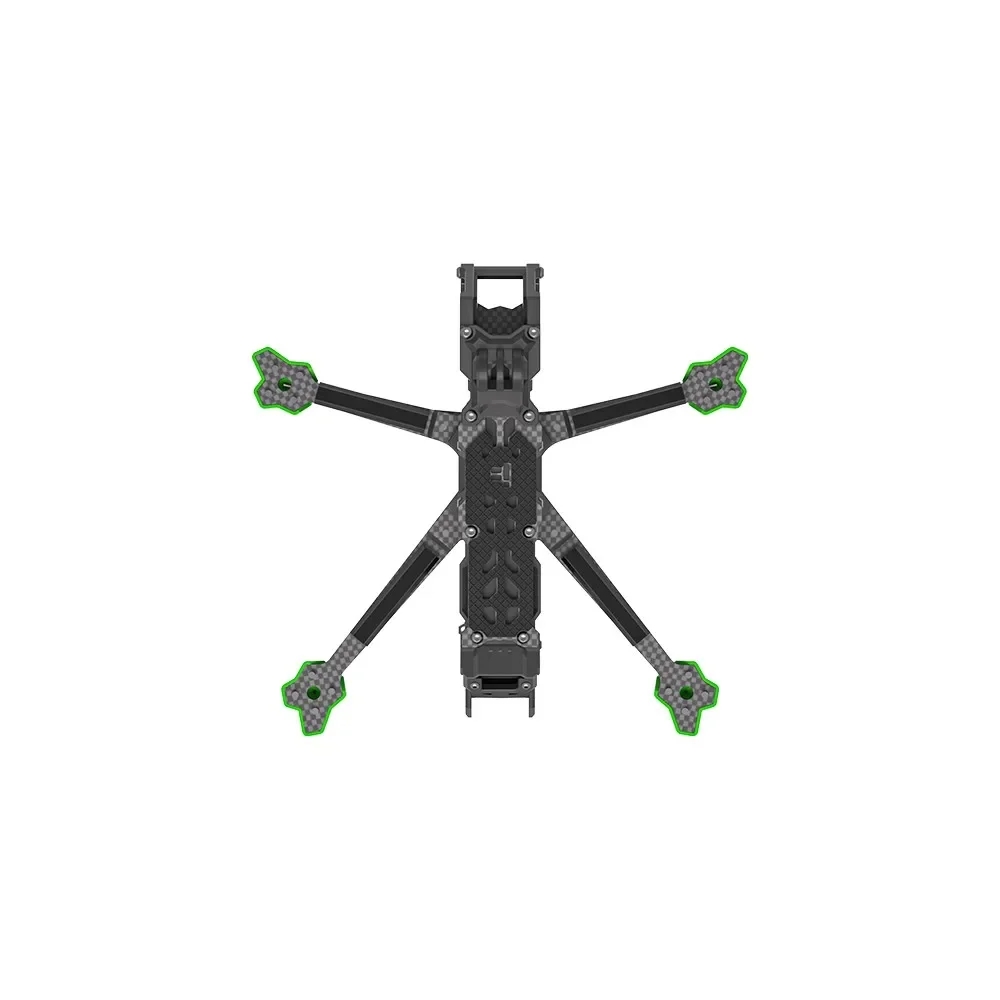

IFlight Nazgul Evoque F5D V2 O4 Frame Kit

Description
Say goodbye to dirty electronics after every crash! Our innovative frame minimizes contamination on your flight controller and ESCs, helping to prevent failures and short circuits. Designed with strategic airflow for superior cooling and cleanliness, it delivers outstanding performance without compromising weight. Compatible with the DJI O4 Pro Air Unit, it features illuminated side panels and 360-degree TPU protective parts, providing enhanced protection and versatility for your flying experience.
Features
O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
New Camera Mount for DJI O4 Pro Air Unit
New Silicone side panels
Different Screws
Specificaitons
Product Name: Evoque F5 V2 O4 Frame Kit
Frame wheelbase: 223mm (DeadCat)
Frame Dimension: L190*W136*H36 mm (DeadCat)
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Max Flight Stack Height: 22mm
Max VTX Height: 22mm
Motor Mounting: 16x16mm
Flight Stack Mounting: 20*20/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 249±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Packing List
1 x Evoque F5 V2 O4 Frame Kit
2x IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm guard
2 x Anti-slip Battery Pad
2 x Battery Strap
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
