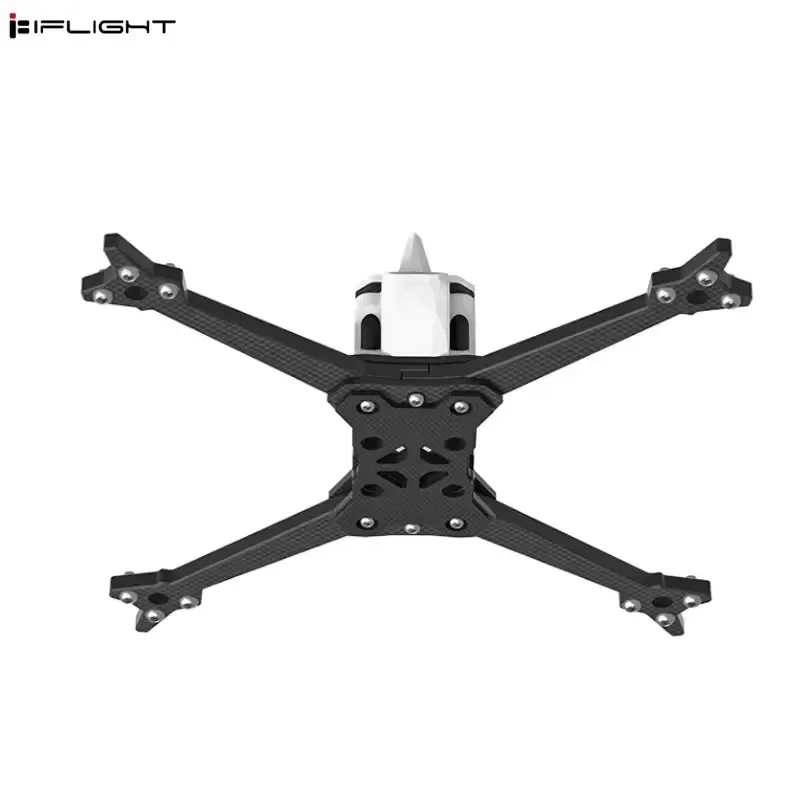

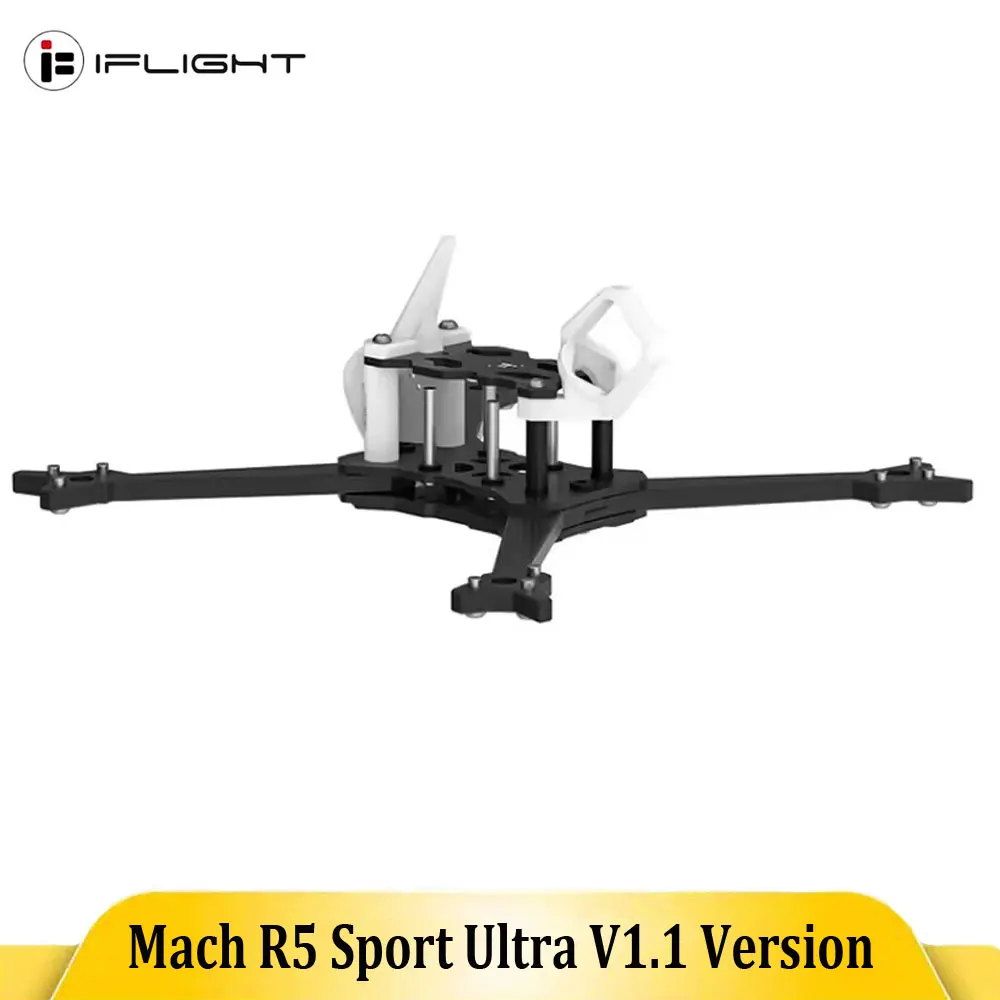

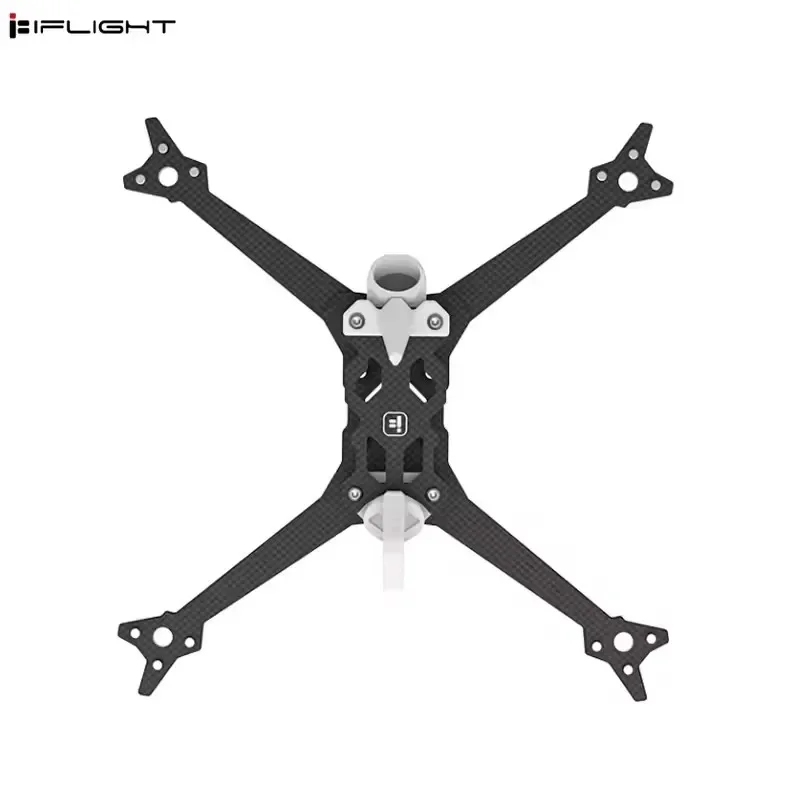

iFlight Mach R5 Sport Ultra V1.1 Version 190mm Wheelbase for RC FPV Drone

Mach R5 Sport Ultra Rack
Frame: X-type
Motor diagonal distance: 190mm
Rack size (L*W*H): 182*133*42mm
Thickness of top plate: 2mm
Thickness of bottom plate: 2mm
Thickness of arm: 5mm
Thickness of centre plate: 2mm
Internal space height: 23mm
Motor Circlip Hole Diameter: 6mm
Camera side plate spacing: 14*14mm
Fly tower mounting height: 23mm
Chart transmission mounting height：23mm
Flytower mounting hole spacing：20*20/Φ3mm
Pitch for mapping installation：20*20/Φ3mm
Motor mounting hole spacing：16*16/Φ3mm/3 holes modelling
Empty weight: 92g
Compatible Mapper: Analogue BLITZ Mini Force 600mW VTX
Packing List
1*Mach R5 Sport Ultra Chassis
1*Full set of TPU prints
1*Screw kit
4*Motor Cables Hub
2*Battery anti-slip mat
2*Battery Tie(20*250mm)
