Description

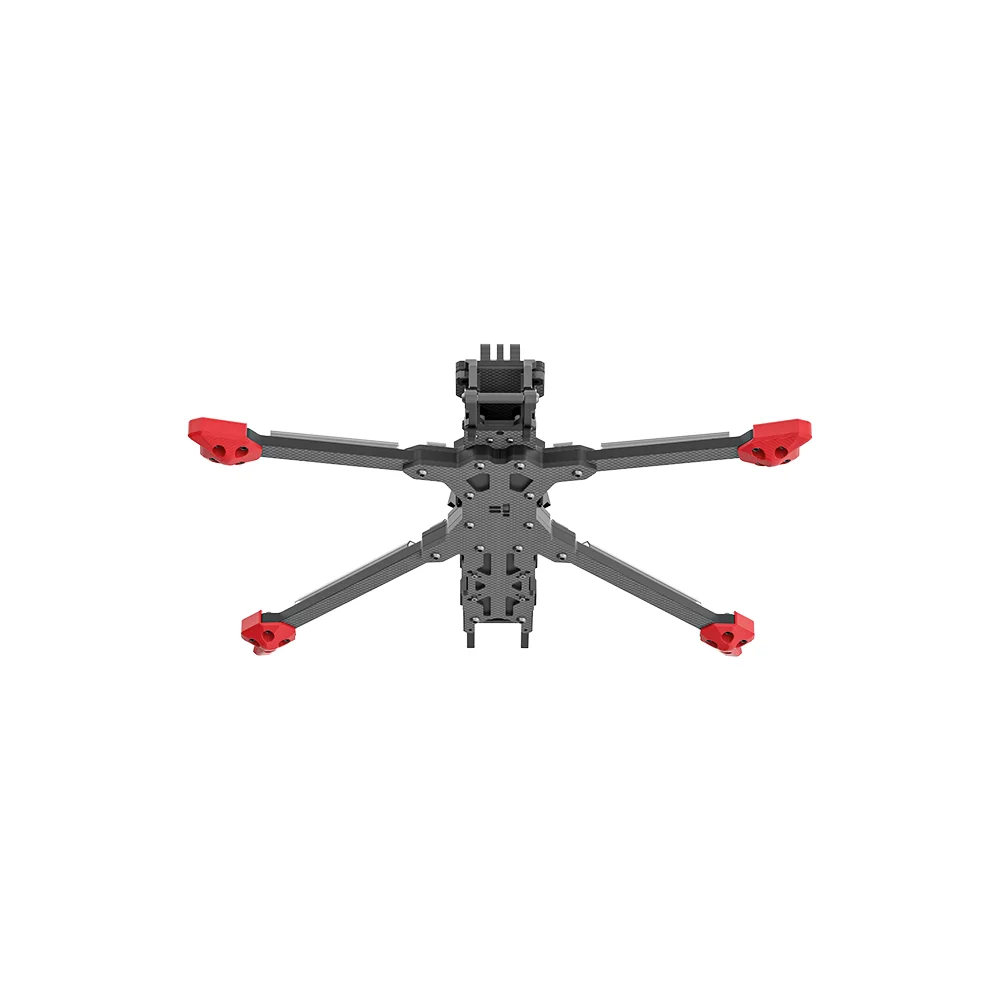

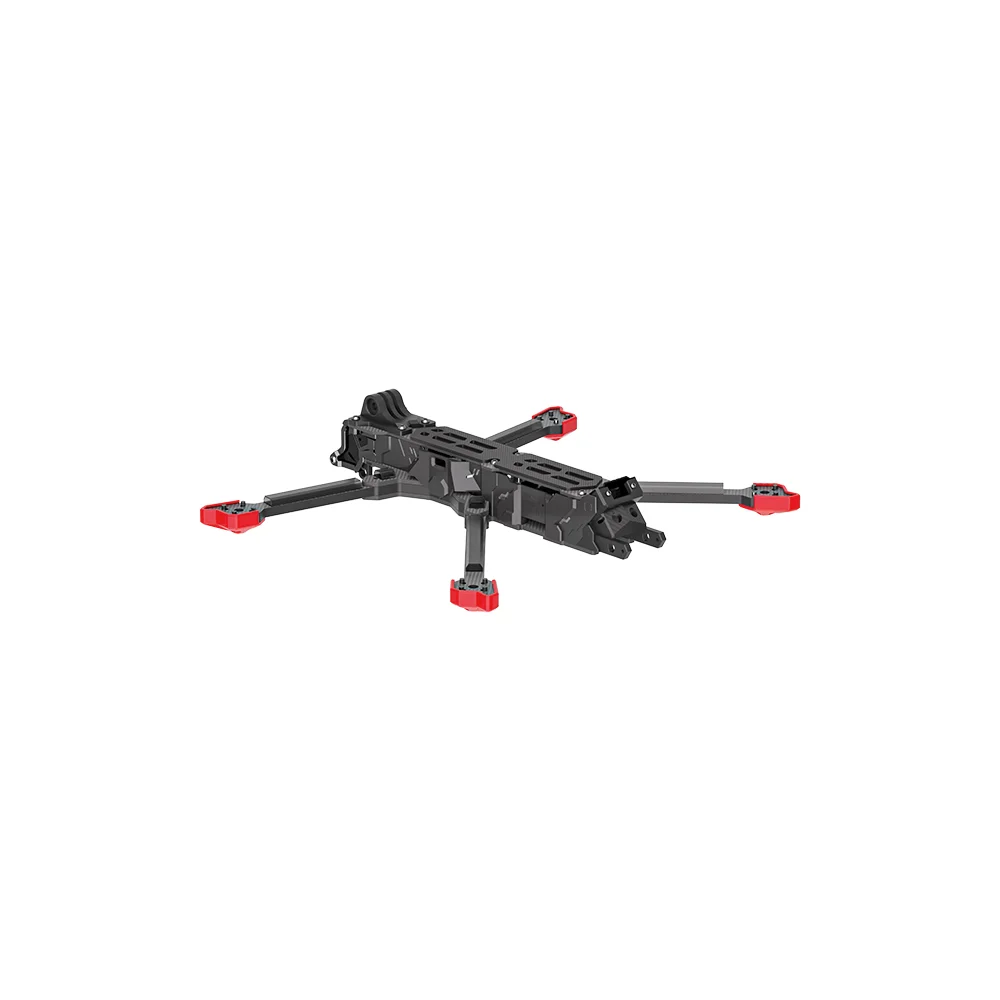

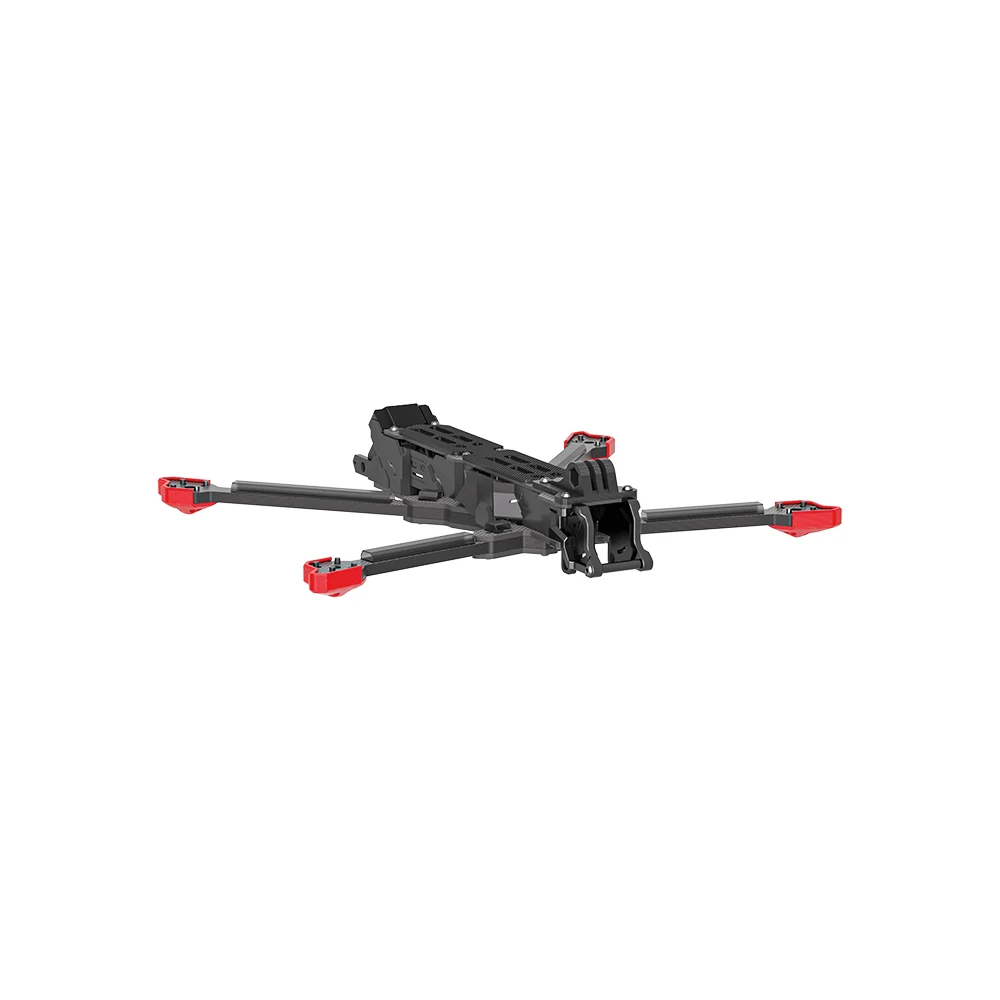

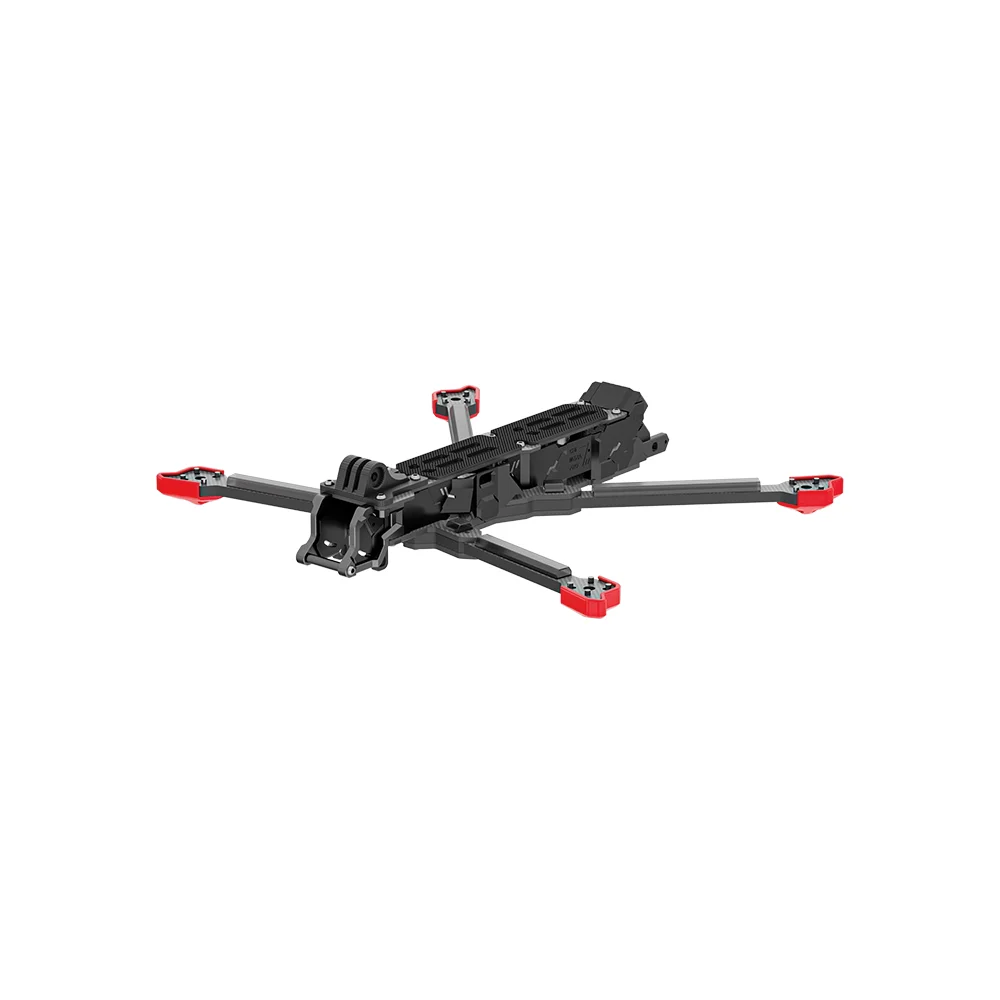

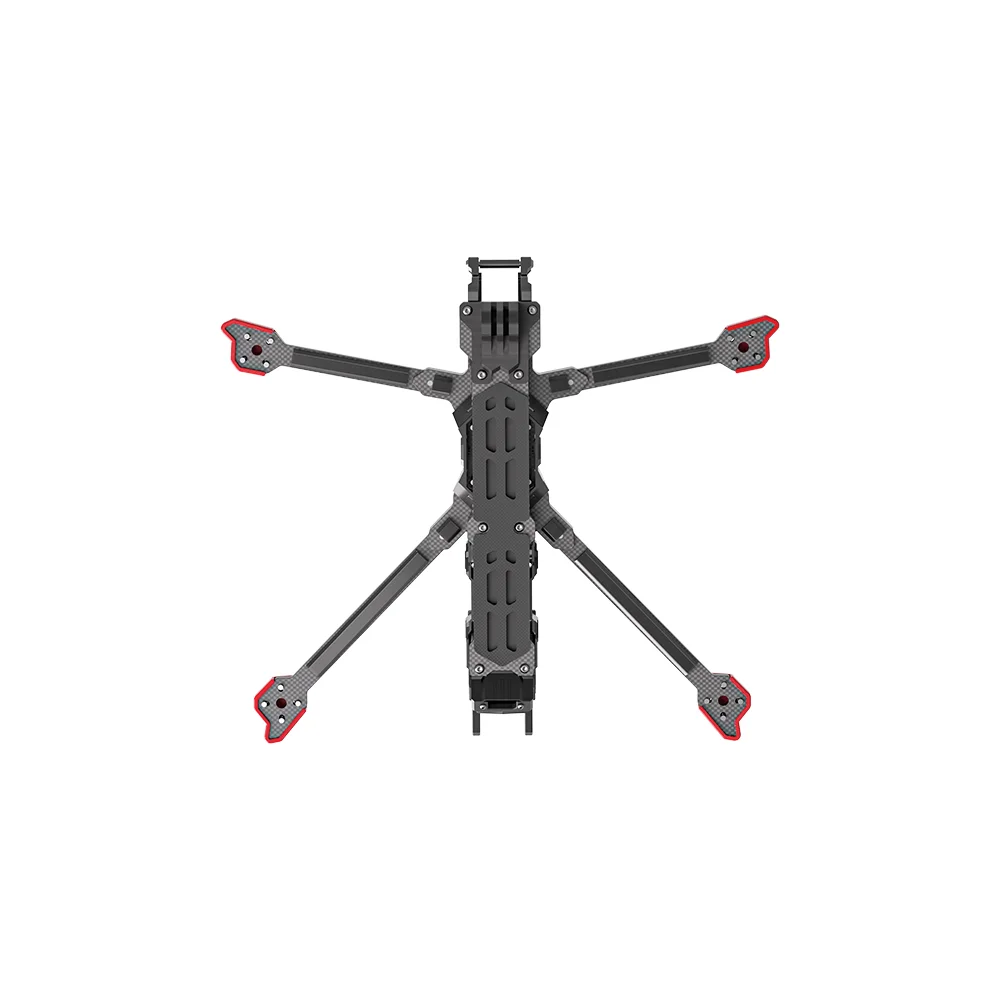

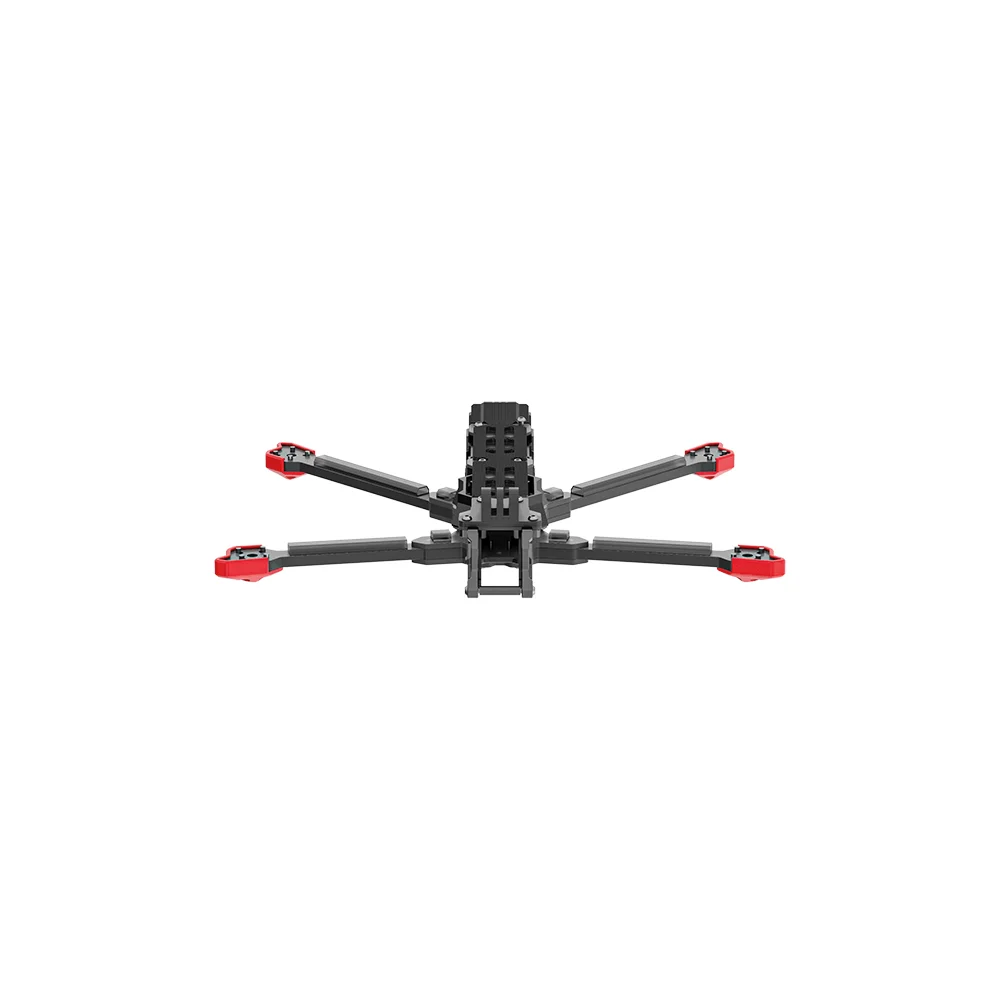

iFlight’s upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5″ prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.
Features
O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
New Camera Mount for DJI O4 Pro Air Unit
New Silicone side panels
New DJI O4 Pro MIPI Video Cable
Specificaitons
Product Name：Chimera7 Pro V2 O4 Frame Kit
Wheelbase: 327mm
Frame Dimension: L270*W199*H34 mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Camera Plate Thickness: 3mm
Max Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30*30/Φ3mm
Motor Mounting: 16x16mm / 19*19mm Φ3mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 355g±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Packing List
1 x Chimera7 Pro V2 O4 Frame Kit
1x 220mm O4 MIPI Digital Video Cable
2x O4 IPEX to RP-SMA Antenna Pigtails
1 x Dual Antenna TPU
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Arm guard
2 x Anti-Slip Battery Pad
2 x Battery Strap
