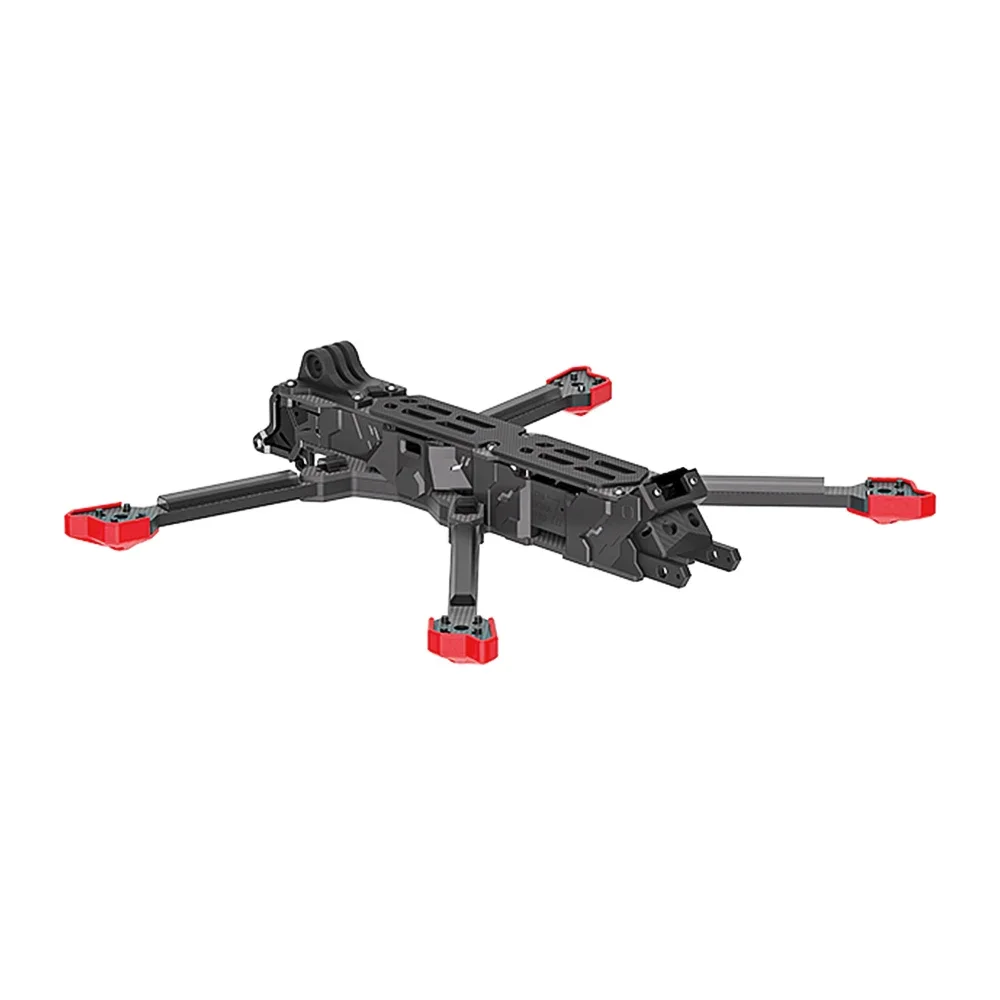

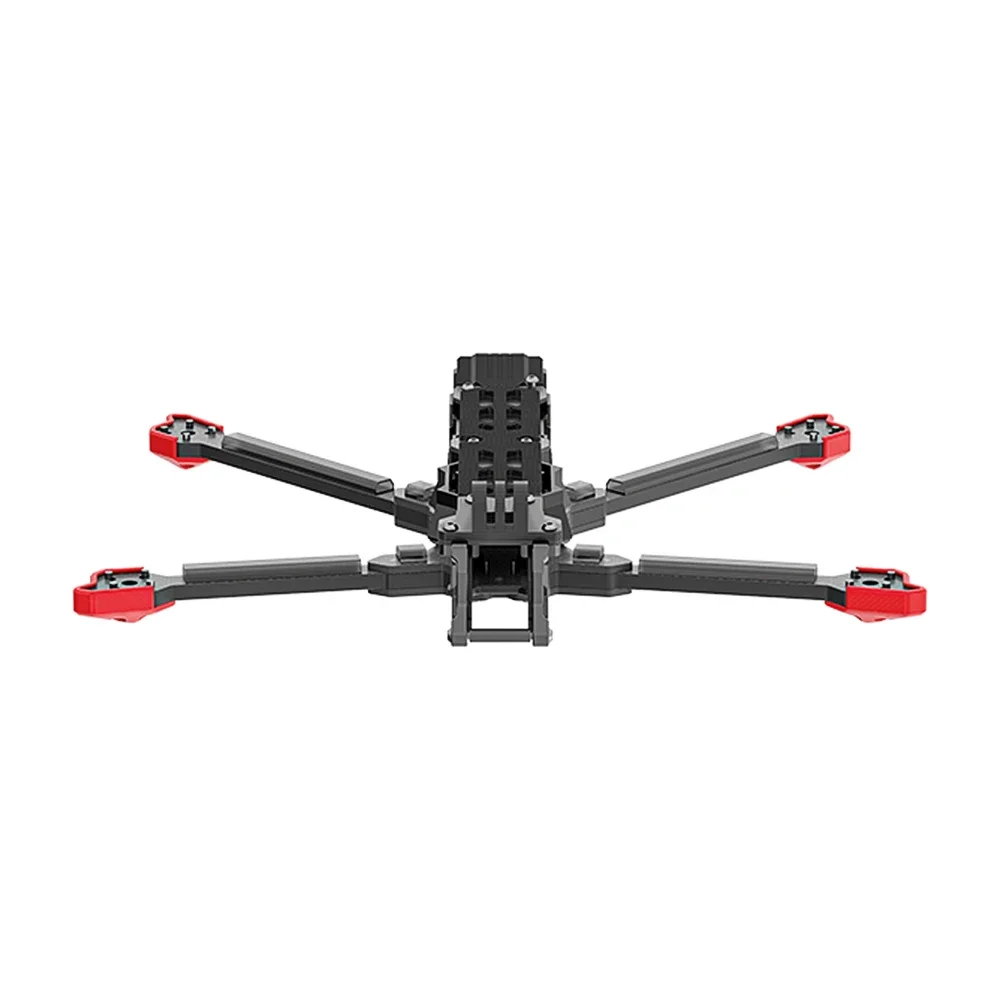

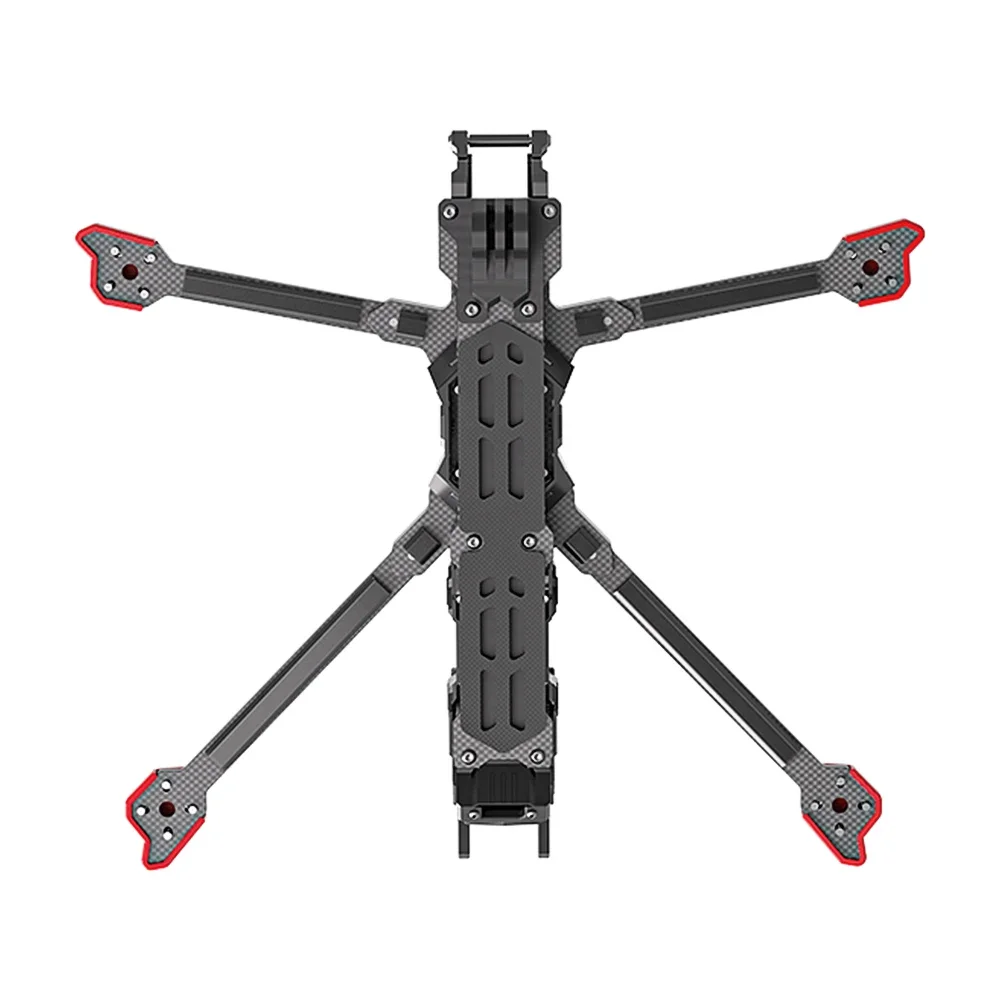

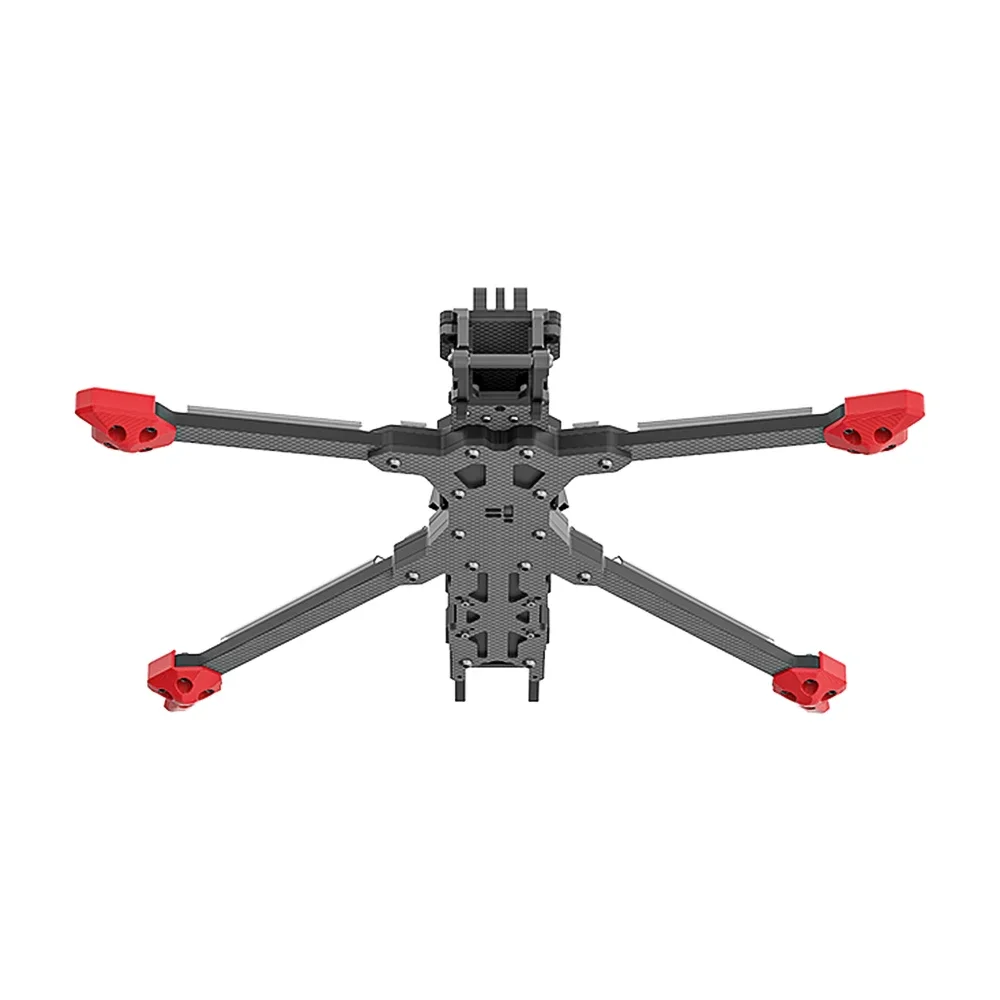

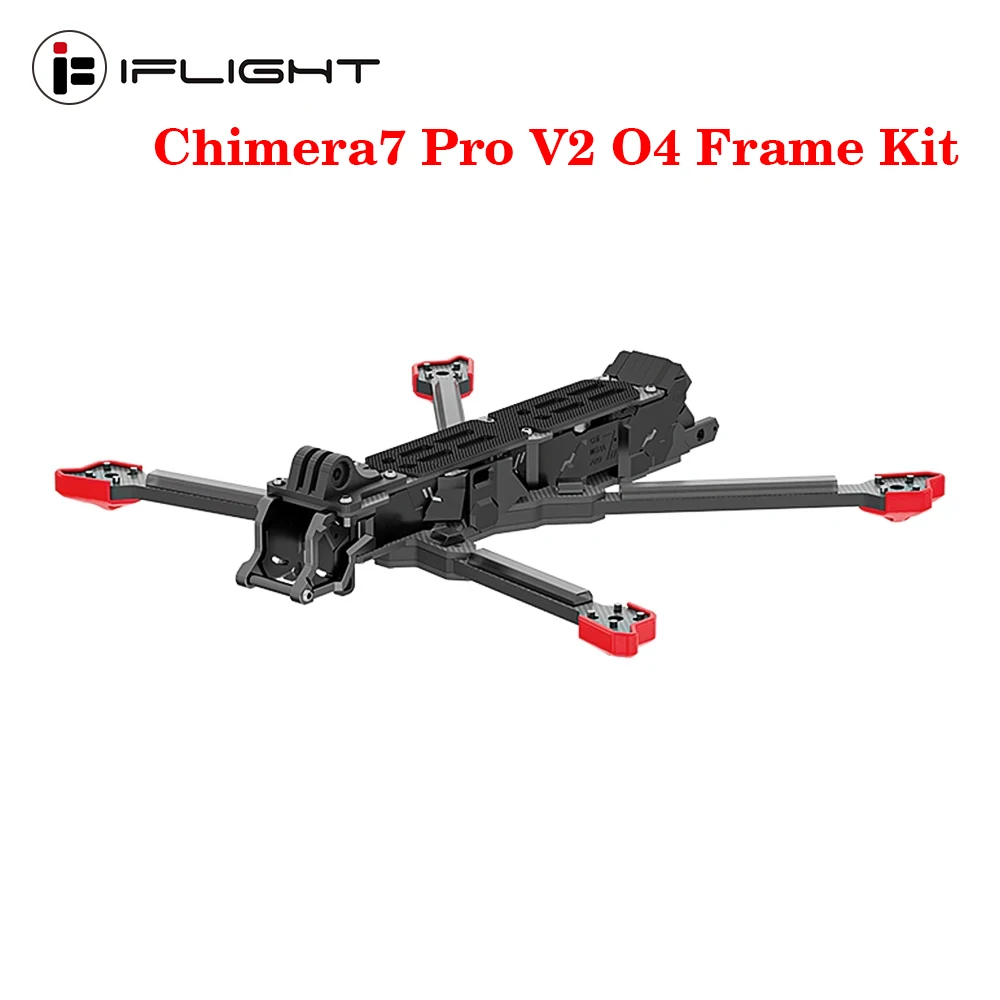

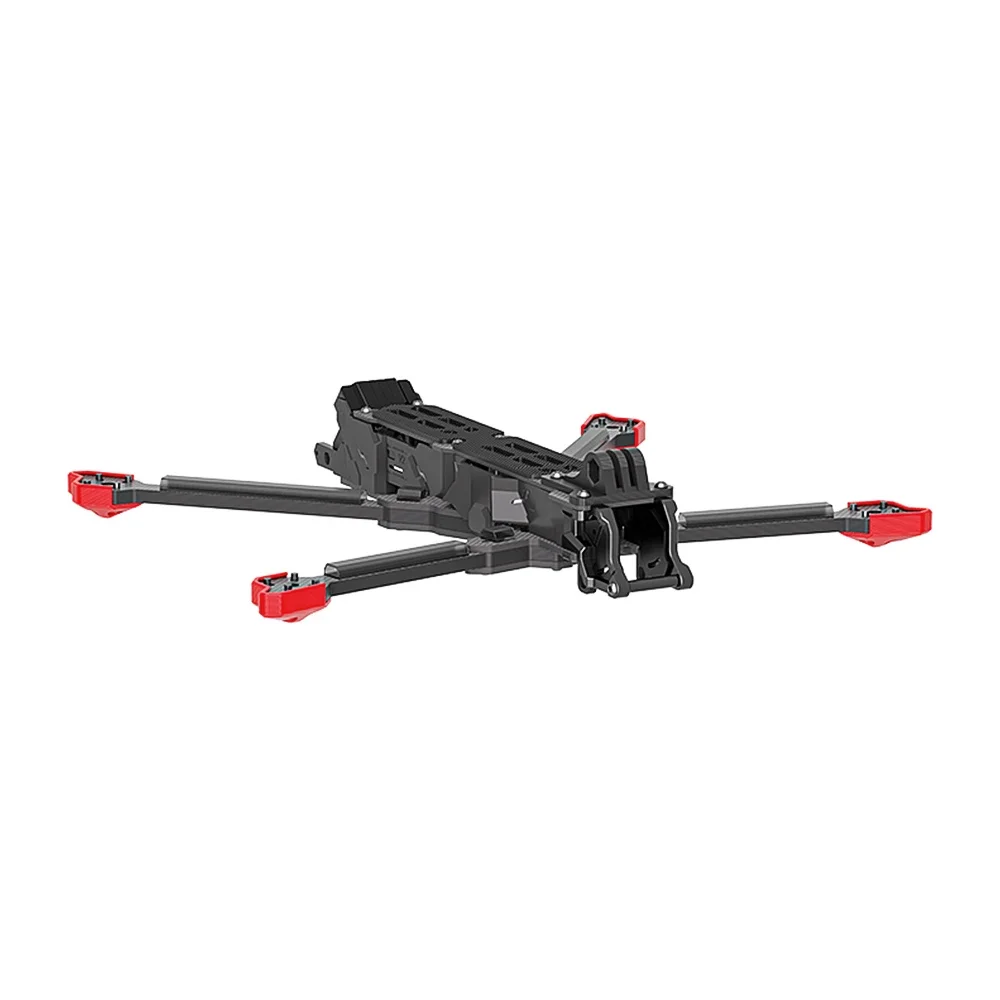

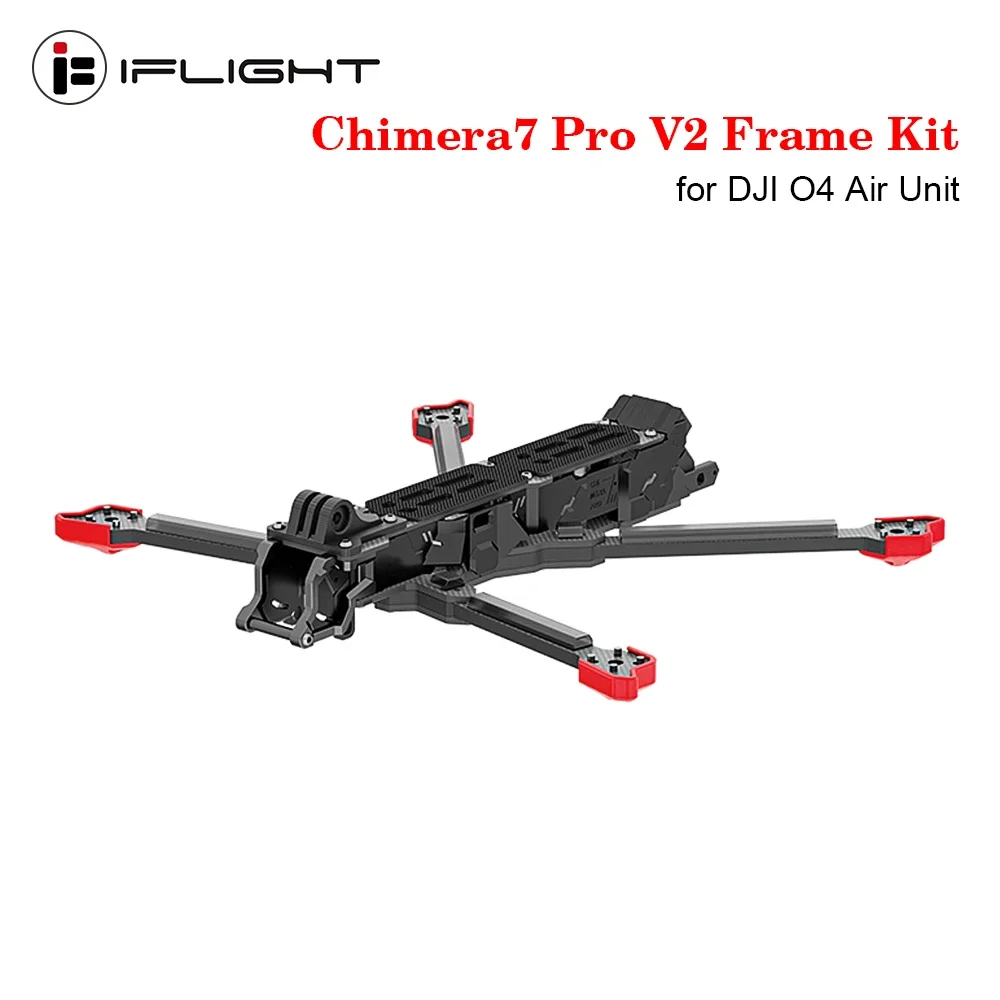

IFlight Chimera7 Pro V2 O4 Frame Kit 7inch (DeadCat) Wheelbase 327mm With 6mm Arm for DJI O4 Air Unit RC FPV Drone

IFlight Chimera7 Pro V2 O4 Frame Kit 7inch (DeadCat) Wheelbase 327mm With 6mm Arm for DJI O4 Air Unit RC FPV Drone
iFlight’s upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5″ prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.
Features
O3 to O4 was upgraded for the DJI O4 Air Unit Pro:

New Camera Mount for DJI O4 Air Unit Pro

New Silicone side panels

New DJI O4 Pro MIPI Video Cable
Specificaitons
Product Name：Chimera7 Pro V2 O4 Frame Kit

Wheelbase: 327mm

Frame Dimension: L270*W199*H34 mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Max Flight Stack Height: 21mm

Max VTX Height: 30mm

Flight Stack Mounting: 30*30/Φ3mm

Motor Mounting: 16x16mm / 19*19mm Φ3mm

VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Weight: 355g±5g

Compatibility:DJI O4 Air Unit Pro/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Packing List
1 x Chimera7 Pro V2 O4 Frame Kit

1x 220mm O4 MIPI Digital Video Cable

2x O4 IPEX to RP-SMA Antenna Pigtails

1 x Dual Antenna TPU

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Arm guard

2 x Anti-Slip Battery Pad

2 x Battery Strap
Tolerance Note
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
