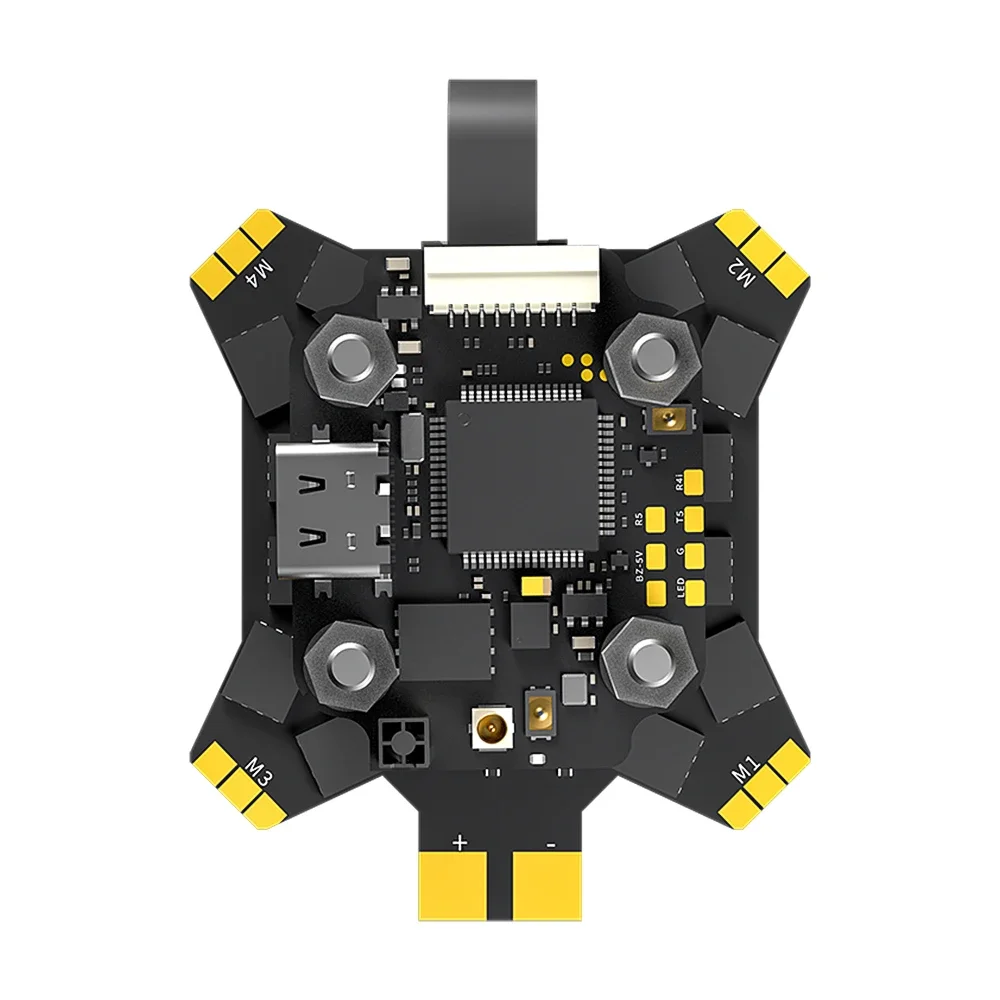

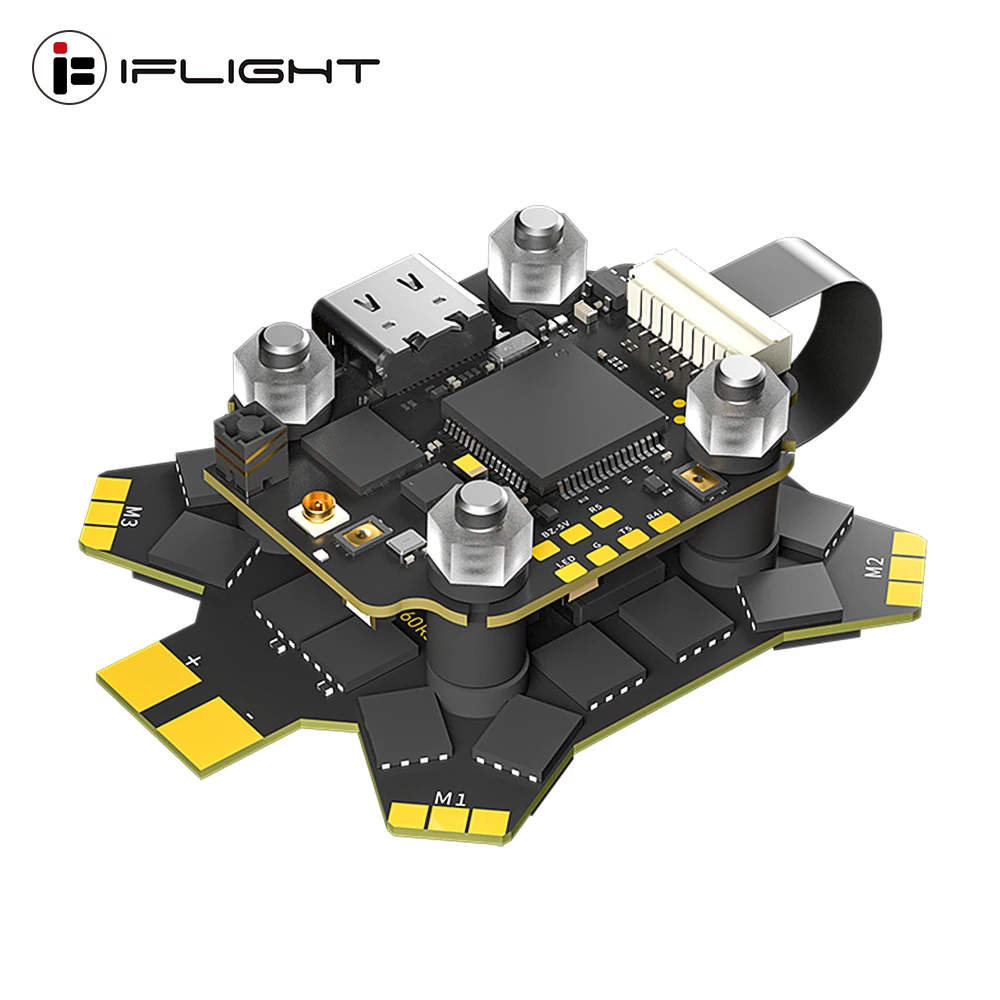

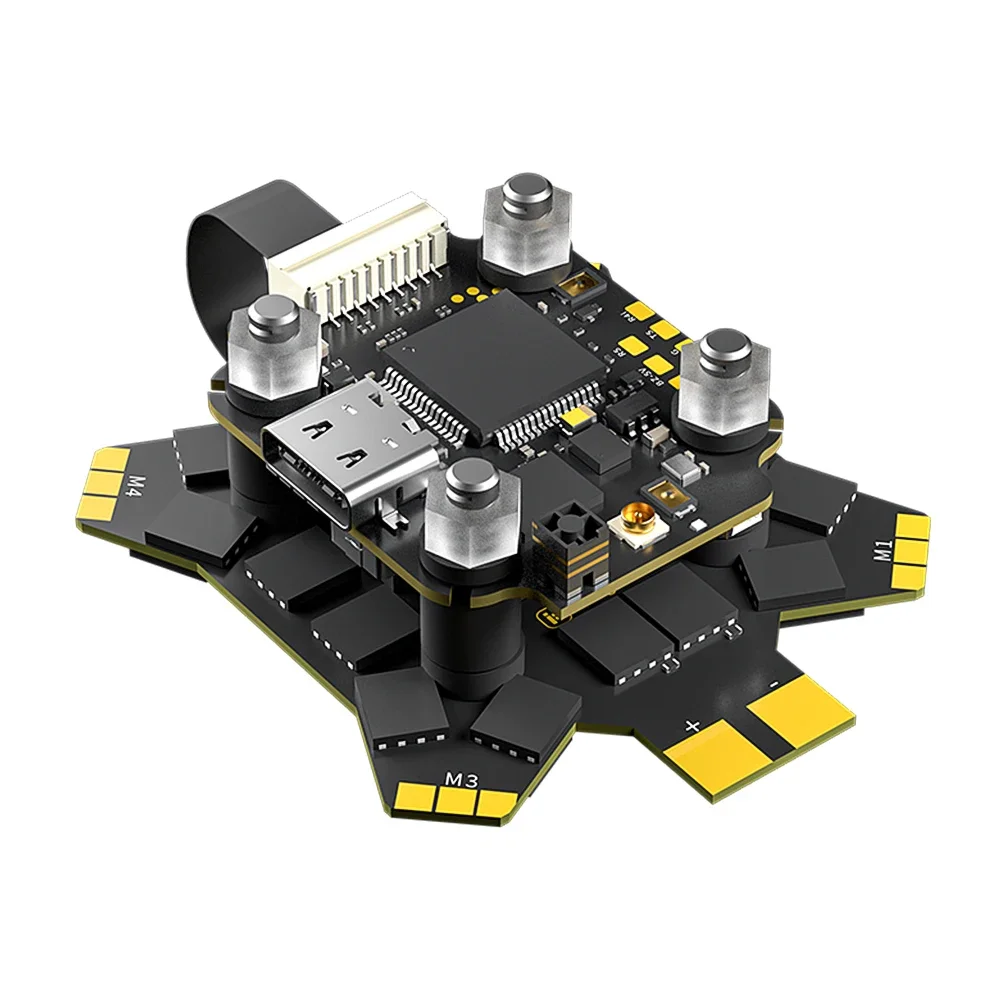

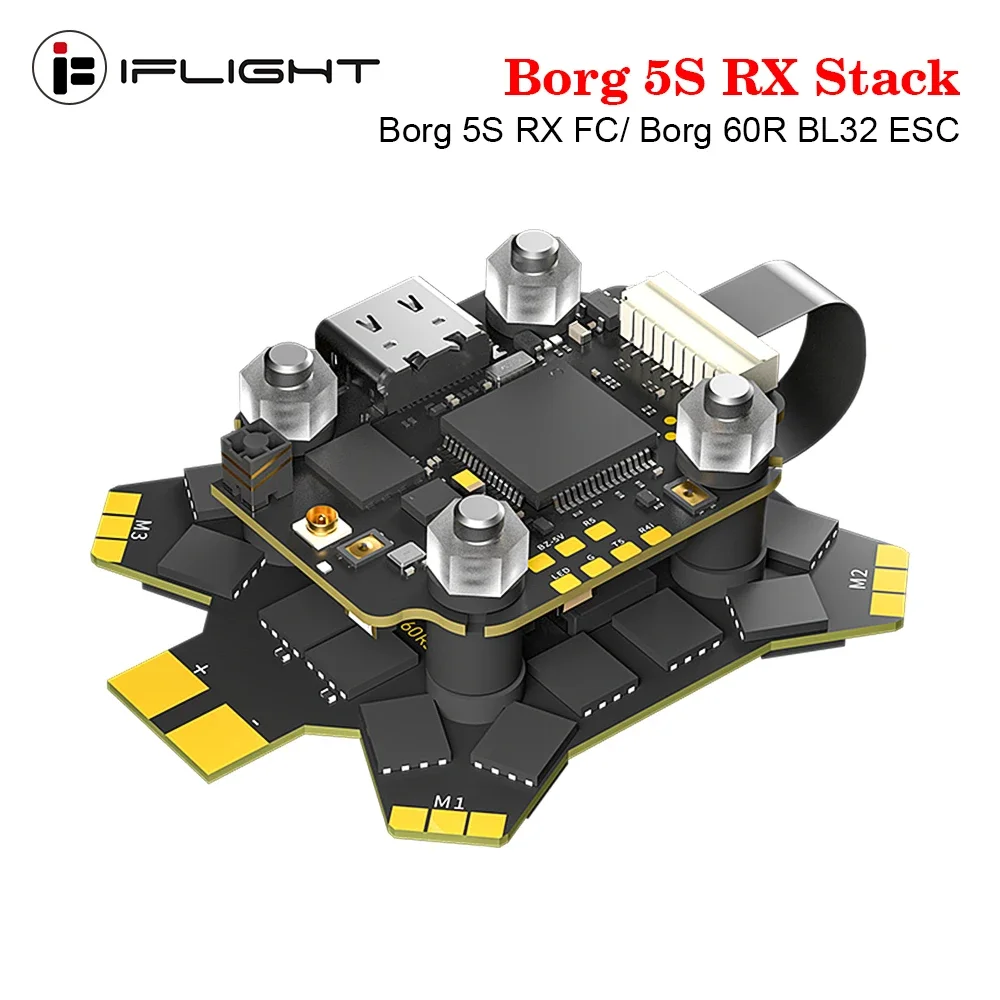

IFlight Borg 5S RX Stack Built-in ELRS 2.4GHz Receiver 12V BEC 16MB Black Box With Borg 60R BL32 ESC 3-8S Lipo for RC FPV Drone

IFlight Borg 5S RX Stack Built-in ELRS 2.4GHz Receiver 12V BEC 16MB Black Box With Borg 60R BL32 ESC 3-8S Lipo for RC FPV Drone
Description
Introducing the All-New Borg Series – Power Meets Precision!

The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights.

Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!
FC Features
Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.

Supports 3S to 8S battery inputs, offering versatility for various racing setups.

Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

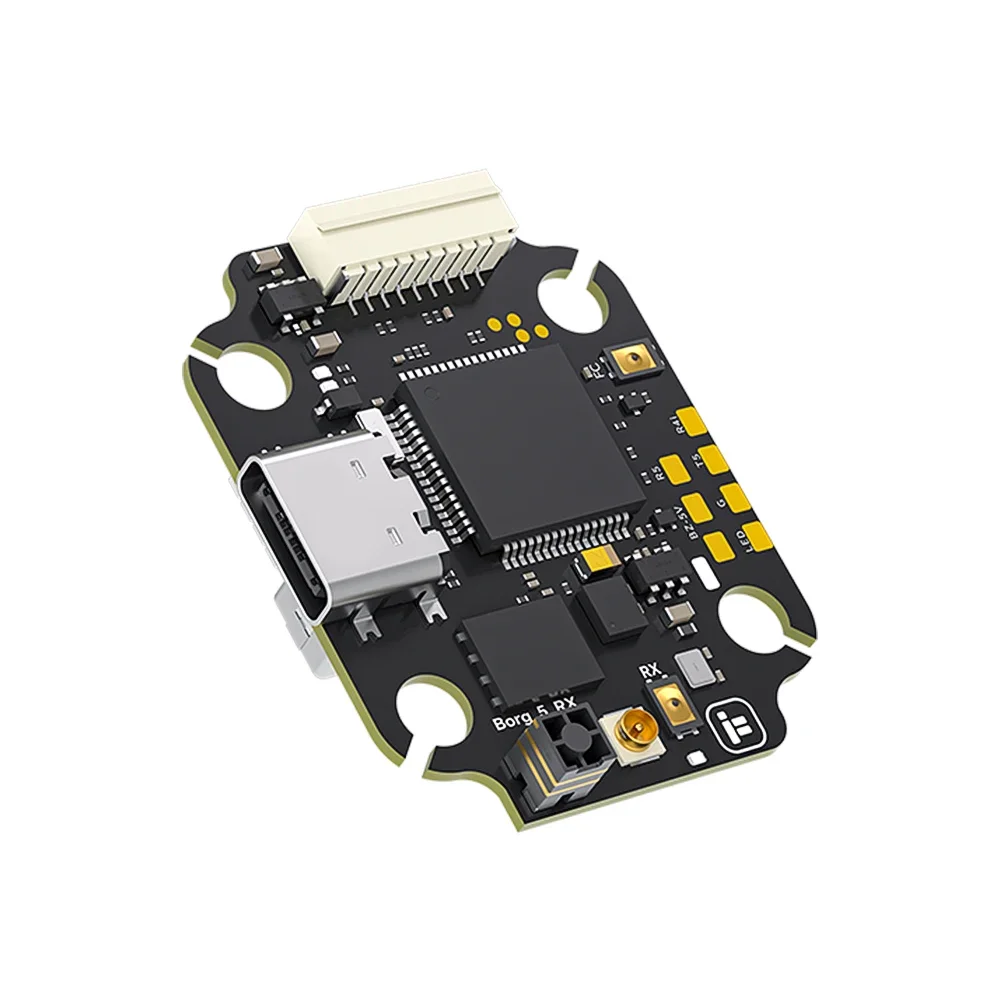

FC Specifications
Input voltage: 4-8S; Support LIHV battery

MCU: AT32F435RGT7

Gyro: ICM42688

Barometer: N/A

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 4

Motor outputs: 4

I2C serial: Non support

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)

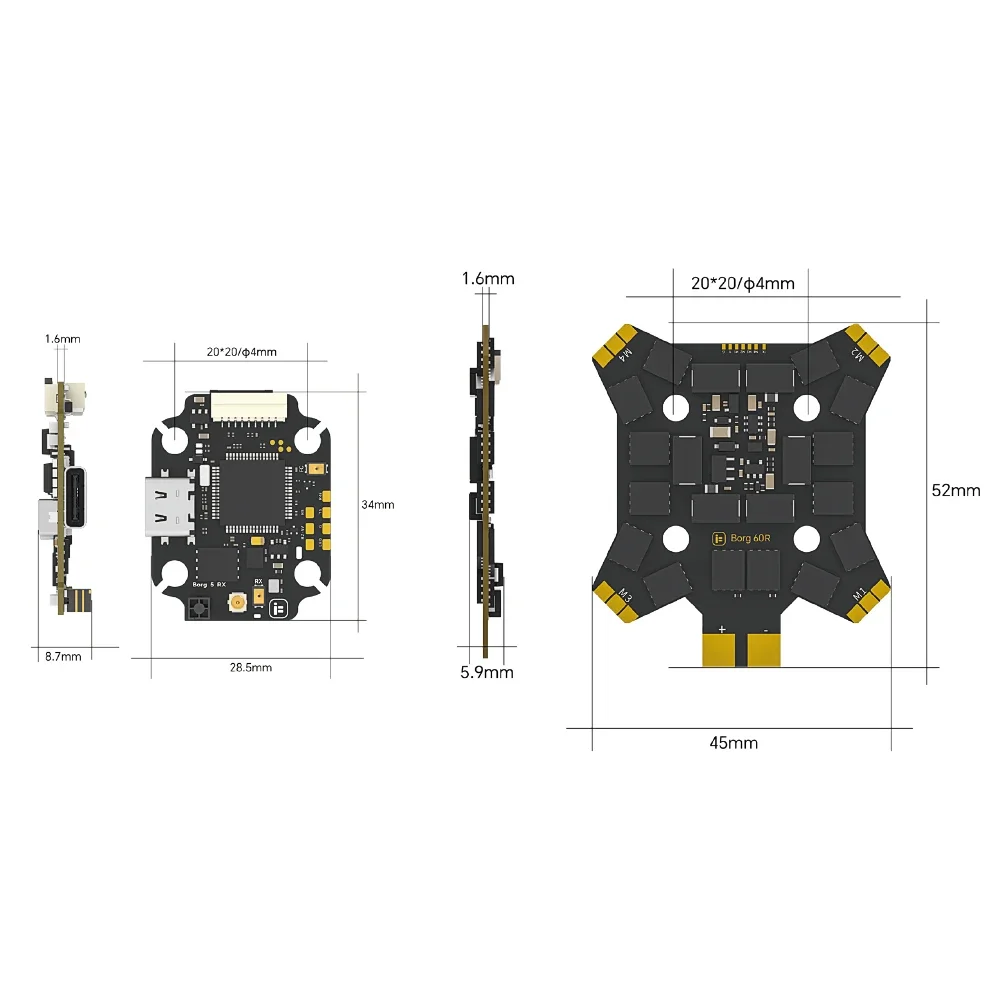

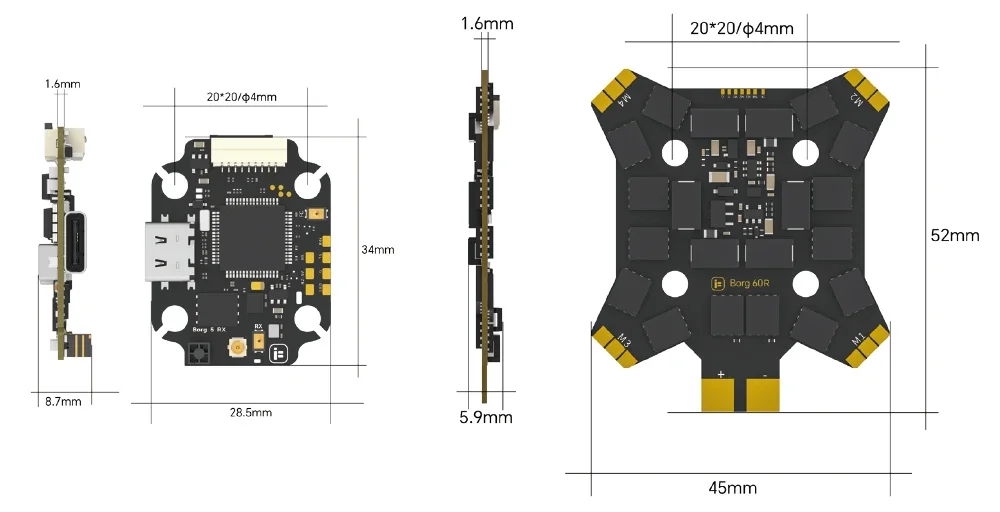

Mount pattern: 20*20φ4

Dimensions: 34*28.5mm±1

Weight: 6.8g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

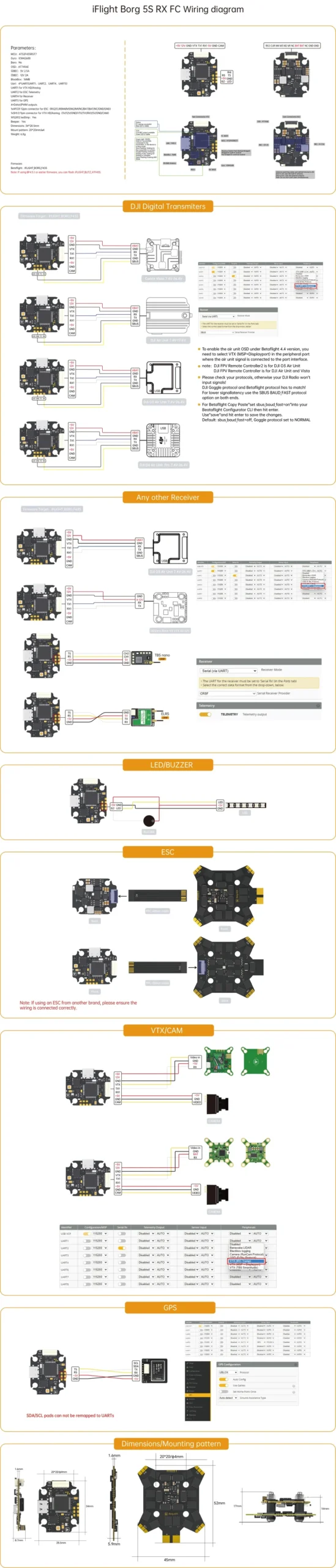

Wiring Suggestion
UART 1 for VTX HD / Analog

UART 2 for ESC Telemet

UART 4 for Built-in ELRS receiver/SBUS input

UART 5 for GPS or other sensors that require a serial port

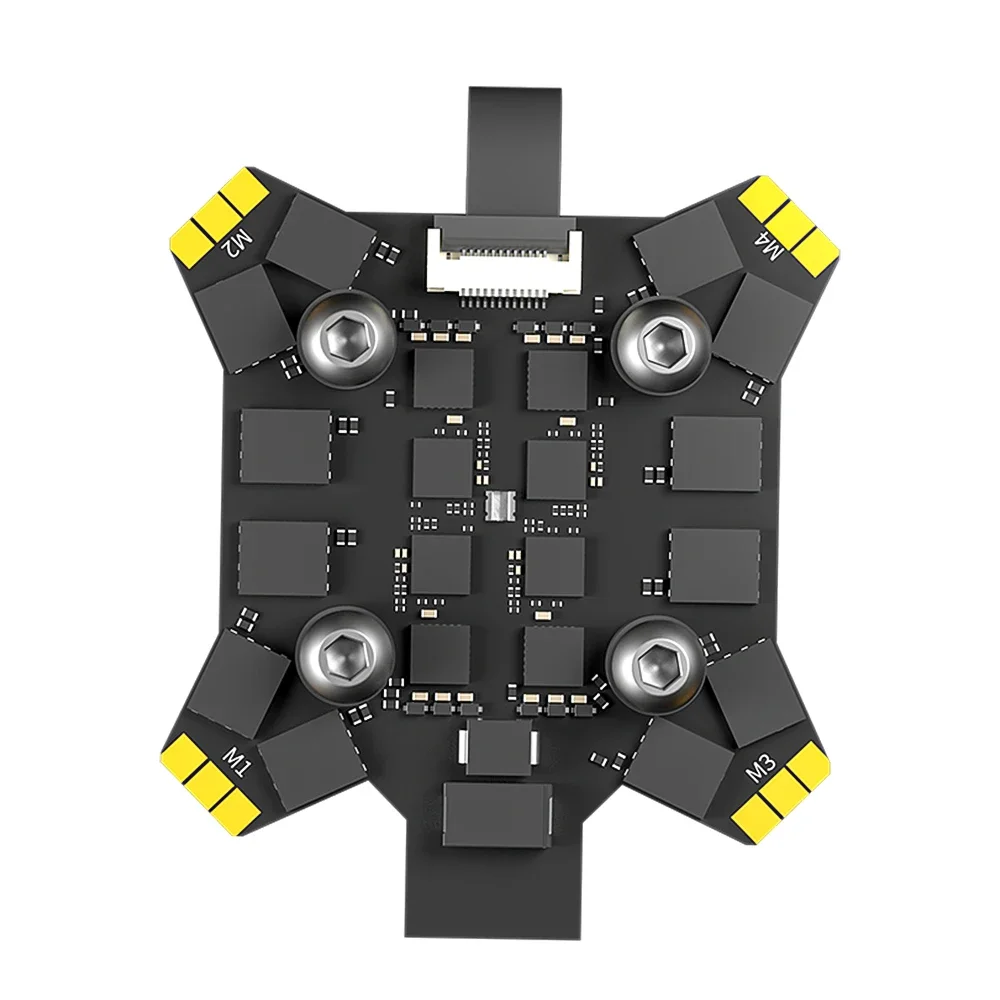

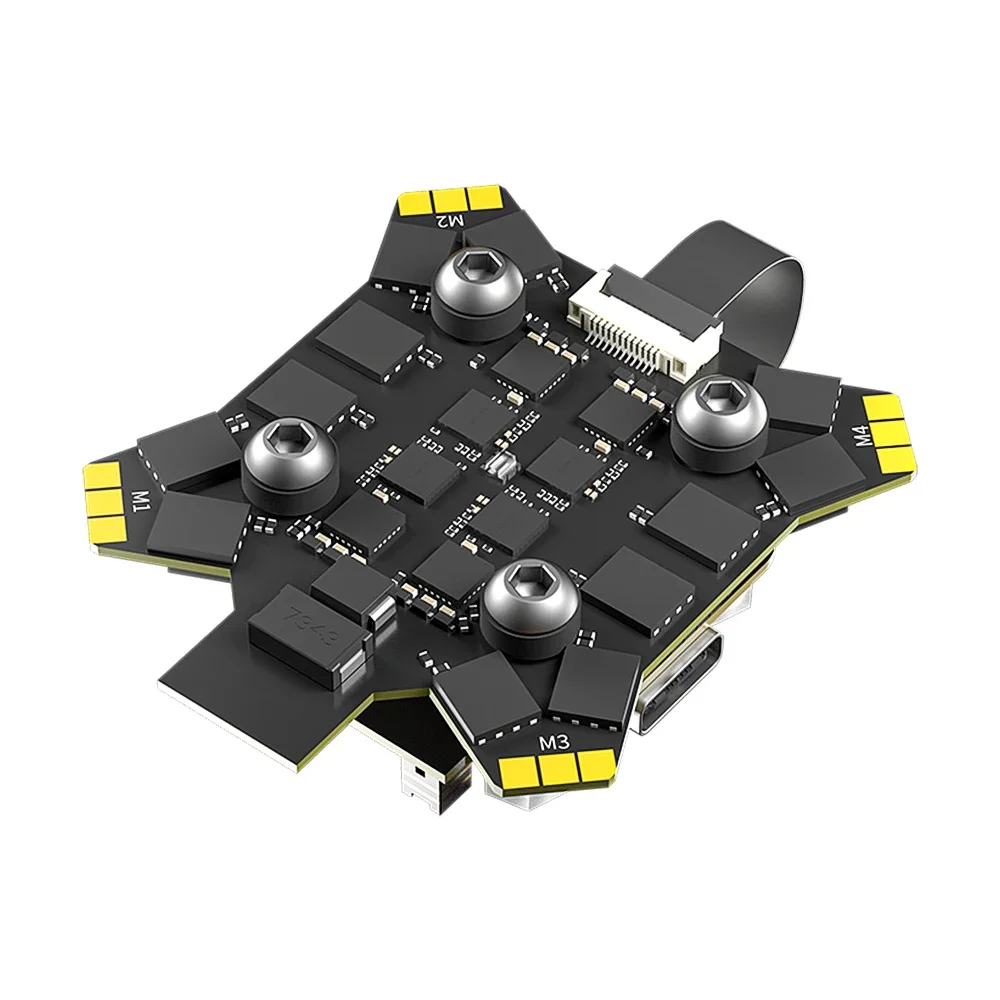

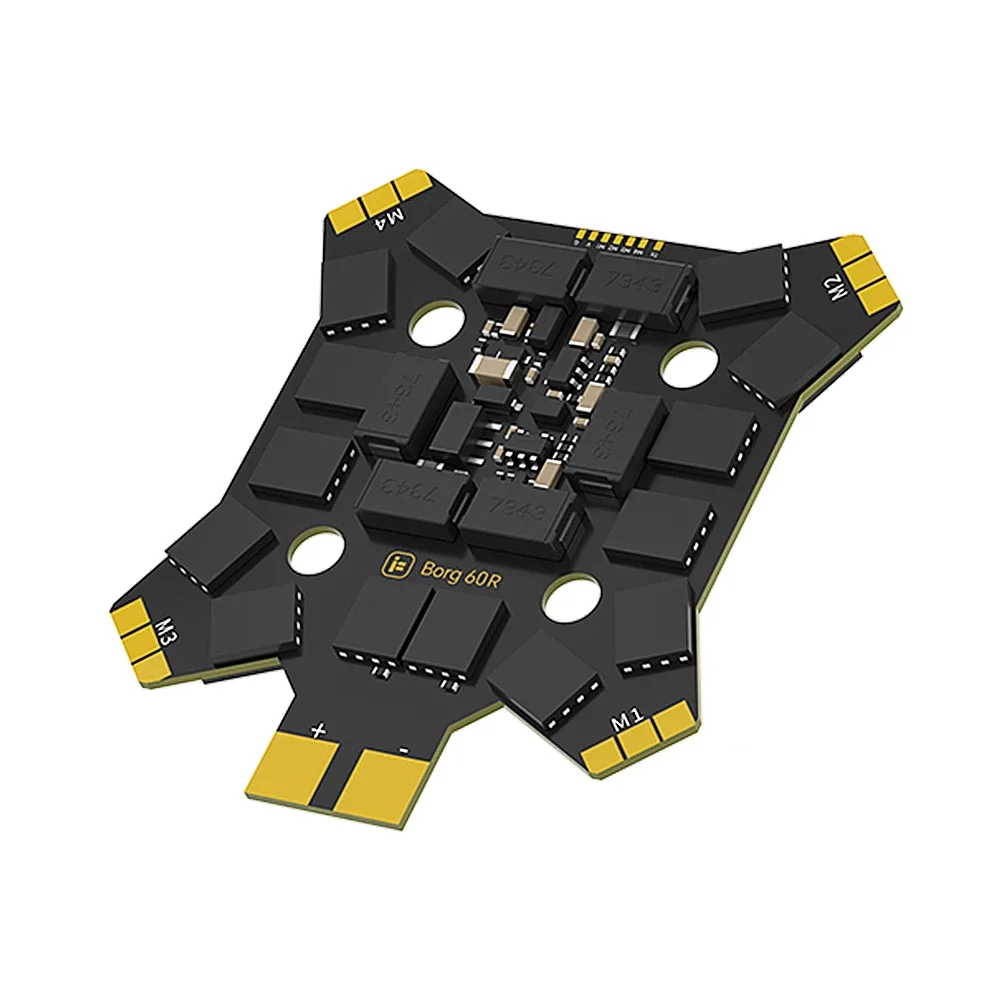

ESC Specifications
Product Name: Borg 60R ESC

Input Voltage: 3-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: No

BEC: No

Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 45*52mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 14.5g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
1 x Borg 60R ESC

1 x Borg 5S RX Flight Controller

1 x Cables set

5 x silicon grommets
