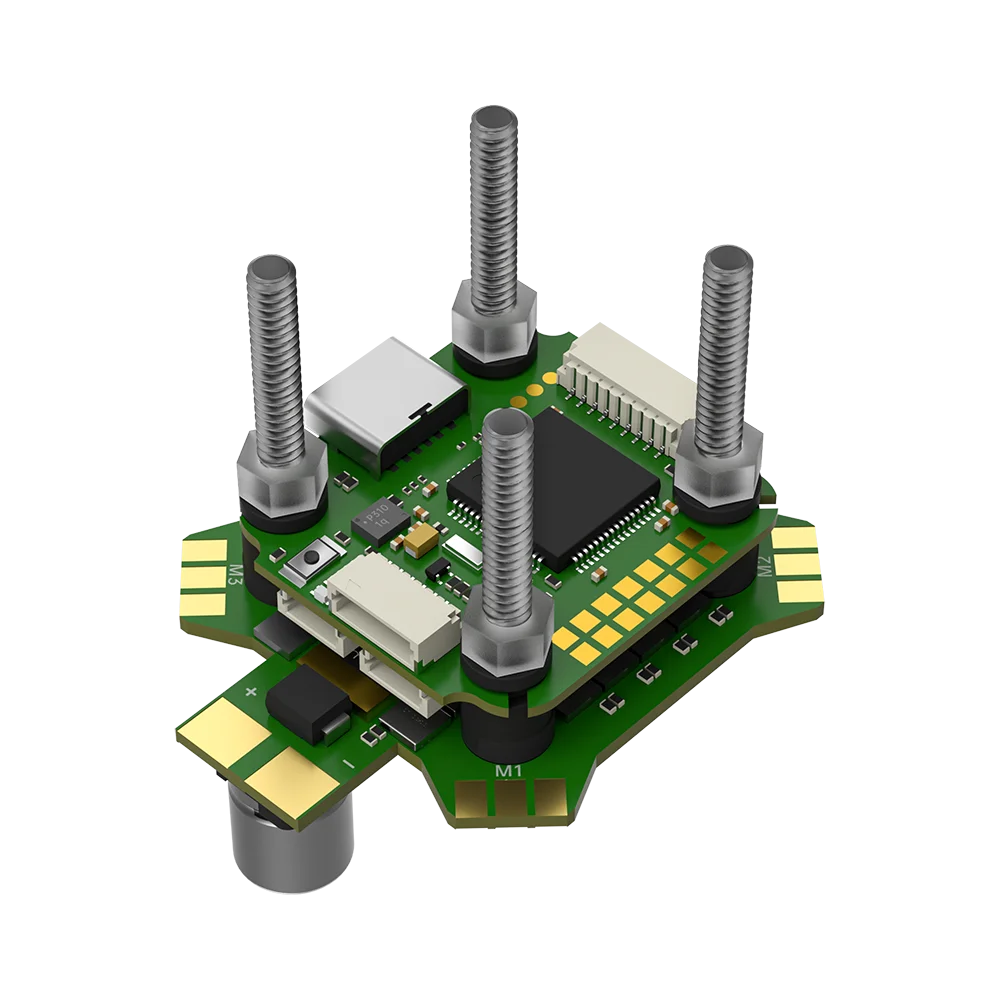

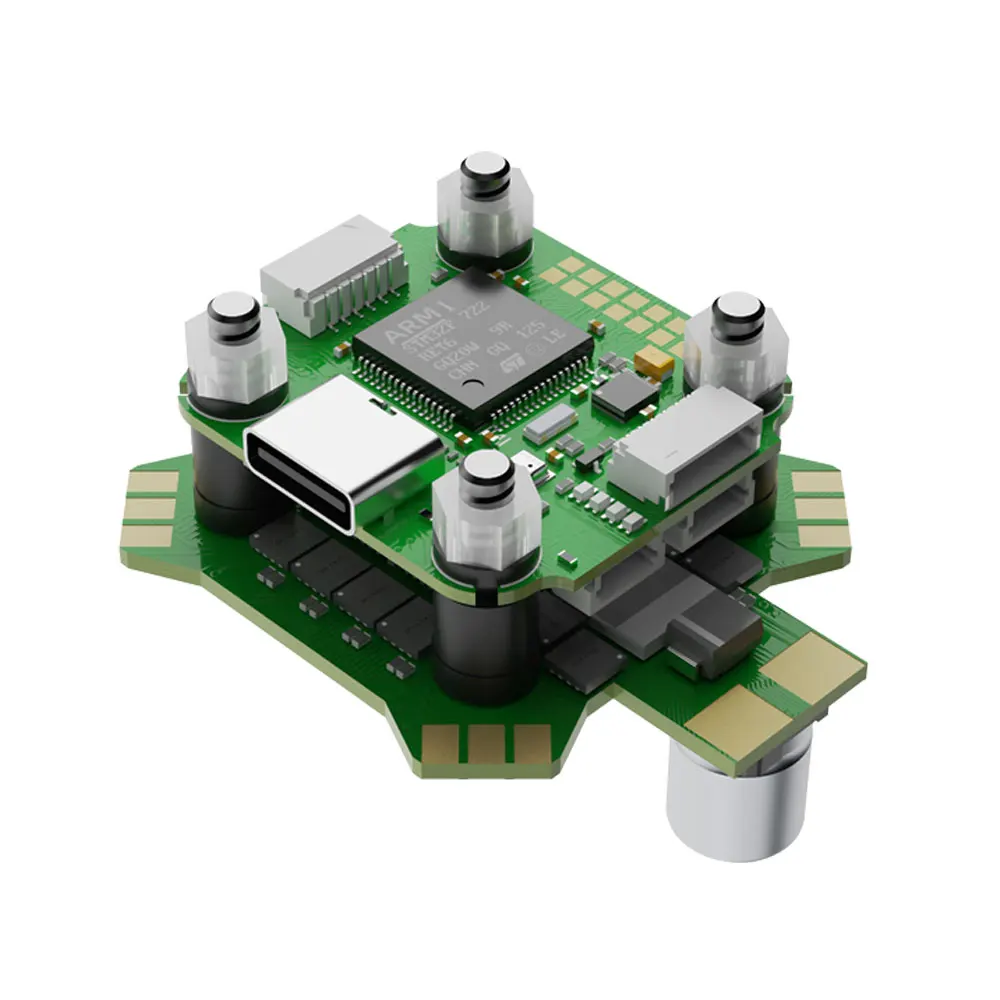

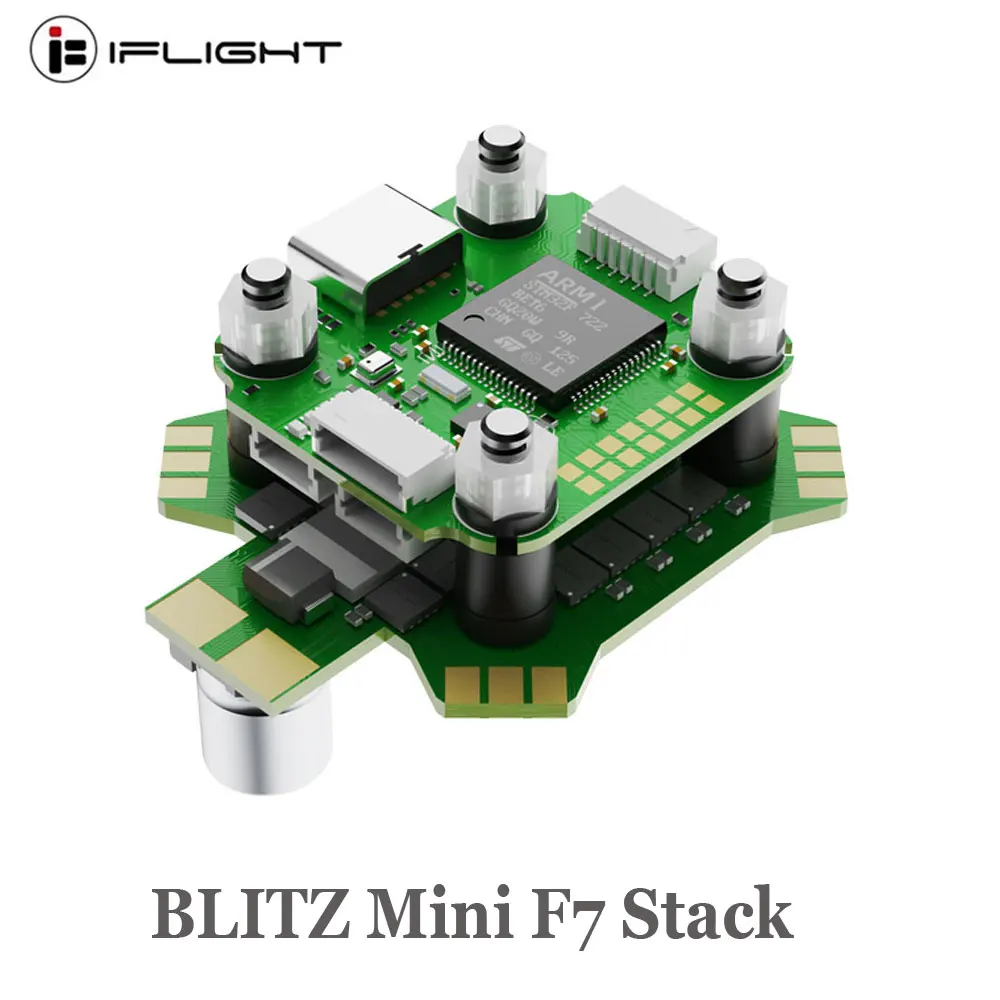

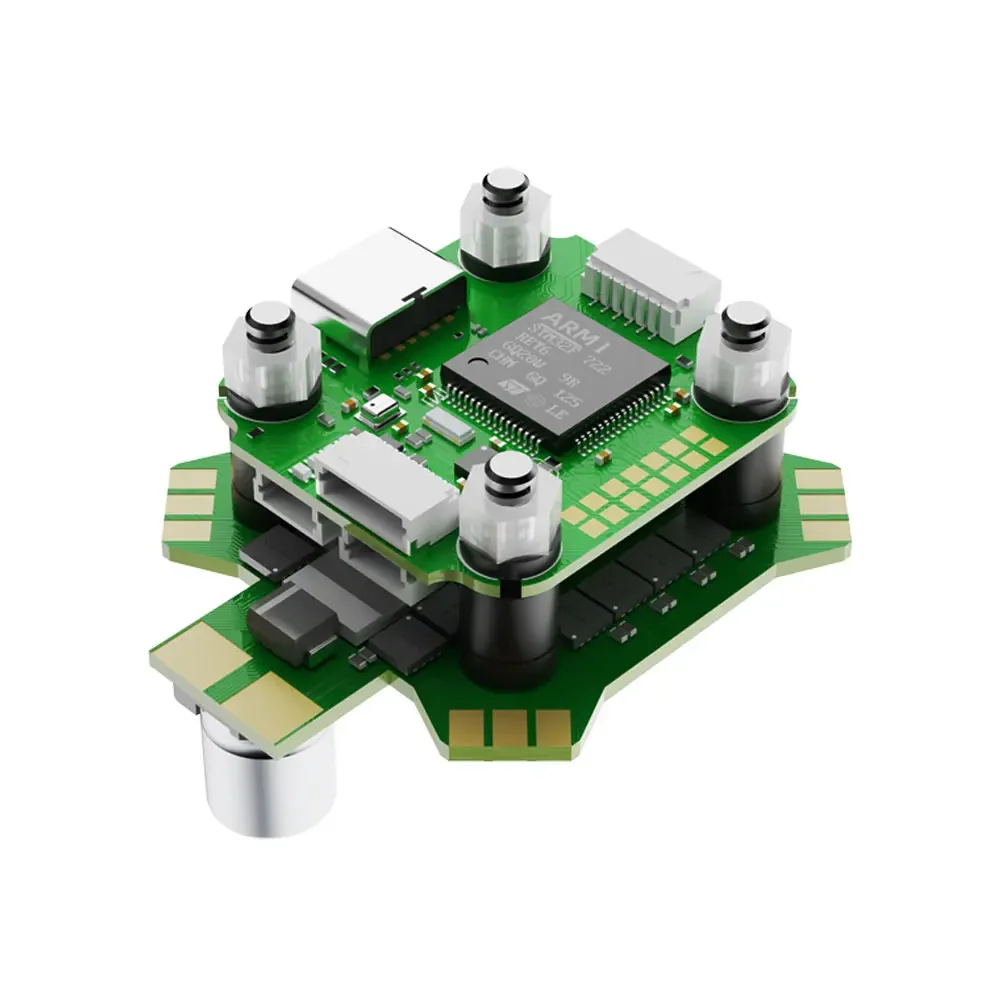

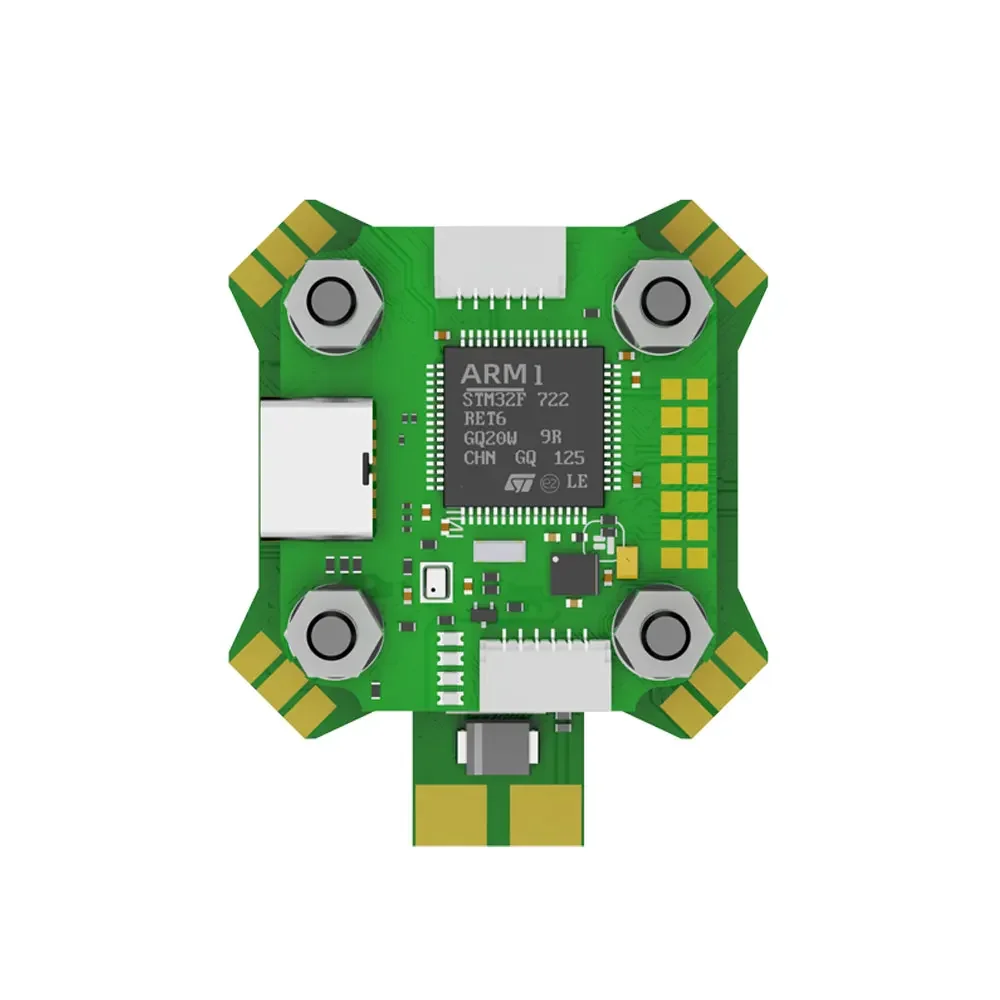

iFlight BLITZ Mini F7 Stack with BLITZ Mini F7 V1.2 Flight Controller / BLITZ Mini E55 4-IN-1 2-6S ESC for FPV Racing Drone

Features:
Improved circuit design, better components and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)

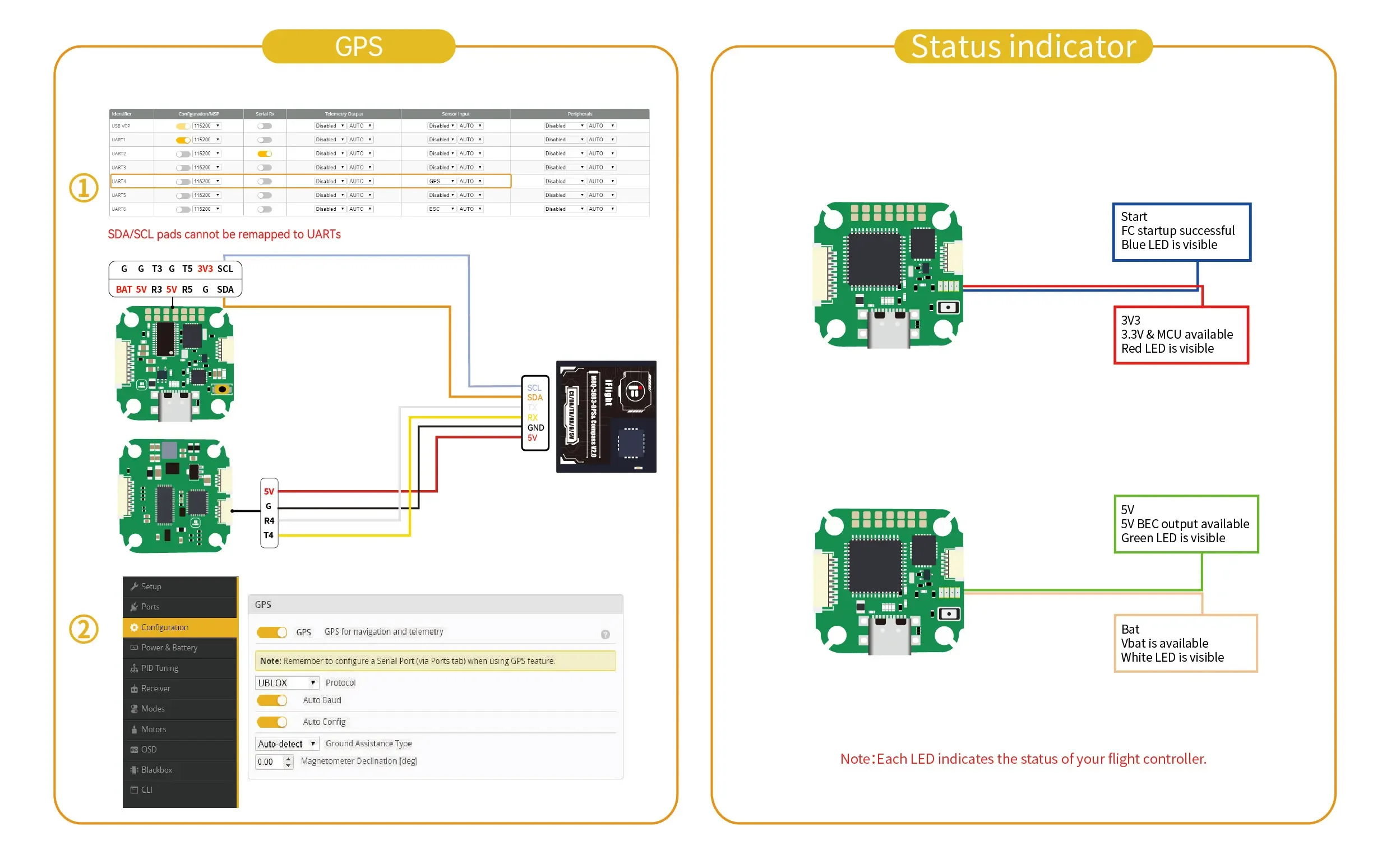

FC indicator LEDs for visual debugging

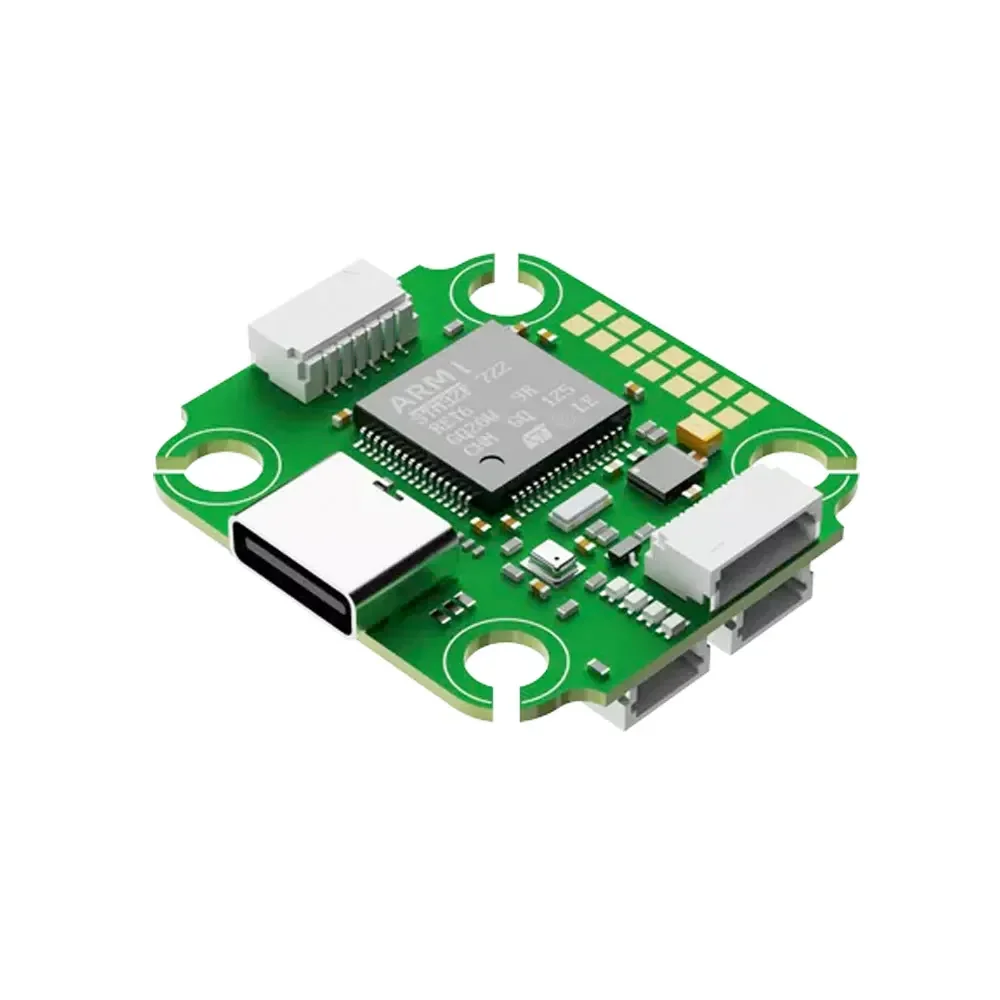

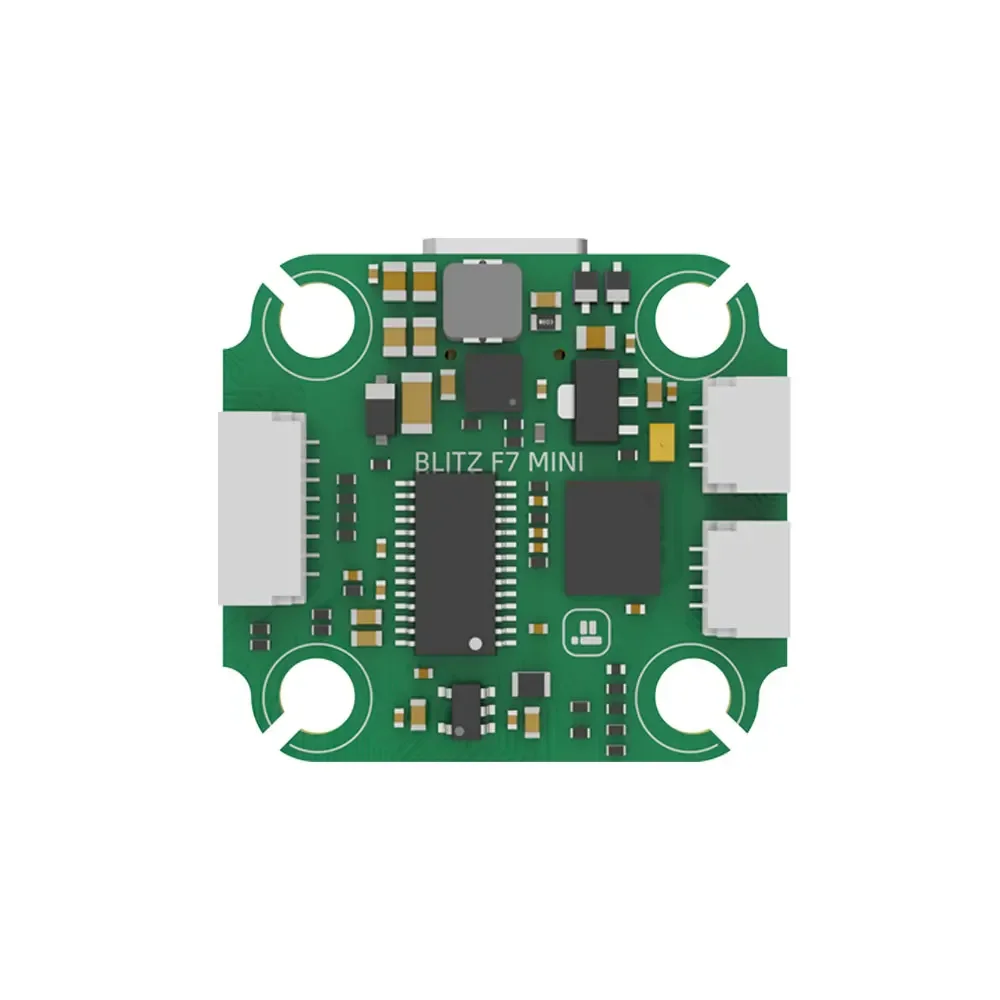

Specifications:
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

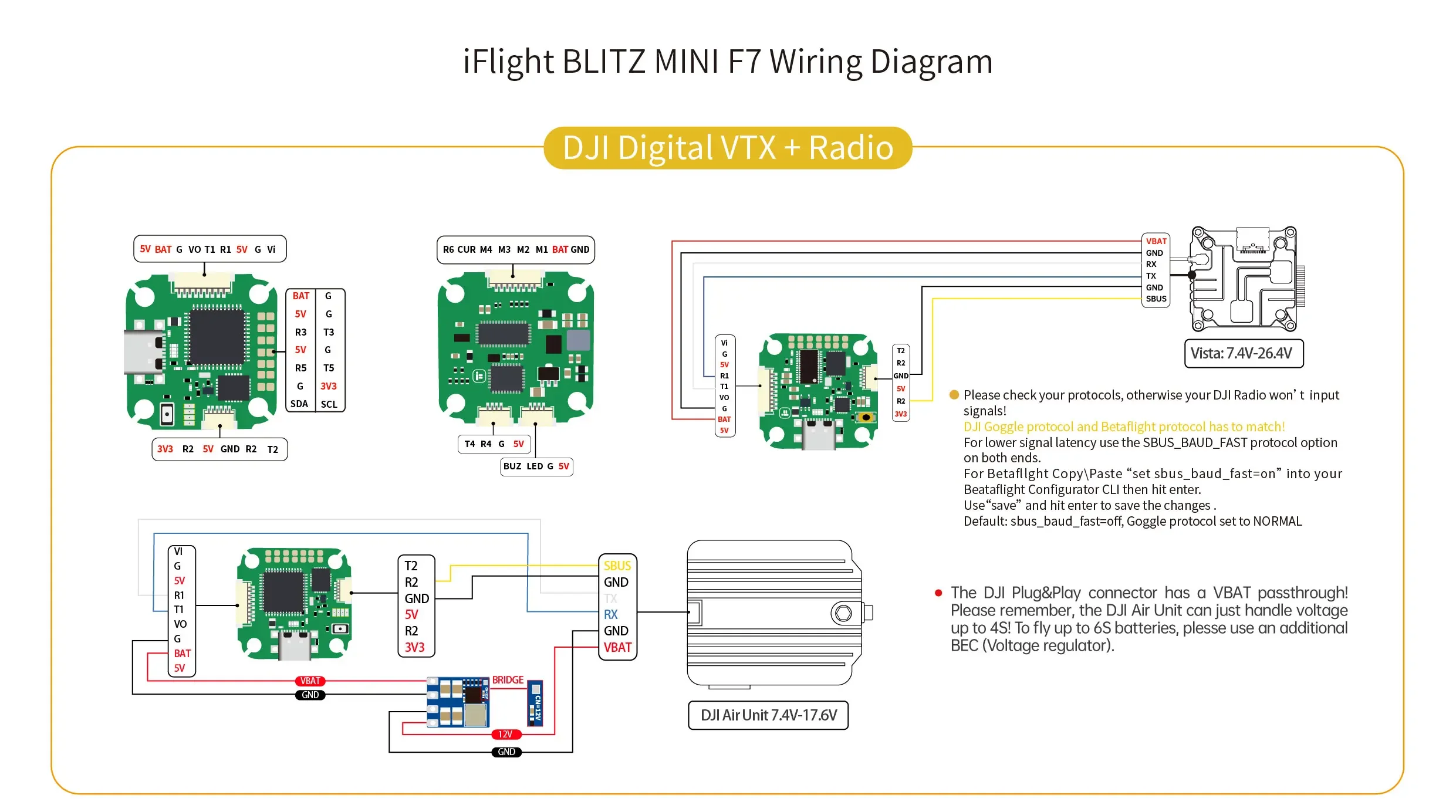

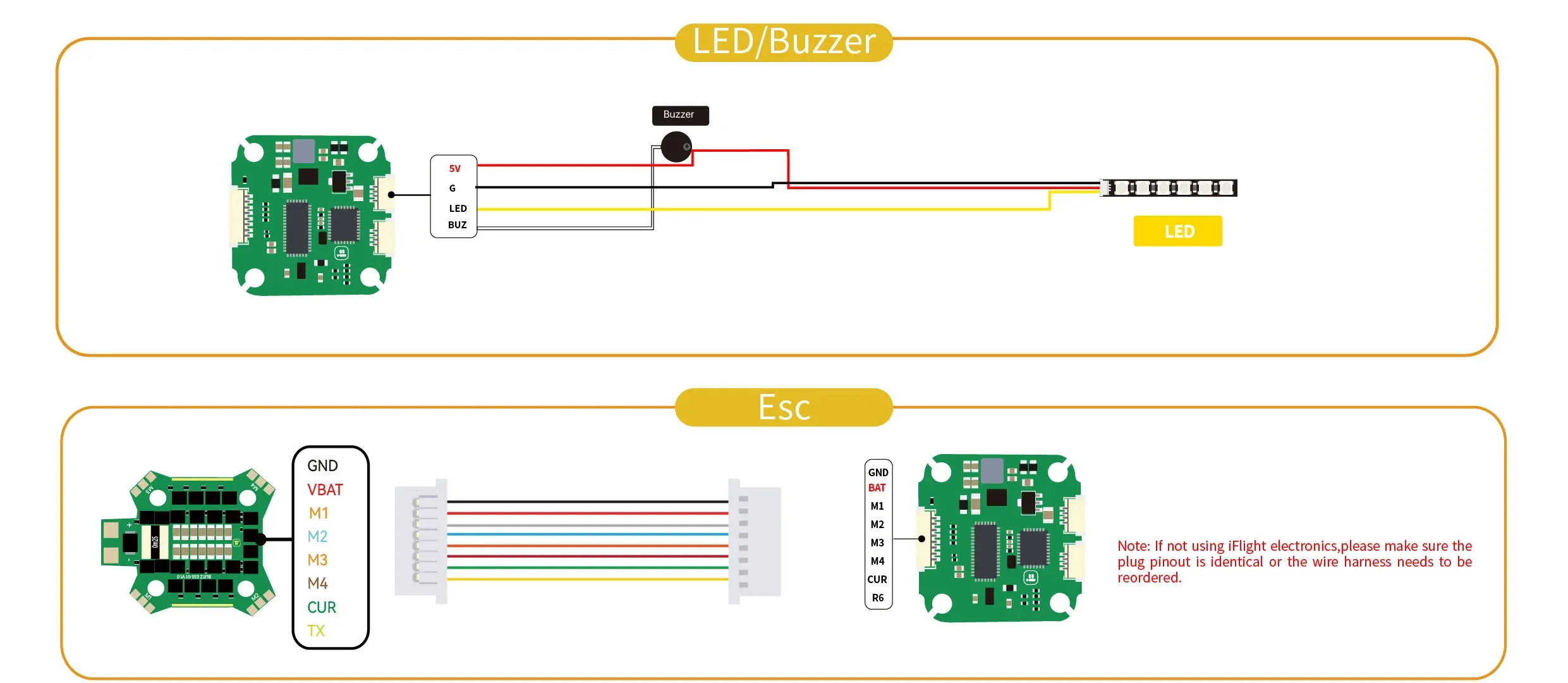

Wiring suggestion:

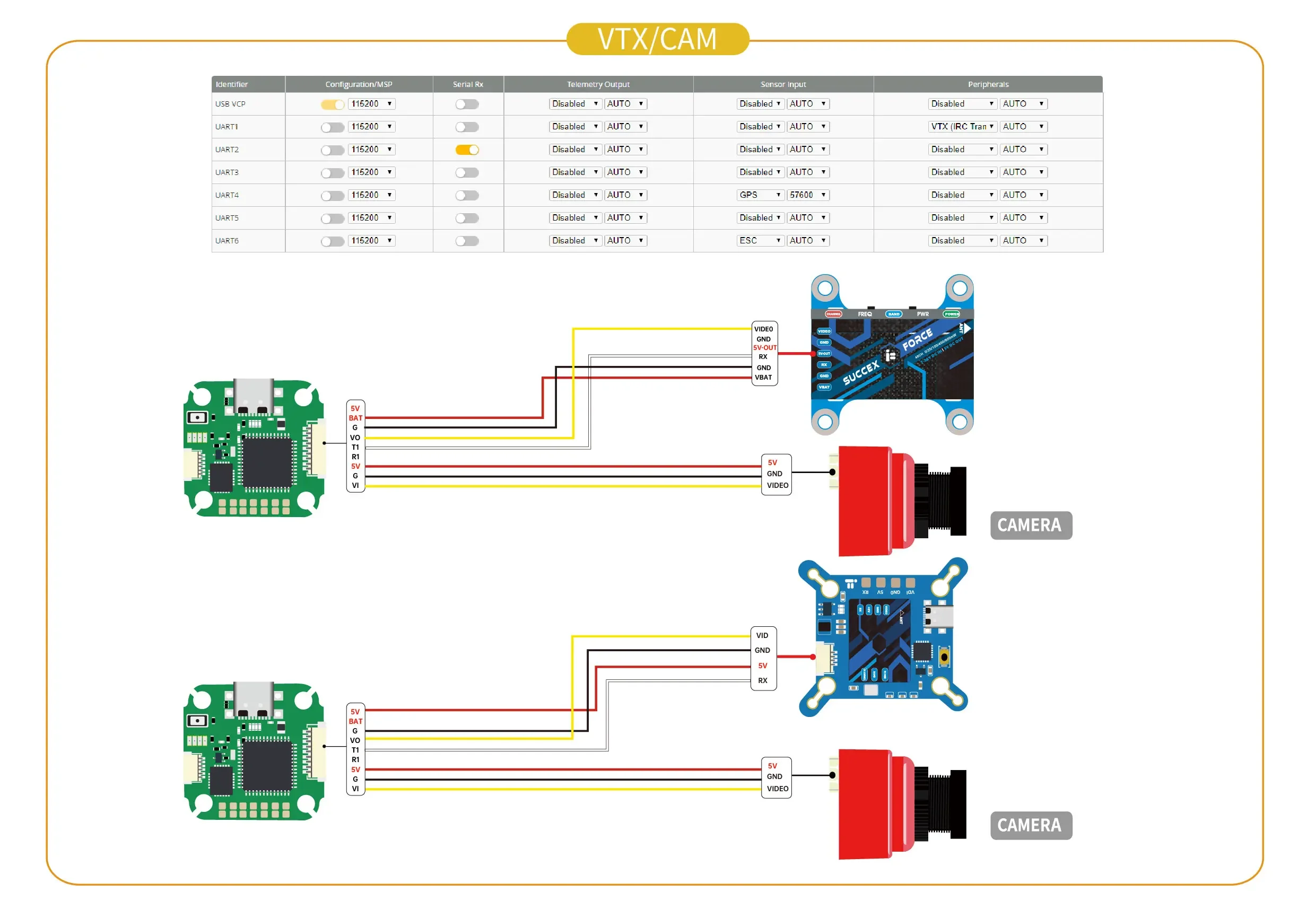

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.

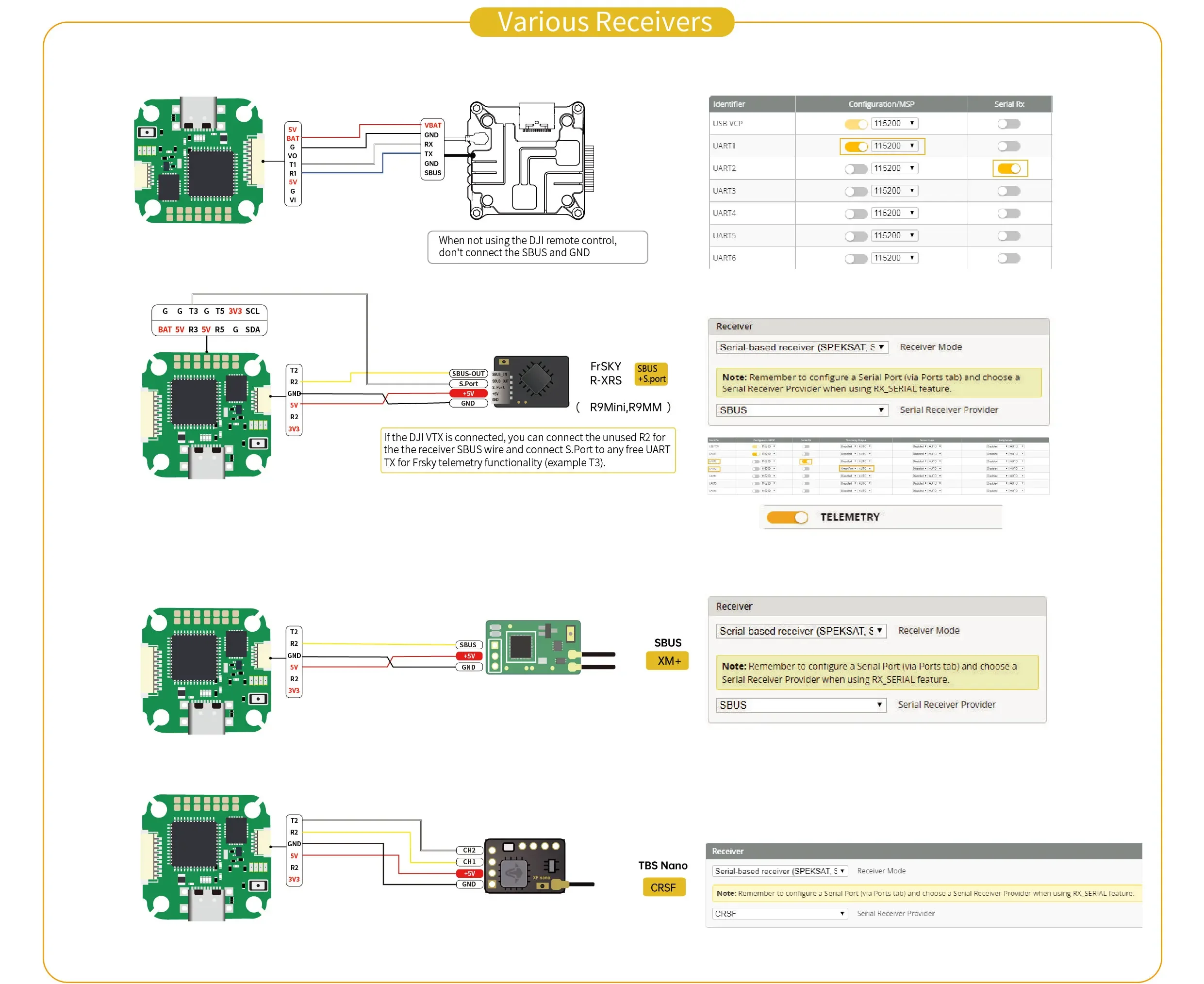

2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX，we suggest you connect to Uart_RX2
3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

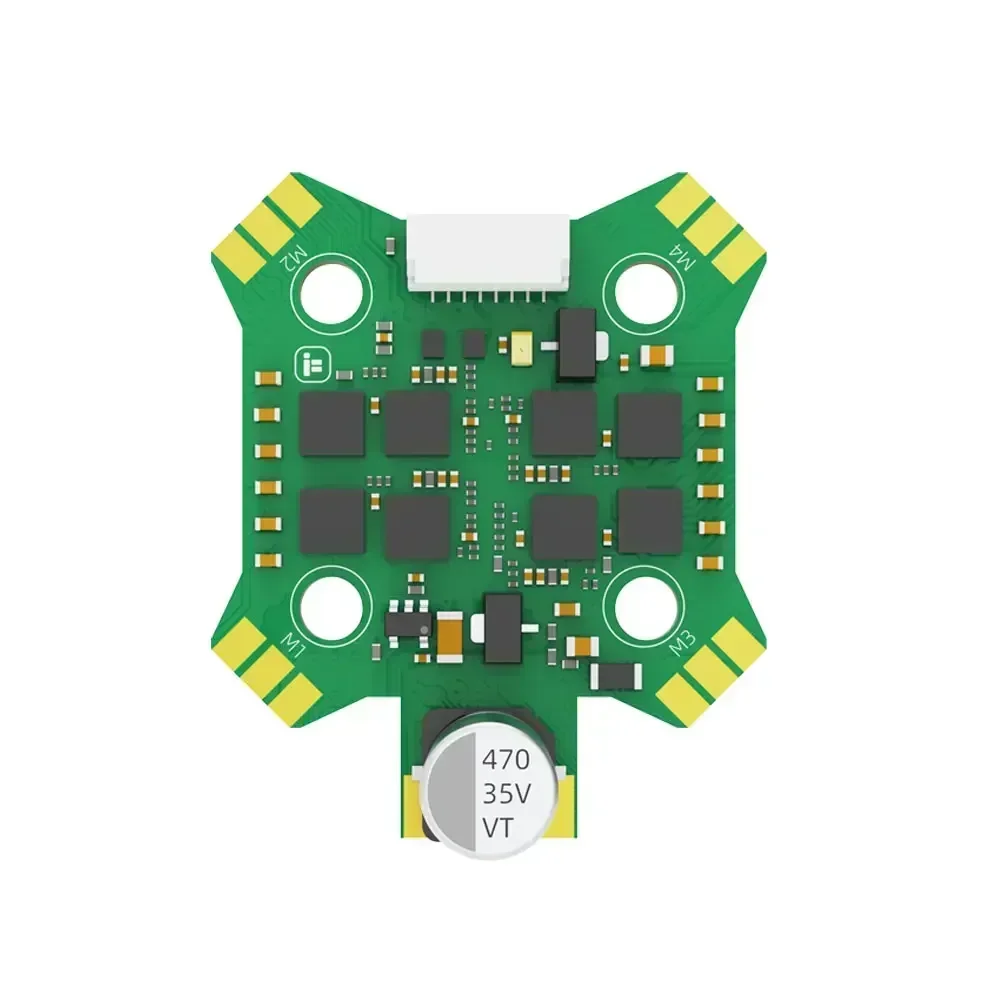

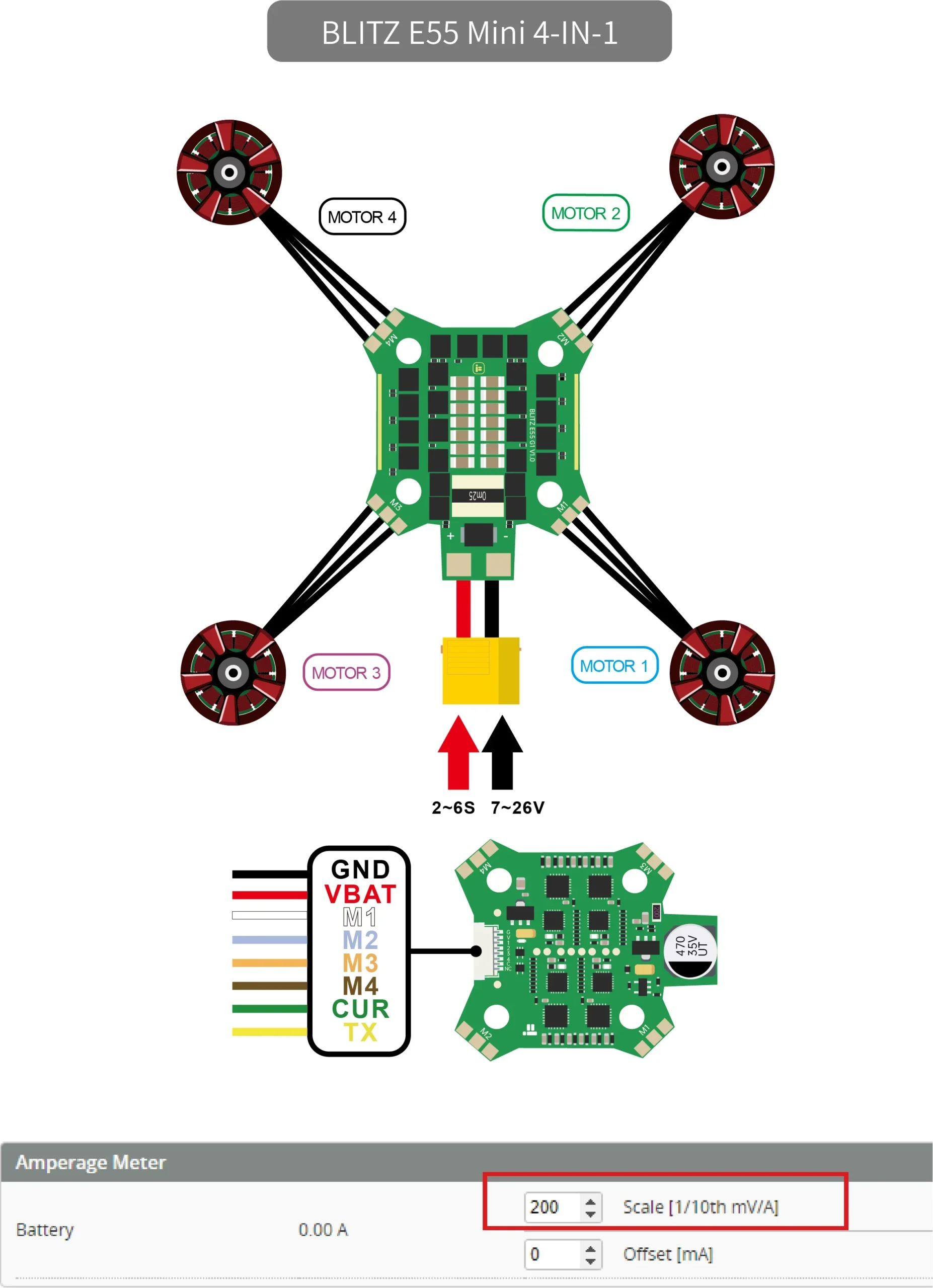

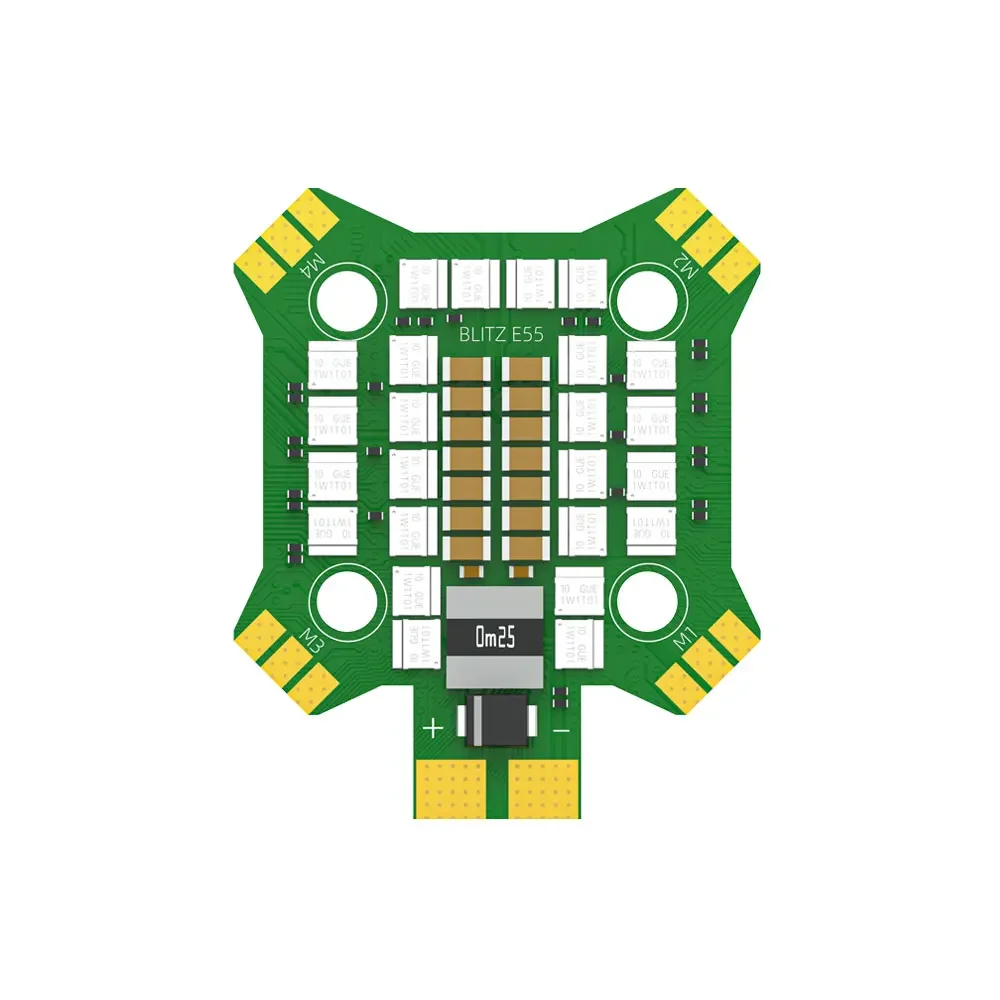

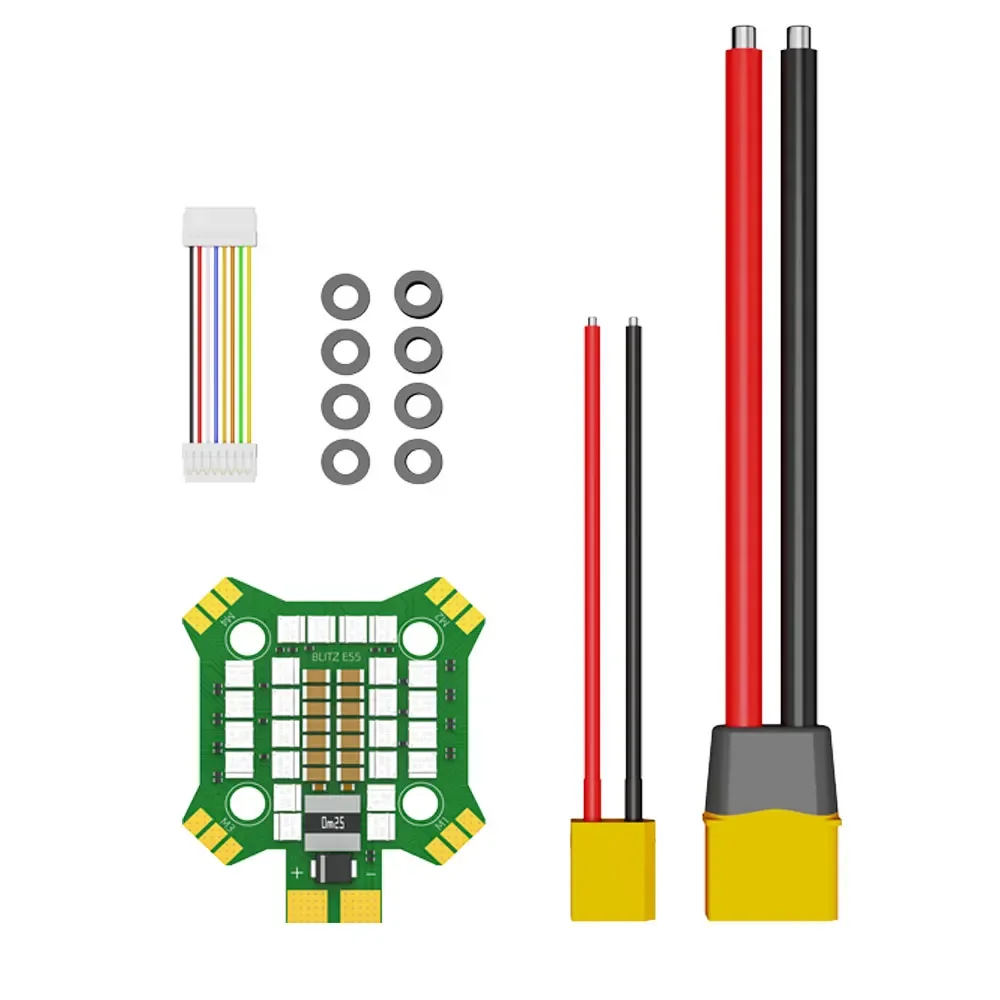

ESC Specifications
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU： G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9
Firmware: BLHeli 32

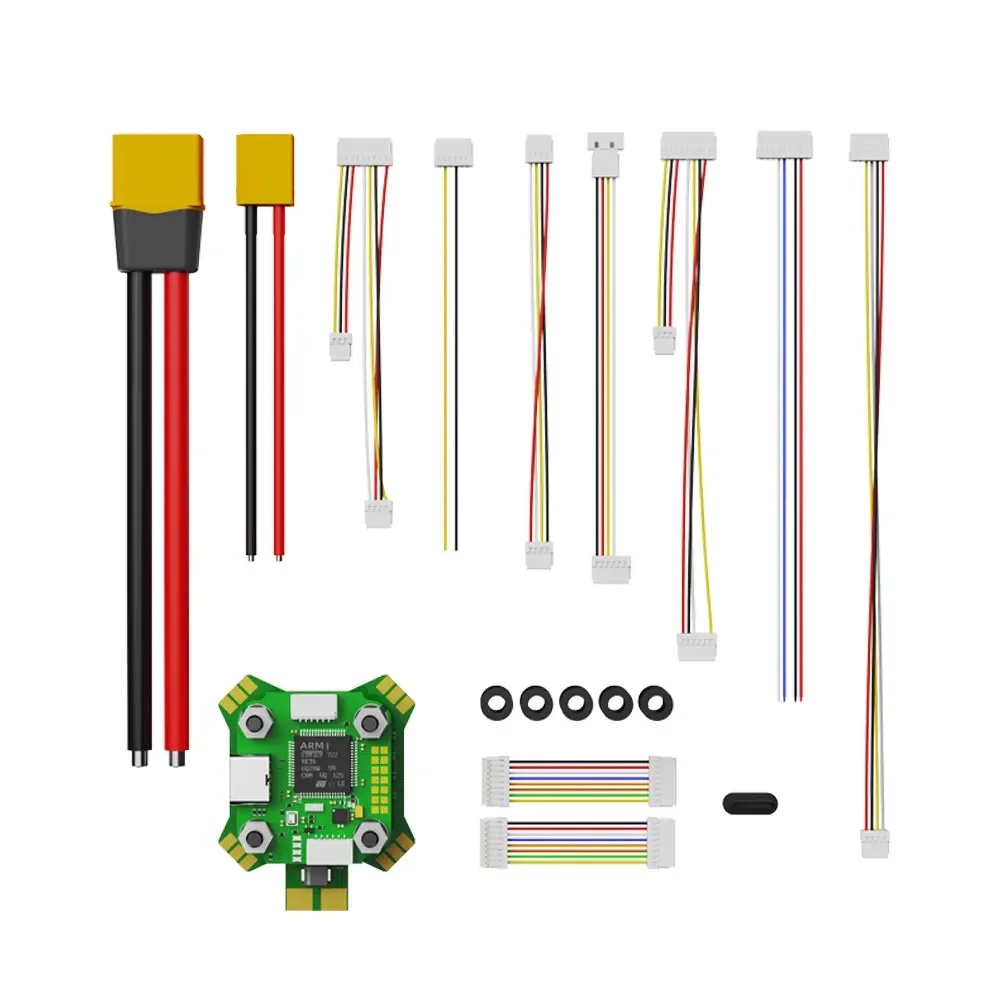

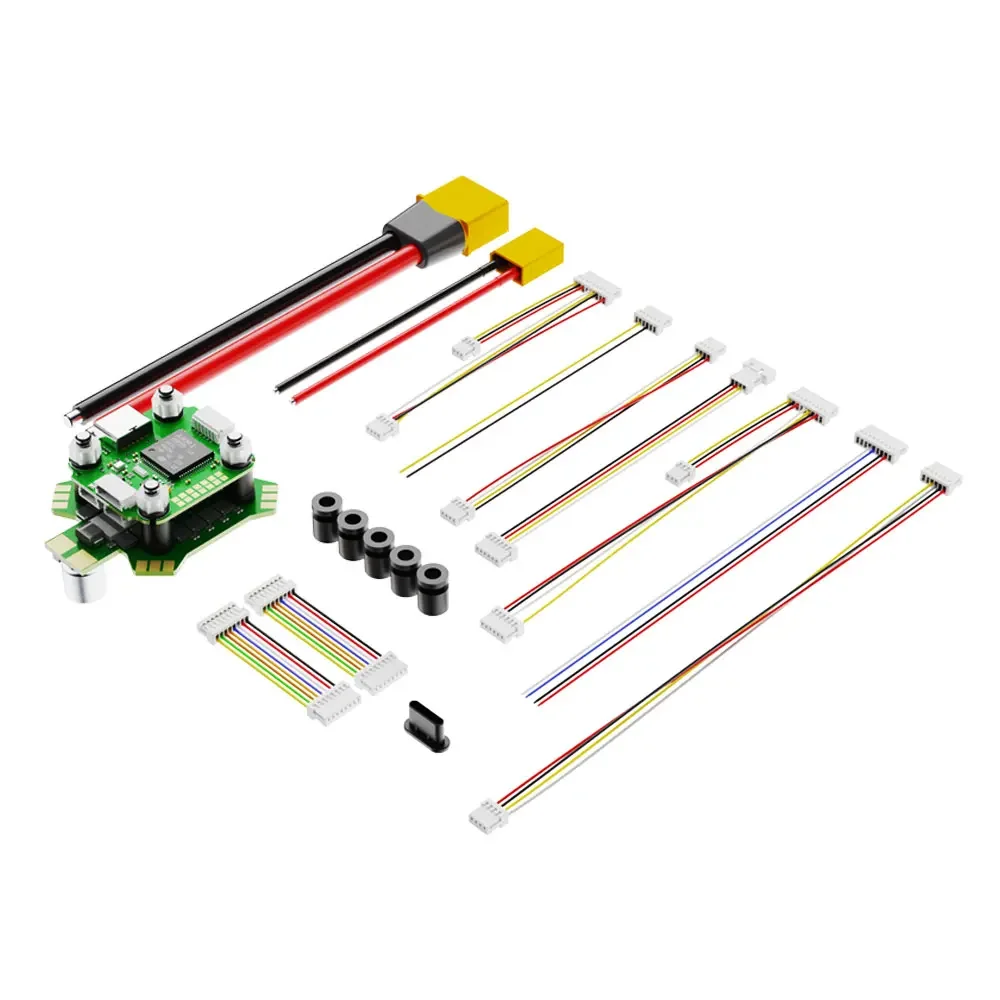

Packing List

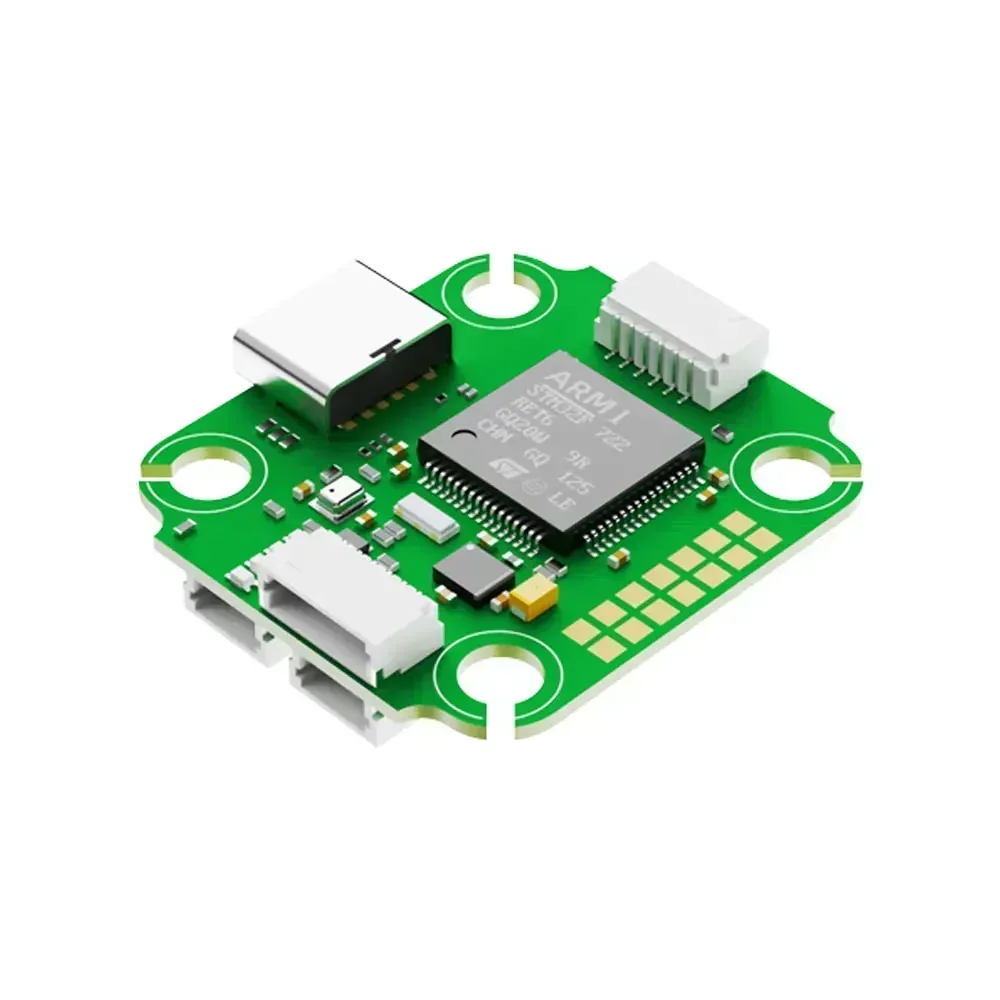

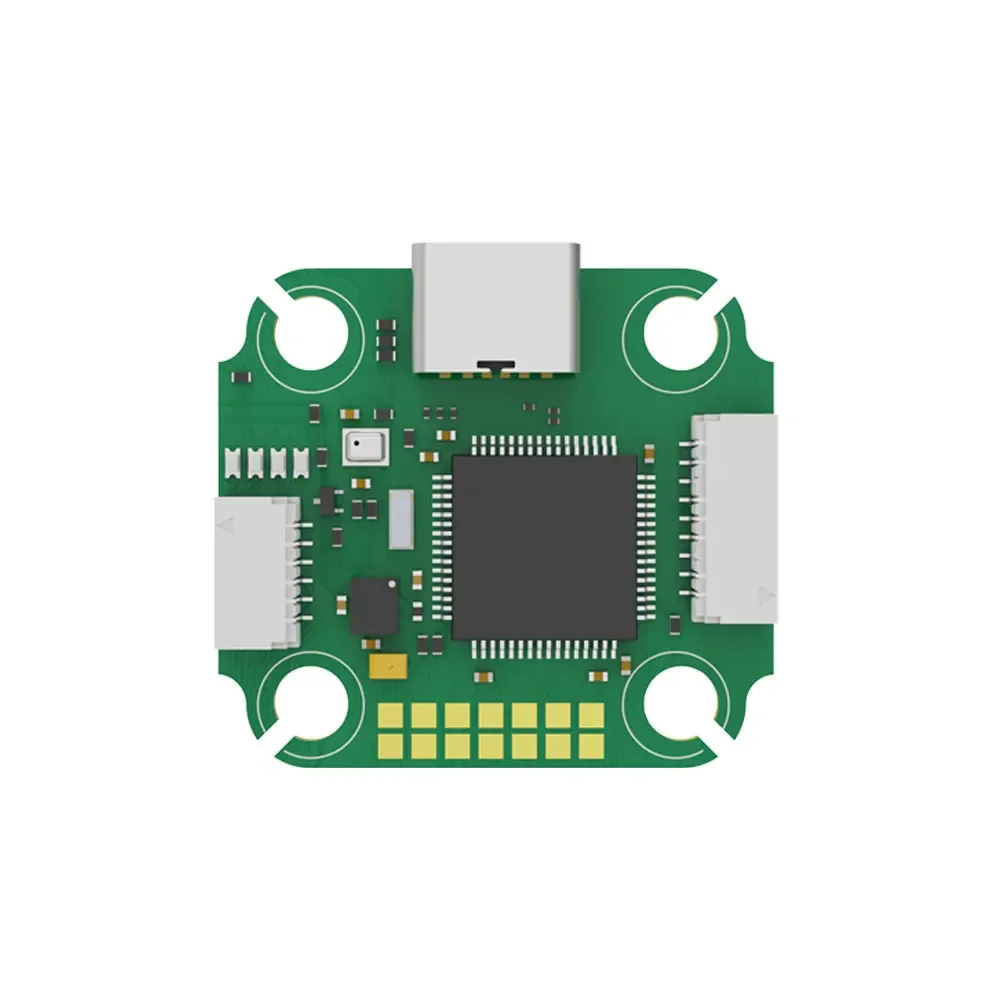

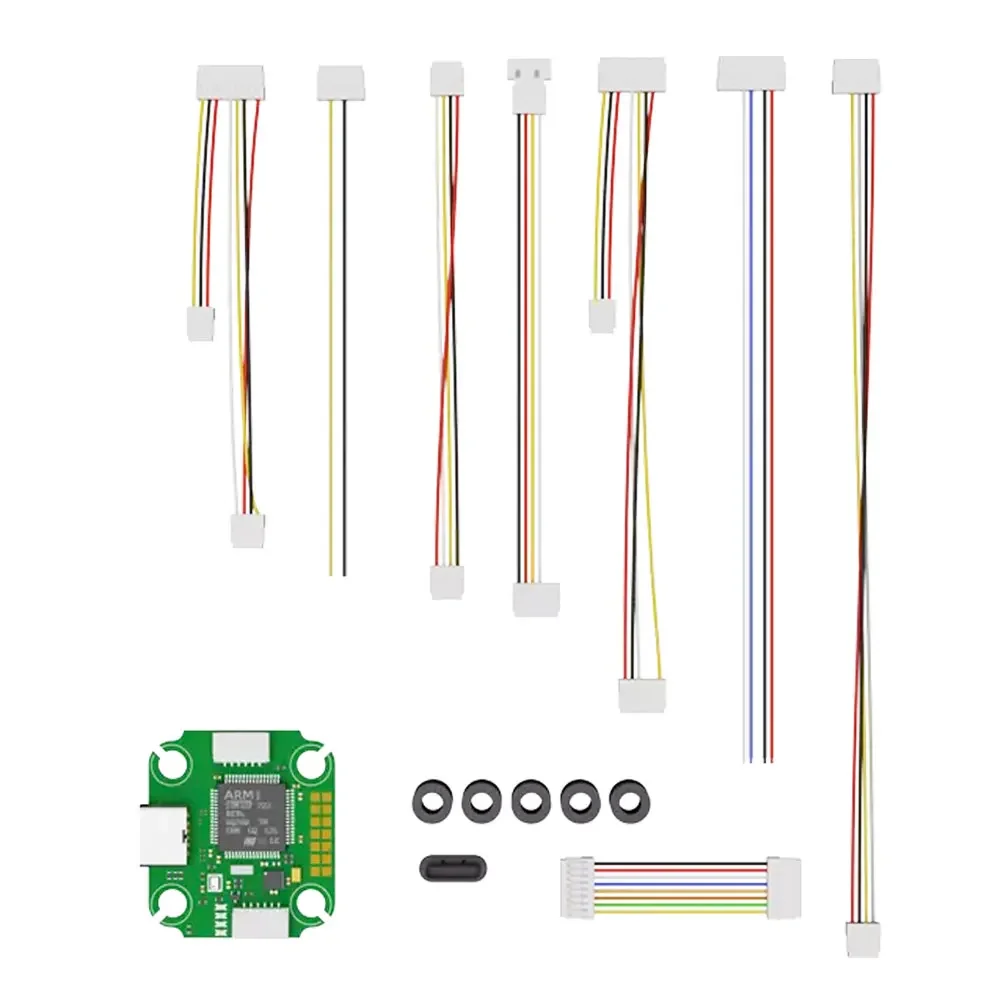

1 x BLITZ Mini F7 V1.2 Flight Controller
1 x BLITZ Mini E55 4-IN-1 2-6S ES
1 x silicon grommets
1 x wire harness for F7 Flight controller
