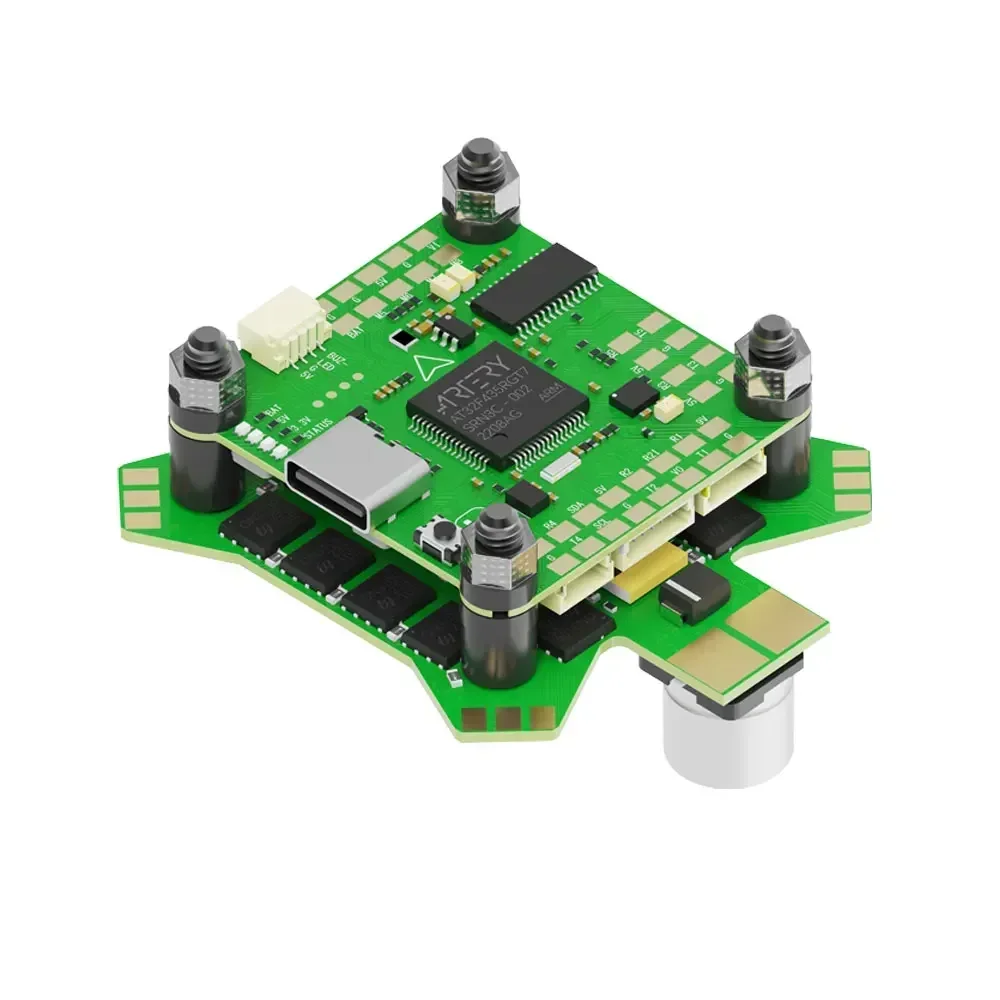

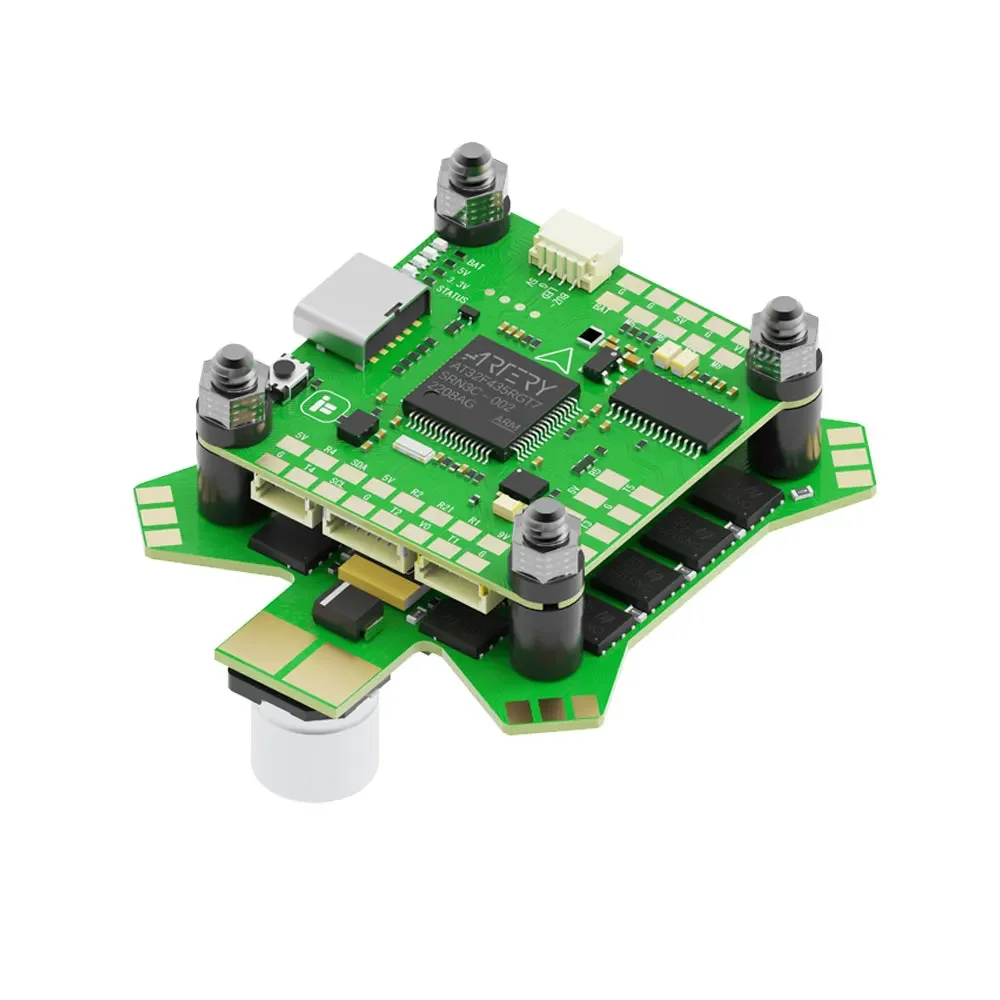

iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 1
iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 2
iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 3
iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 4
iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 5
iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone 6

iFlight BLITZ ATF435 55A Stack BLITZ ATF435 Flight Controller with BLITZ E55S 4-IN-1 2-6S ESC for RC FPV Freestyle Racing Drone

+ Free Shipping
Contact Us on WhatsApp
Categories: , , ,

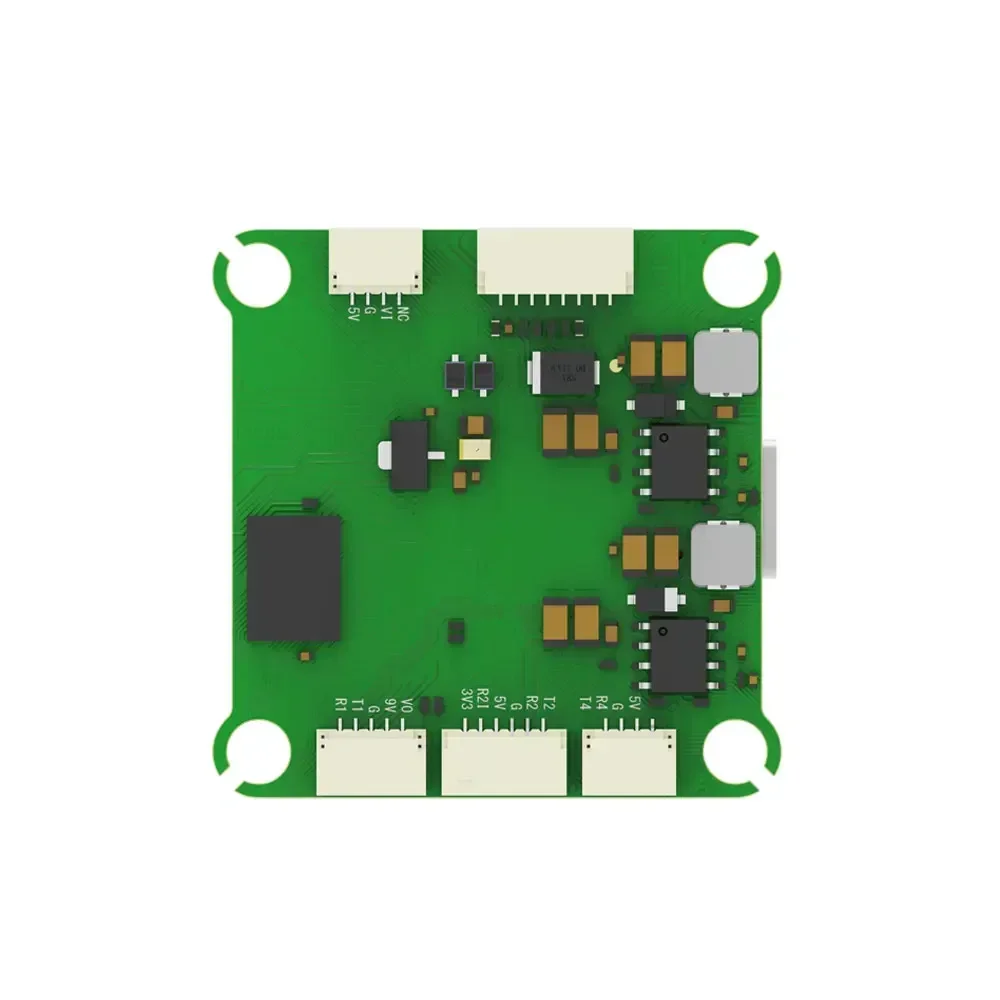

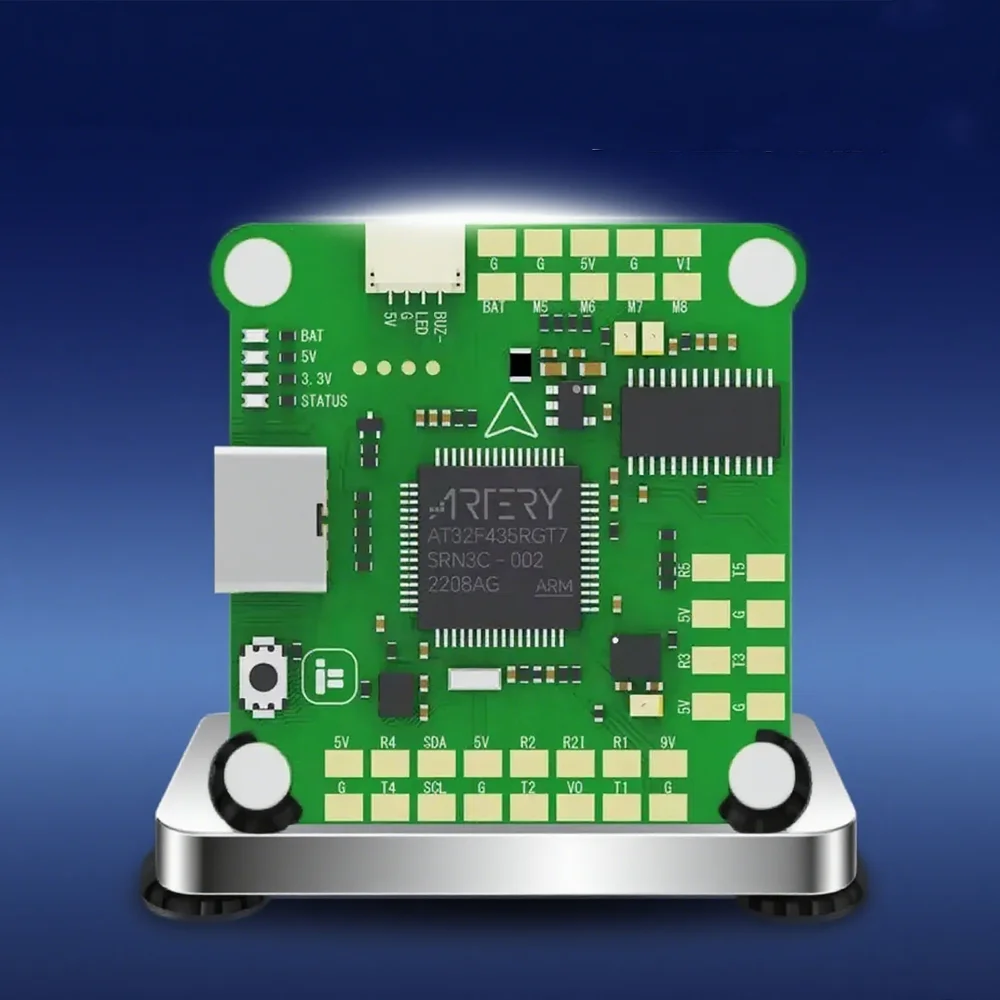

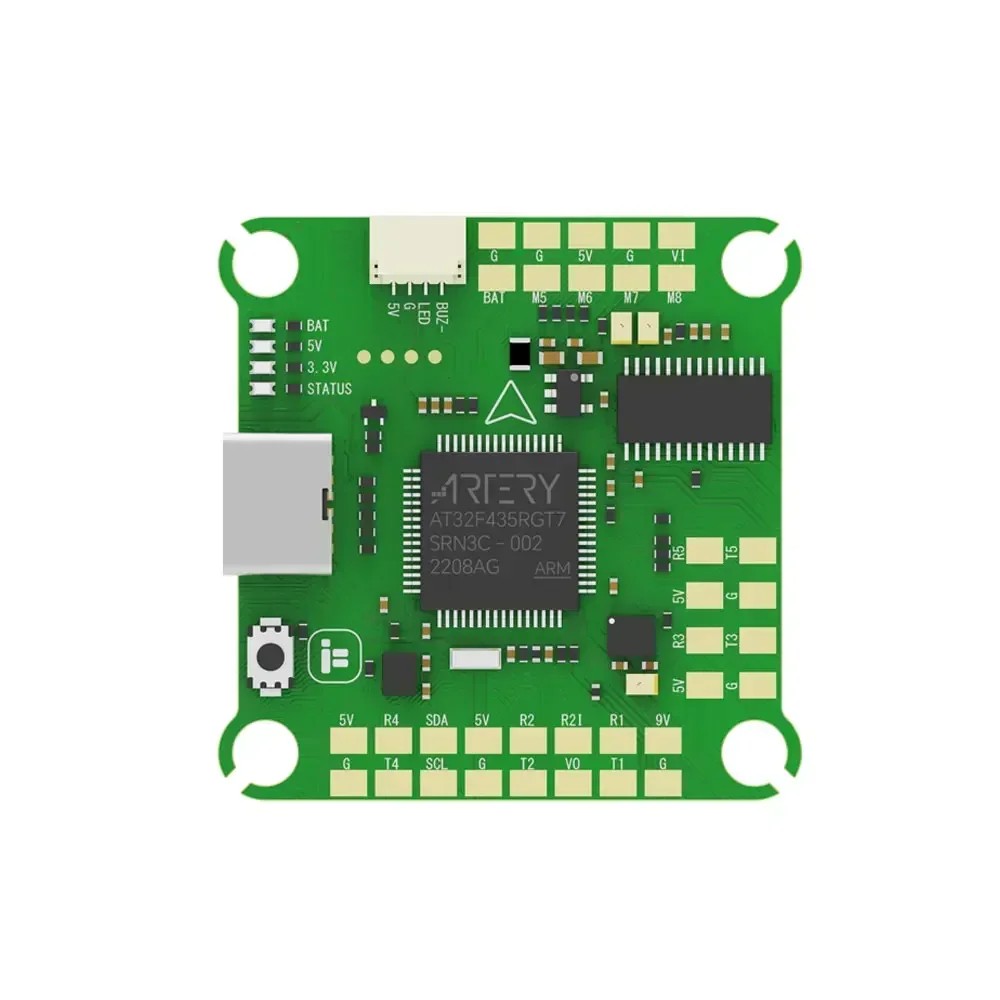

FC Specifications
MCU: AT32F435CGU7
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Changelog
November 6, 2023: The flight control Gyro was changed from BMI270 to ICM42688.

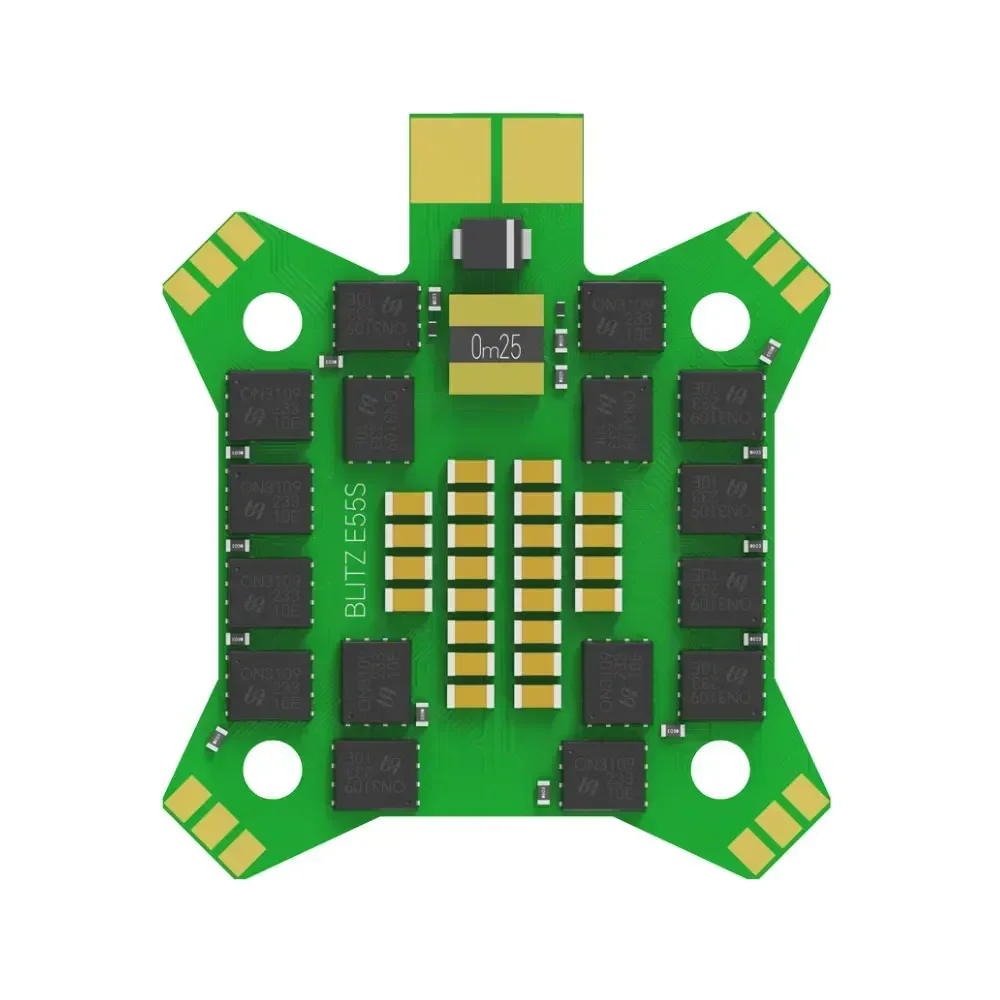

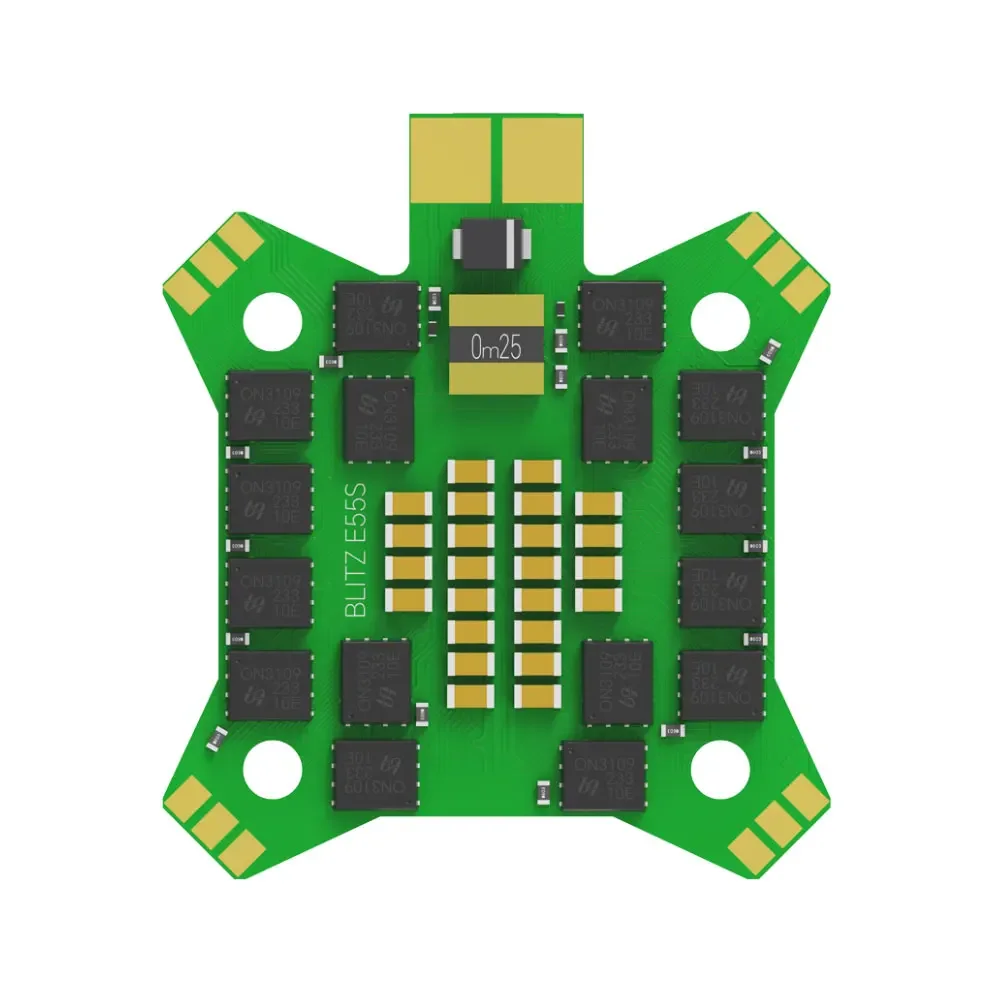

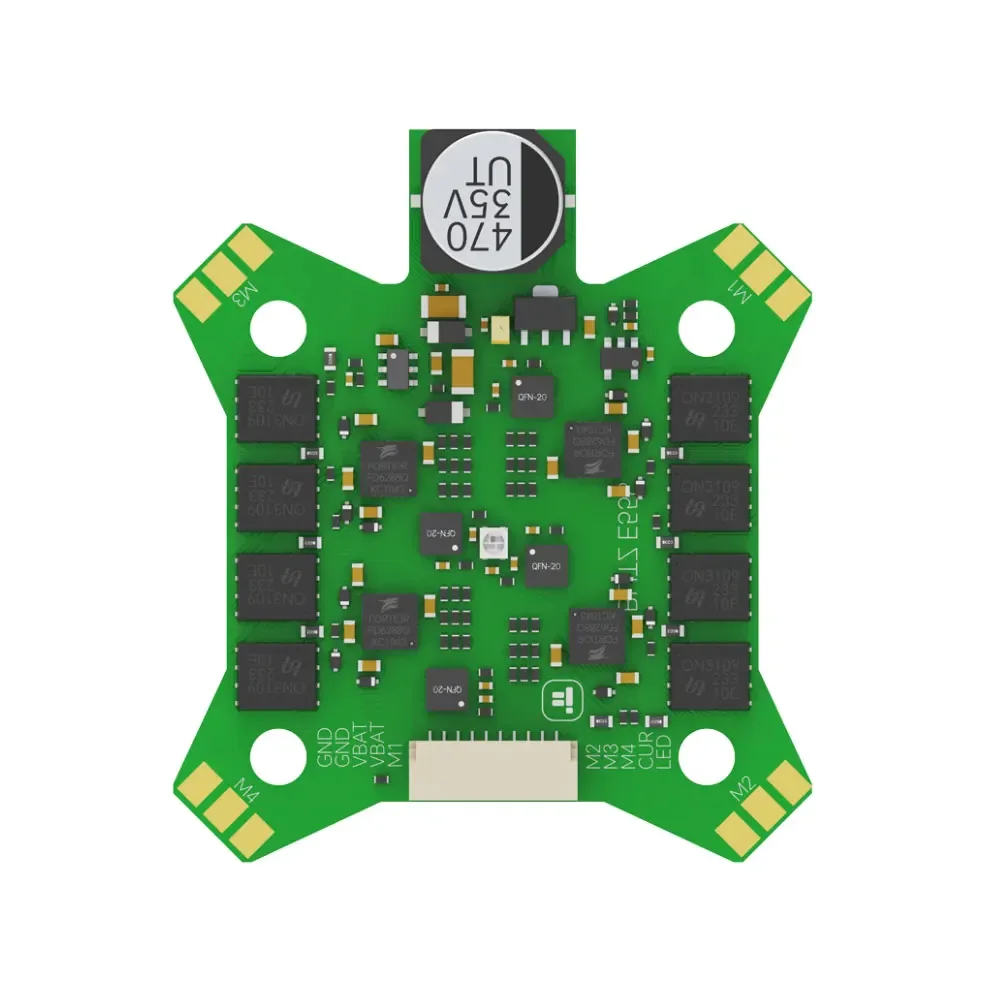

ESC Specifications
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-25 – Bluejay, 0.16, 24kHz
Packing List
1 x BLITZ ATF435 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x wire harness for ATF435 Flight controller
1 x silicon grommets

Weight 0.104 kg
Dimensions 8 × 8 × 3 cm
Hign-concerned Chemical

None
Is Electric

No Battery
Quantity

1 pcs
Wheelbase

Bottom Plate
Is it battery/power supply

N
Is it charger/adapter

N
Is Batteries Included

No
Size

as show
Technical parameters

KV1100
Model Number

iFlight BLITZ ATF435 55A Stack
For Vehicle Type

Airplanes
Tool Supplies

Assembly Category
Four-wheel Drive Attributes

Assemblage
Remote Control Peripherals/Devices

Remote Controller
Upgrade Parts/Accessories

55A ESC
RC Parts & Accs

ATF435 Flight Controller
Material

Composite Material
Brand Name

HawkSpeed
Origin

Mainland China
Recommend Age

14+y
Use

Vehicles & Remote Control Toys
