iFlight BLITZ 5.8G 25mW Race VTX Video Transmitter Non-adjustable with IPEX connector for FPV parts

Description：

Introducing our race VTX designed specifically for FPV competitions. Our product features an integrated design of video transmitter and LED control module, allowing independent control of LED strip colors and frequencies. With dual mounting holes to accommodate various customer needs. The full plug design makes for easy connectivity, with solder pads reserved on the back for customization.
Features:
Integrate VTX with LED control module for easier and cleaner installation.
Separate frequency button for easy switching
Independent control of LED strip colors and frequency.

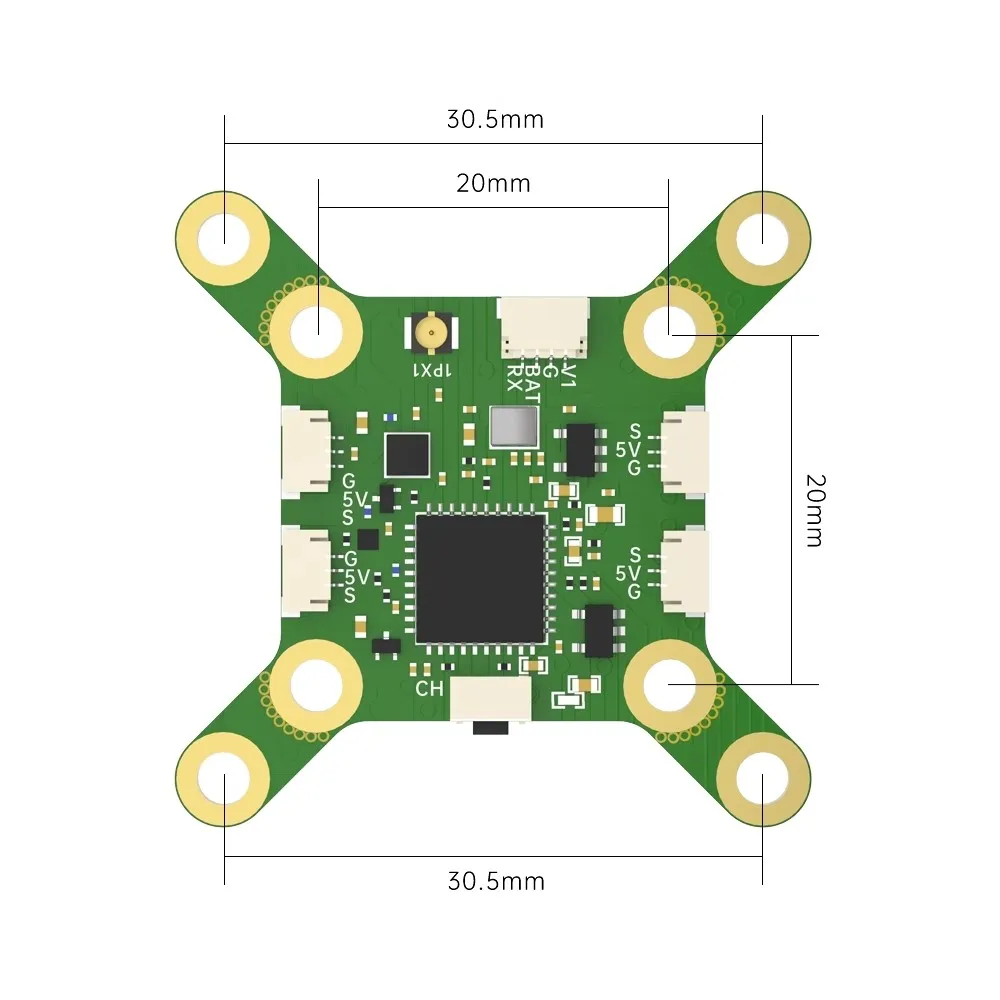

Double mounting holes: 30.5*30.5mm / 20*20mm
Plug and play, with solder pads reserved on the back.
Fixed transmitting power
Specifications
Item: BLITZ RACE 25mW VTX
Input voltage: DC 7-26V
Volts input: 2-6S
LED lamp output voltage 5V, current 2A
Fixed transmitting power: 25mW(14dbm)
Antenna connector: IPEX
VTX input connector: SH0.8 4P
LED connector: SH0.8 3P

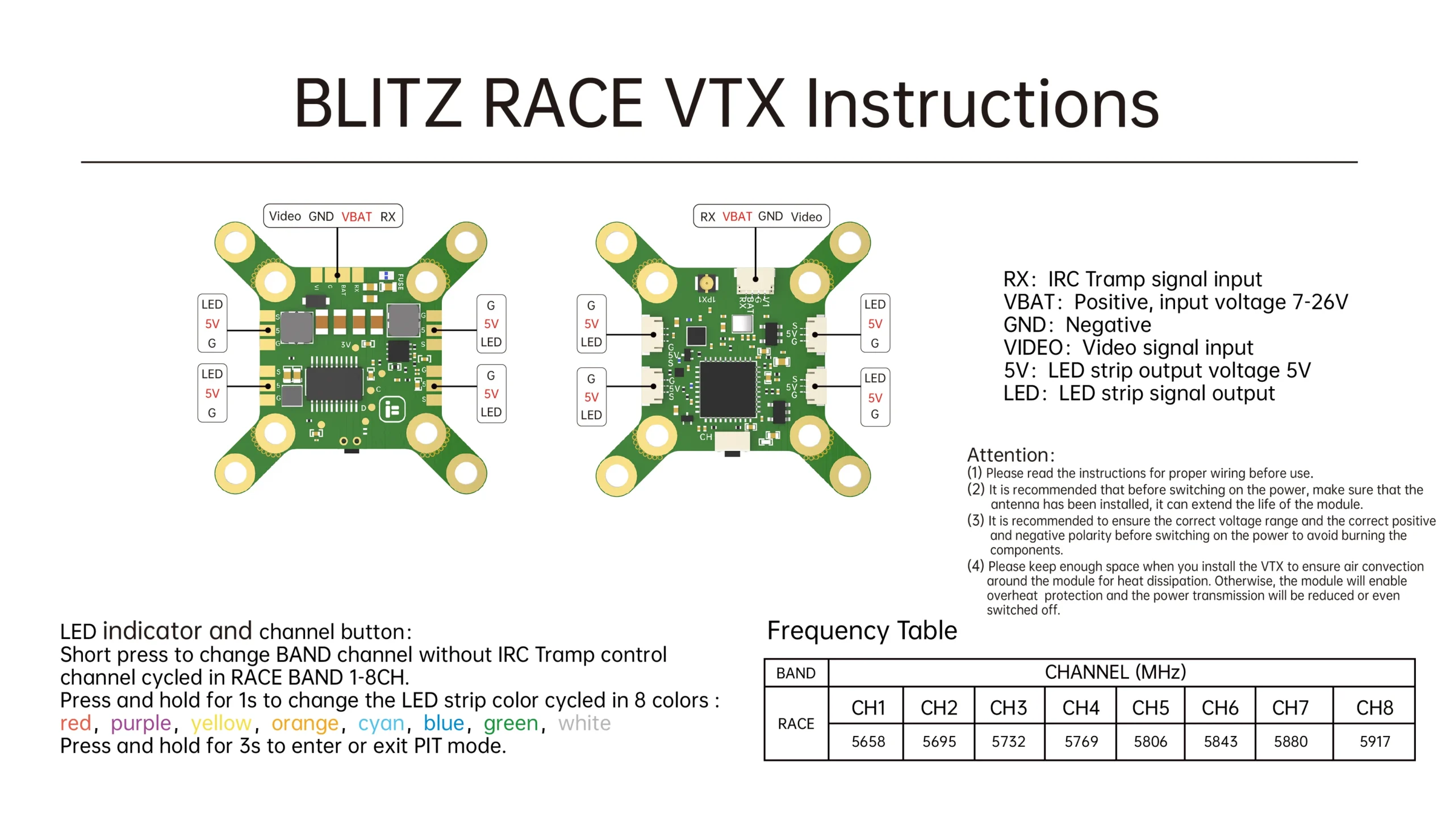

VTX instructions:
1. Adjust the frequency table: short press the CH button to switch the frequency.
2. PIT mode: long press CH button for 3 seconds to enter the PIT mode. In the PIT mode, long press for 3 seconds to exit the PIT mode.
3.LED color: long press CH button for 1 second to change the color of the LED strip
4. When using the flight control OSD to adjust the VTX, the CH button will be invalid. If you need to use the CH button to adjust the VTX, please close the serial port protocol of the flight controller to connect to the RX of VTX, or the RX connector does not connect to the flight controller.
Packing List
1 x BLITZ 5.8G 25mW RACE VTX
1 x iPex/UFL to M2 SMA F Adapter Cable
1 x Cable set
