GEPRC TAKER H743 BT 32Bit 65A Stack 32Bit 65A 4IN1 ESC Dual Gyro Data Analyze Record Flight Barometer for Racing Drone MOZ7 V2

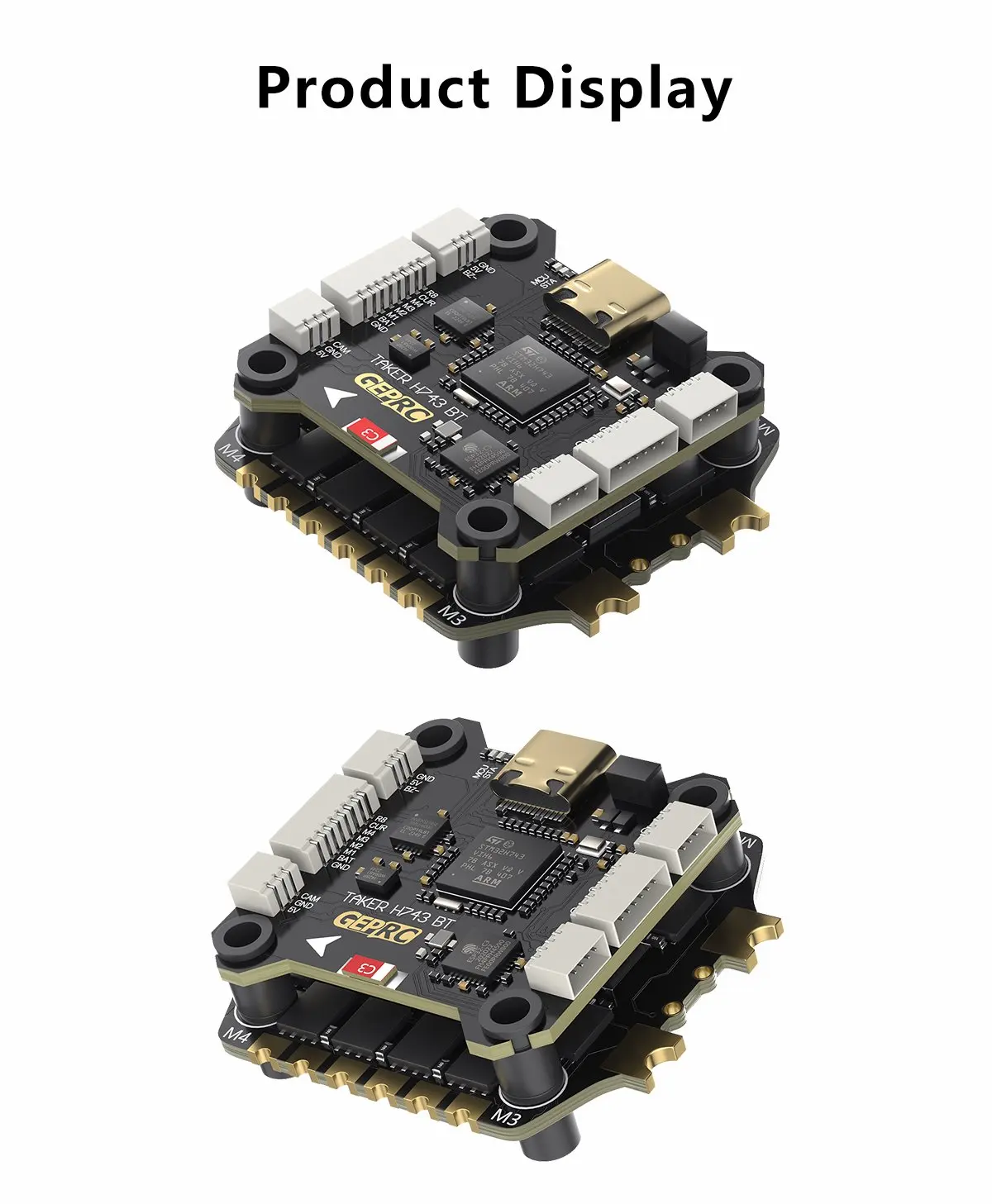

GEPRC TAKER H743 BT 32Bit 65A Stack
The TAKER H743 BT 32Bit 65A STACK is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

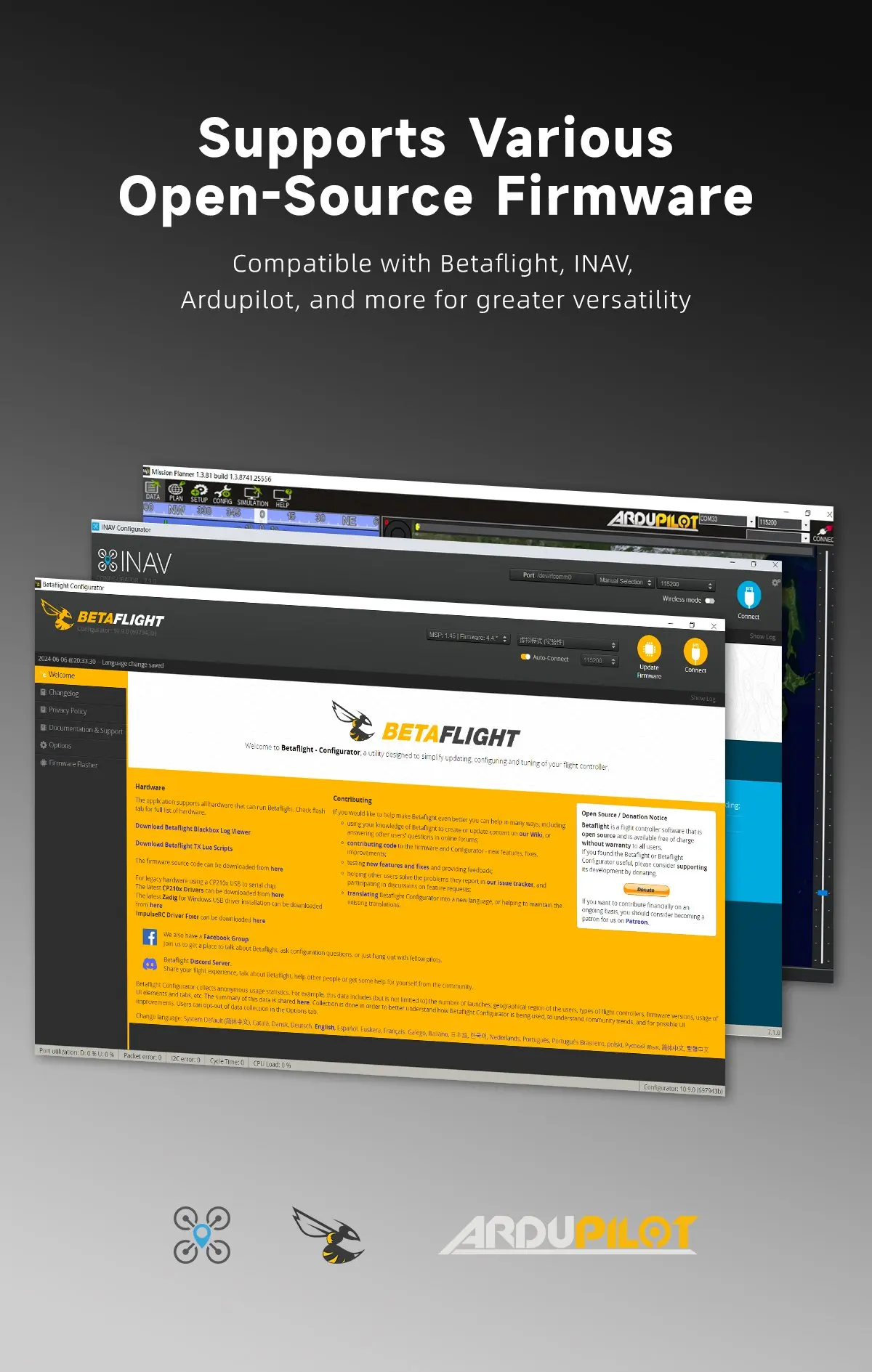

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H65_8S_32Bit 65A 4IN1 ESC, it delivers an exceptionally smooth flight experience.

Feature

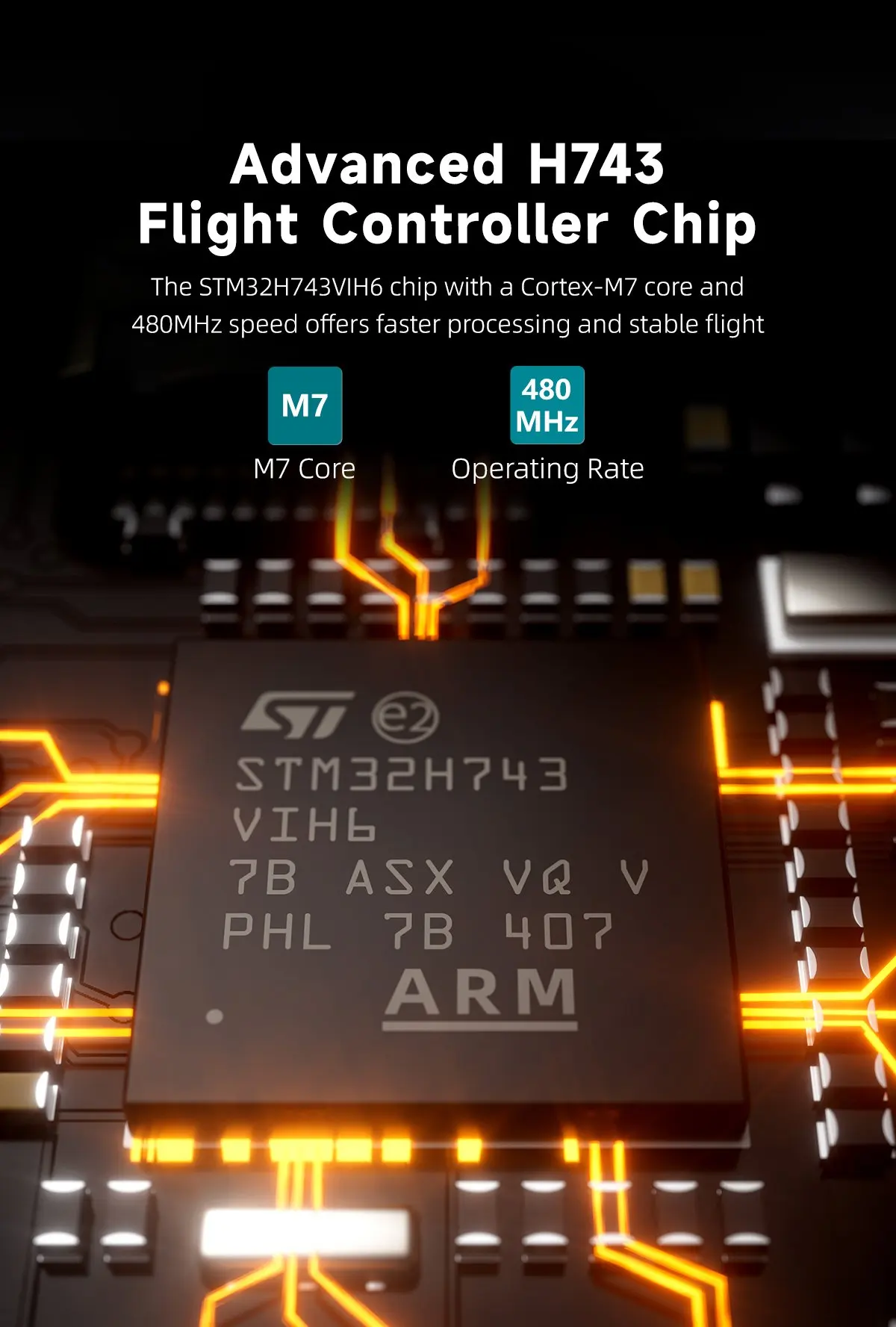

1. Adopts the high-performance STM32H743 as the main controller

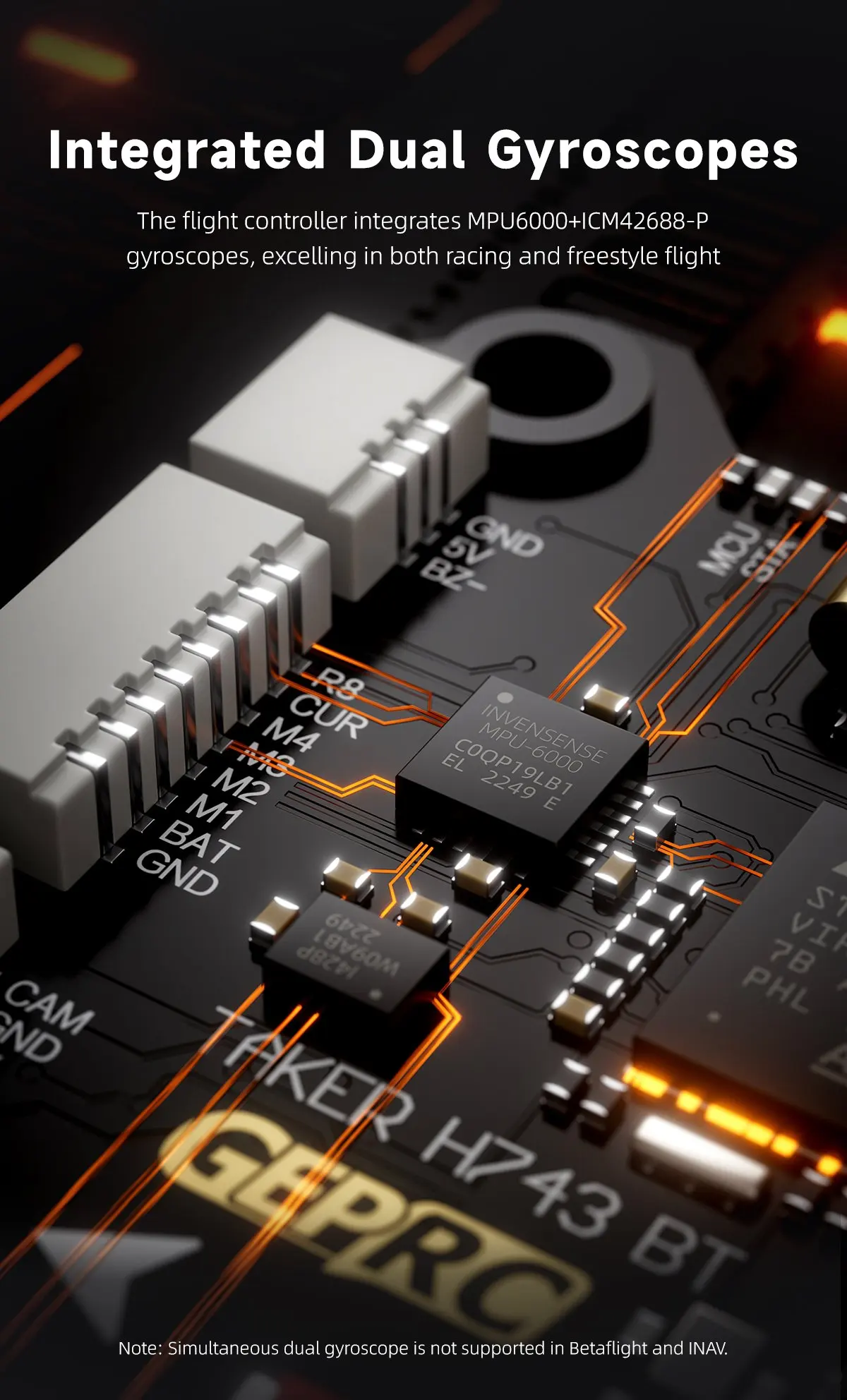

2. Equipped with MPU6000 and 42688-P dual gyroscopes

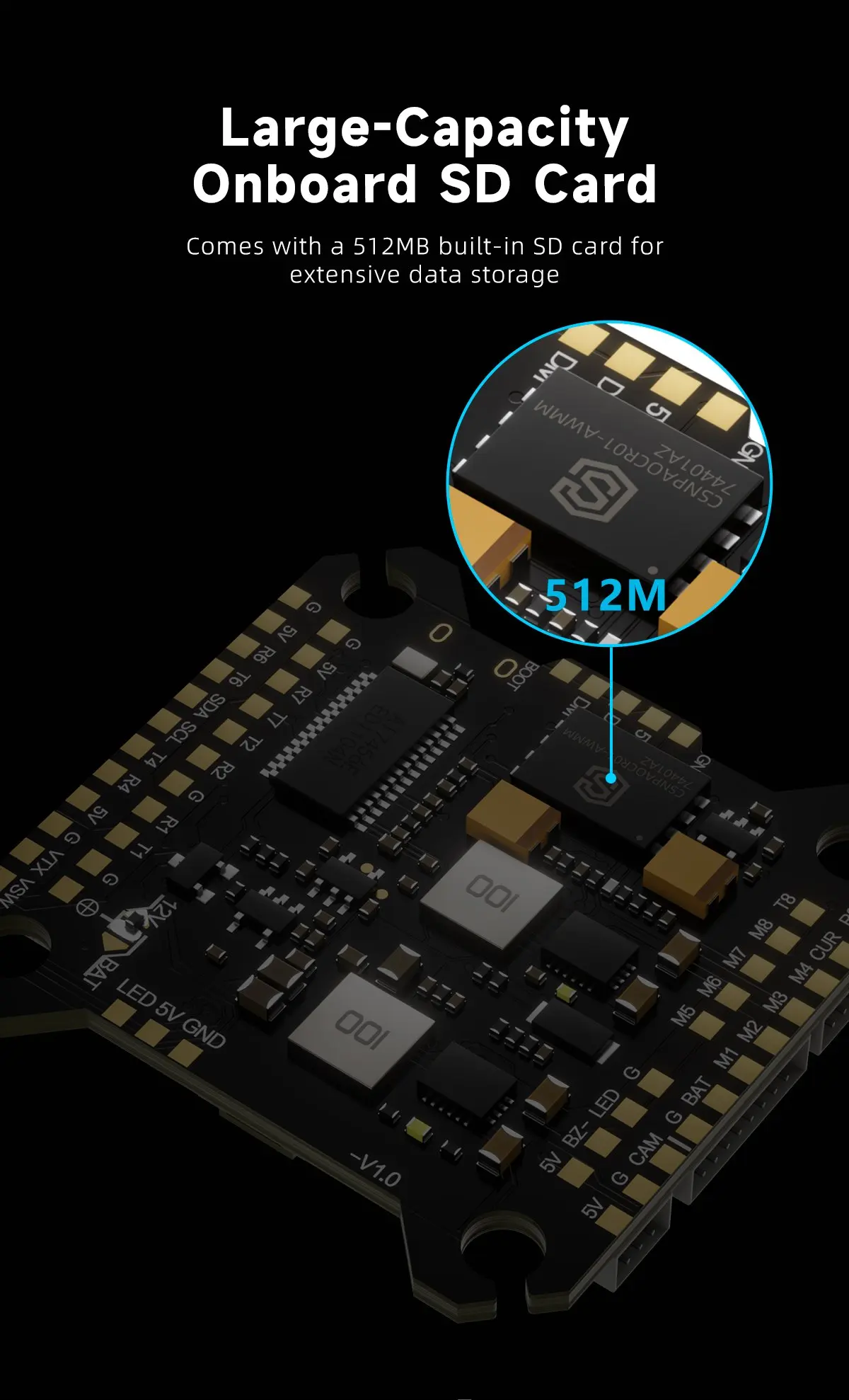

3. 512MB high-capacity black box storage

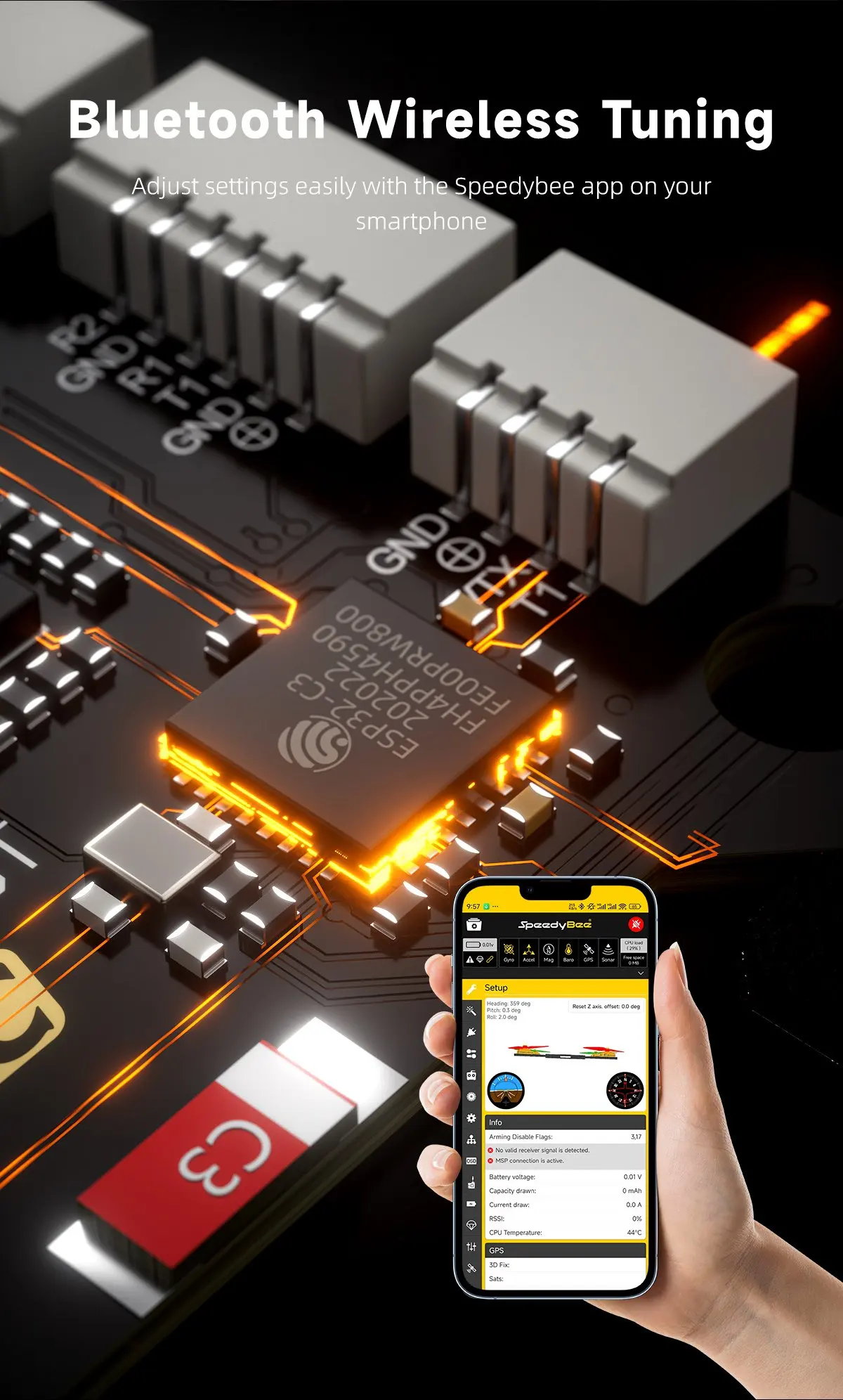

4. Bluetooth parameter tuning

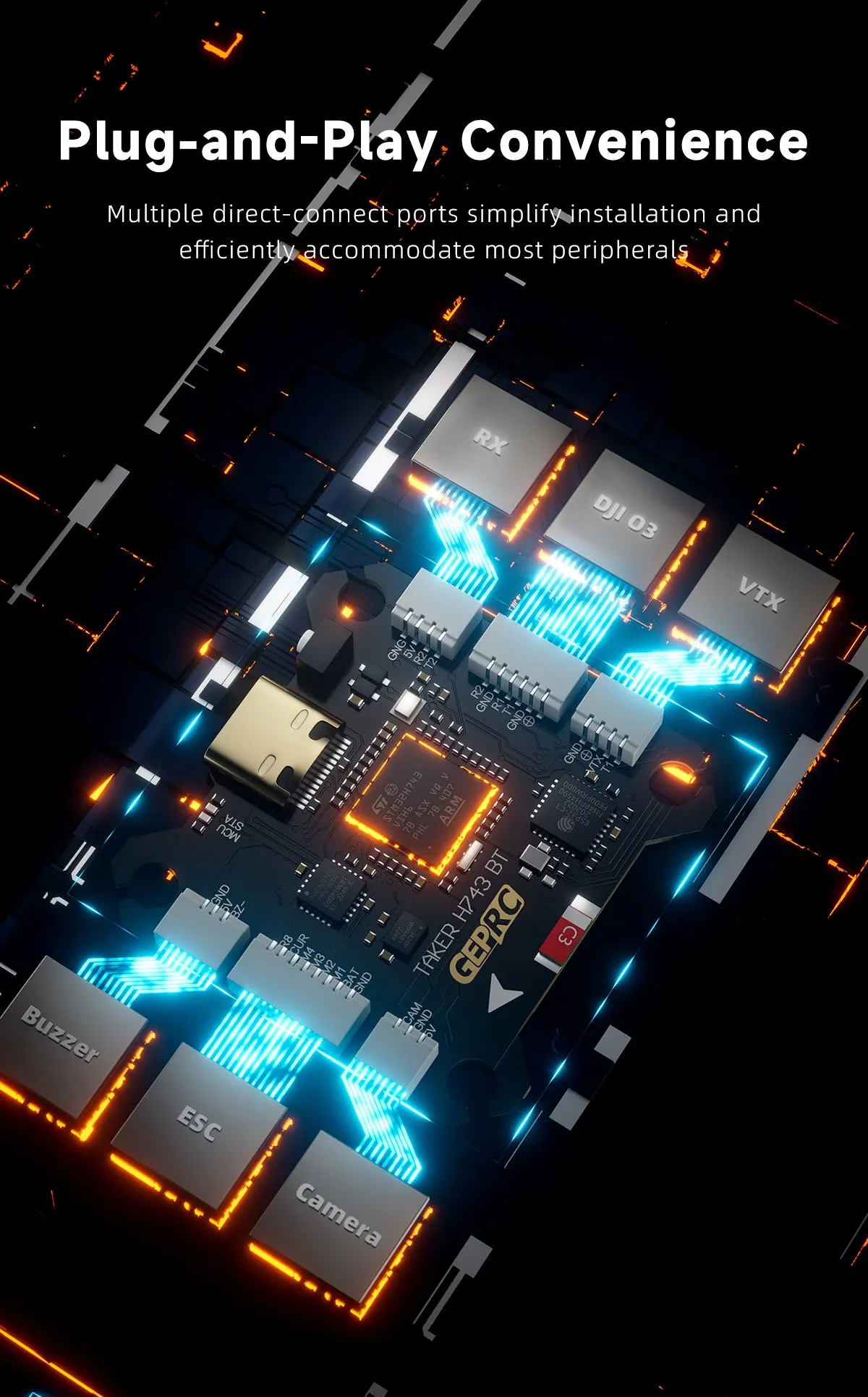

5. Plug-and-play, no soldering required

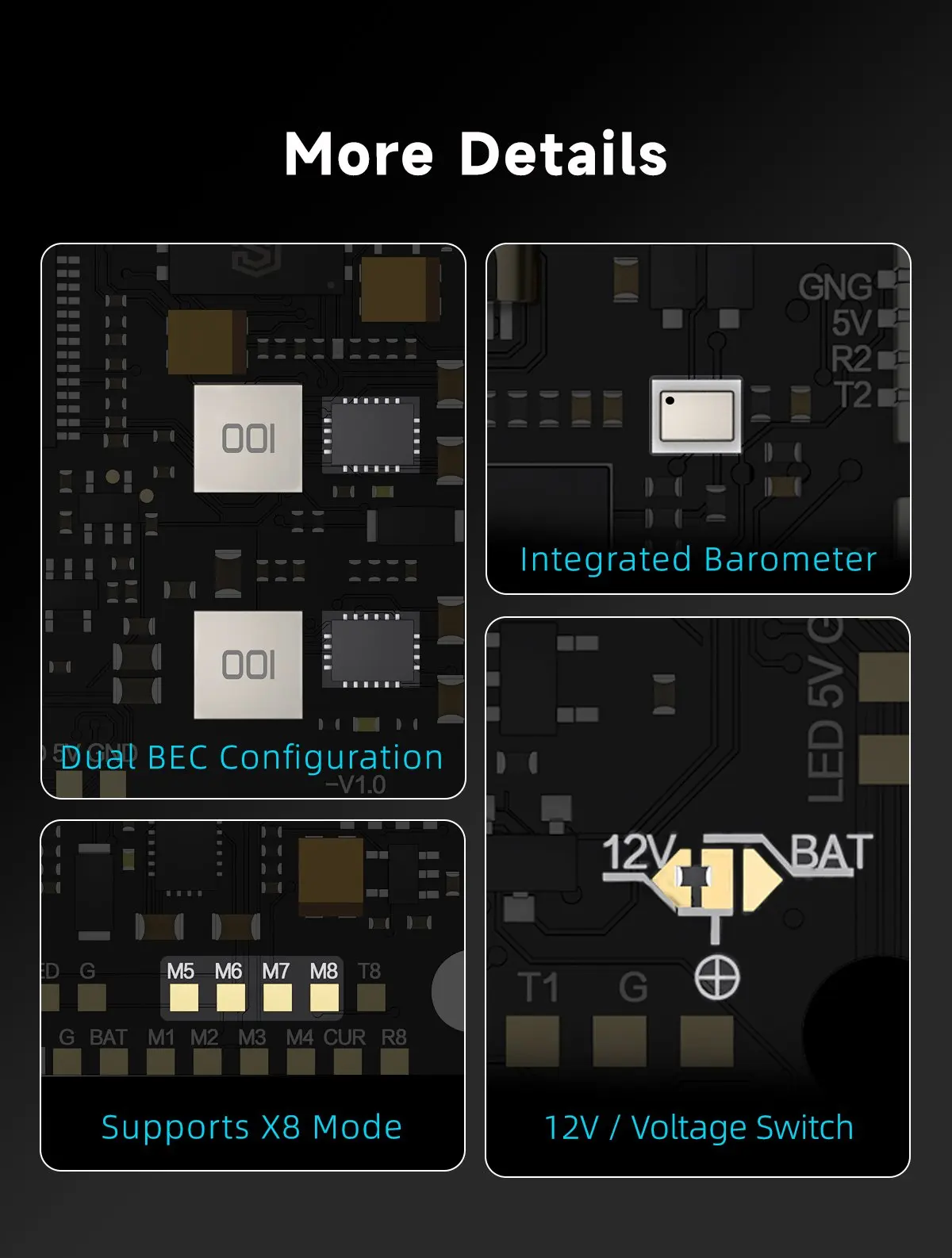

6. Integrated barometer

7. Features 7 UART ports

8. Independent BEC with 12V@2.5A and 5V@3A outputs

9. Supports multiple firmware options

10. Equipped with the TAKER H65_8S_32Bit 65A 4IN1 ESC for a smooth flight experience

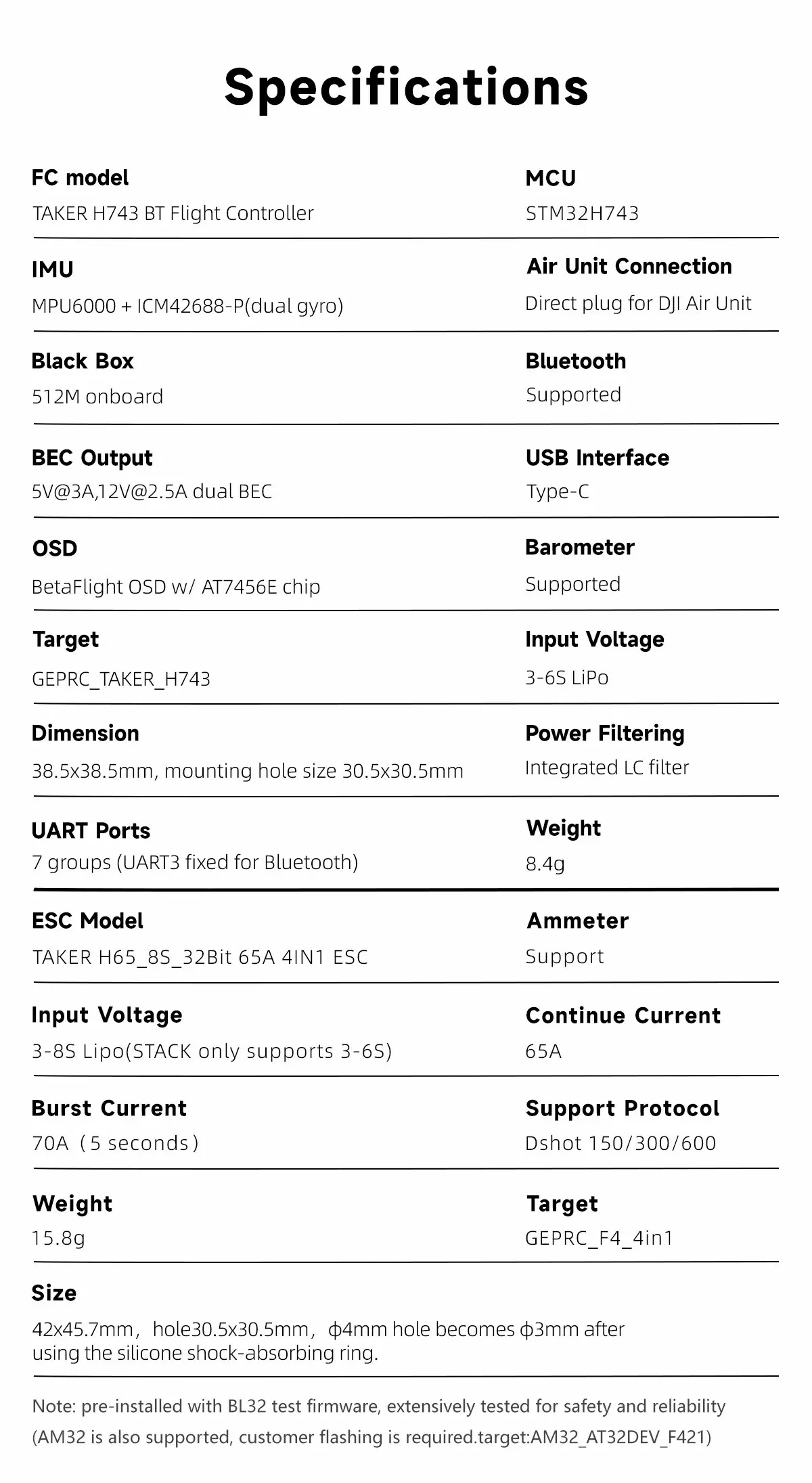

Specifications

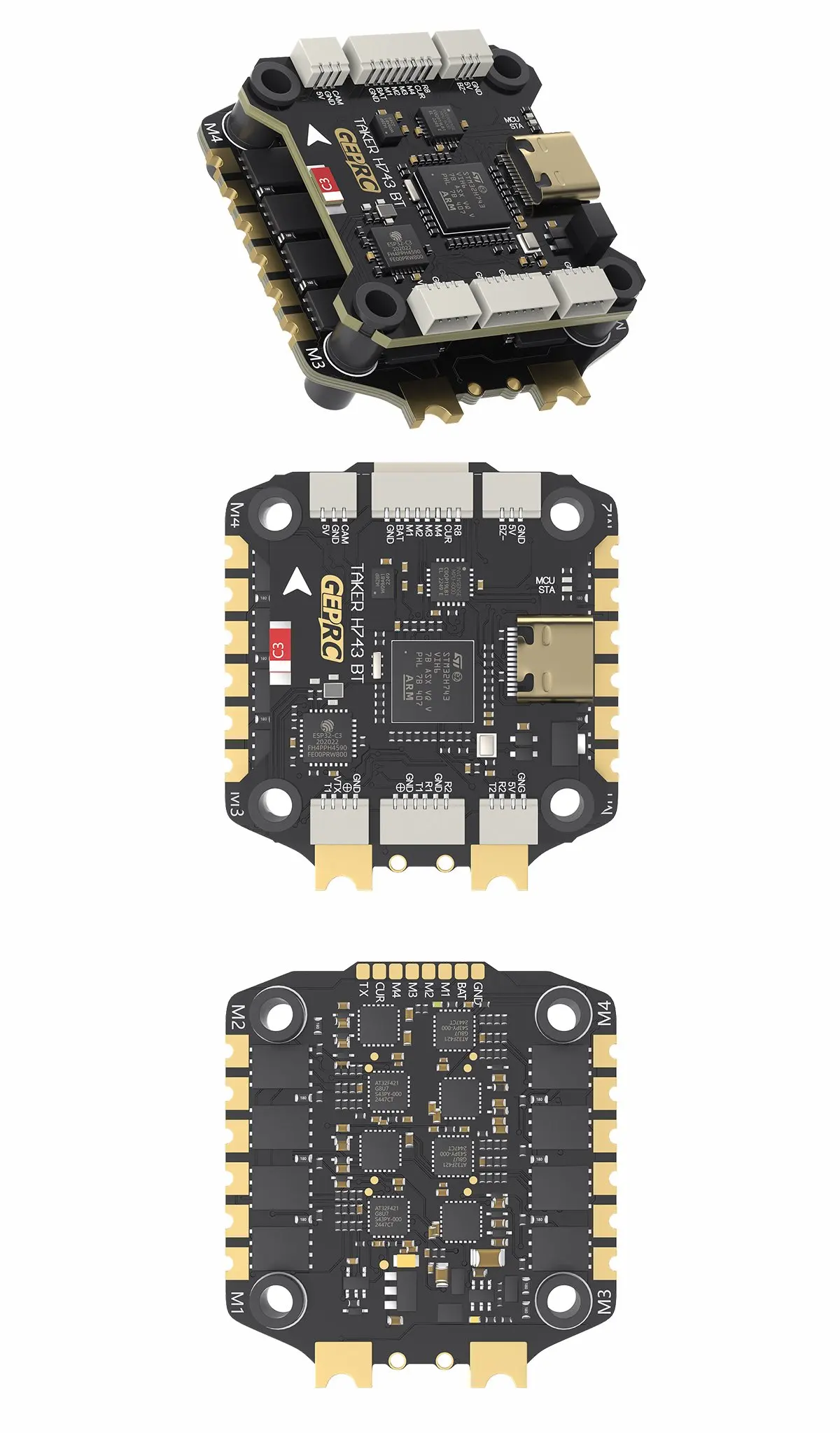

TAKER H743 BT 32Bit 65A STACK
FC model: TAKER H743 BT Flight Controller

MCU: STM32H743
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRC_TAKER_H743
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

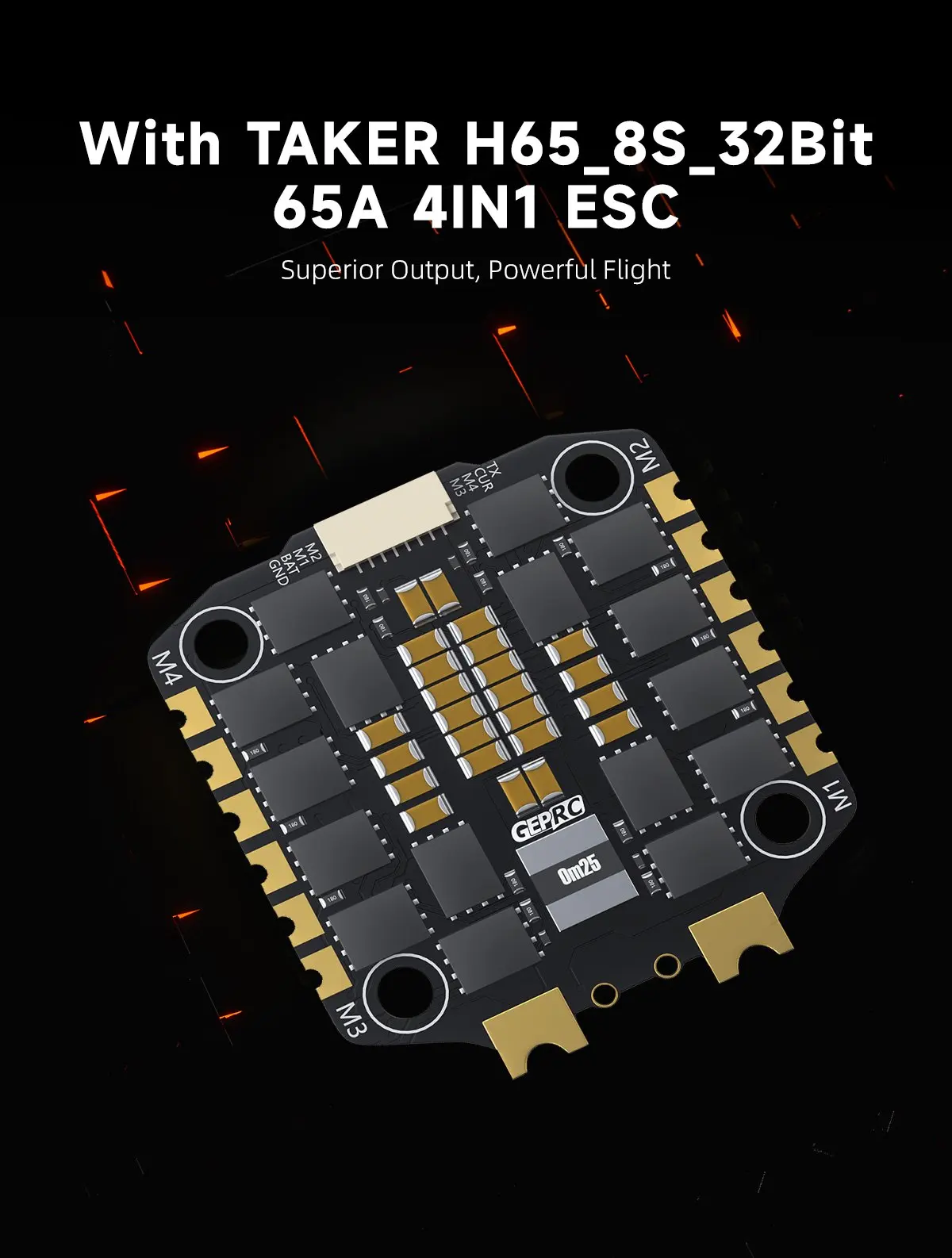

ESC Model: TAKER H65_8S_32Bit 65A 4IN1 ESC

Input Voltage: 3-8S Lipo(STACK only supports 3-6S)
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 seconds）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 15.8g
Target: GEPRC_F4_4in1
Note: pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 is also supported, customer flashing is required.target:AM32_AT32DEV_F421)

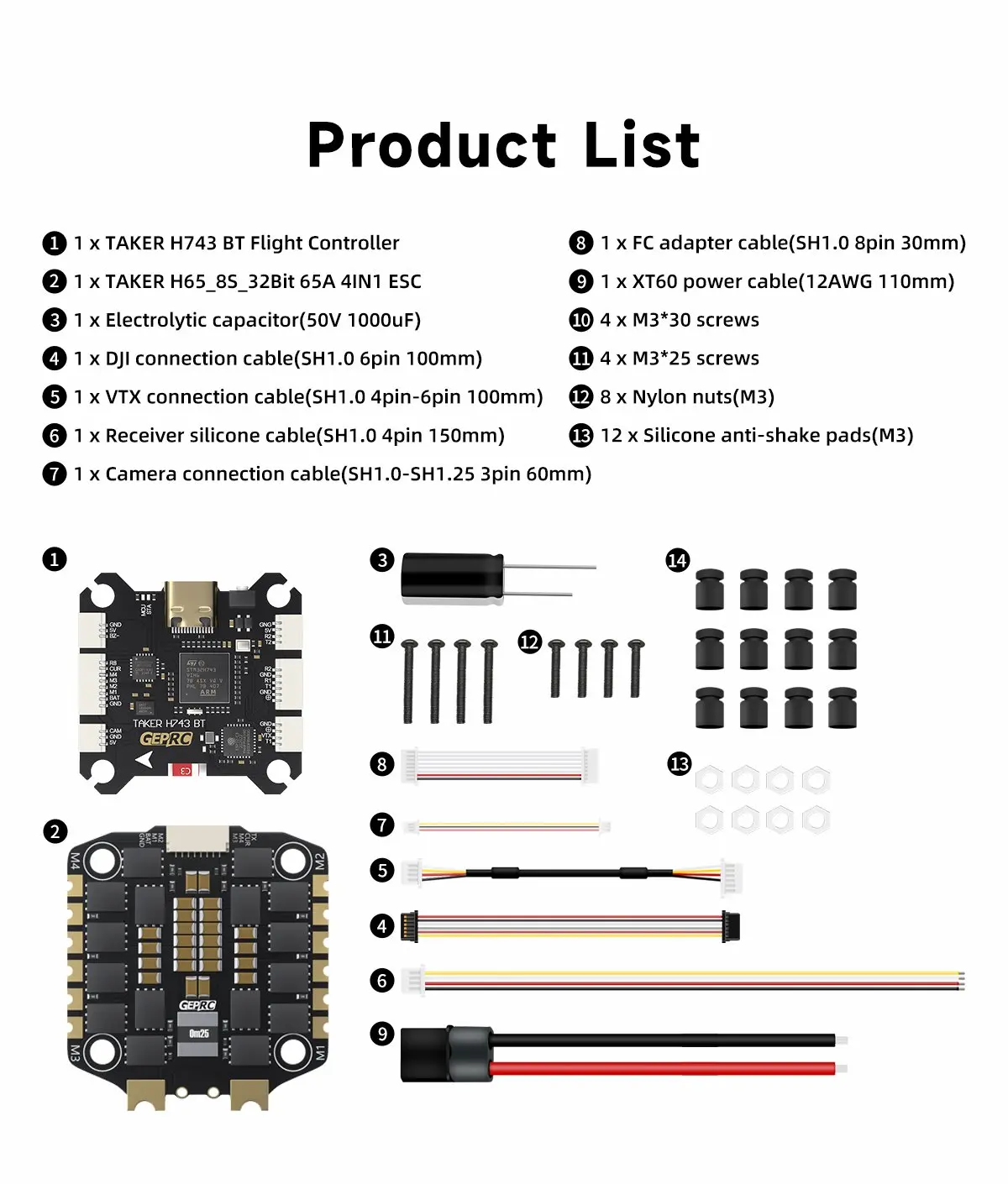

Includes
1 x TAKER H743 BT Flight Controller

1 x TAKER H65_8S_32Bit 65A 4IN1 ESC

1 x Electrolytic capacitor(50V 1000uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

1 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT60 power cable(12AWG 110mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
