GEPRC TAKER G4 45A AIO OSD G473 Flight Controller BLHELIS 45A ESC FET / GEPRC TAKER F405 20A Elrs2.4G 2~4S AIO
Prices include VAT and any applicable duties
usually dispatched in 2-3 business days.
Package List:
1PCS Geprc FC (the version as your order choice )

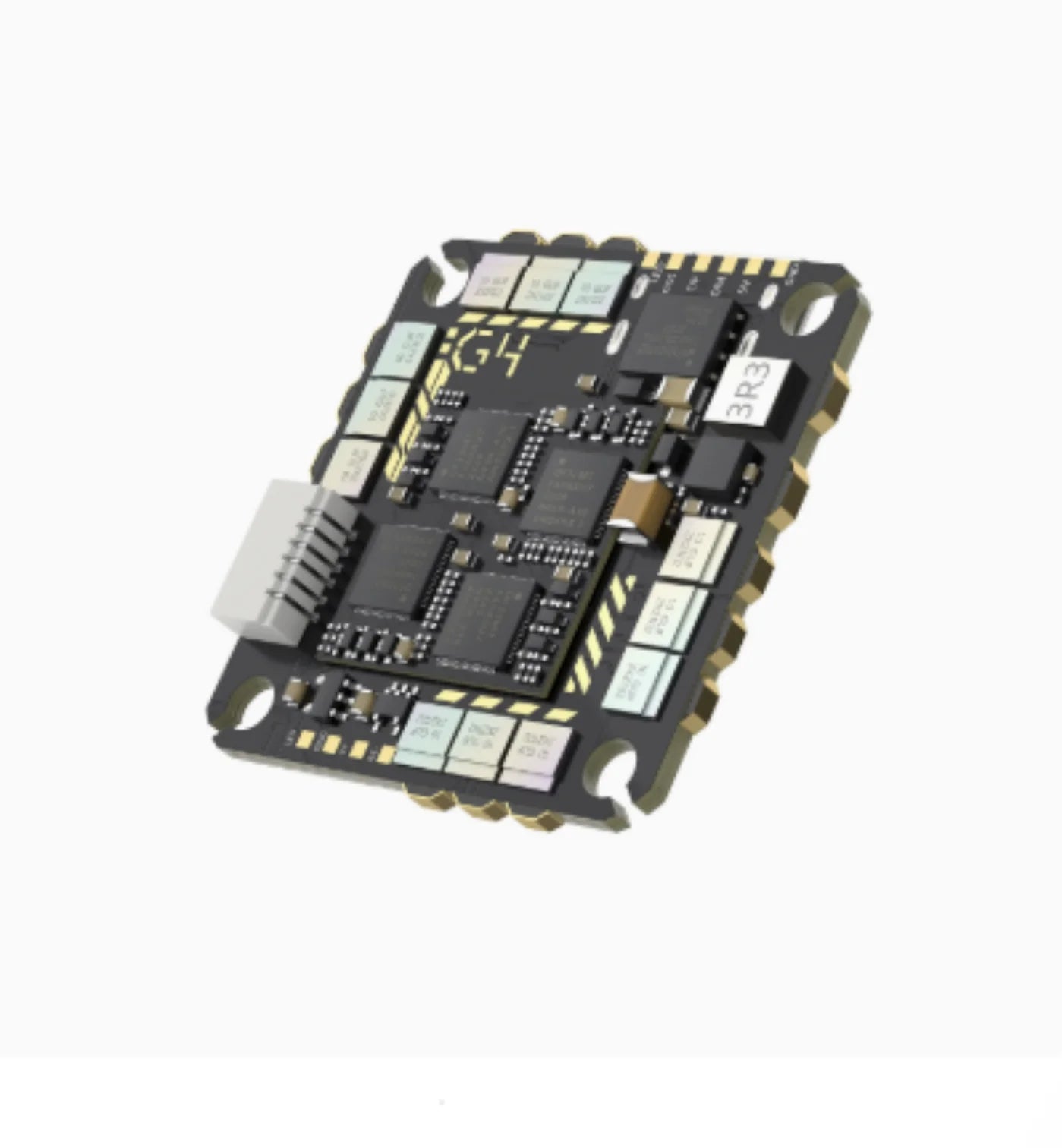

Summary TAKER G4 35A
TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.
In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.
We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.
Feature
-
Compact size and compatible mounting holes make installation convenient.
-
Light weight only 7.7g.
-
G473 main control, 170MHz operating frequency, abundant computing power.
-
Upgraded Type-c USB for better versatility.
Specifications
-
Model Name:TAKER G4 35A AIO
-
MCU:STM32G473CEU6
-
IMU:ICM 42688-P
-
Firmware target:TAKERG4AIO
-
OSD:Betaflight OSD w/ AT7456Ev
-
Uart:R1 T1 / R2 T2 / R4 T4 / R5 T5
-
Buzzer:YES
-
LED :YES
-
USB :Type-c USB
-
BEC output:5V@3A
-
ESC MCU:BB21F16G
-
Continuous Current:35A
-
Burst Current:45A(5″)
-
lnput Voltage:2~4S (LIPO Battery)
-
Supports:Dshot600,Oneshot,Multishot
-
Current meter:210
-
target:J -H -15
-
Size:33.4×34.4mm Board
-
Install hole::25.5-26.5 Φ3.05mm
-
Weight:7.7g
Includes
1 x GEP-TAKER G4 45A AIO
1 x Cable Set
Summary GEPRC TAKER F405 20A Elrs2.4G 2~4S AIO
