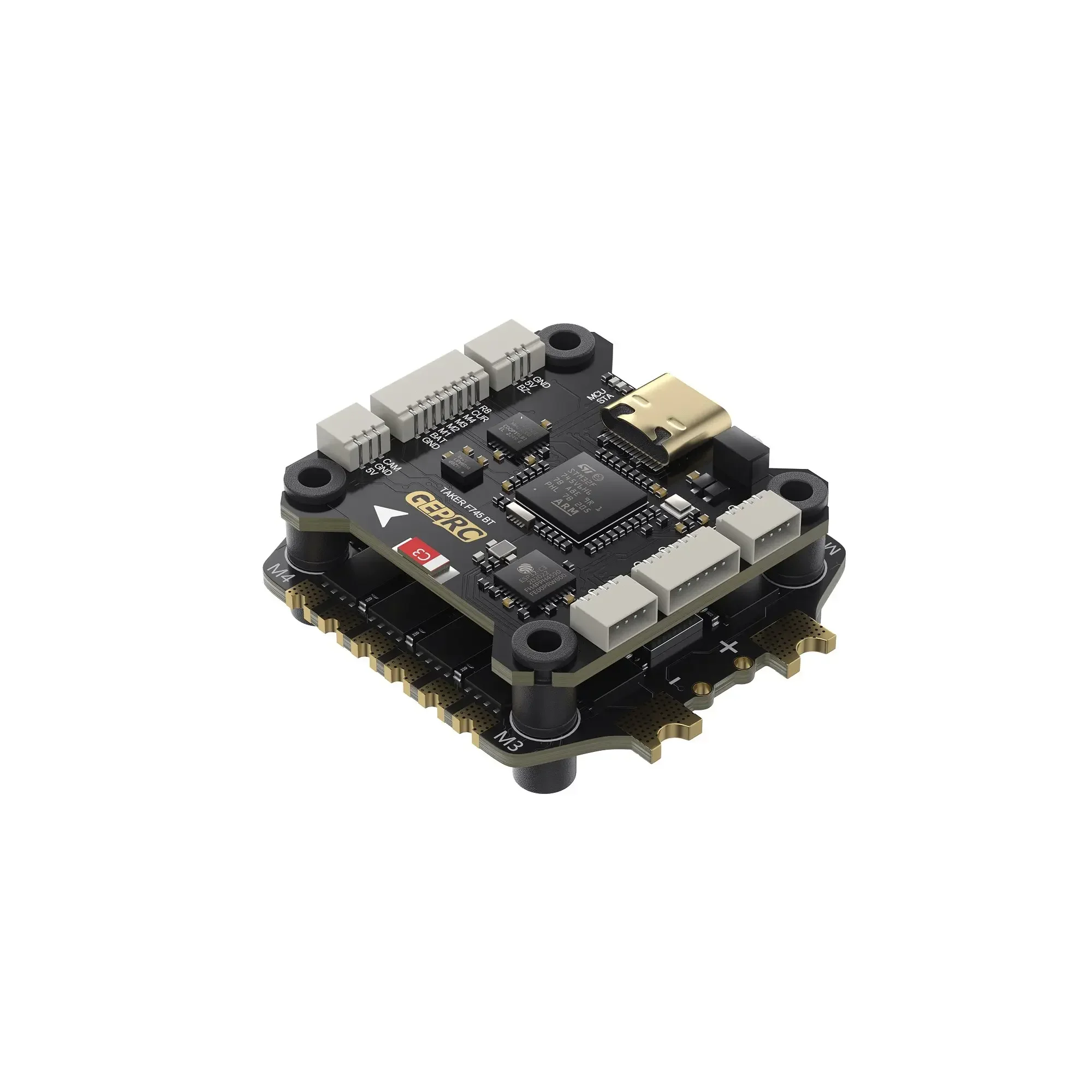

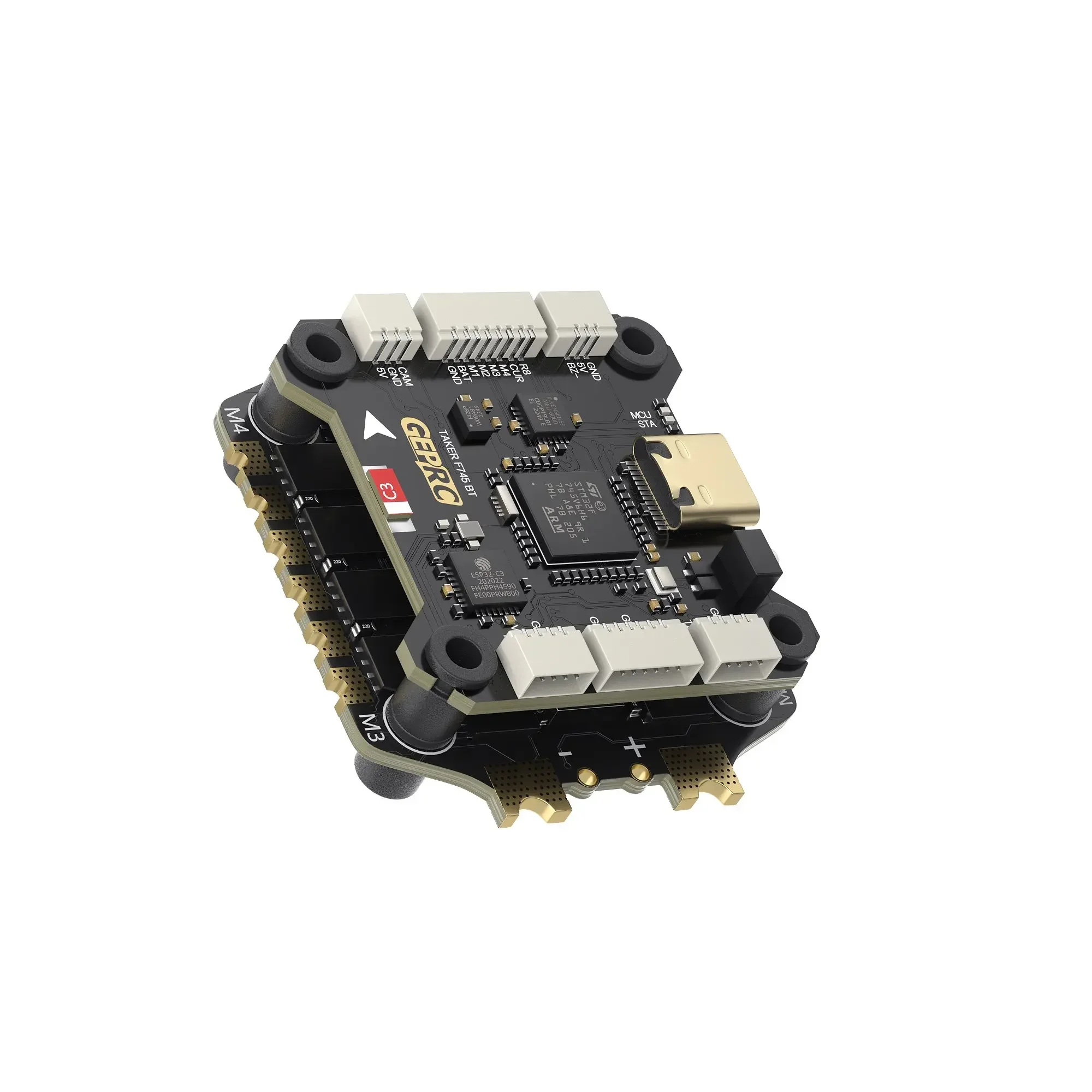

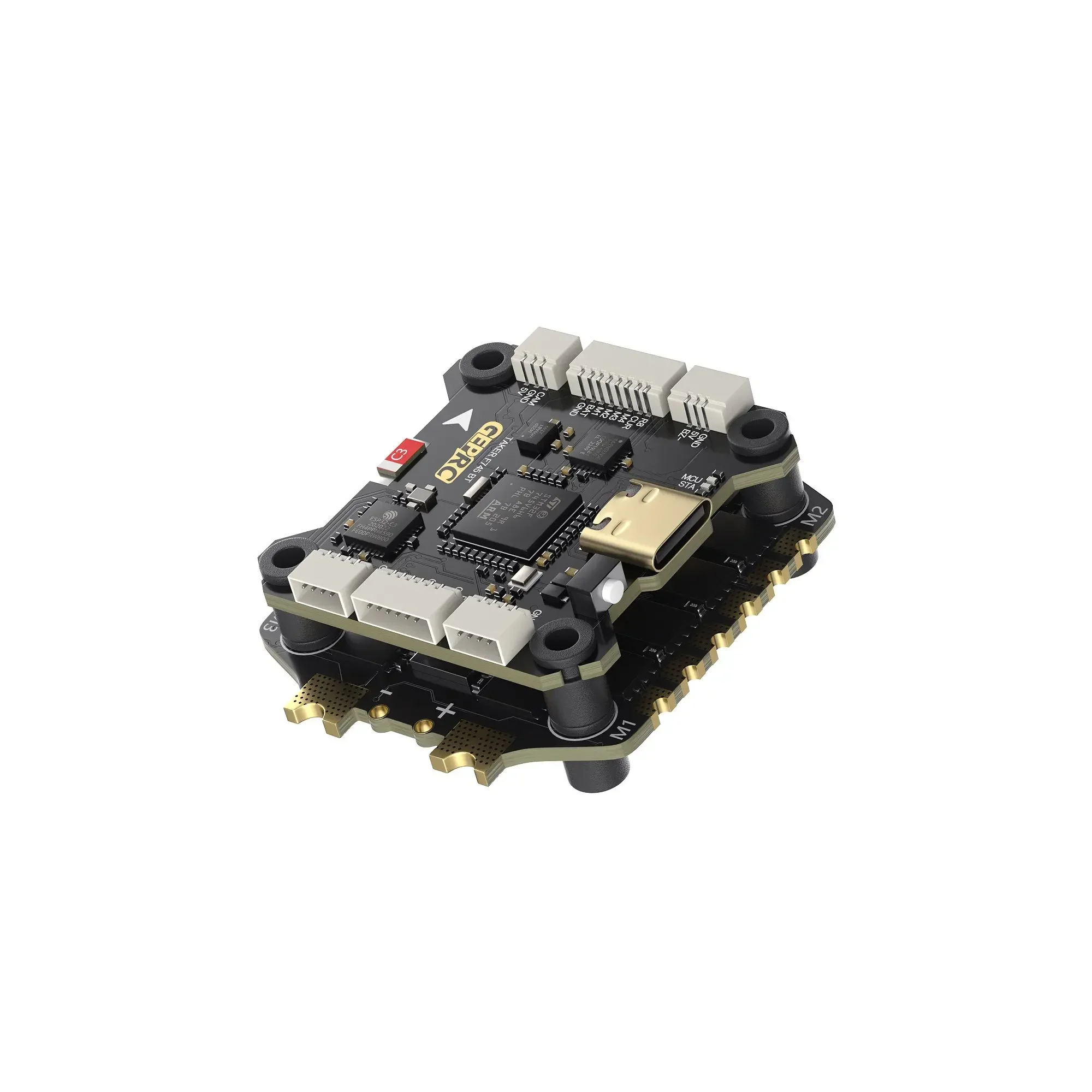

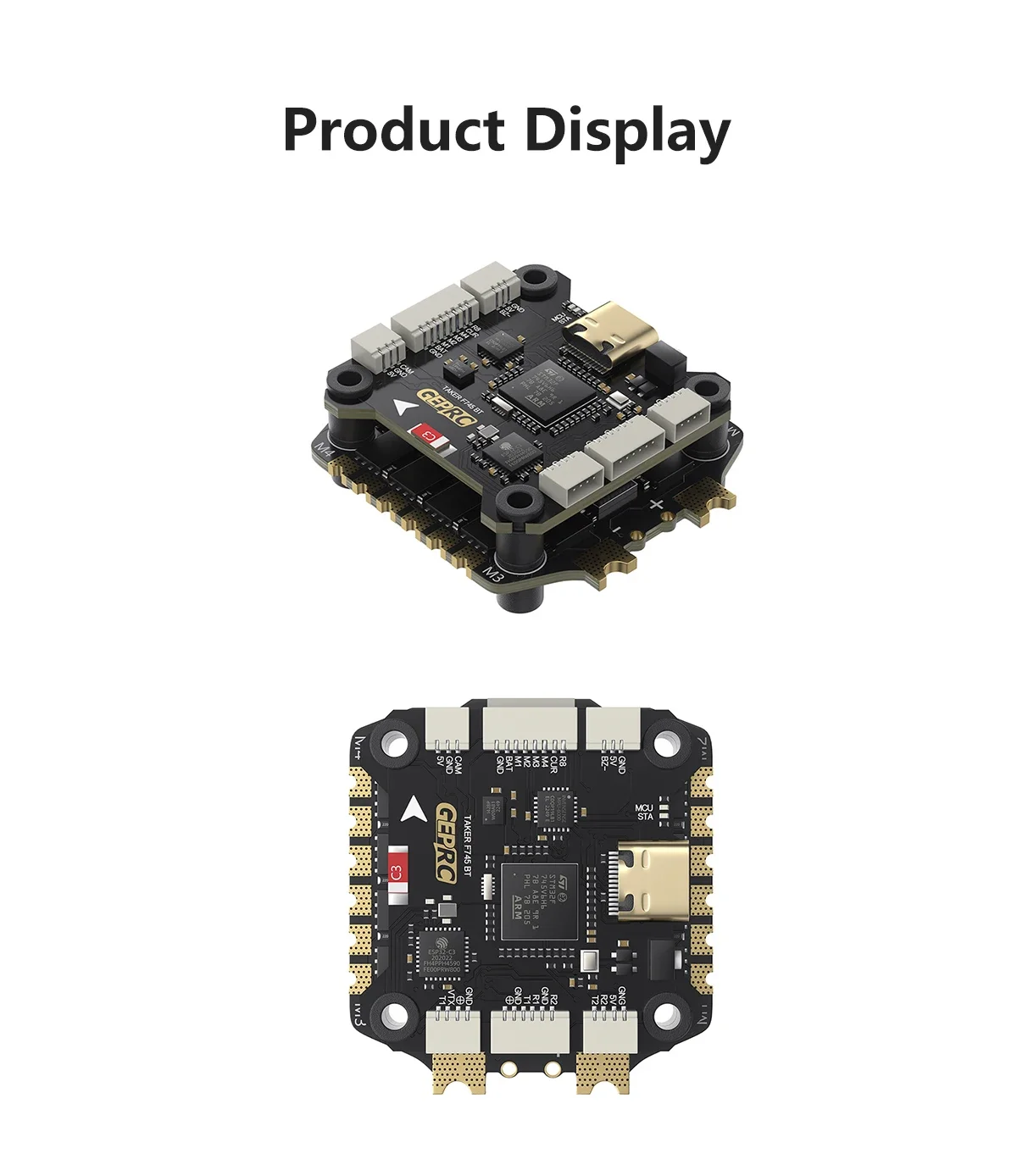

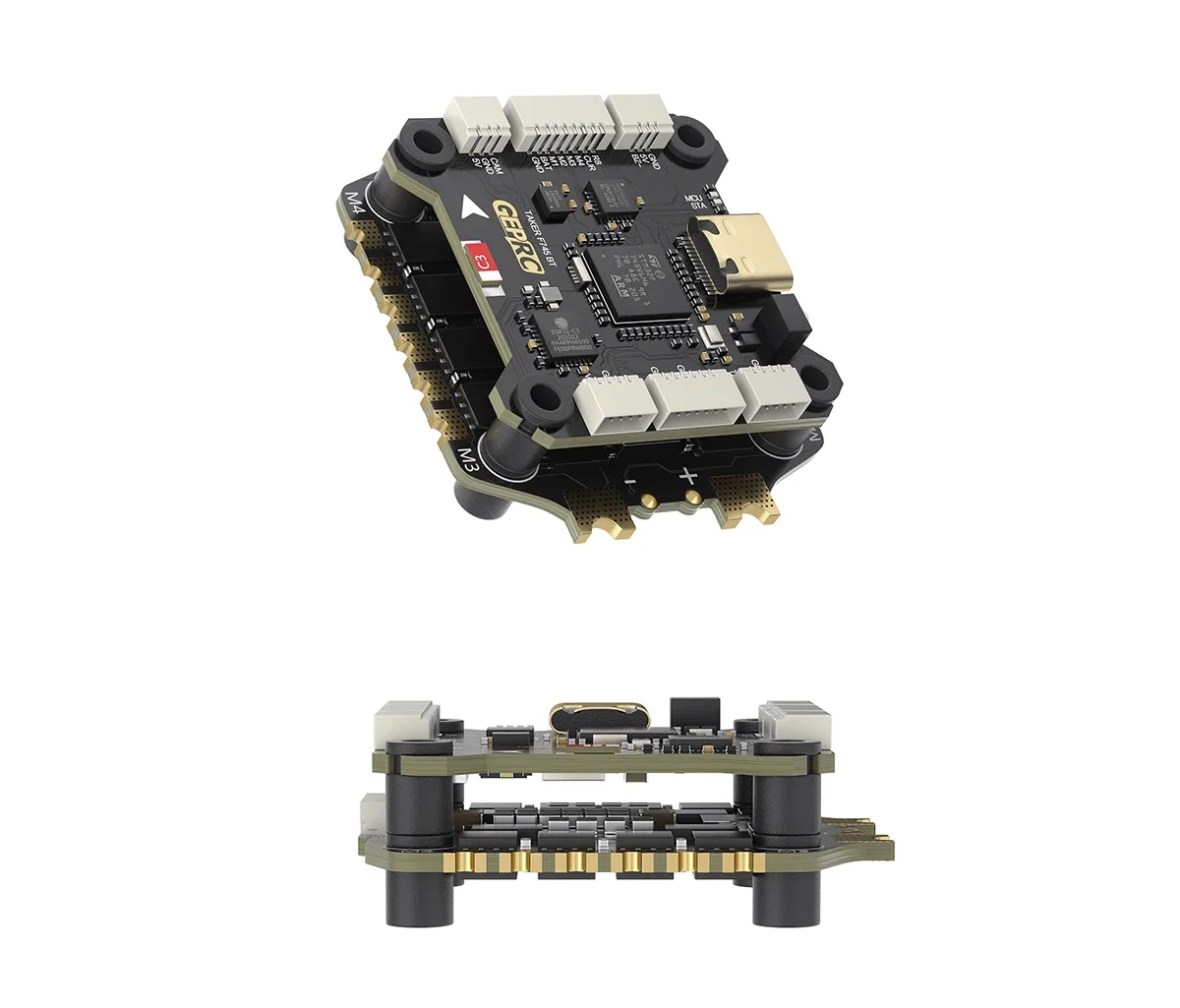

GEPRC TAKER F745 BT 8Bit 60A STACK 3-6S LiPo 30.5X30.5mm

Summary

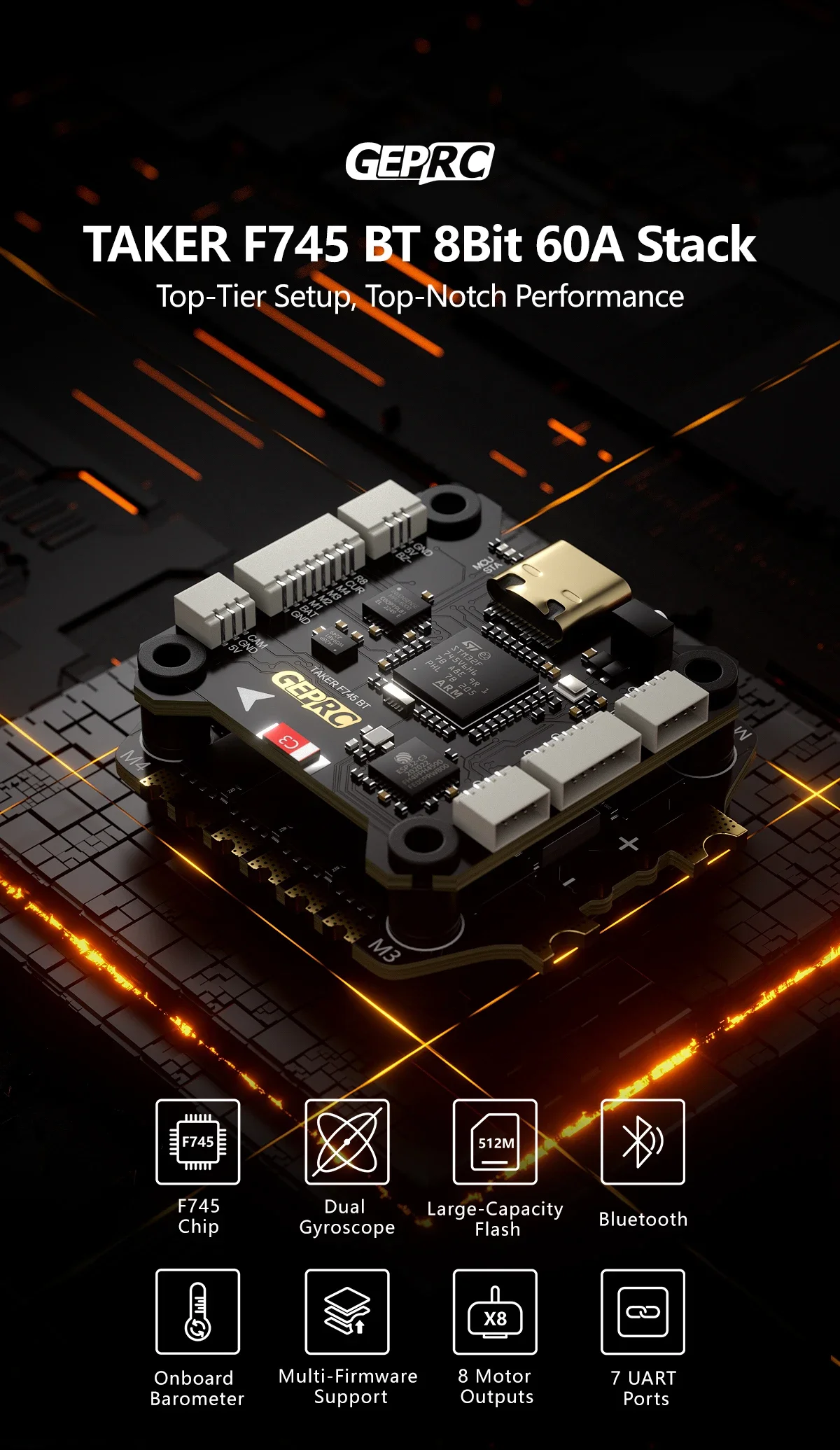

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

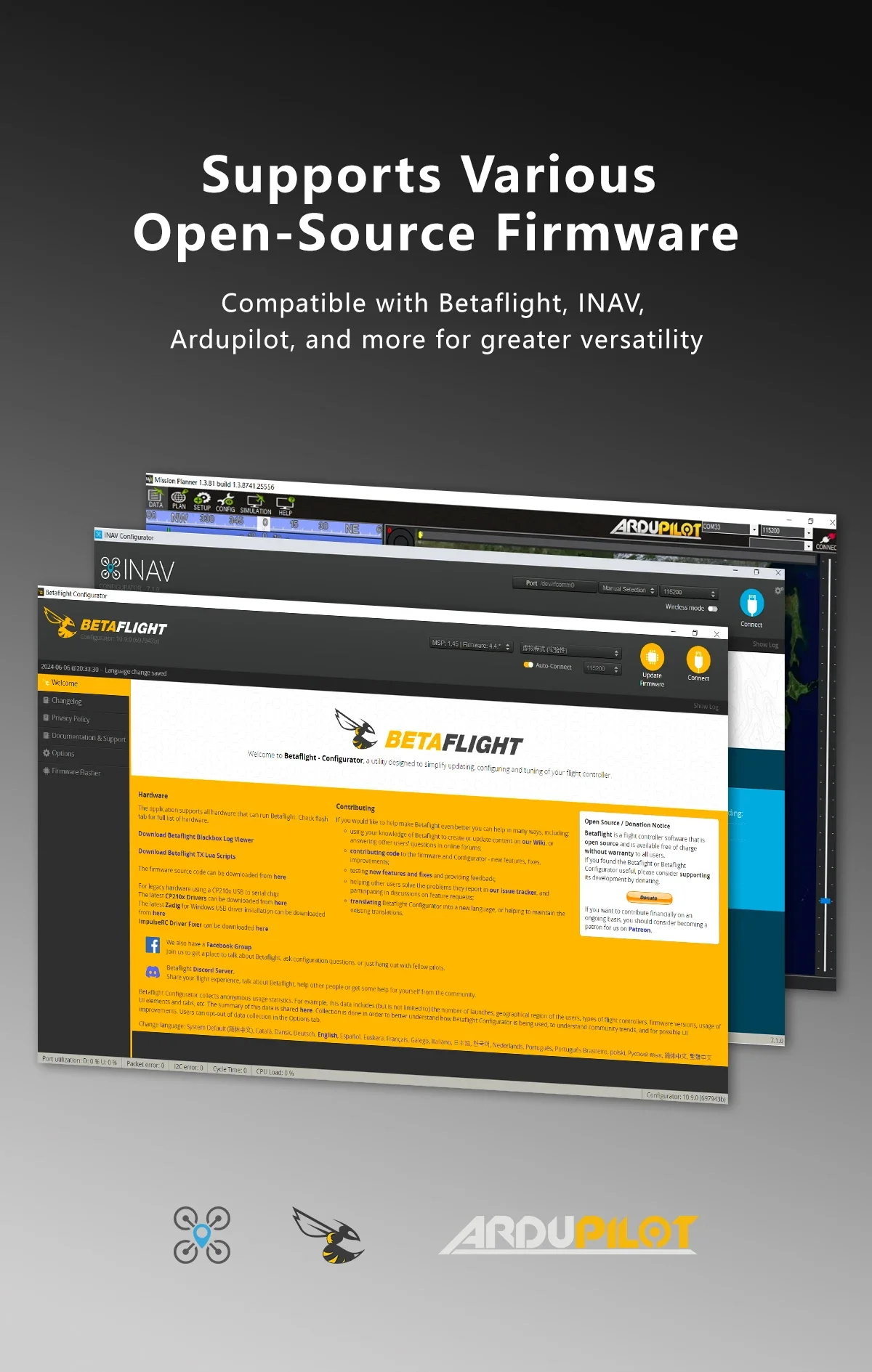

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features
Adopts the high-performance STM32F745 as the main controller

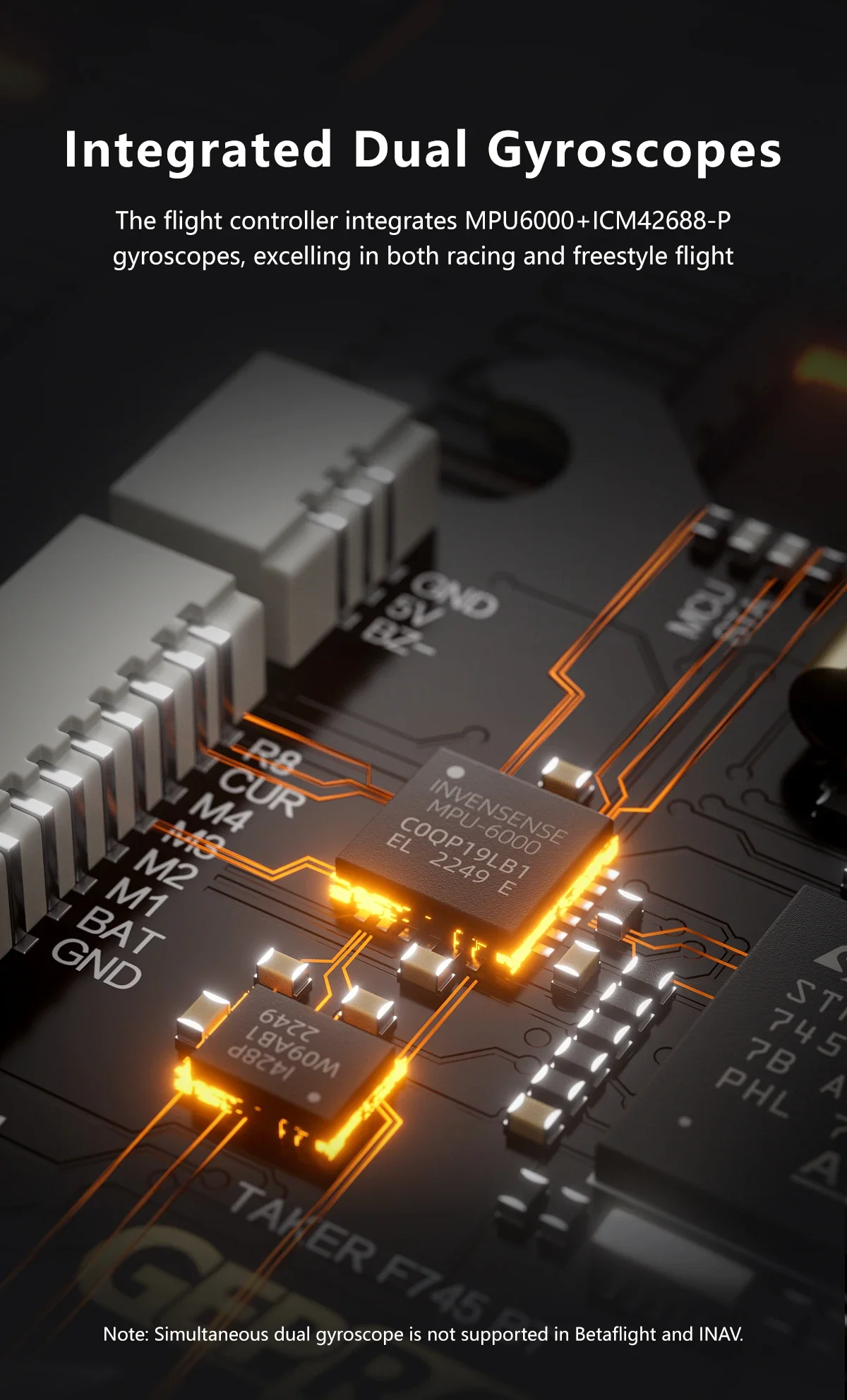

Equipped with MPU6000 and 42688-P dual gyroscopes
512MB high-capacity black box storage

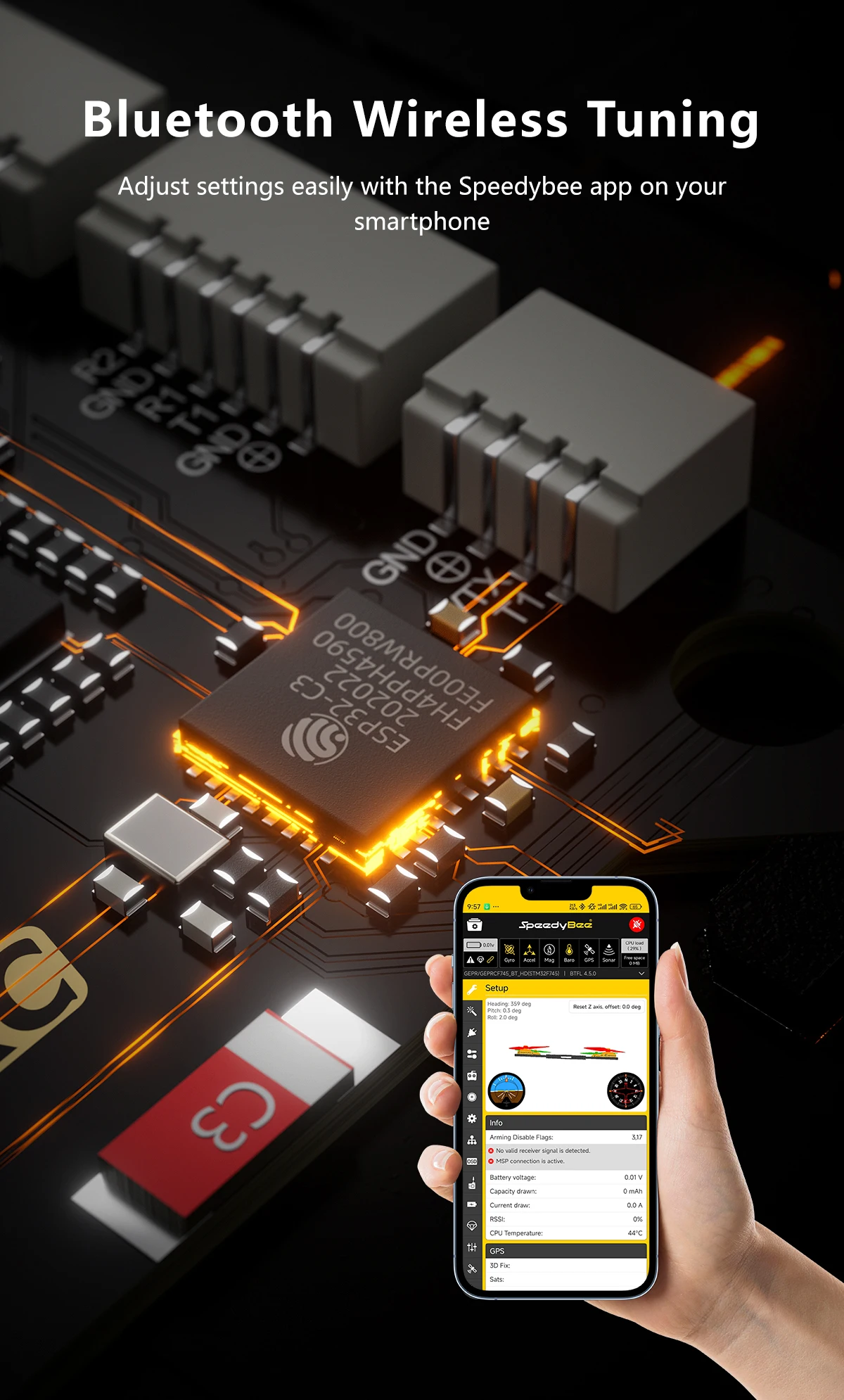

Bluetooth parameter tuning
Upgraded Type-C USB interface

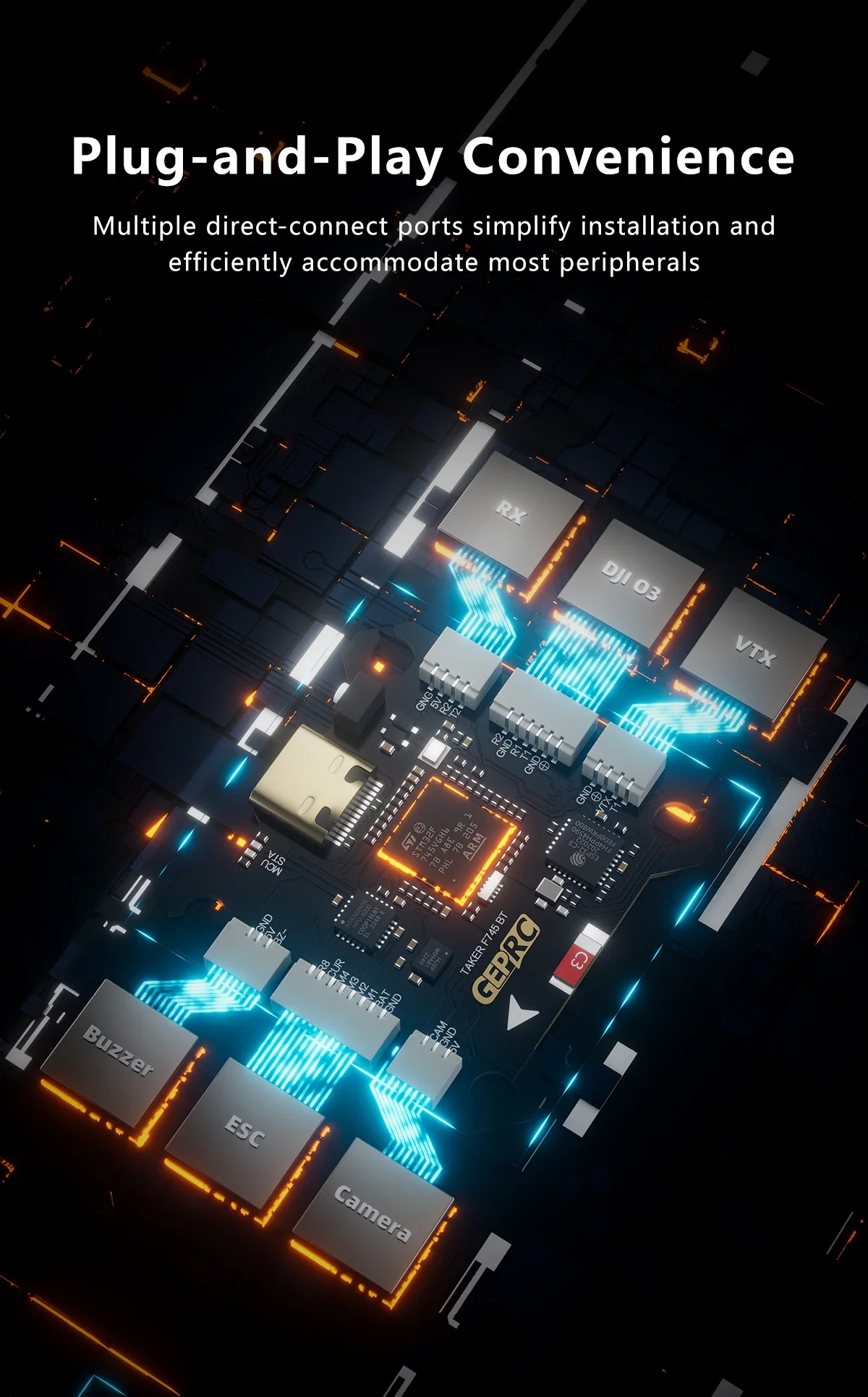

Plug-and-play, no soldering required.

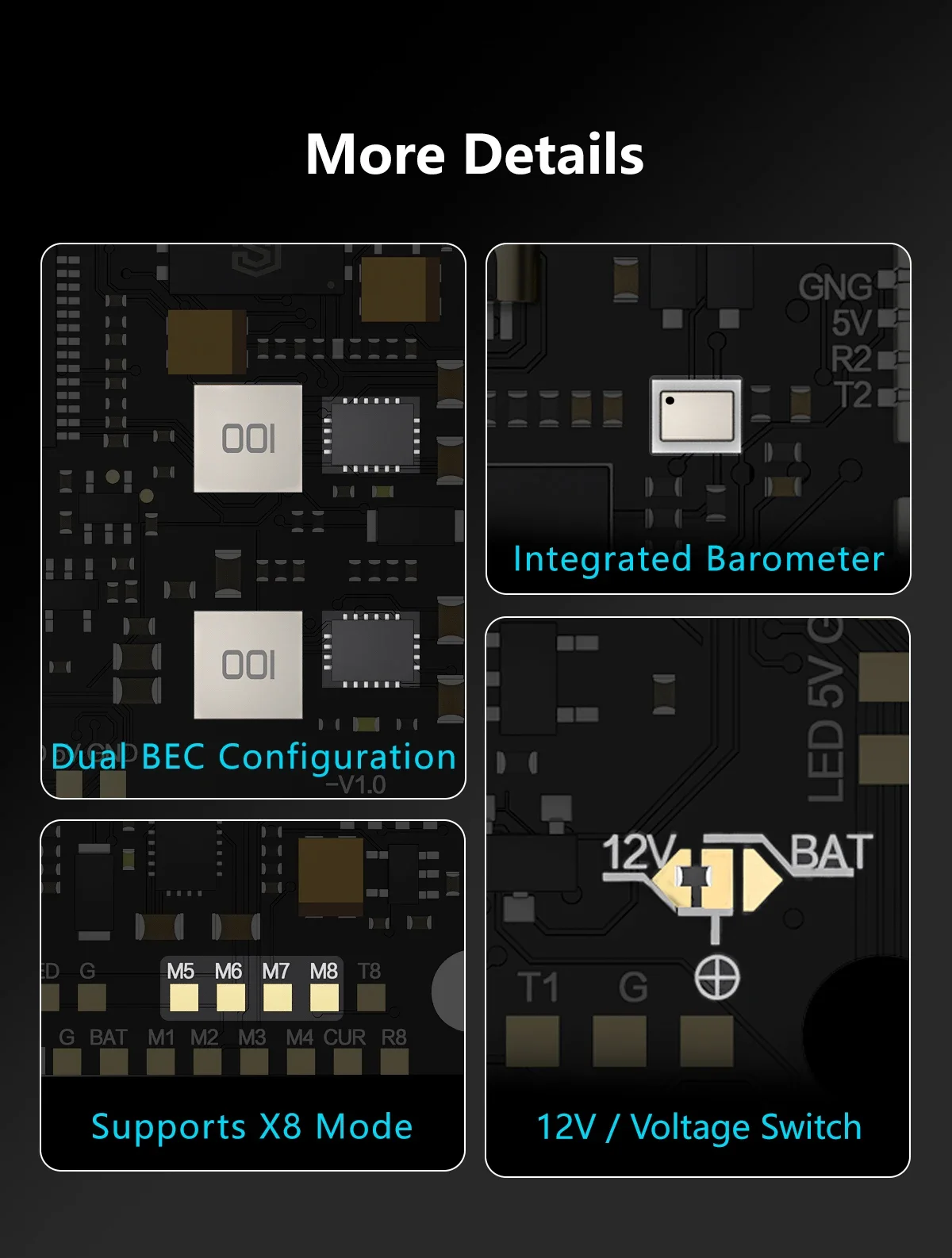

Integrated barometer
Features 7 UART ports
Independent BEC with 12V@2.5A and 5V@3A outputs
Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

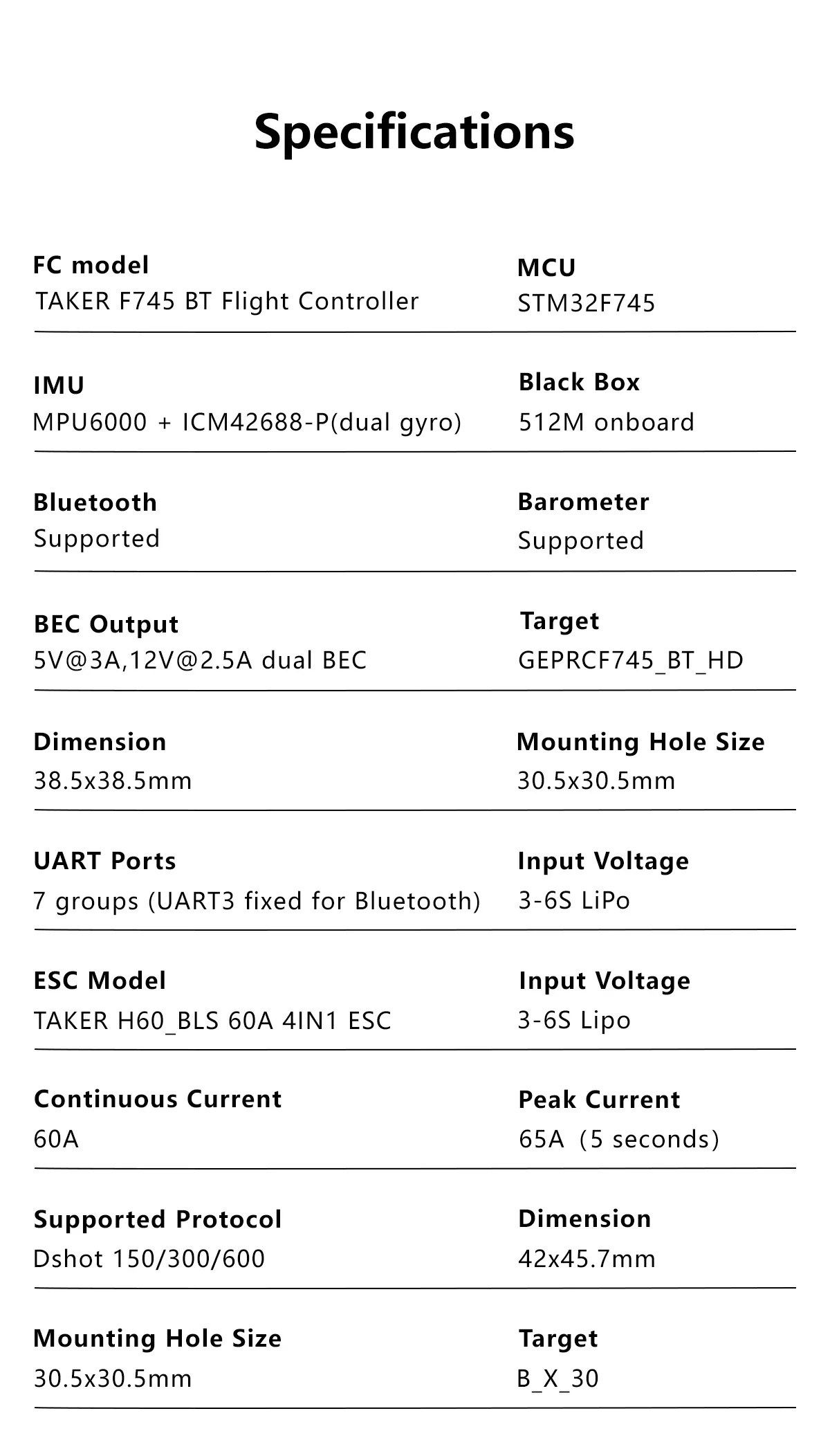

Specifications

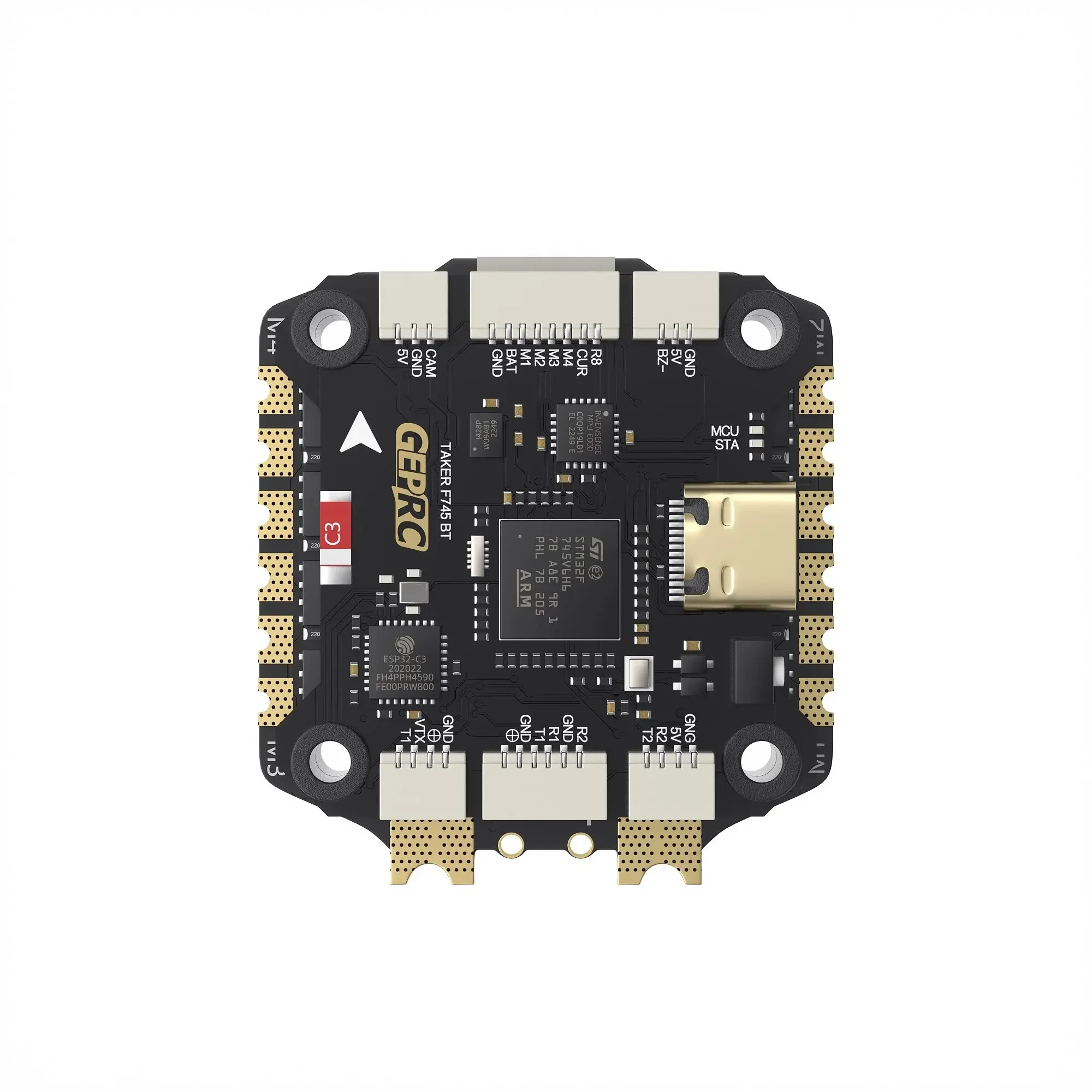

TAKER F745 BT Flight Controller
FC model: TAKER F745 BT Flight Controller

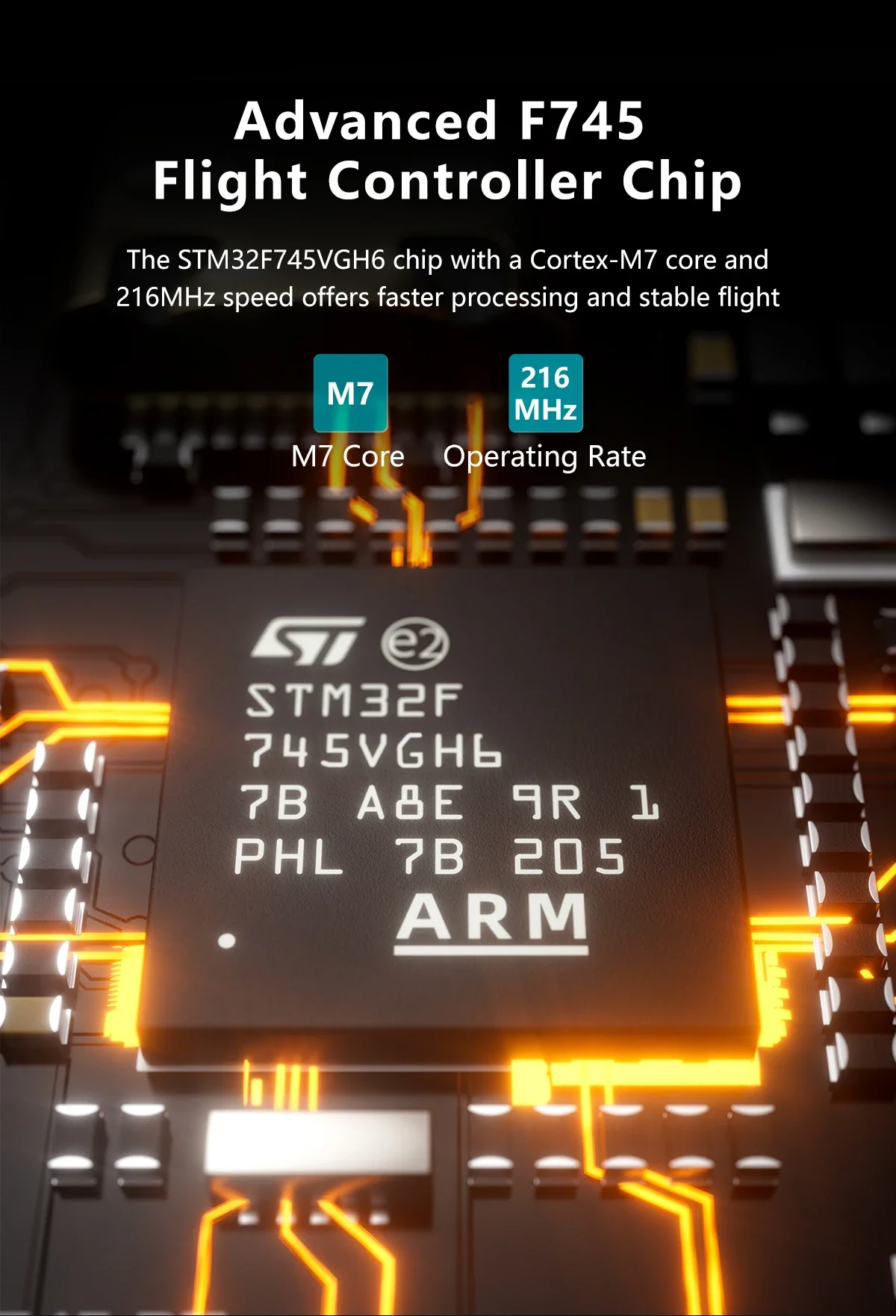

MCU: STM32F745
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit

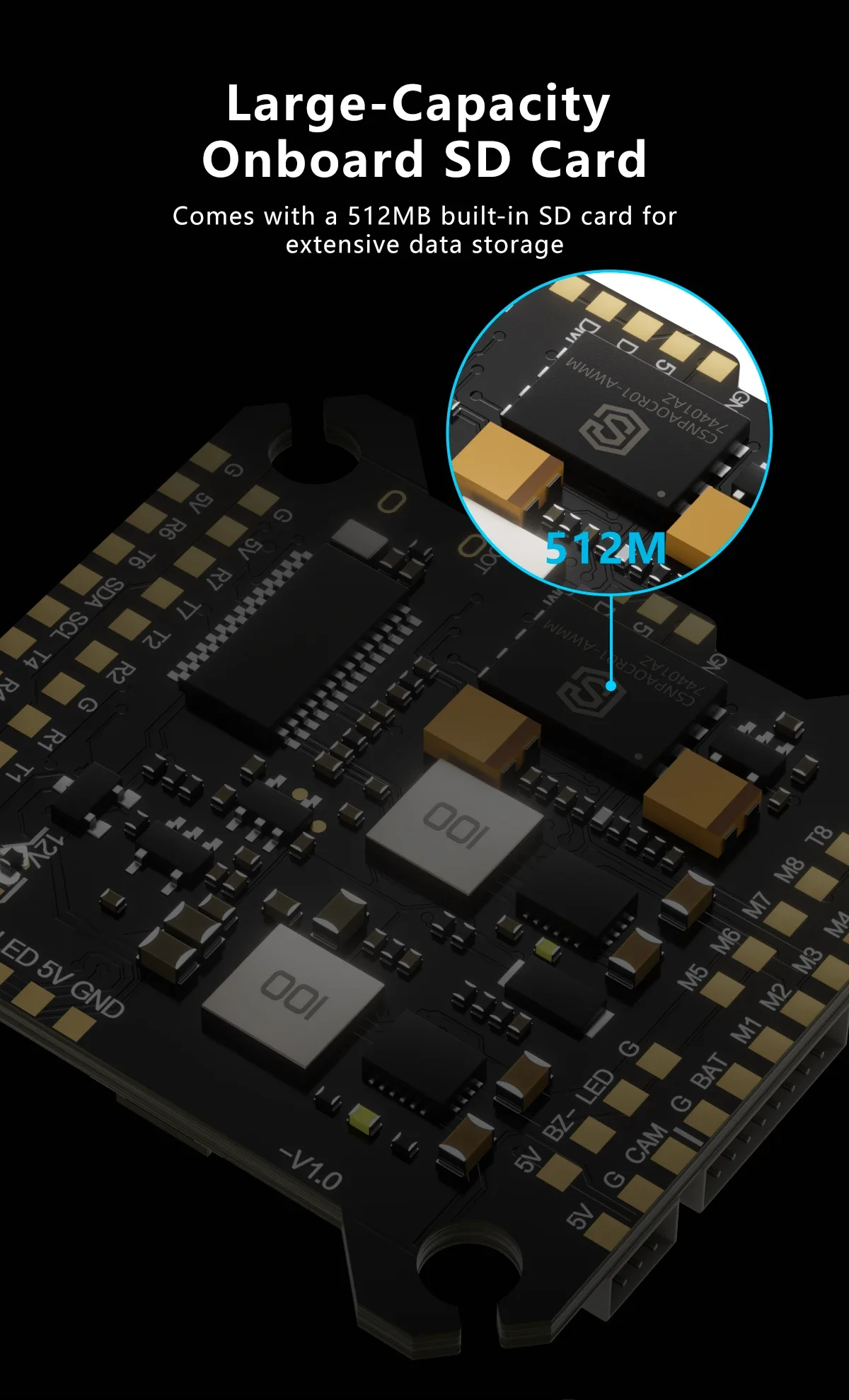

Black Box：512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRCF745_BT_HD
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

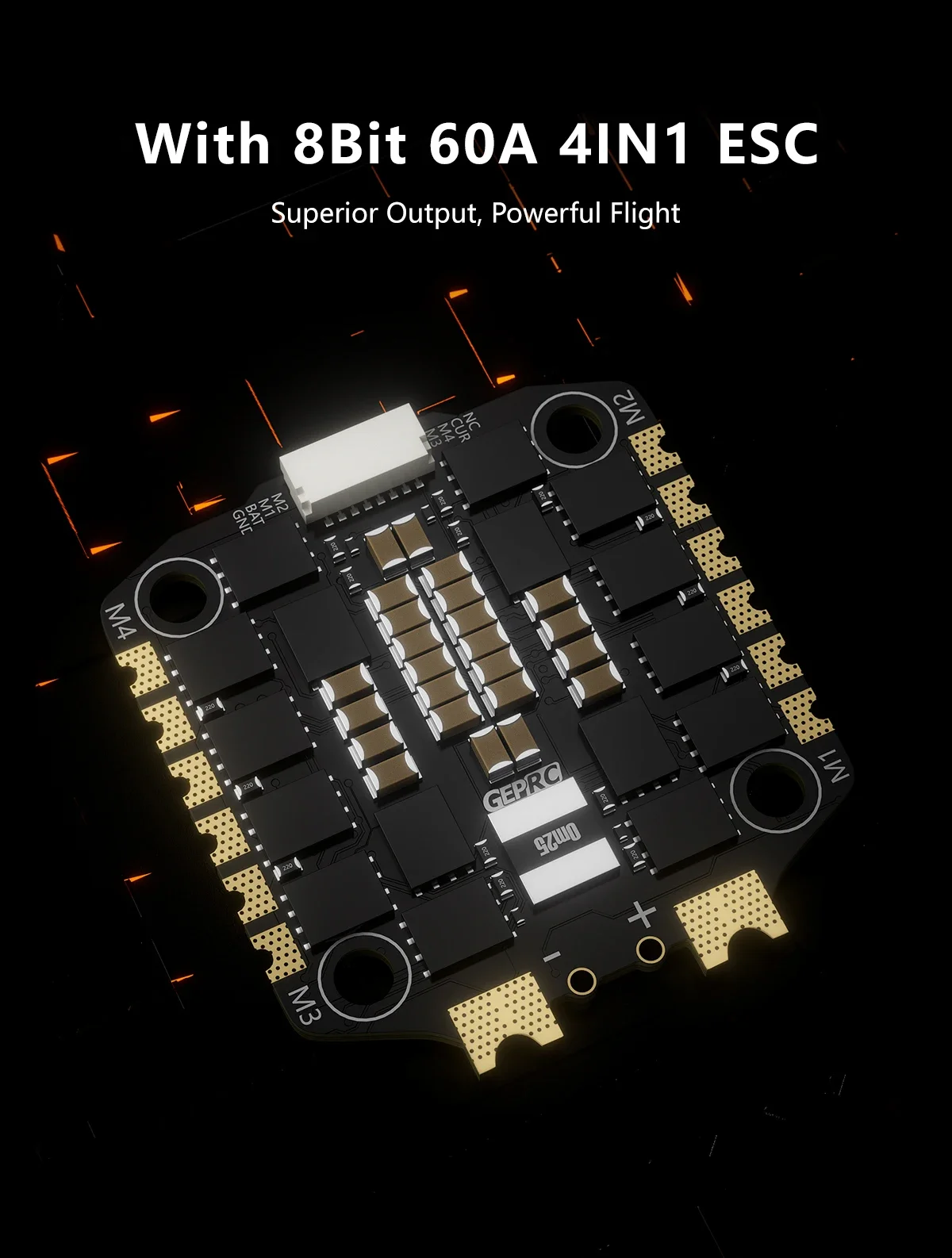

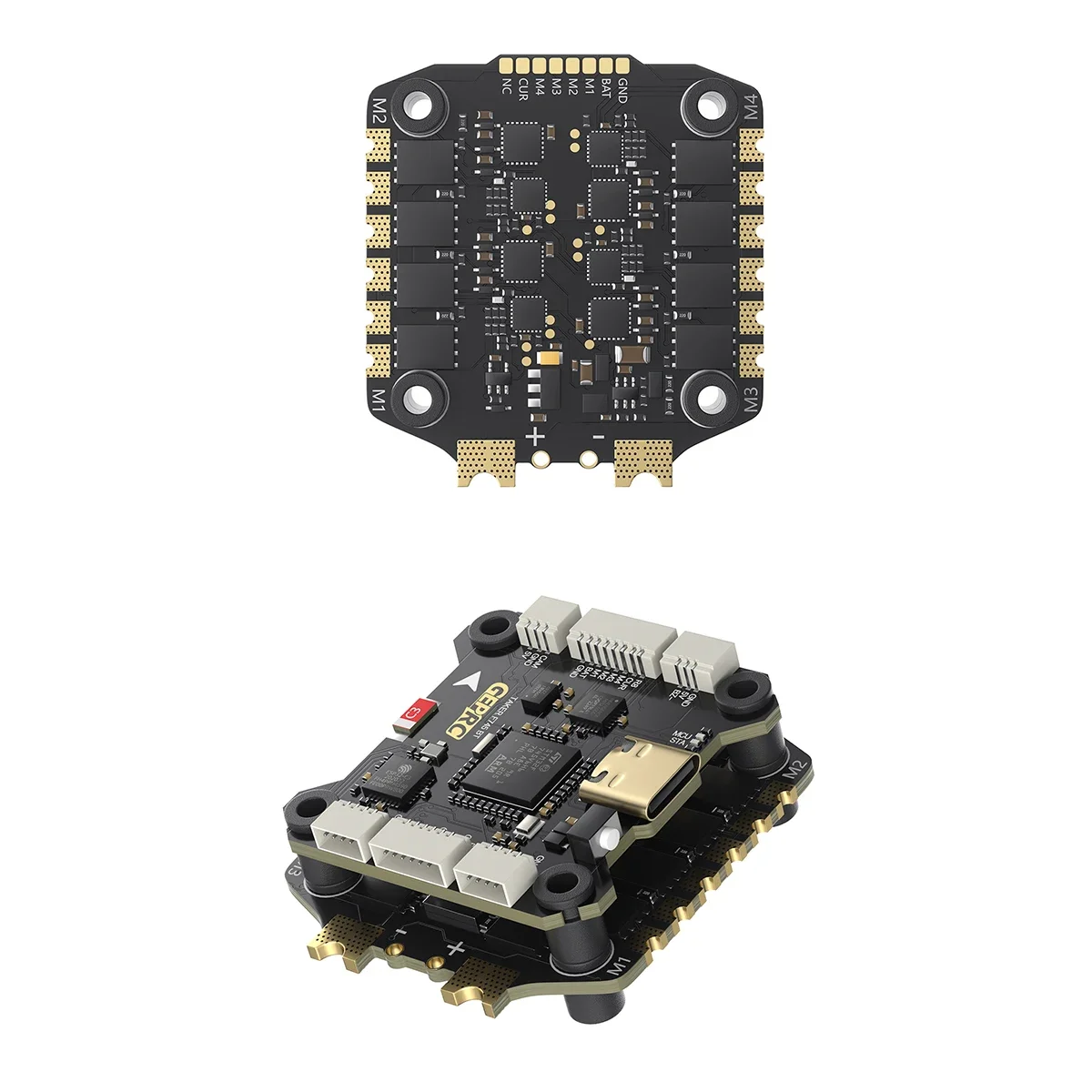

TAKER H60_BLS 60A 4IN1 ESC
ESC Model: TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Continuous Current: 60A
Peak Current: 65A（5 seconds）
Supported Protocol: Dshot 150/300/600
Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
Weight: 14.9g
Target: B_X_30
