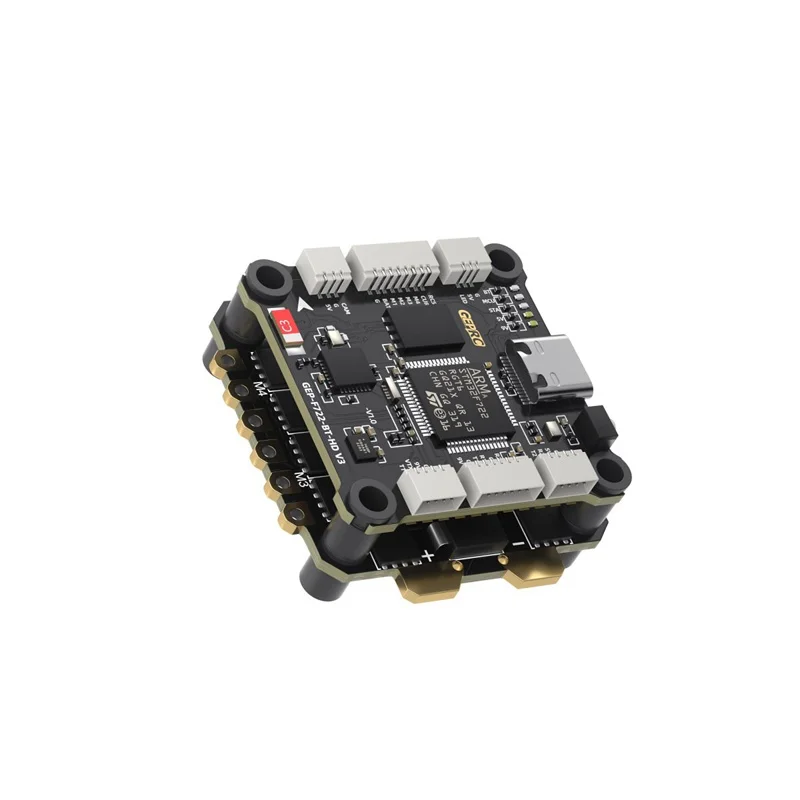

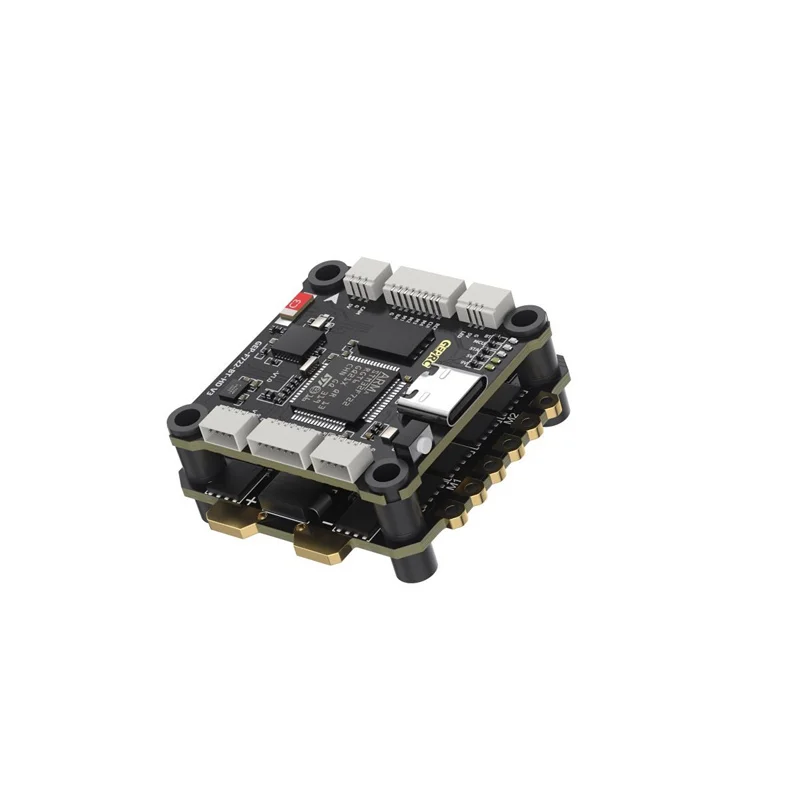

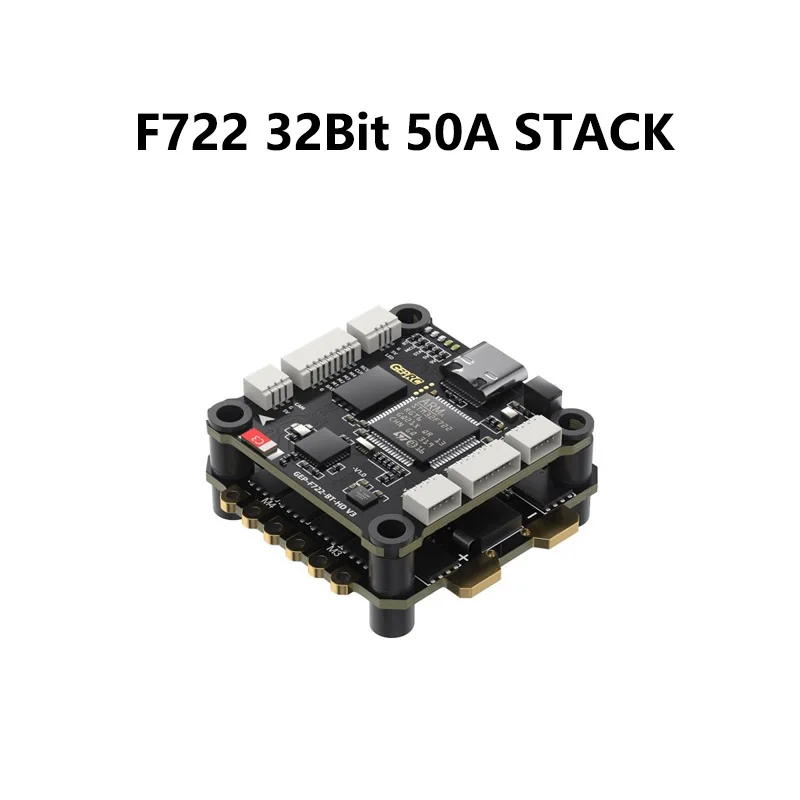

GEPRC TAKER F722 BT 32Bit 50A BetaFlight OSD w/ AT7456E Chip STACK Racing FPV Drone

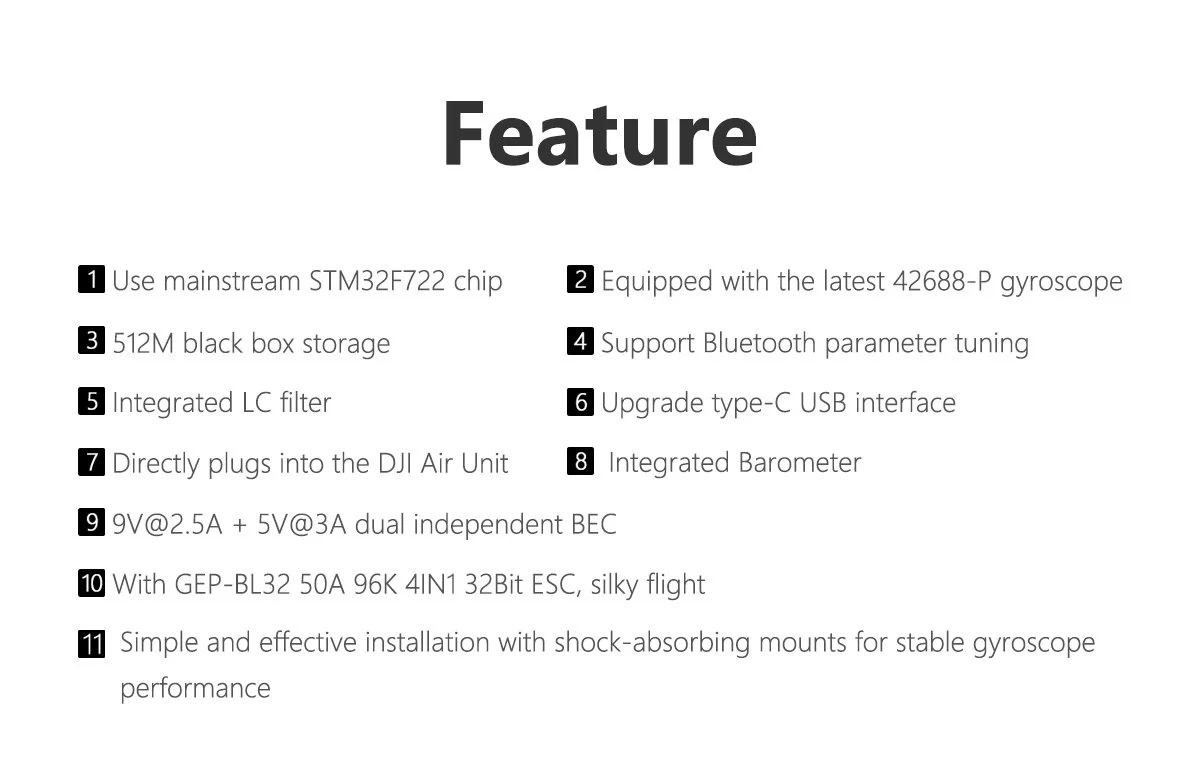

Feature
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

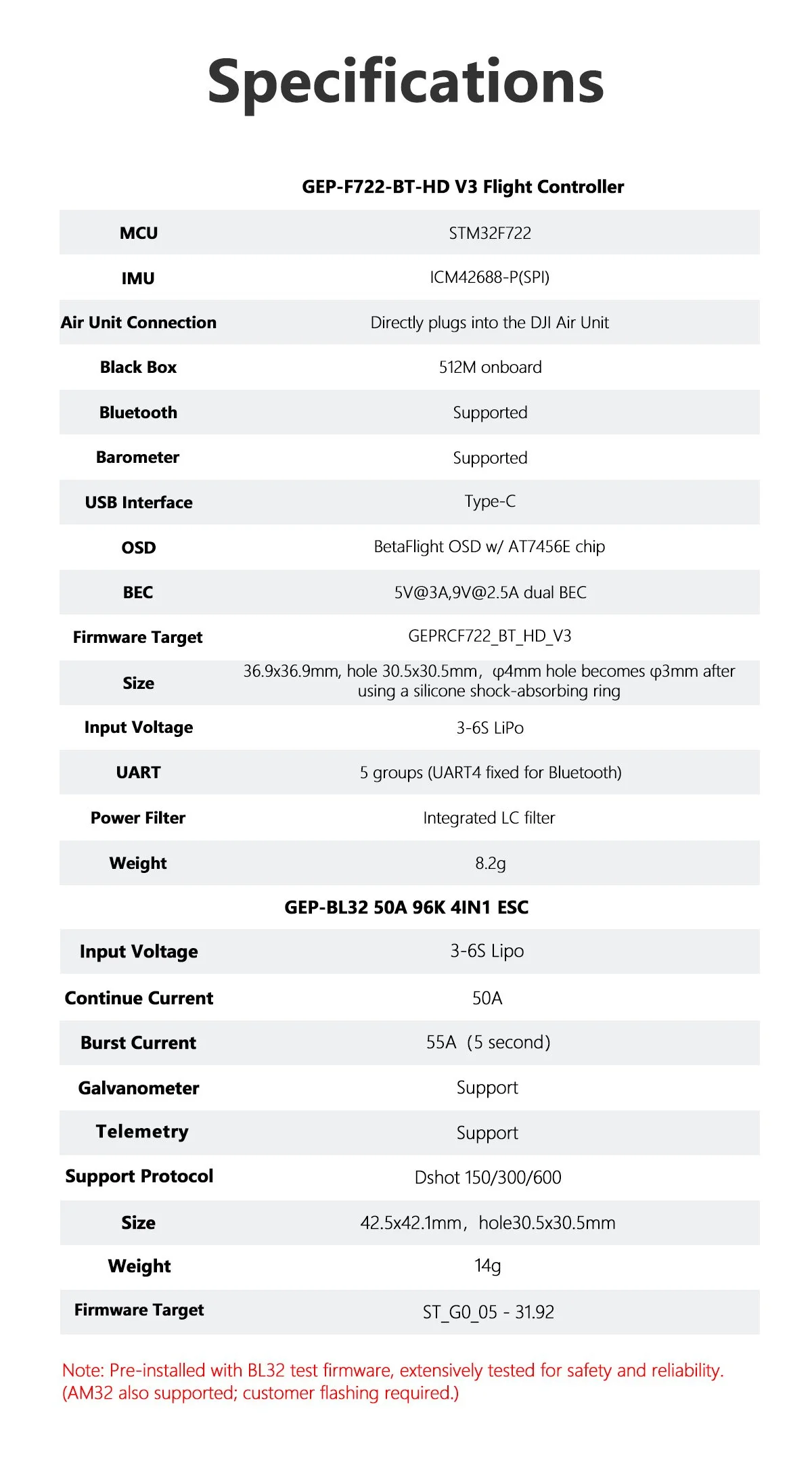

Specifications

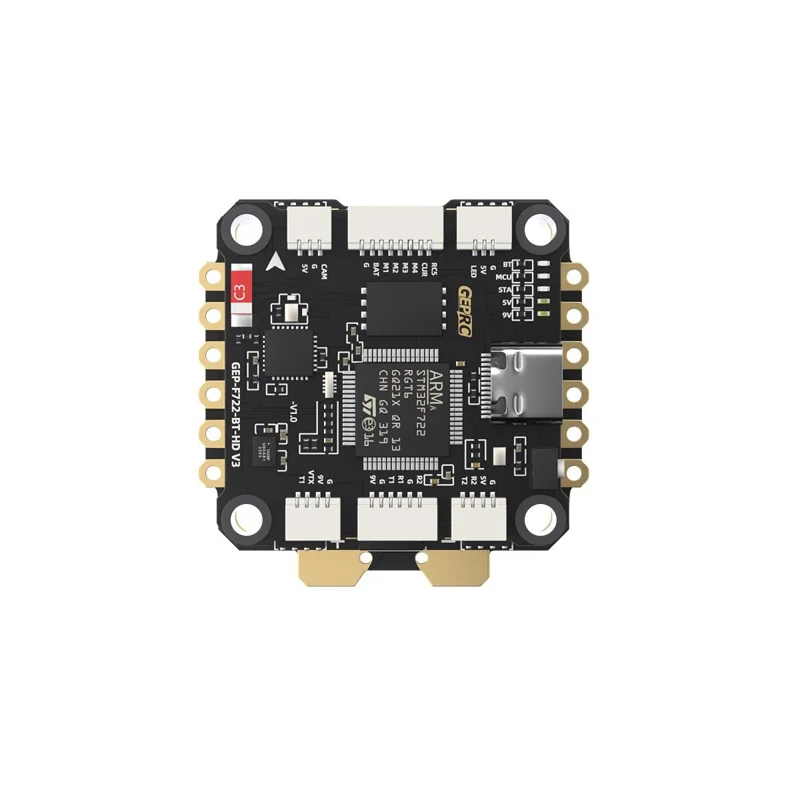

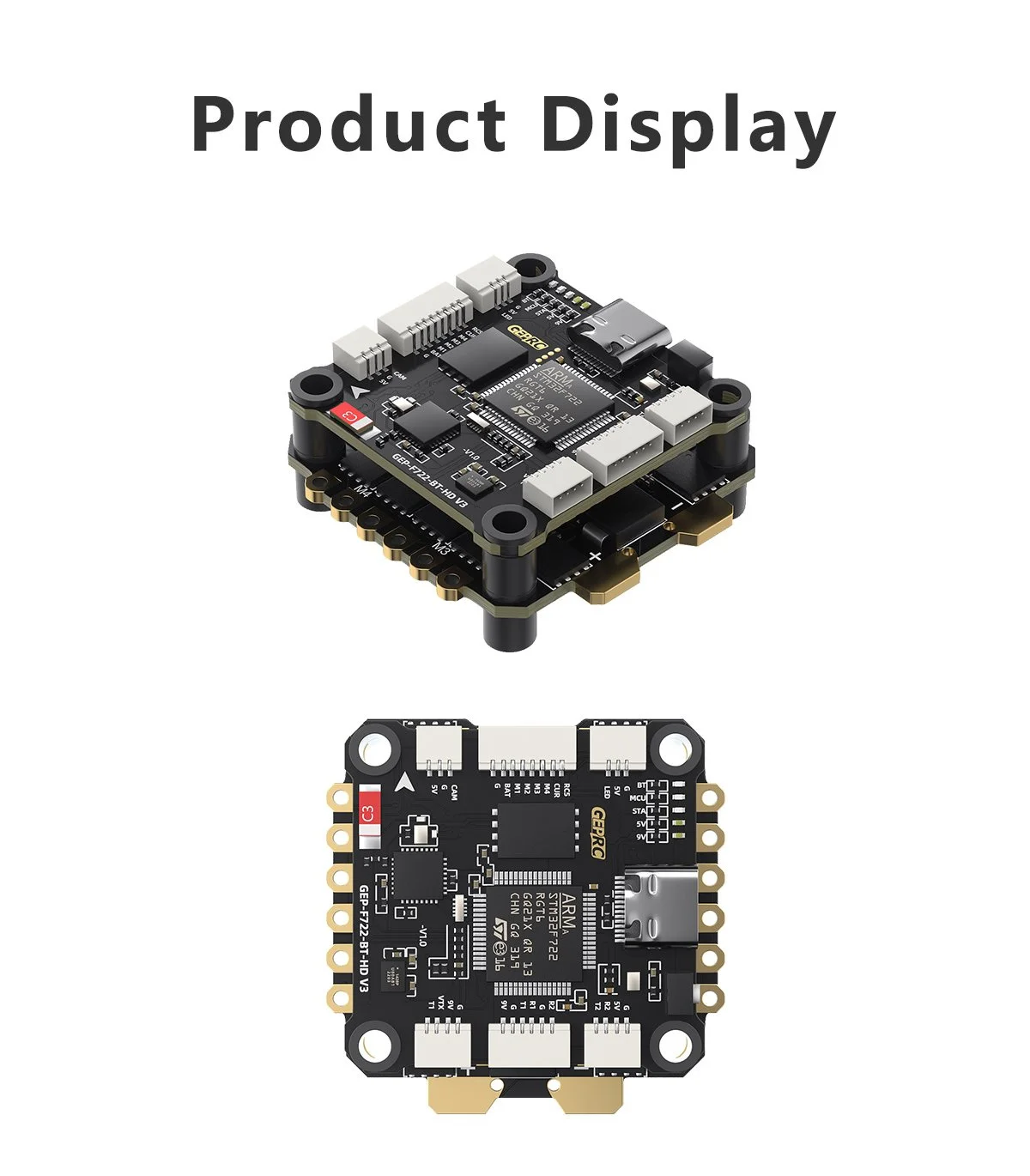

GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

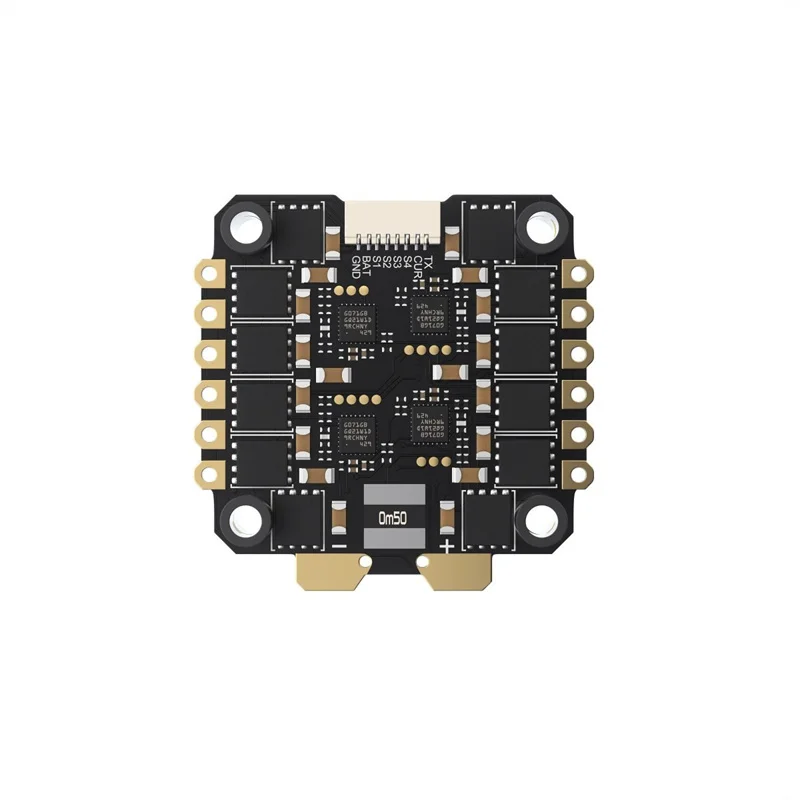

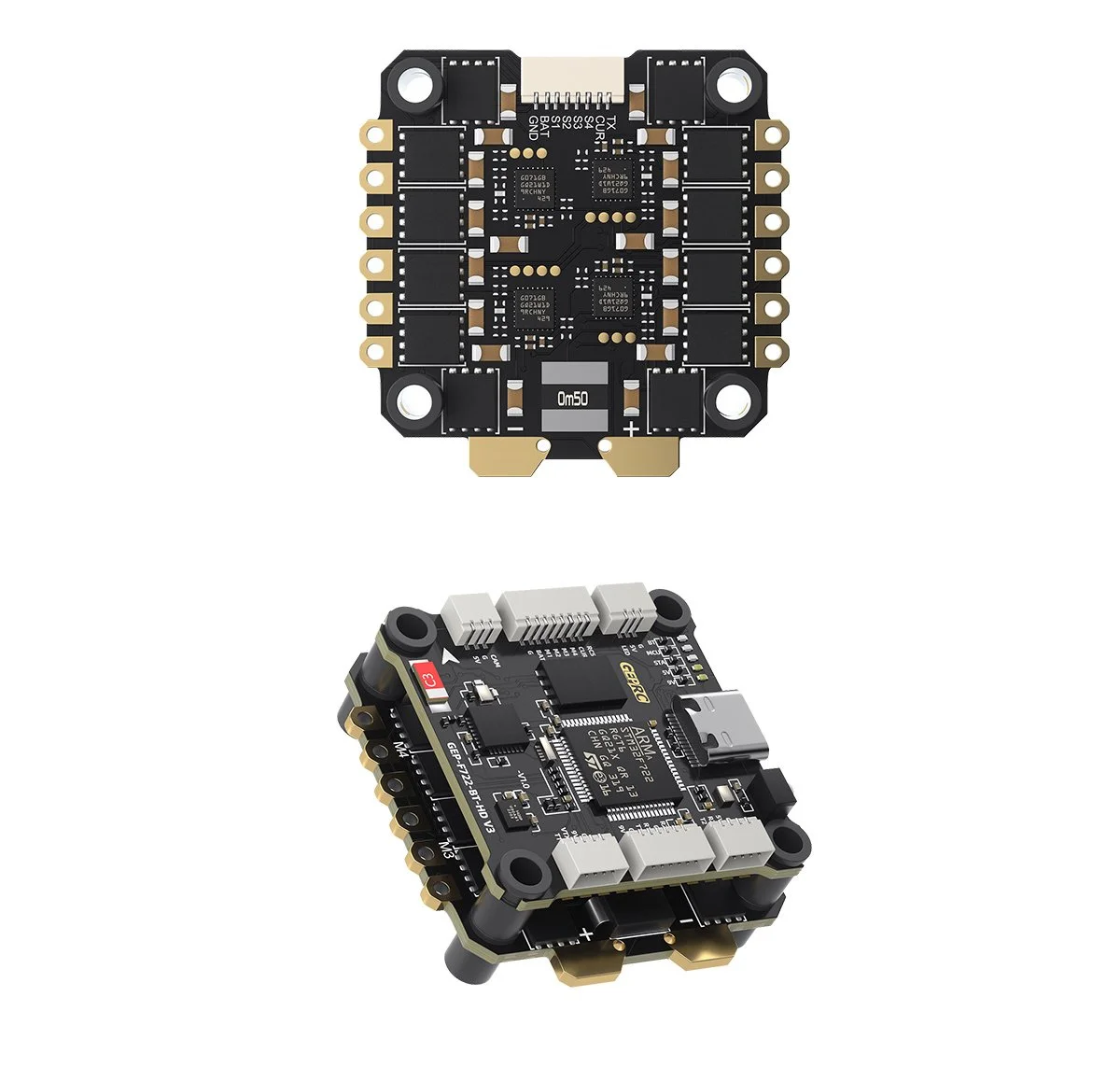

GEP-BL32 50A 96K 4IN1 ESC
Model: GEP-BL32 50A 96K 4IN1 ESC
Input Voltage: 3-6S Lipo
Continue Current：50A
Burst Current: 55A (5 second)
Galvanometer：Support
Telemetry: Support
Support Protocol: Dshot 150/300/600
Size：42.5×42.1mm，hole30.5×30.5mm
Weight：14g
Target: ST_G0_05 – 31.92
Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability
(AM32 also supported; customer flashing required.)

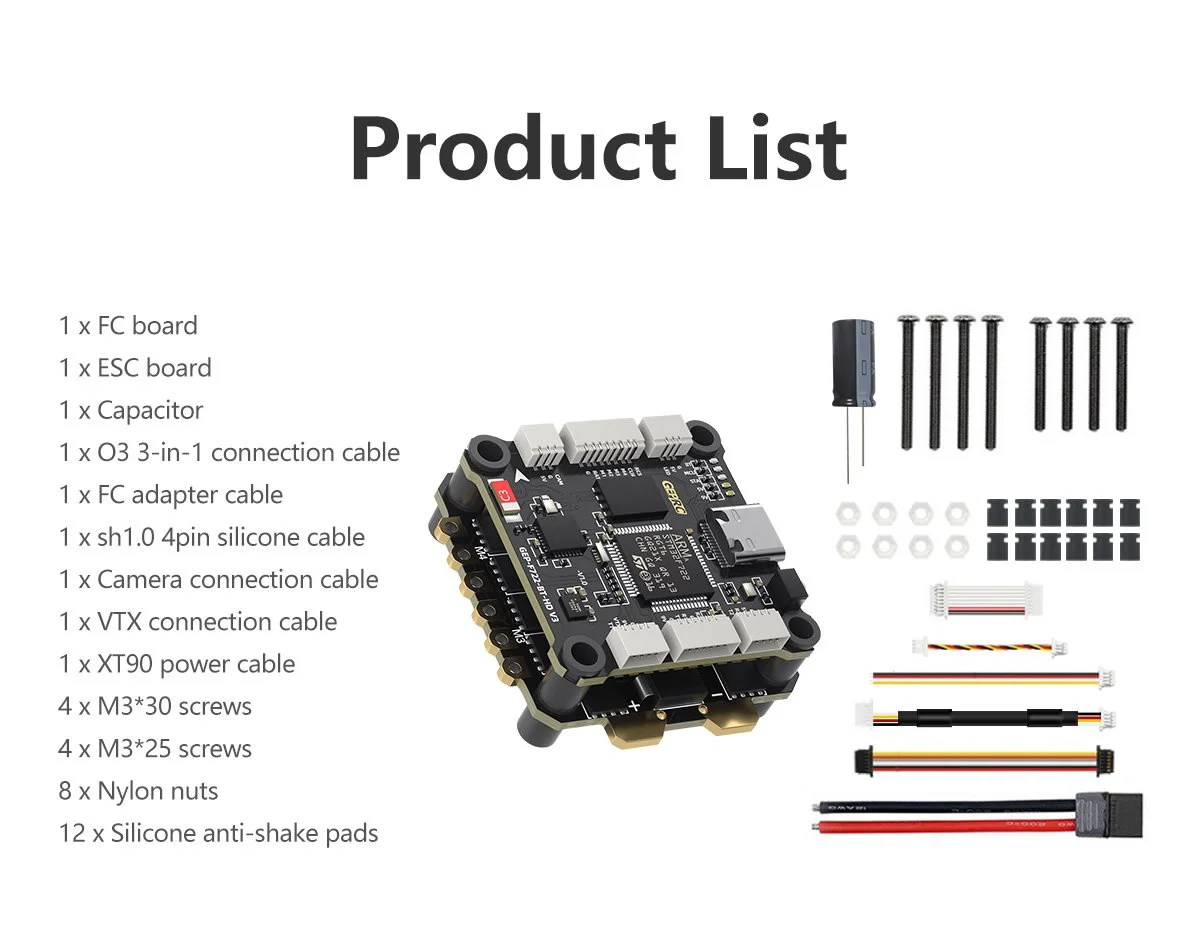

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
