Summary
Brand new TAKER F411 8Bit 12A AIO adds new blood to the MINI FPV, the weight of the AIO integrated board is only 7 grams, making the small body lighter and improving the overall feel of the small FPV drones.
TAKER F411 8Bit 12A AIO adopts ICM-42688-P gyro, with precise and smooth touch, both racing and freestyle flying can be coped with easily. ESC supports up to 12A, supports 2-4S, and more powerful. These versions are divided into built-in SPI ELRS 2.4G receiver and without the receiver version, each with the advantages and convenience, pilots are free to choose. On-board black box with 16MB flash memory, convenient for pilots to adjust parameters.
It is believed that this highly integrated TAKER F411 12A AIO will bring you an easy and pleasant building experience.
Specifications
Model: TAKER F411 8Bit 12A AIO (built-in/without ELRS receiver)
MCU: STM32F411
IMU: ICM42688P
Firmware target: GEPRC_F411_SX1280
OSD: BetaFlight OSD w/ AT7456E chip
UART Ports: R1 T1R2 T2
Reverse Port: NR2
Buzzer: YES
LED: YES
USB Port: micro USB
ESC MCU: BB21F16G
Black Box: 16Mb onboard flash memory
Continuous Current: 12A
Peak Current: 13A
Input: 2-4S
ESC Protocol: Dshot300,Oneshot,Multishot
Current Meter: 210
ESC Firmware: G-H-30 – Bluejay, 0.16, 48kH

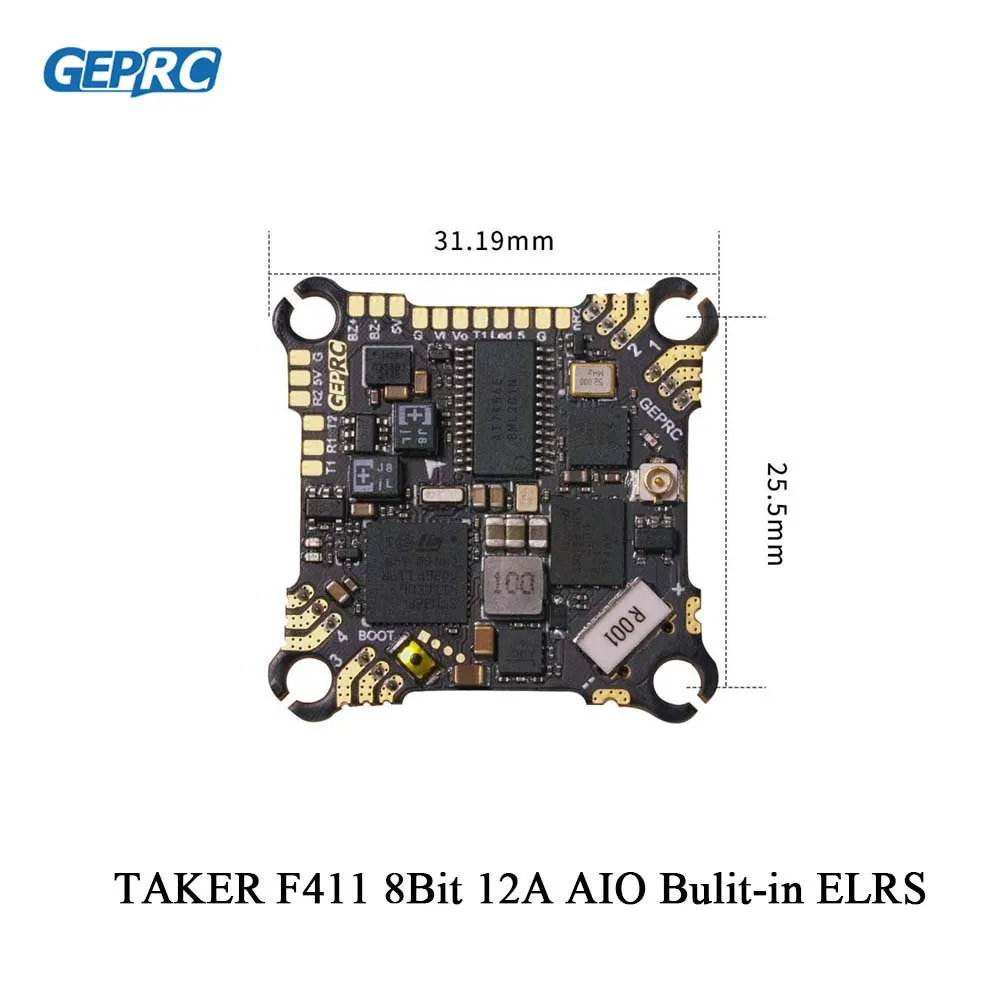

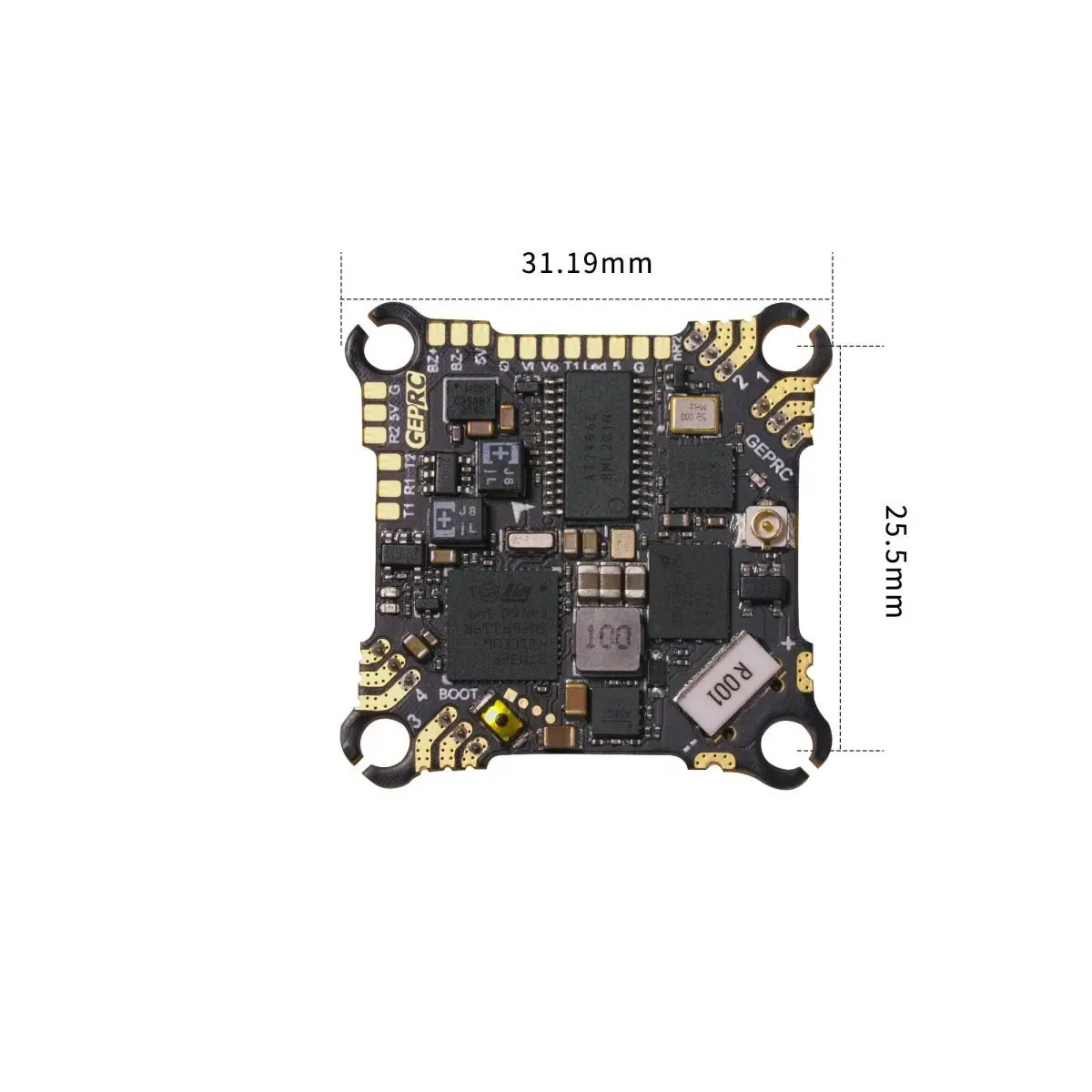

Size: 31.2×31.2mm Board
Mounting holes: 25.5mm*25.5mm hole, M2 hole

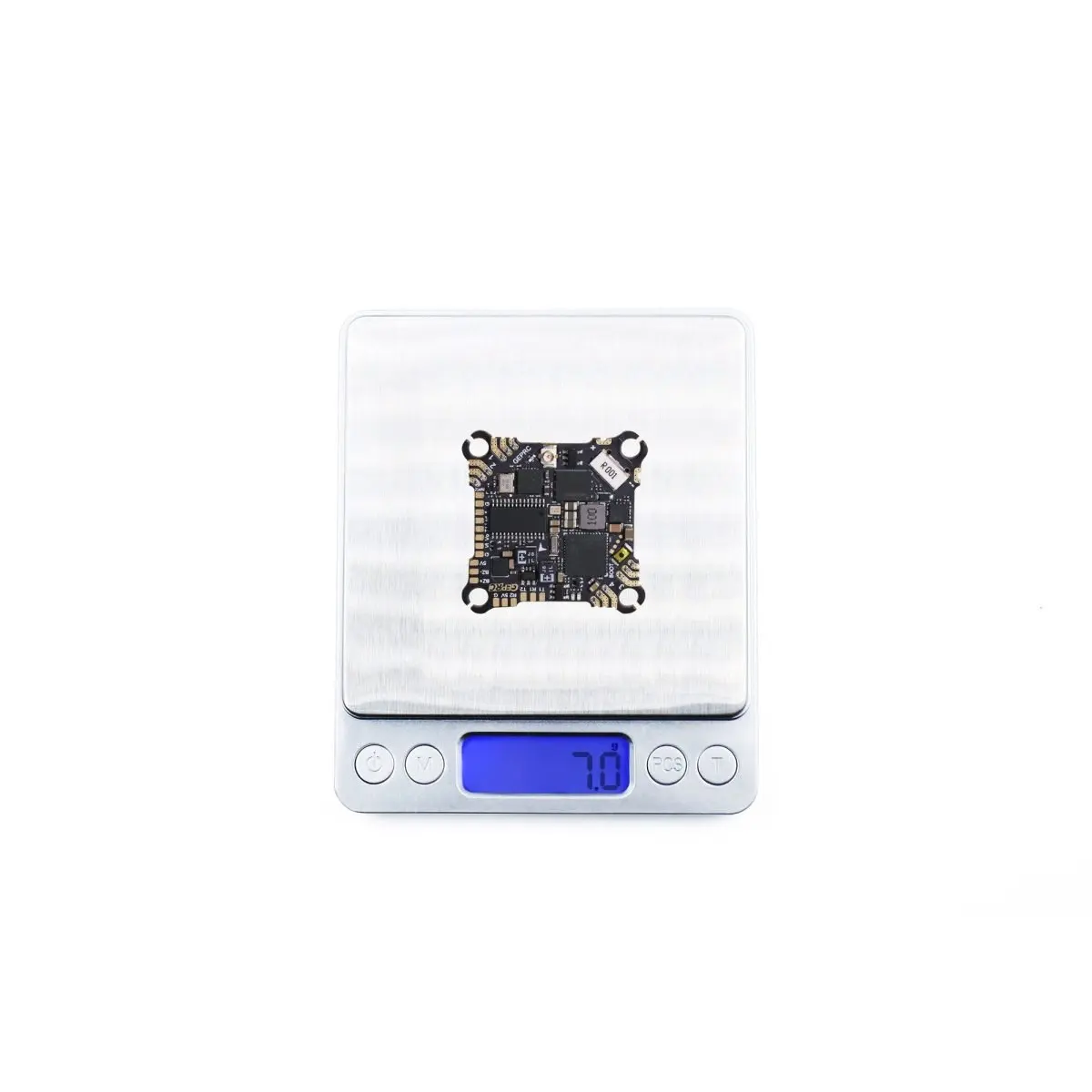

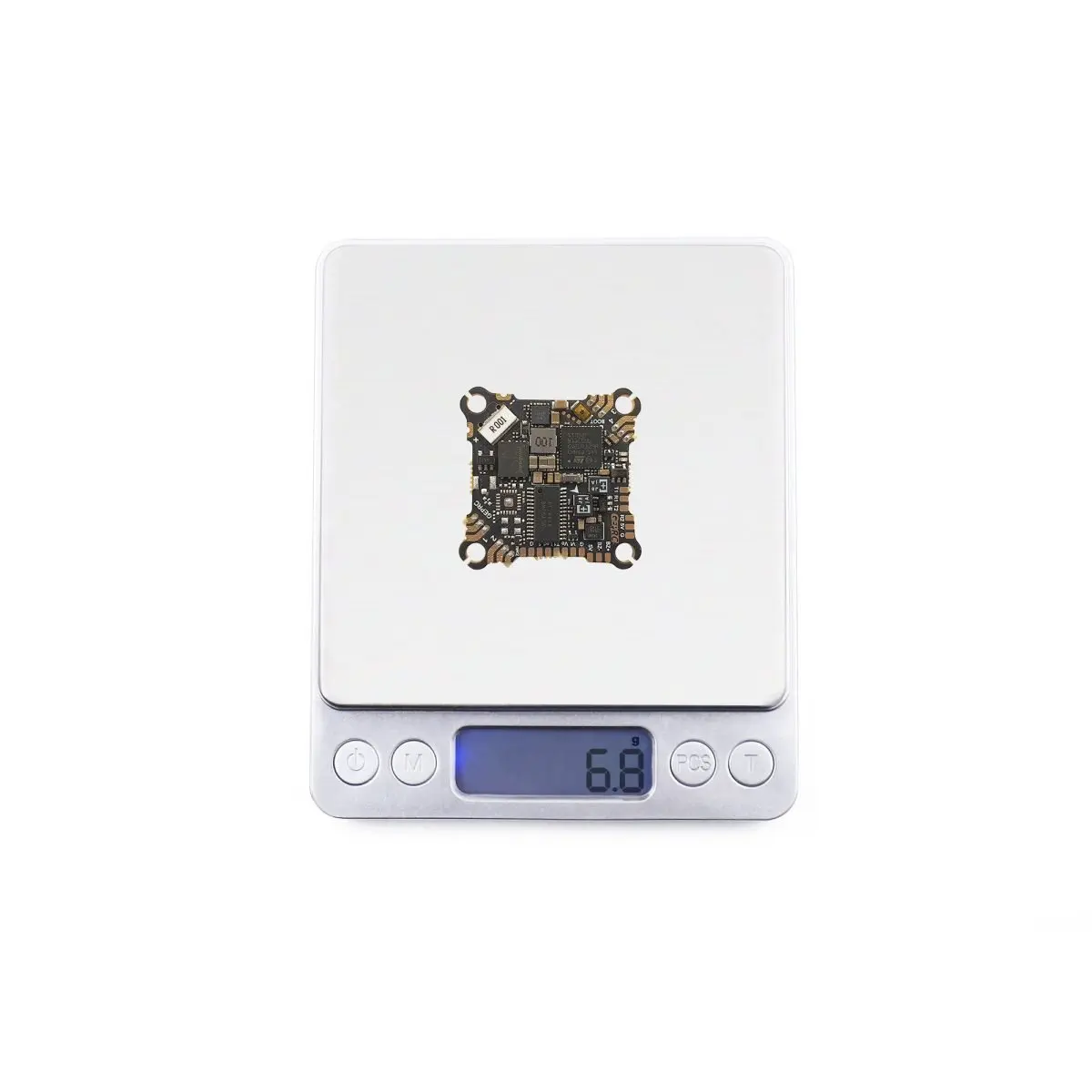

Weight: 7g
Feature
1. Bluejay 12A ESC, support 2-4S battery, continuous current 12A, peak current 13A, built-in ammeter
2. using STM32F411 FC, the flight control is running stably
3. using IMU: ICM42688P gyroscope, 8K sampling rate
4. support buzzer and LED light function
5. With 25.5mm*25.5mm mounting holes

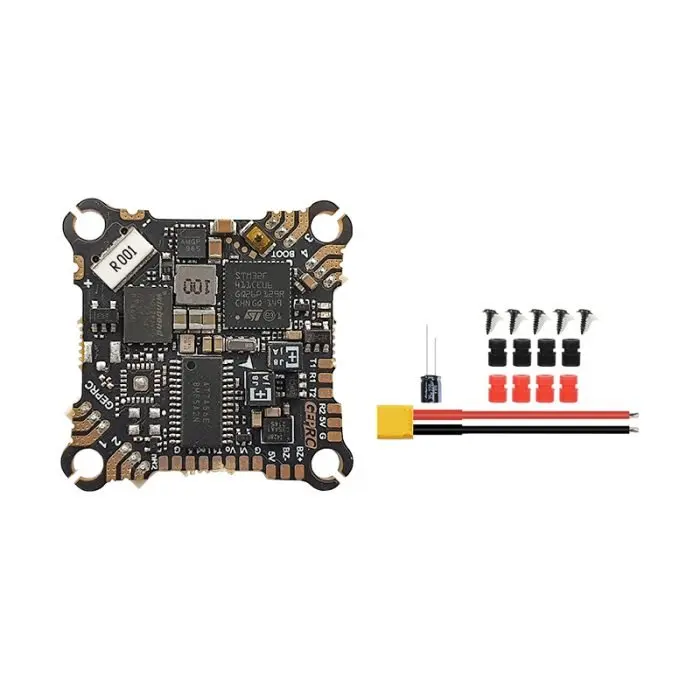

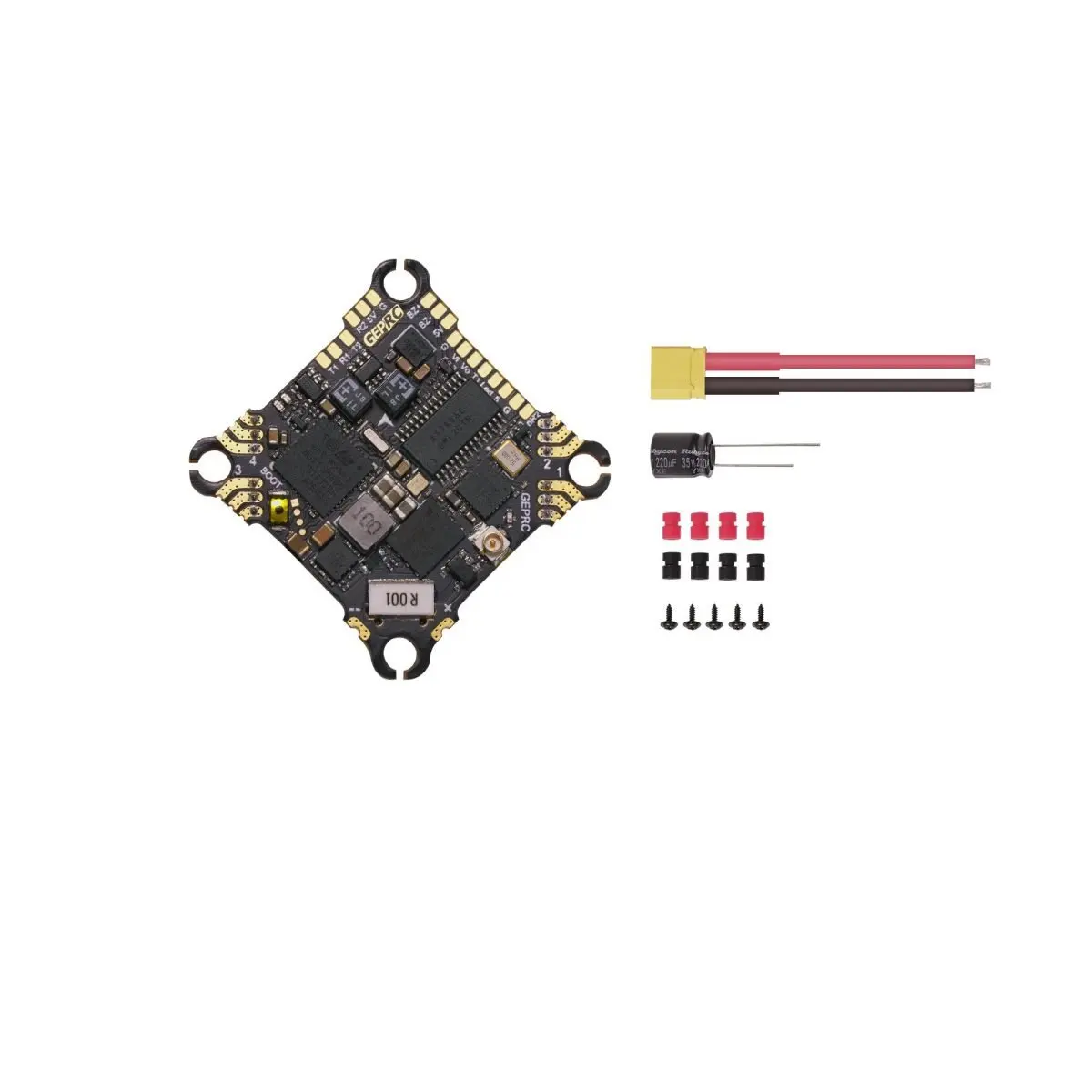

Includes
– 1 x TAKER F411 12A (built-in/without ELRS receiver)
– 1 x XT30-5.5CM-20AWG power cable
– 8 x M2*6.5mm FC damping balls (4 each in red/black)
– 1 x 35V220UF capacitor
– 5 x Self-tapping screws (M1.4X5)
– 1 x Instruction manual
– 1 x Aluminum foil bag
