Summary

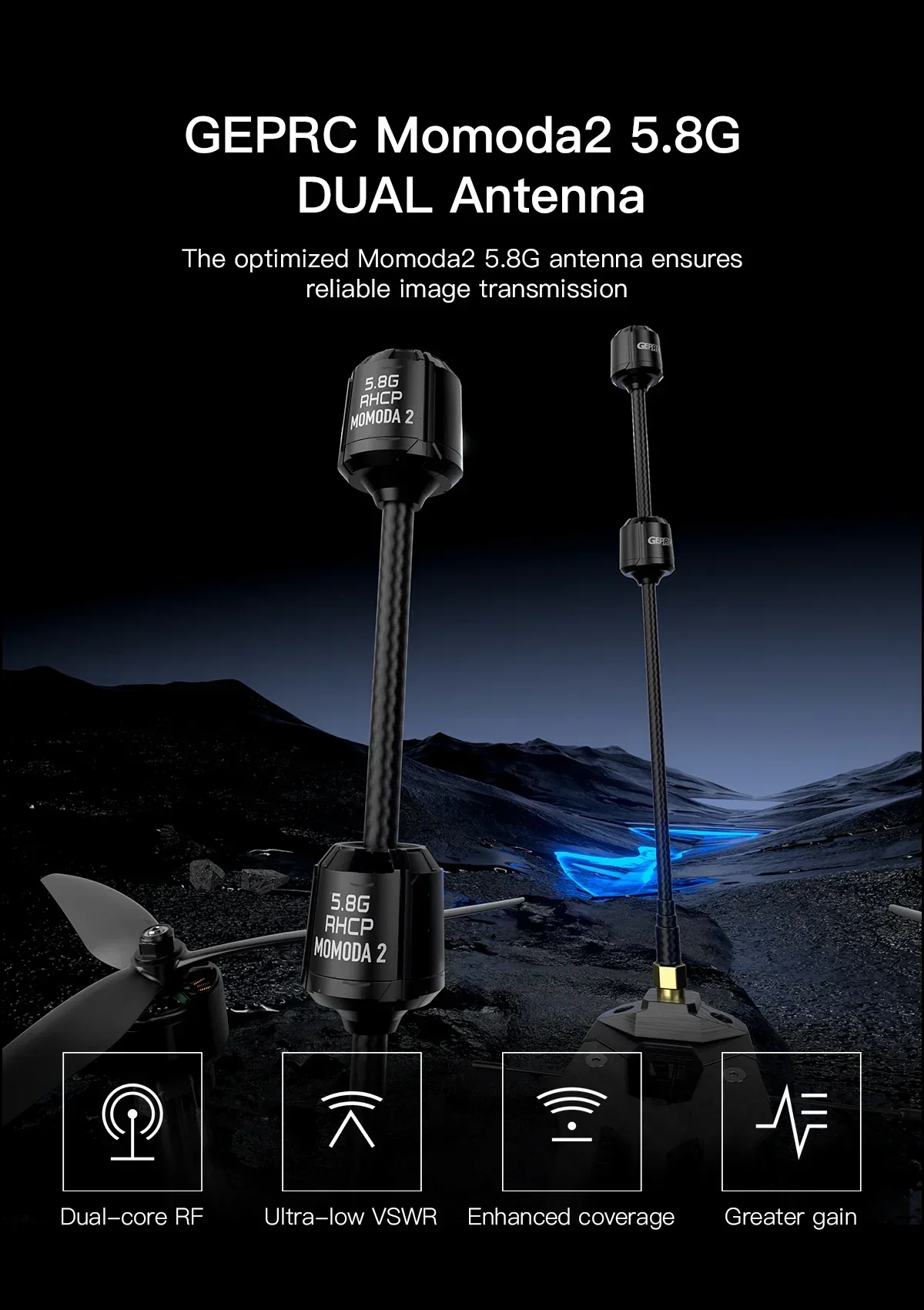

The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance.
Features

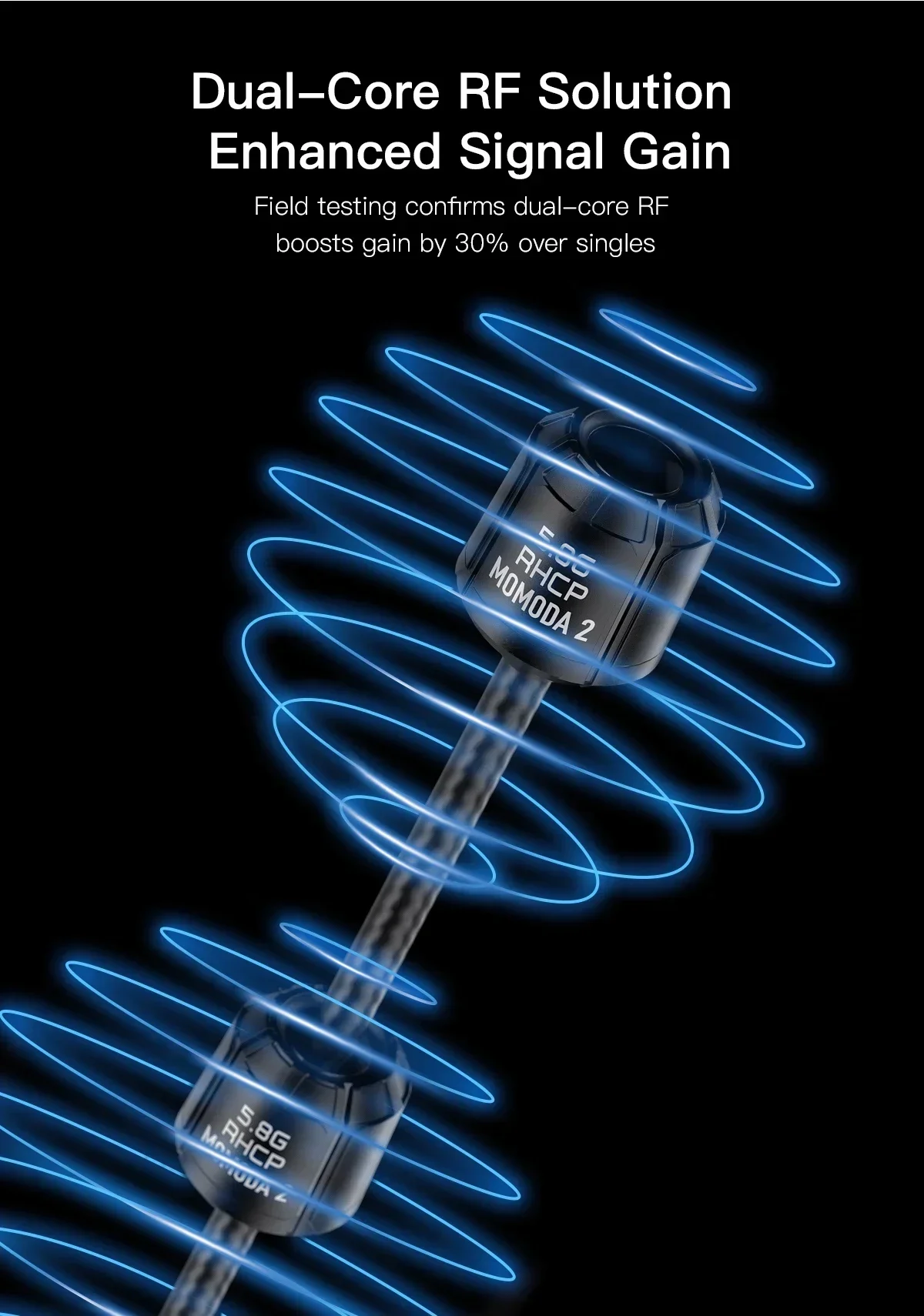

Enhanced gain with dual-core RF technology.
Ultra-low VSWR for improved transmission efficiency
Adopts premium antenna interface
Ultrasonic welding for tight and secure assembly
Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

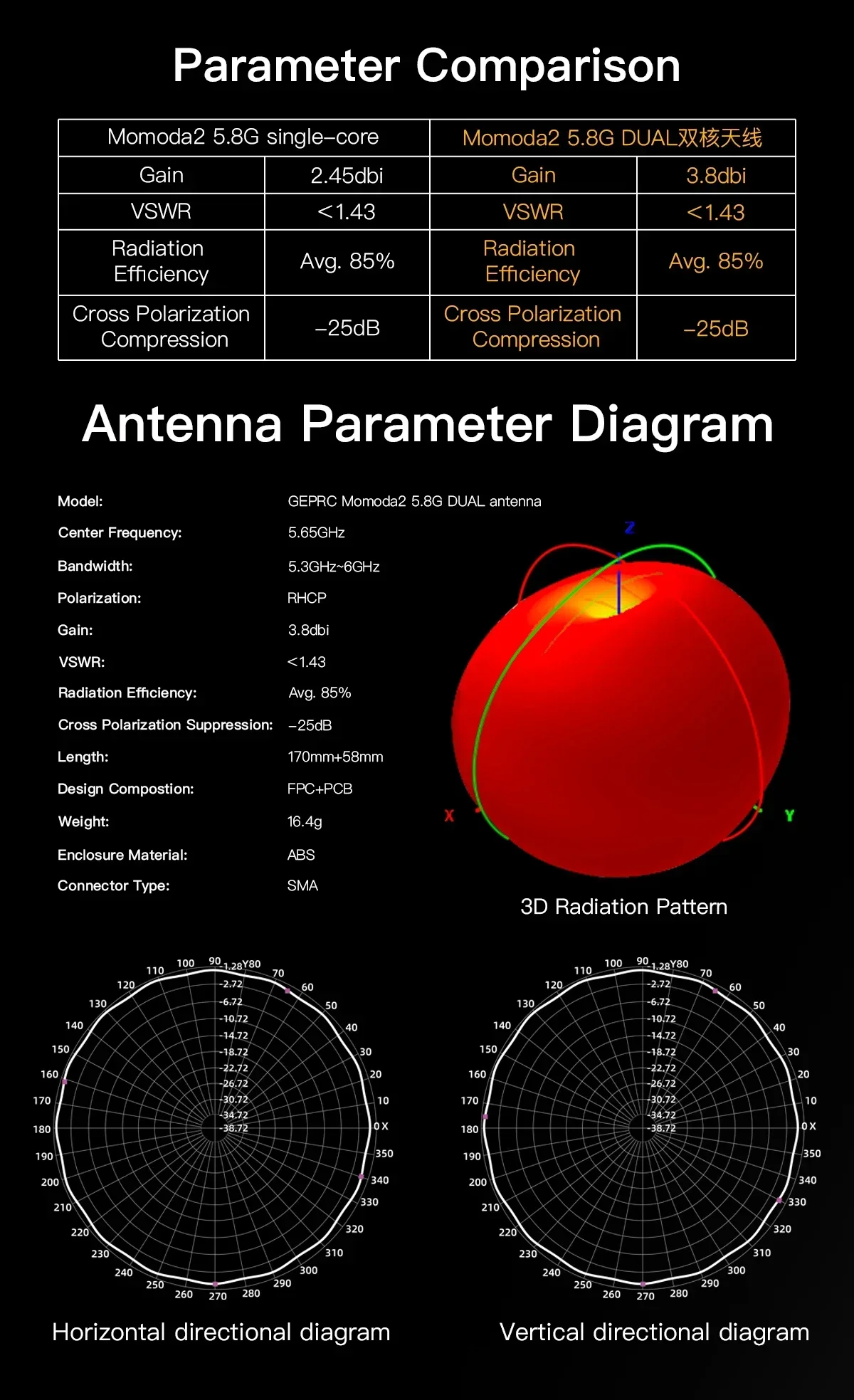

Specifications

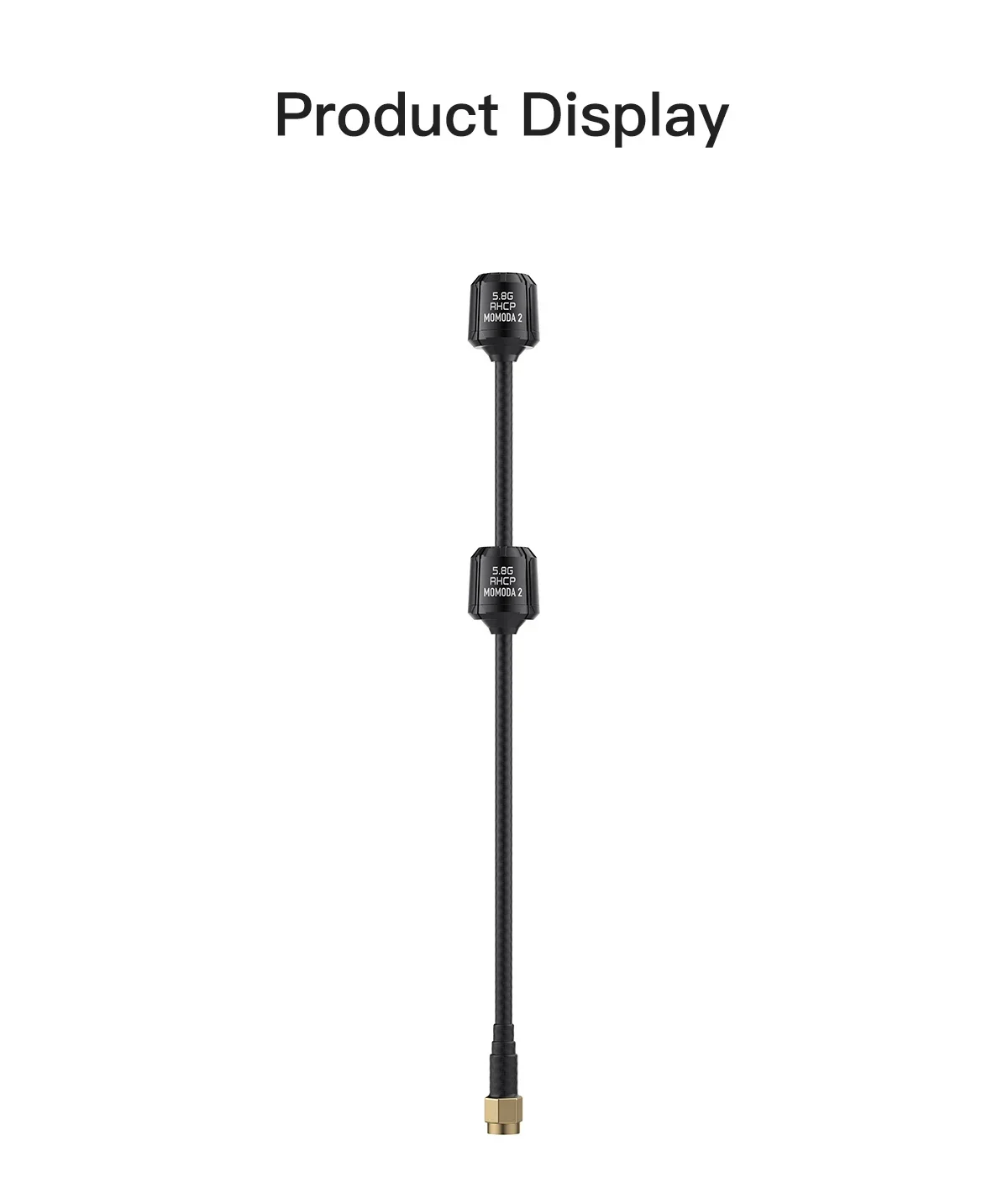

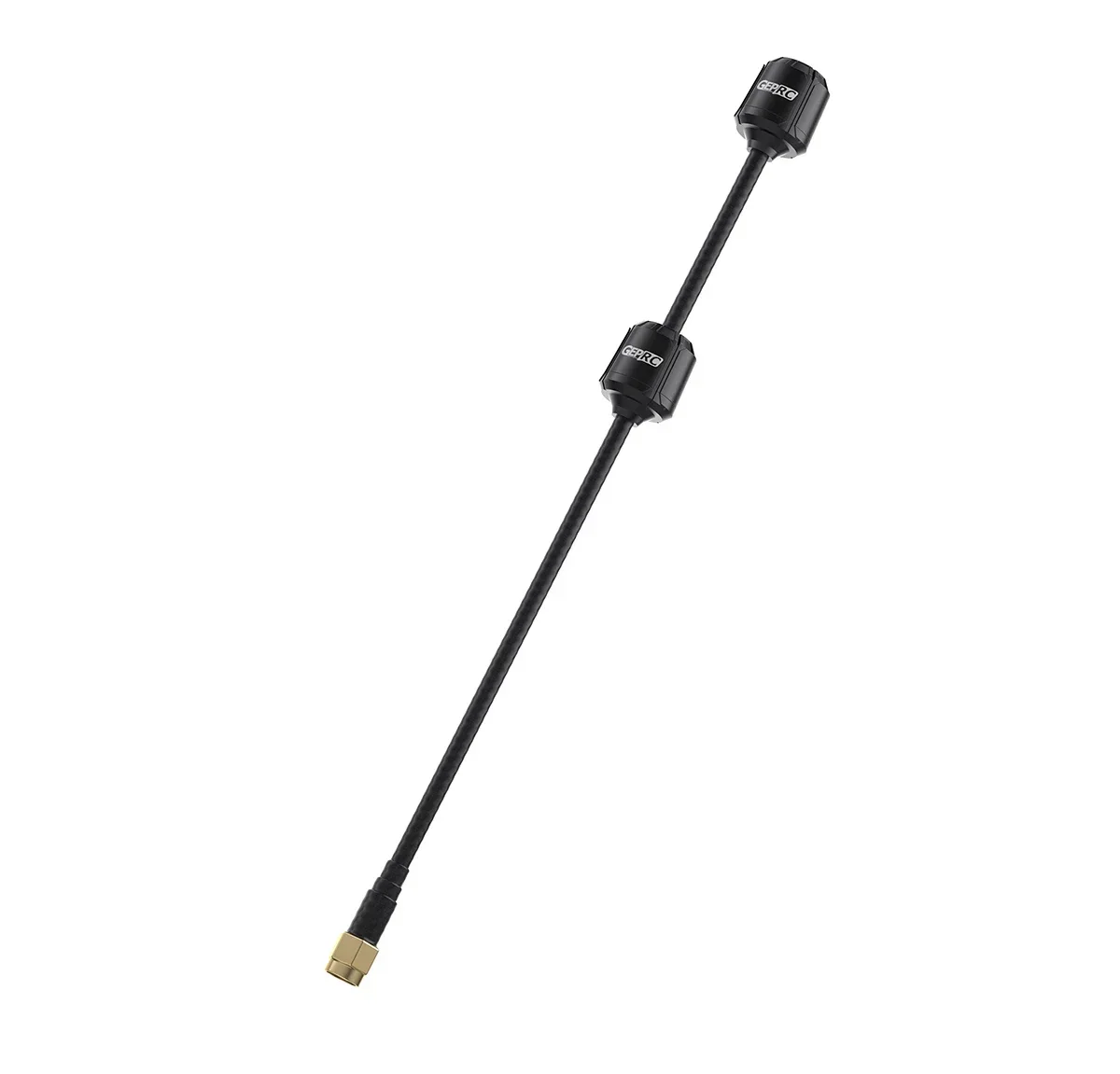

Model: GEPRC Momoda2 5.8G DUAL antenna
Center Frequency: 5.65GHz
Bandwidth: 5.3GHz~6GHz
Polarization: RHCP
Gain: 3.8dbi
Axial Ratio: ≤3

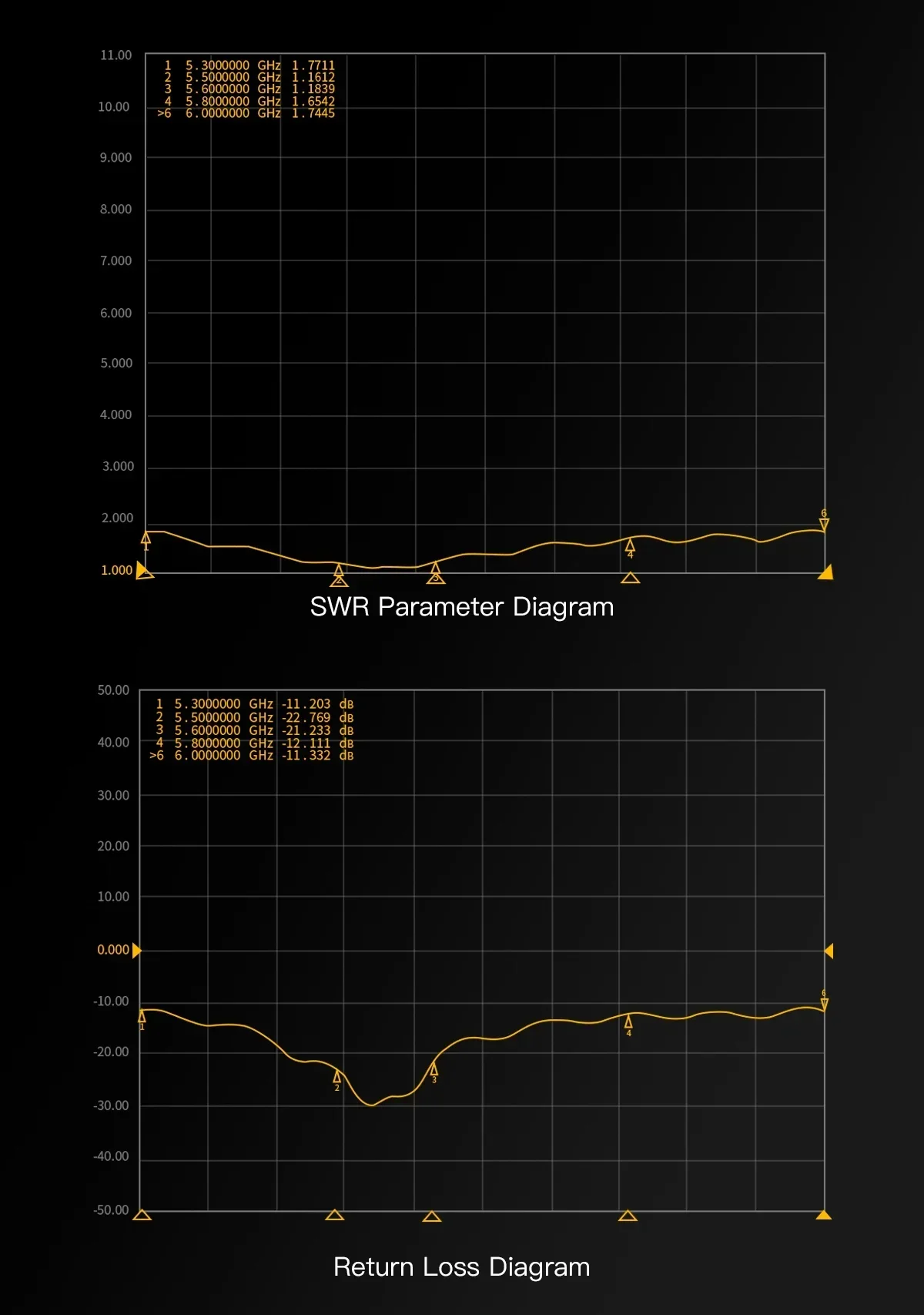

VSWR: ≤1.43
Radiation Efficiency: 85%
Cross Polarization Suppression: -25dB

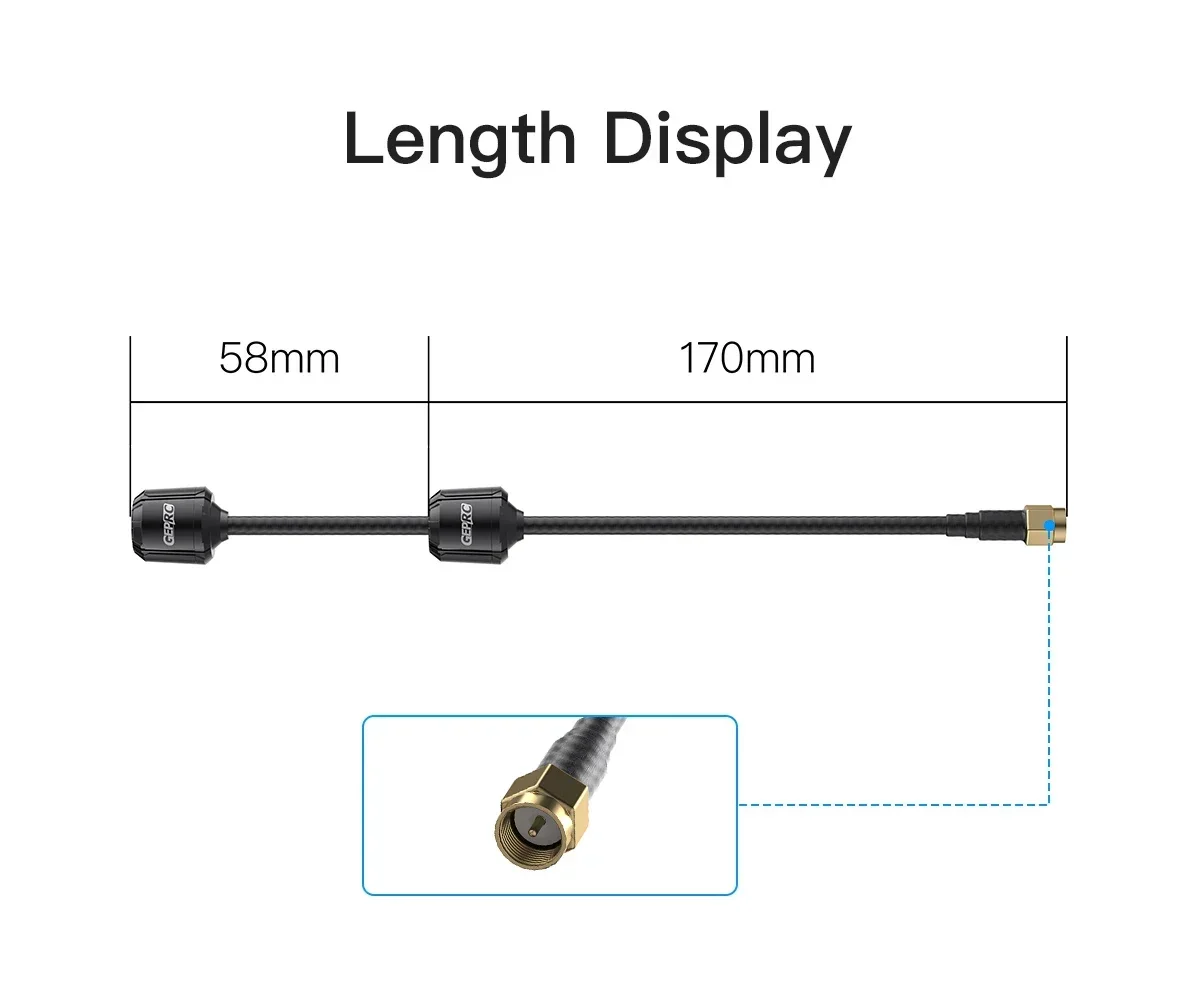

Length: 170mm+57mm
Design Compostion: FPC+PCB
Weight: 16.6g
Enclosure Material: ABS
Connector Type: SMA
Includes
1*Momoda 5.8G DUAL antenna
Sale!
GEPRC Momoda2 5.8G DUAL Antenna SMA 3.8dbi LHCP / RHCP 90mm / 170mm
$16.50
+ Free ShippingWeight | 0.05 kg |
---|---|
Dimensions | 5 × 5 × 5 cm |
Hign-concerned Chemical | None |
Is Electric | No Battery |
Is it battery/power supply | N |
Is it charger/adapter | N |
Model Number | Momoda2 5.8G DUAL |
For Vehicle Type | Helicopters |
Material | Composite Material |
Brand Name | DIATONE |
Origin | Mainland China |
Recommend Age | 14+y |
Use | Vehicles & Remote Control Toys |
Reviews
There are no reviews yet
