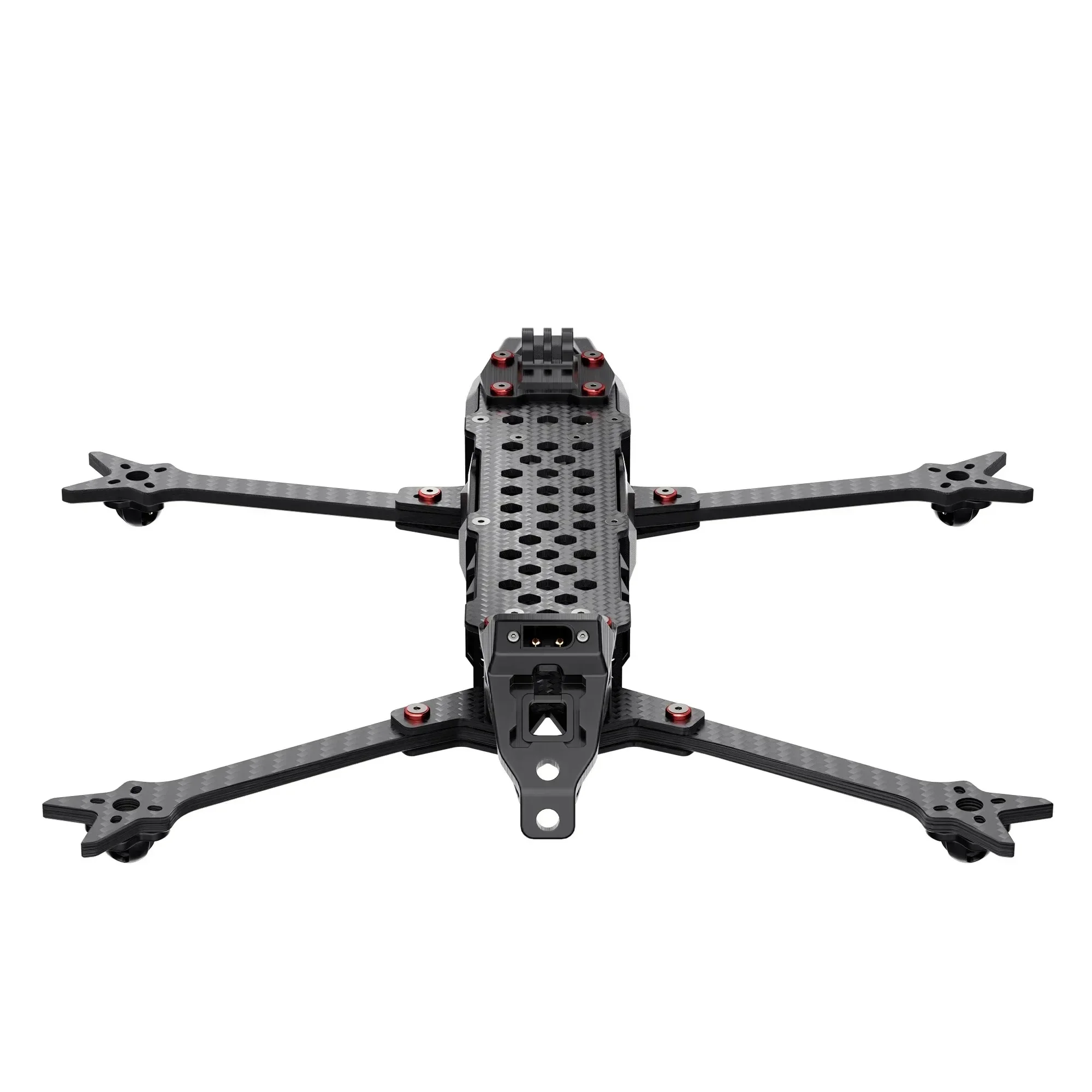

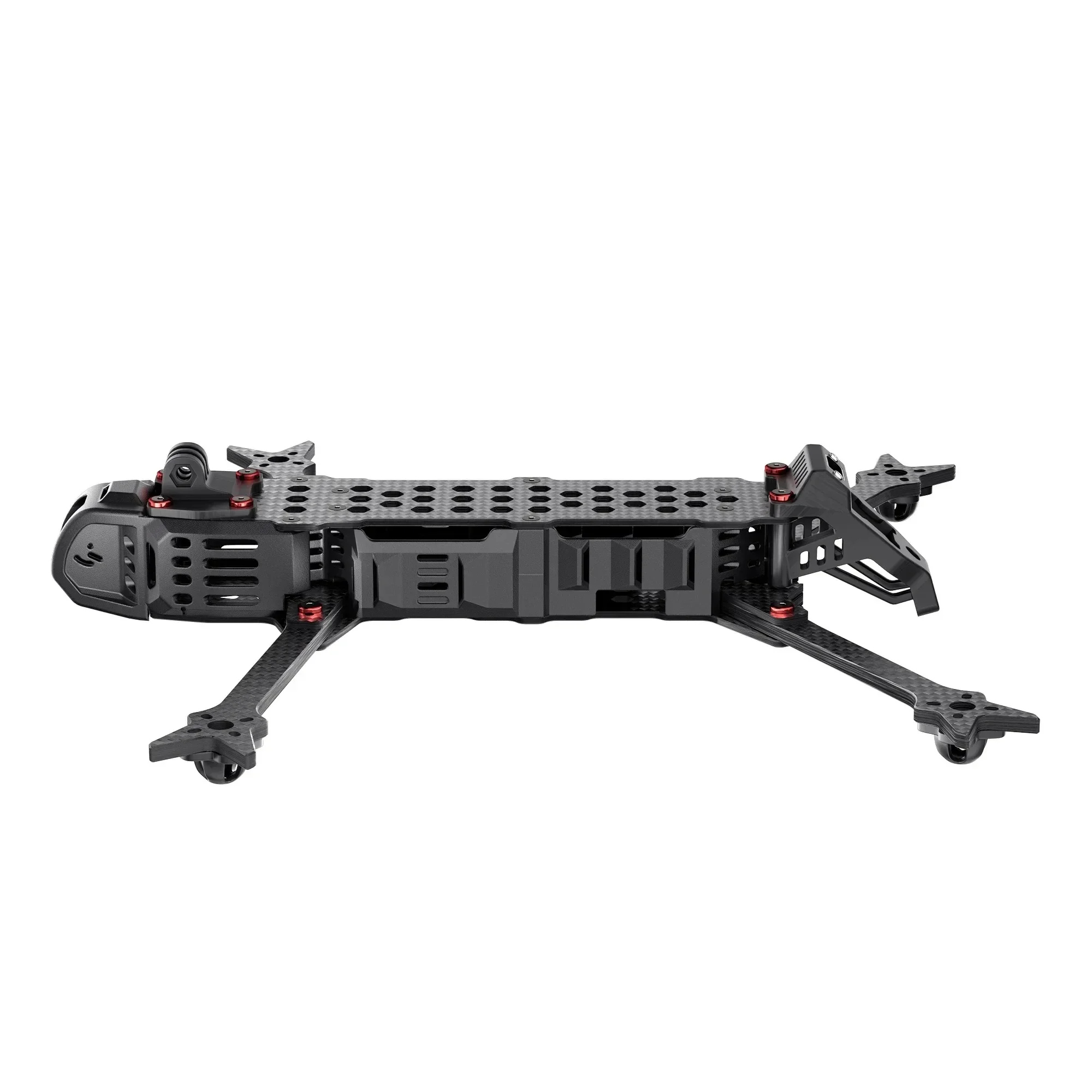

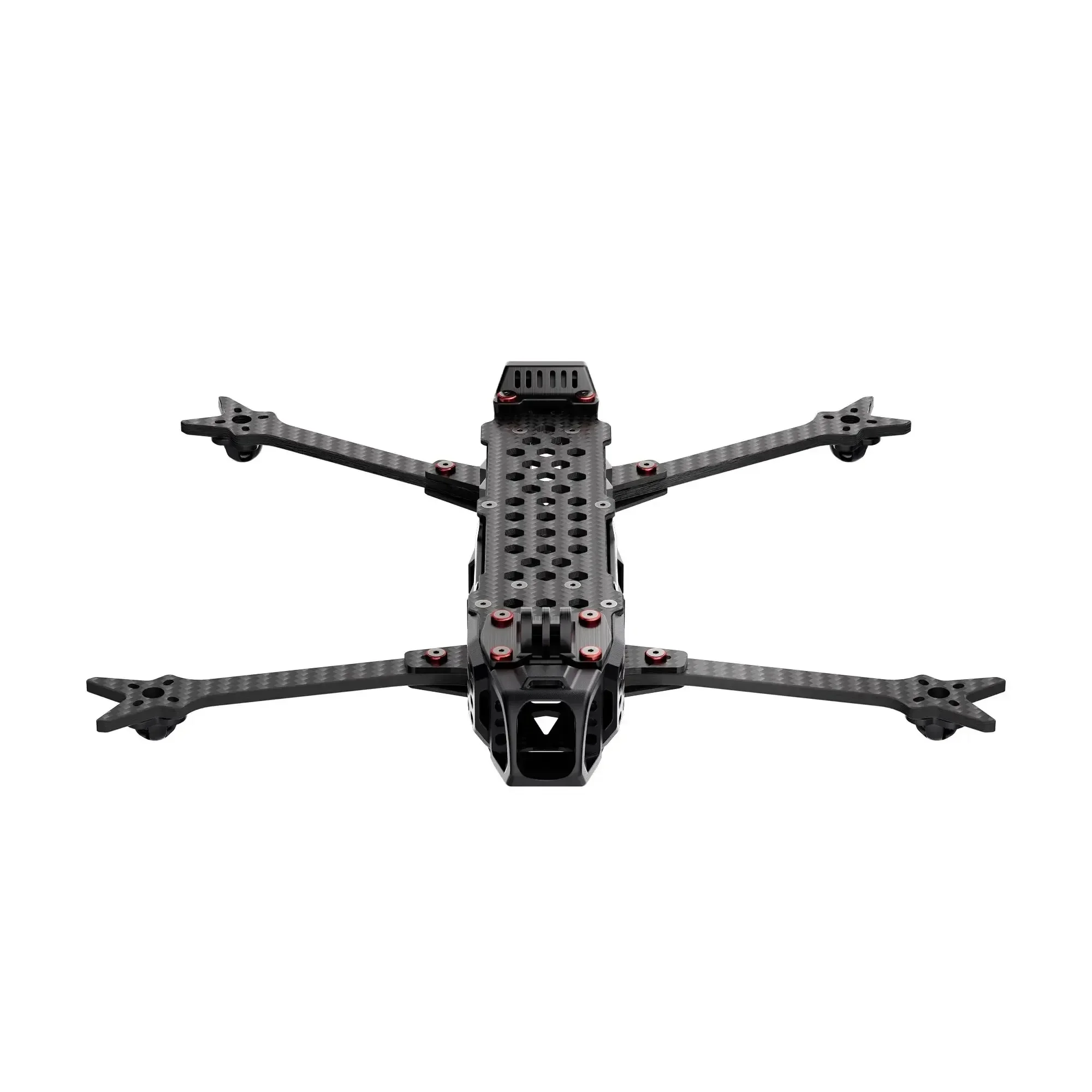

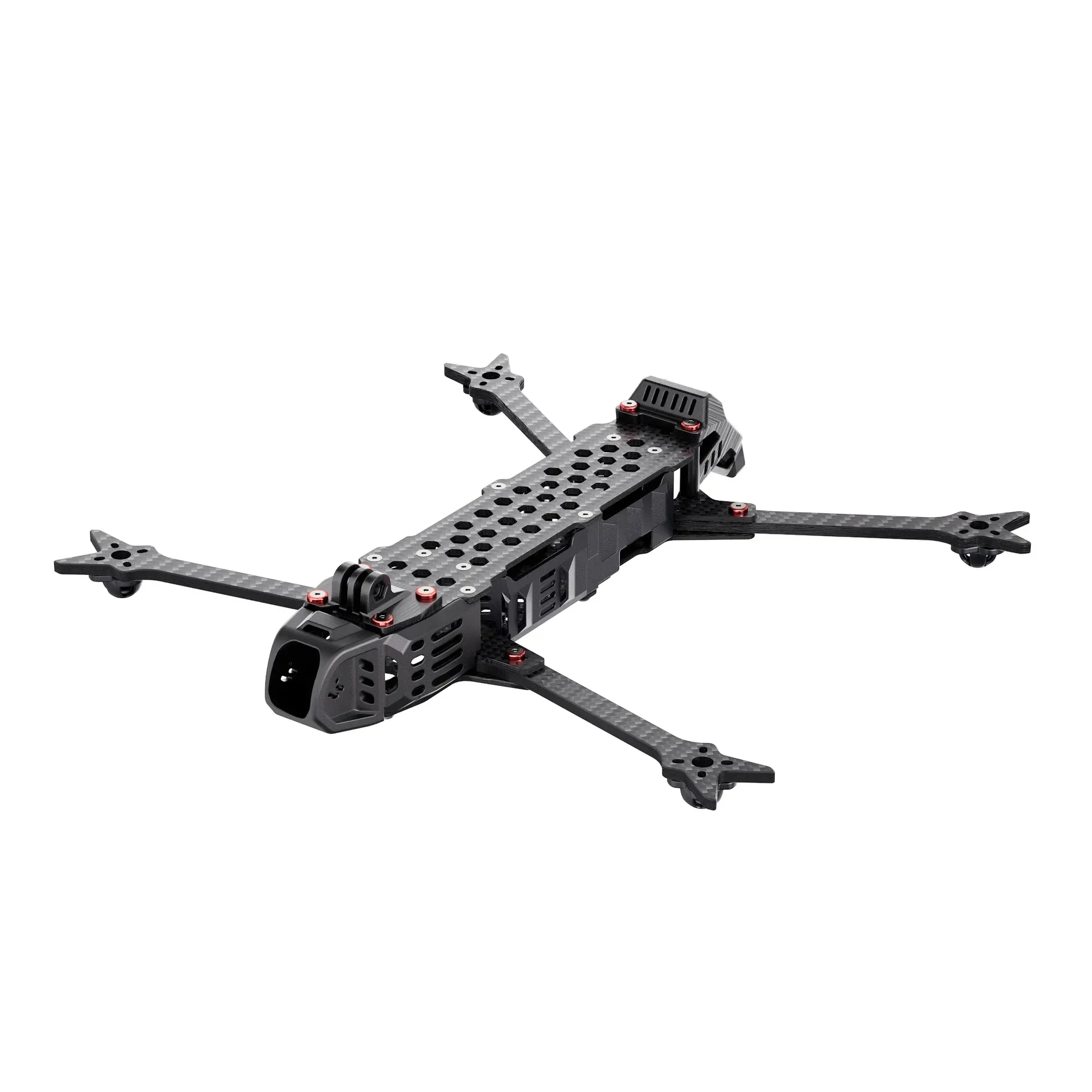

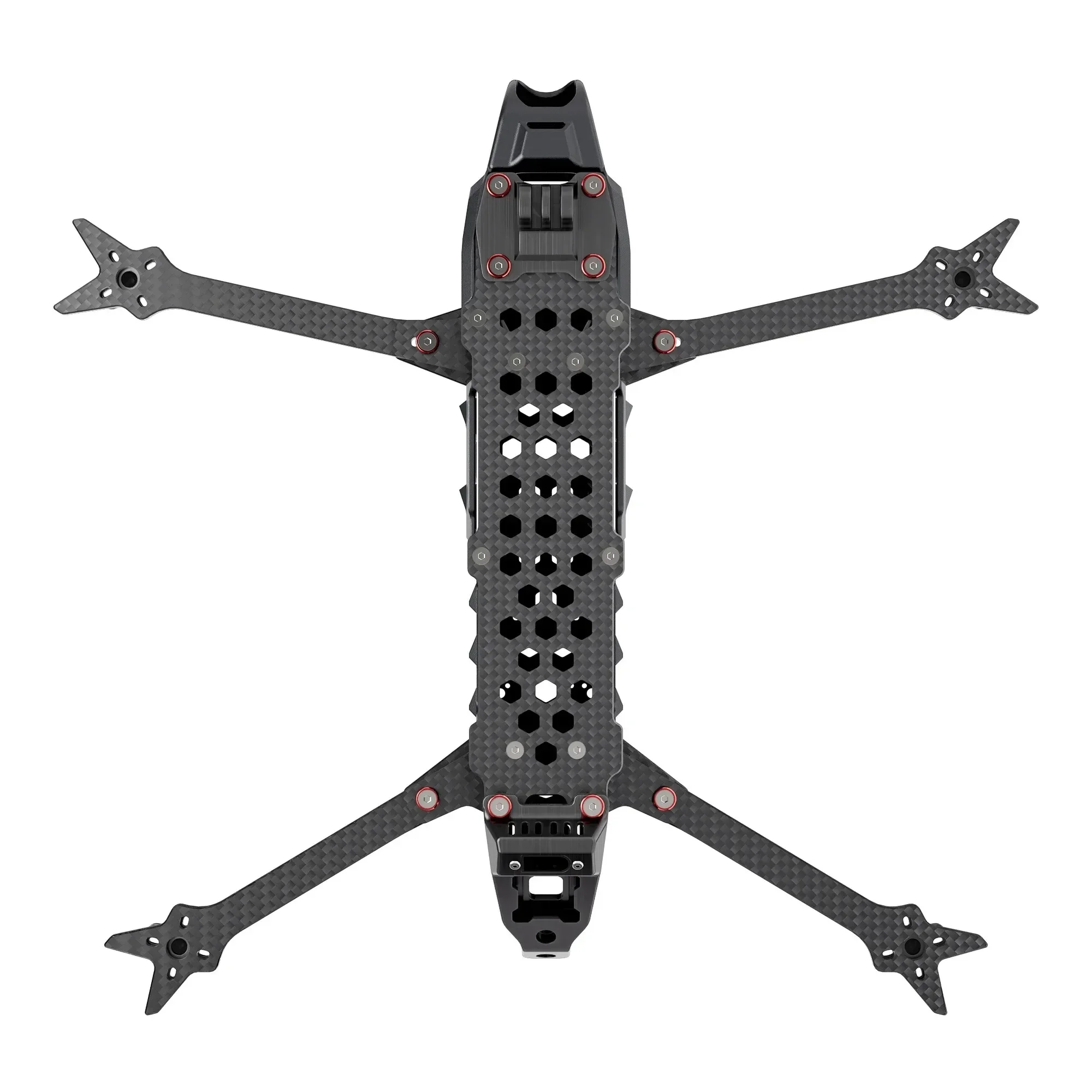

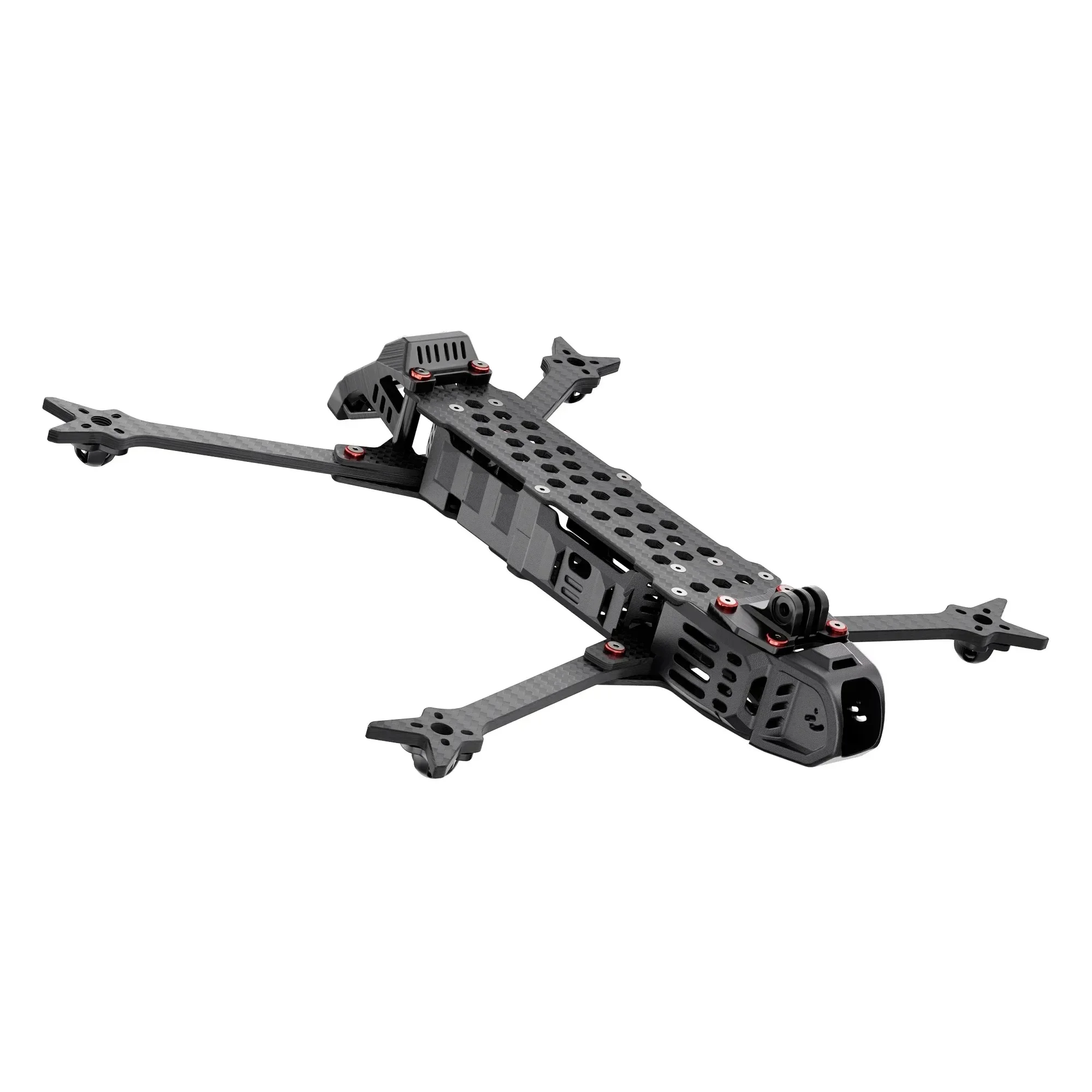

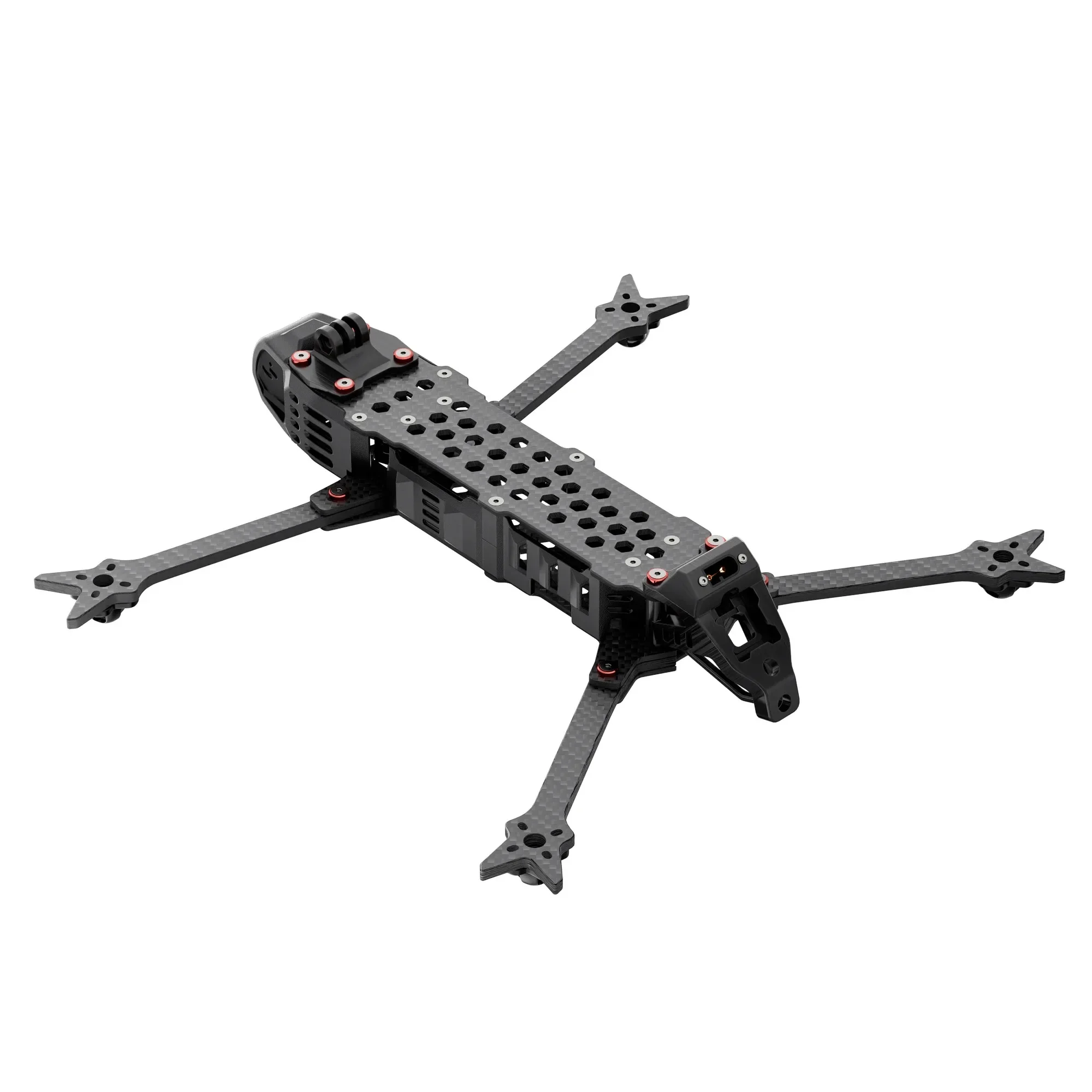

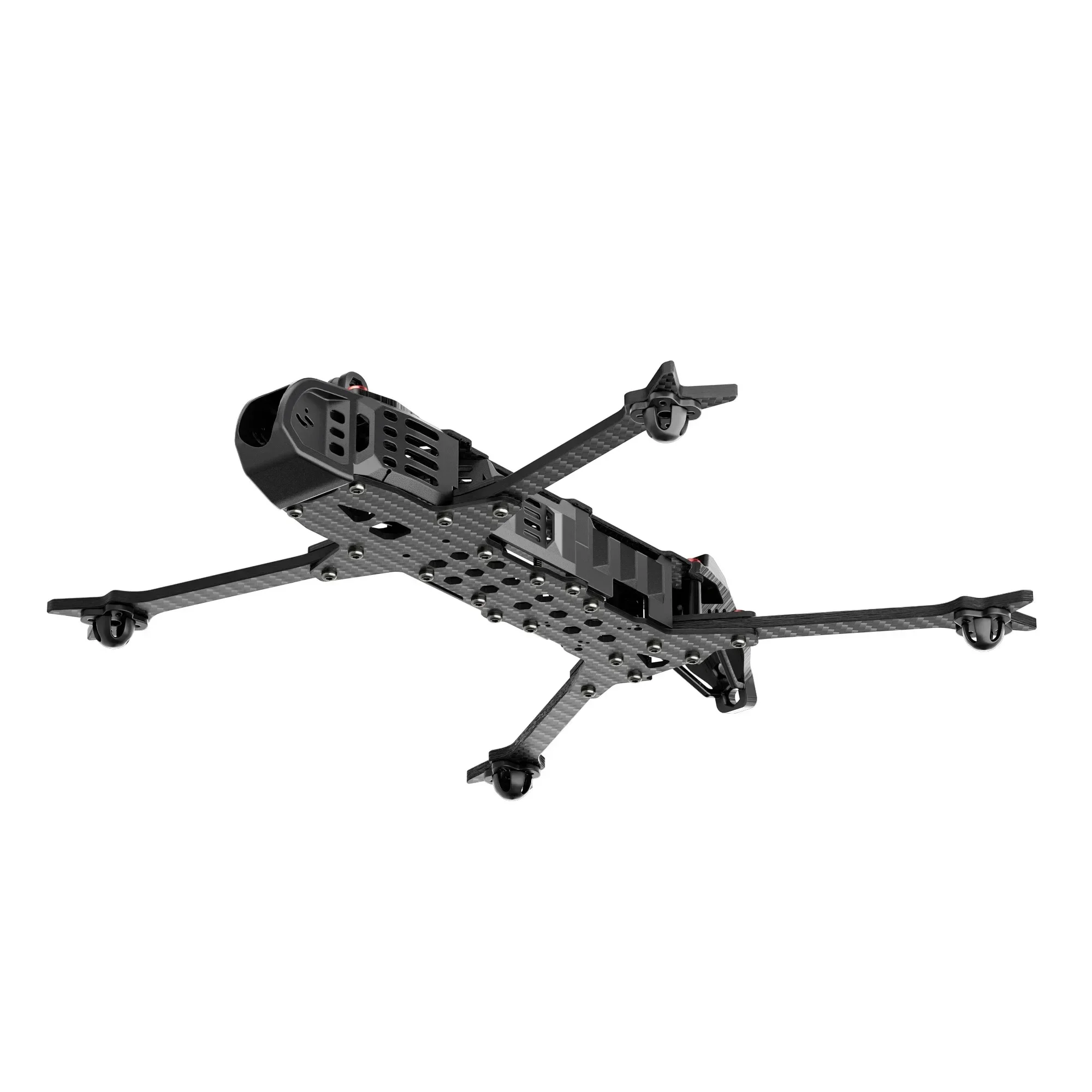

GEPRC LC75 V3 Frame 342mm Wheelbase 7.5inch Carbon Fiber 6mm Arm for Crocodile75 V3 7inch 7.5inch FPV Long Range Drone Model

Summary
GEP-LC75 V3 is a long range frame, which uses H-shaped structure design and adds protective side panels to the fuselage to protect the electronic control system from dust pollution. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The fuselage structure optimizes the strength of the main stress points to ensure strong crashworthiness.
Feature
Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
The fuselage adds protective side panels for a more technological appearance and to protect the electronic control system from sand and dust pollution.
The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
Perfect match for 7-inch or 7.5-inch propellers
The Crocodile75 V3 frame has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
Specification
Model: GEP-LC75 V3
Size: 7.5 inch
Wheelbase: 342mm
Top plate: 2.5mm
Bottom plate: 3.0mm
Arm plate: 6.0mm
FC mounting hole: 30.5mm*30.5mm
VTX mounting hole:20mm*20mm / 25.5mm*25.5mm
Motor mounting hole: 16mm*16mm / 19mm*19mm
Camera mounting hole: 19mm / 20mm
Recommended propeller size: 7-7.5inch
Weight: 266g
Includes
Carbon plate list:
1 x GEP-LC75 V3 top plate
1 x GEP-LC75 V3 bottom plate
4 x GEP-LC75 V3 arms plate
1 x GEP-LC75 V3 front splint plate
1 x GEP-LC75 V3 front splint plate
Accessories:
1 x Header printed parts
1 x Tail printed parts
1 x GP camera base
4 x Motor damping pad
1 x Nylon front side plate (Pair)
1 x Nylon Rear side plate (Pair)(O3 version)
1 x Nylon Rear side plate (Pair) (universal version)
1 x XT60EW-M plug
2 x Rubber elastic anti-slip straps 20*250mm
4 x Motor wire hub 60mm*10mm
Screw kits:
4 x M3*5*30 mesh aluminum columns
4 x M3*5*21.5 mesh aluminum columns
10 x M3 Countersunk head Gaskets – wine red
6 x M3 pressed Rivet nuts
8 x M3*8 shock absorbing balls
10 x countersunk hexagon socket screws M3*8
4 x countersunk hexagon socket screws M3*12
4 x Hexagon socket screws with semicircular head M3*8
16 x Hexagon socket screws with semi-round head M3*11
8 x semi-round head hexagon socket screws M3*16
4 x countersunk hexagon socket screws M3*16
4 x Hexagon socket screws with semi-round head M3*25
6 x M3 aluminum alloy hexagonal lock nuts
2 x Hexagon socket screws with half round head M2*6
4 x round head hex socket screws with pad M2*4
4 x O3 Air Unit Silicone gasket
6 x Cup-head hex socket screws M1.6*12
4 x Hexagon socket screws with half round head M2*23
4 x Self-tightening nuts M2
4 x Nylon columns M2*5
4 x Hexagon socket screws with half round head _ Black Nickel plated M2*7
4 x M2 Nylon nuts
8 x Hexagon socket screws with semicircular head M3*6
4 x black mesh M3*13 aluminum columns
