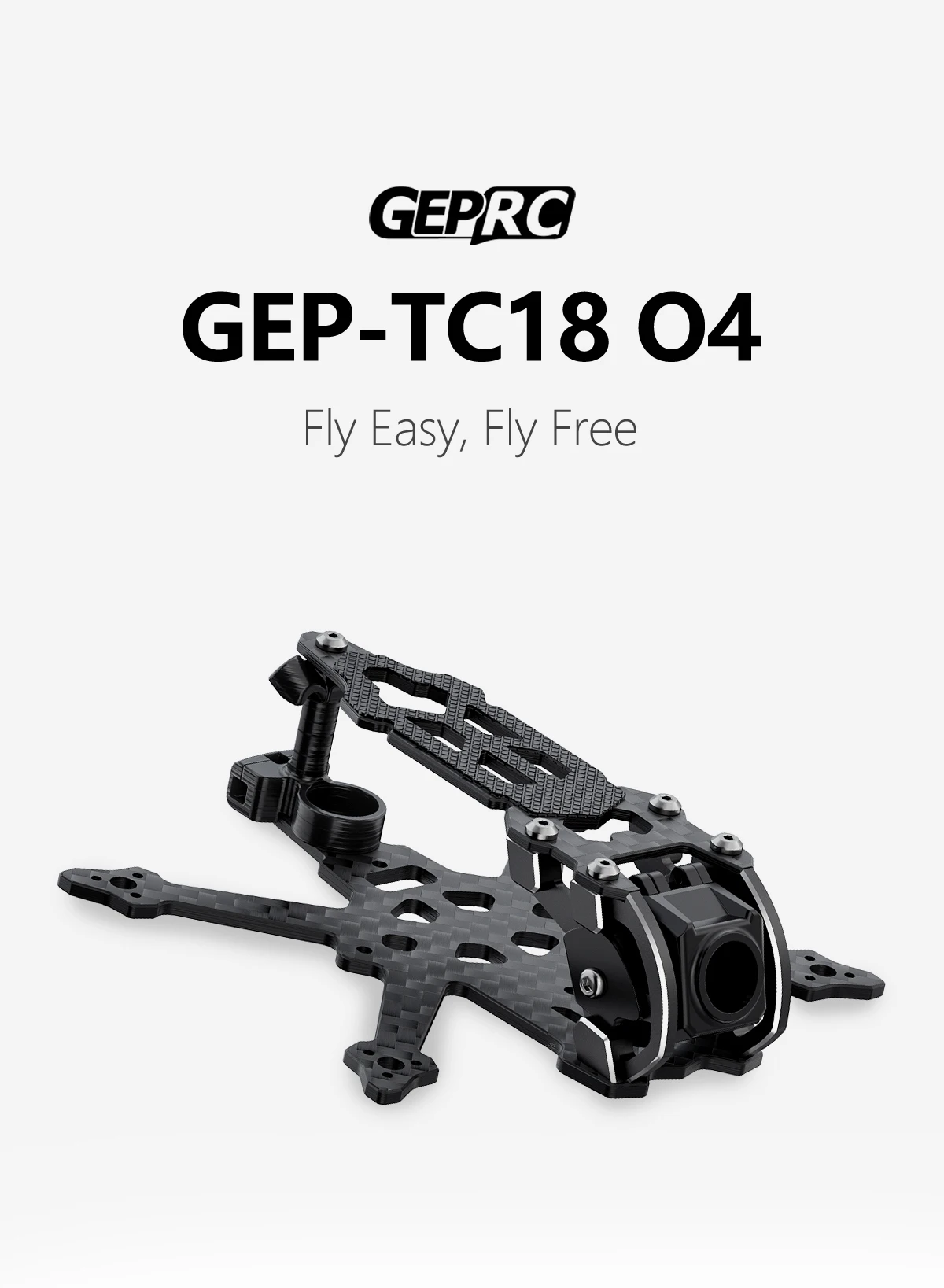

GEPRC GEP-TC18 O4 Frame Kits Suitable T-Cube18 Drone Carbon Fiber Frame DIY RC FPV Quadcopter Drone Accessories Parts
$20.39
Prices include VAT and any applicable duties
Availability: 112 in stock
usually dispatched in 2-3 business days.
Features
1. Dampening Silicone for steady, shake-free footage with O4.

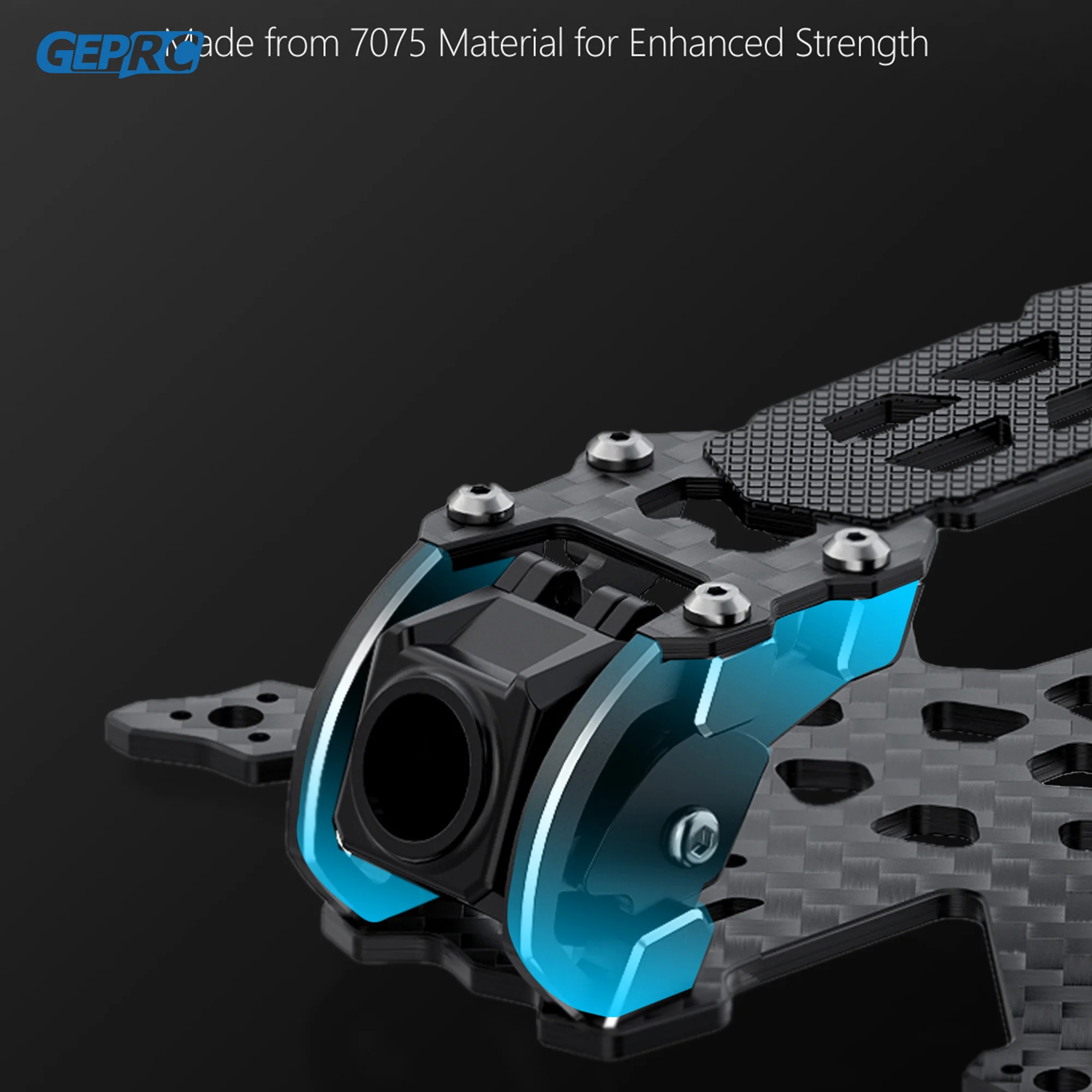

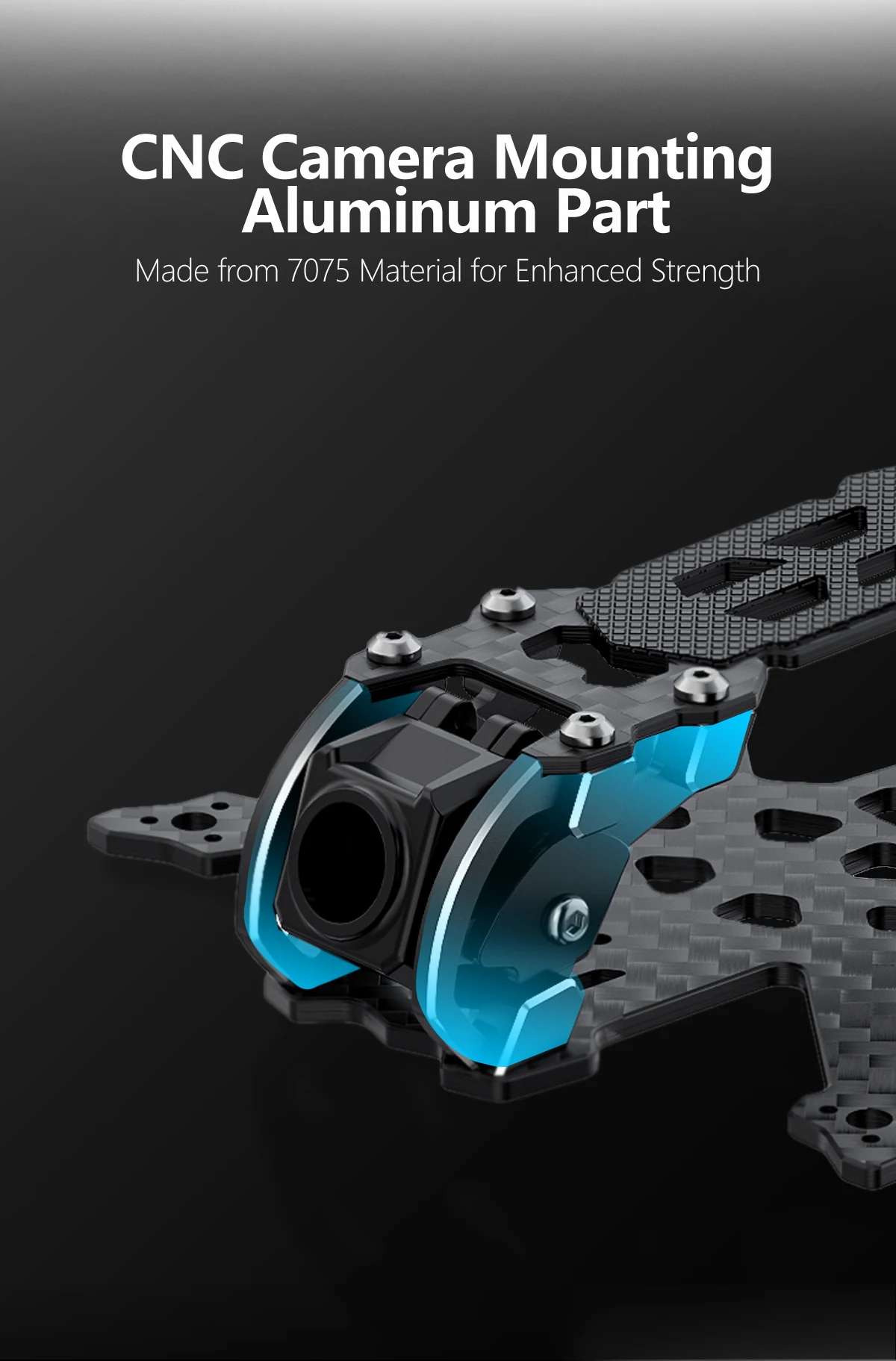

2. 7075 aluminum camera mount for superior durability

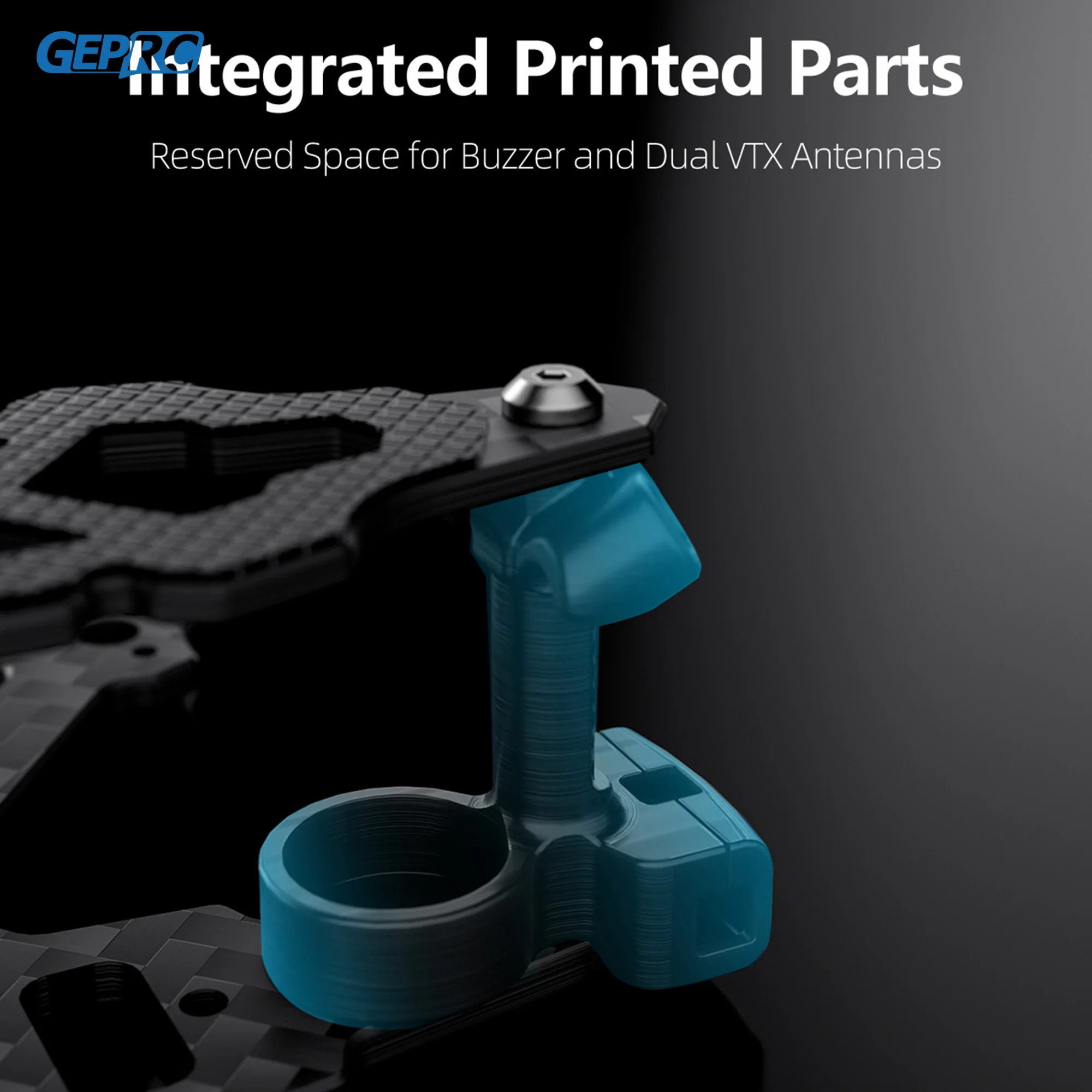

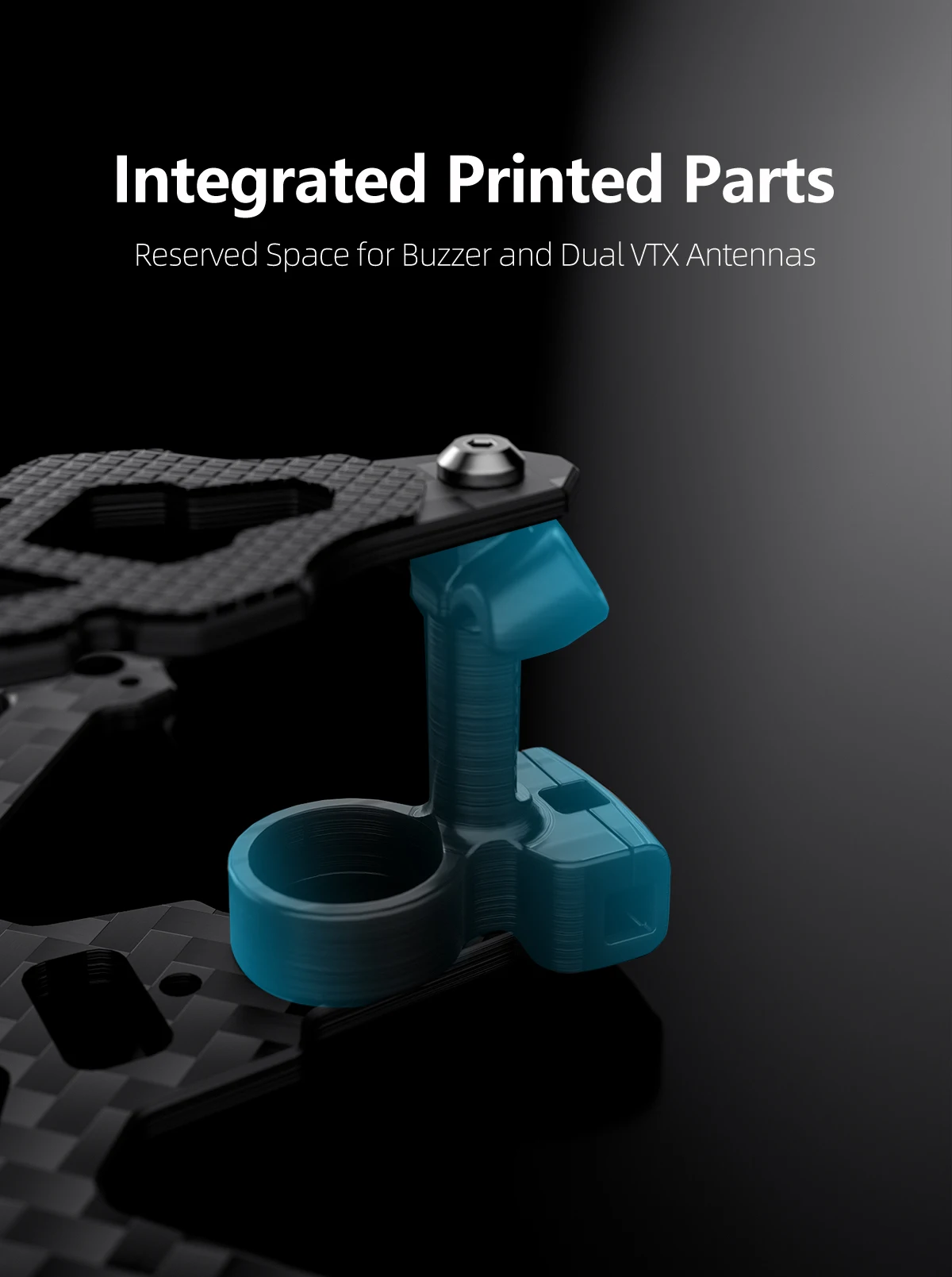

3. Integrated rear design with reserved room for buzzer and dual antennas.
4. 2mm thick arms for durability and sturdiness.
Changelog
June 18nd,2025: Add GEPRC O4 Air Unit Camera Module Housing Kit

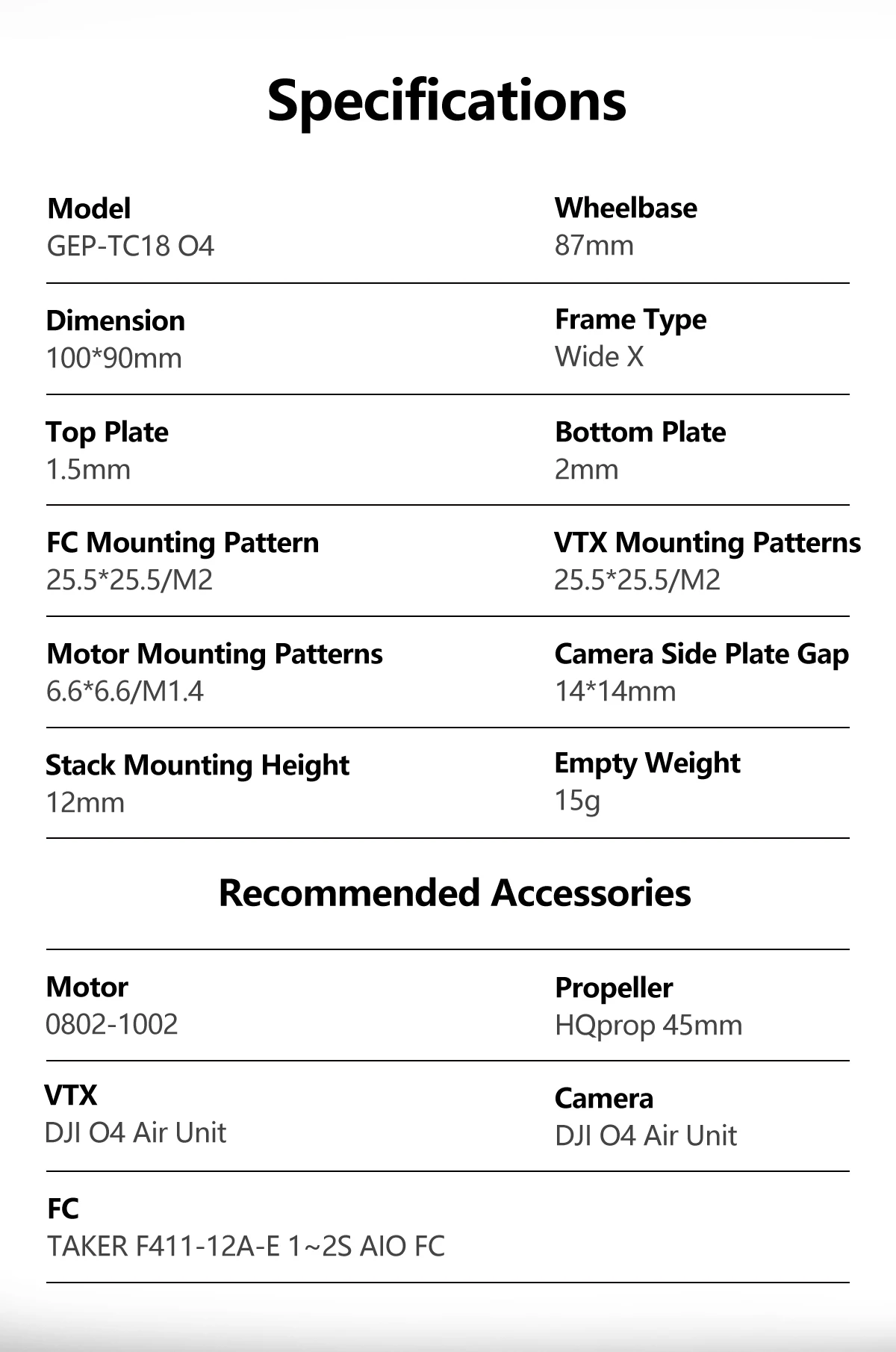

Specifications
Model: GEP-TC 18 O4 frame

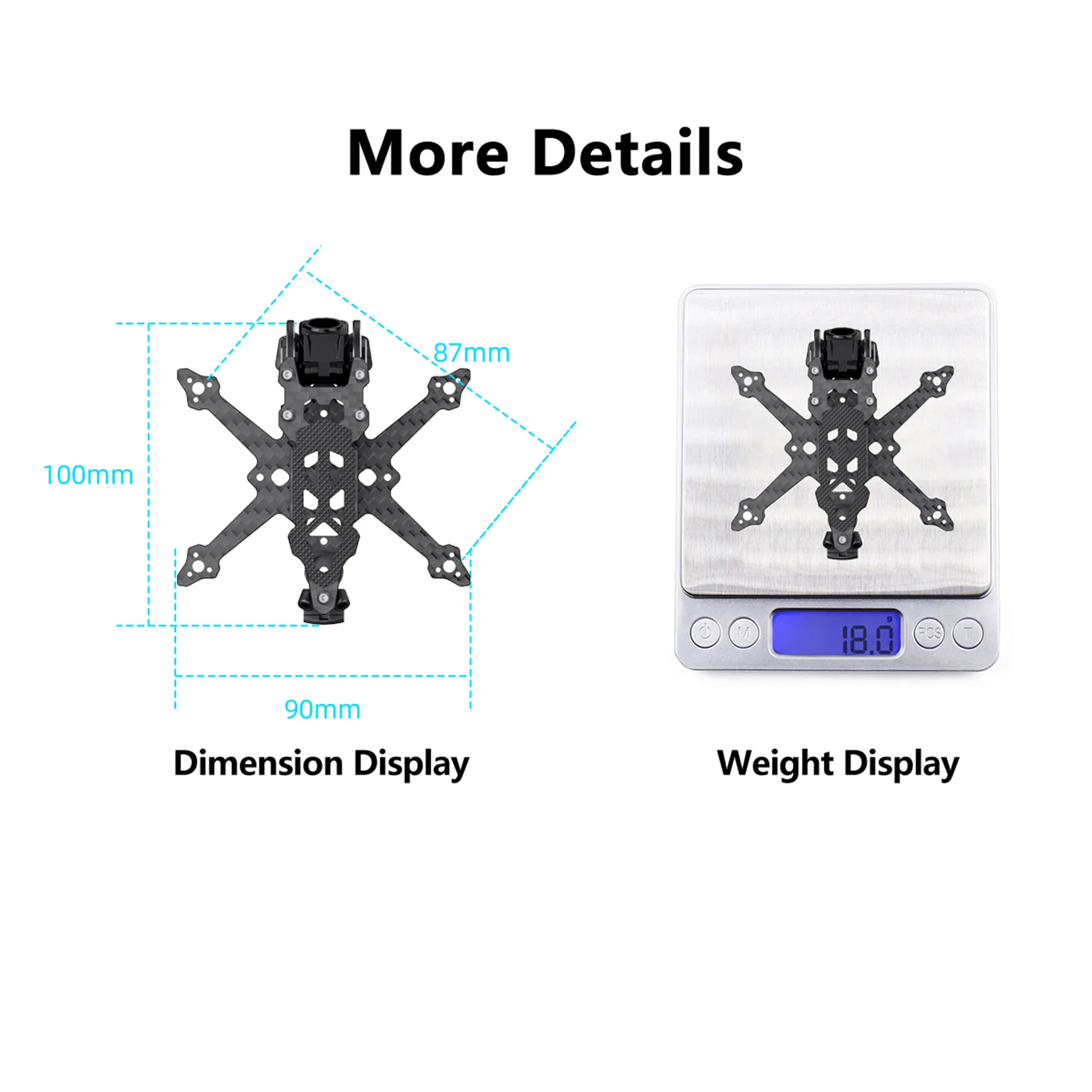

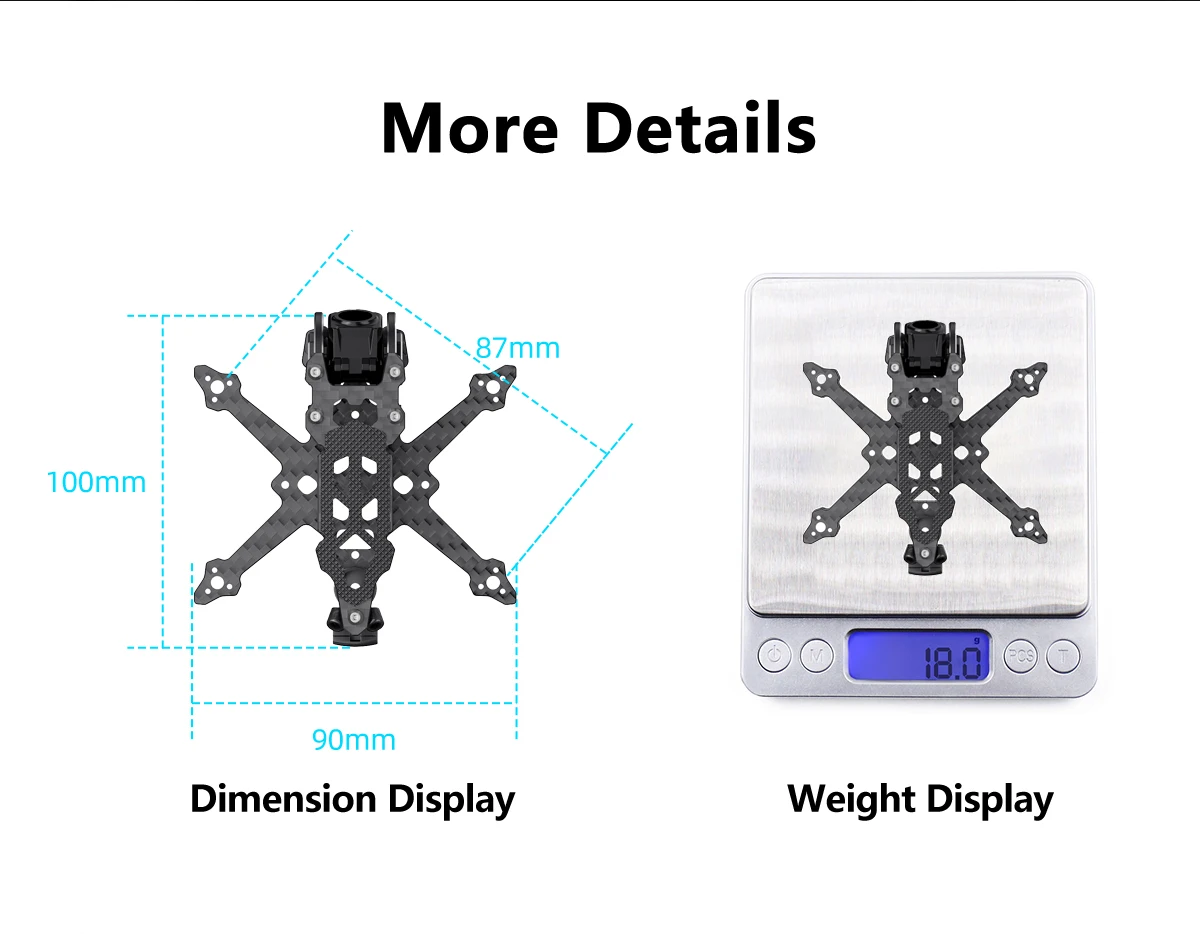

Wheelbase: 87mm
Dimension: 100*90mm
Frame Type: Wide X
Top Plate: 1.5mm
Bottom Plate: 2mm
FC Mounting Hole: 25.5*25.5/M2
VTX Mounting Hole: 25.5*25.5/M2
Motor Mounting Hole: 6.6*6.6/M1.4
Camera Side Plate Gap: 14*14mm
Stack Mounting Height: 12mm
Weight: 15g
Recommended Accessories：
Motor: 0802-1002
FC:TAKER F411-12A-E 1~2S AIO FC
VTX: O4 Air Unit digital VTX
Propeller: HQprop 45mm
