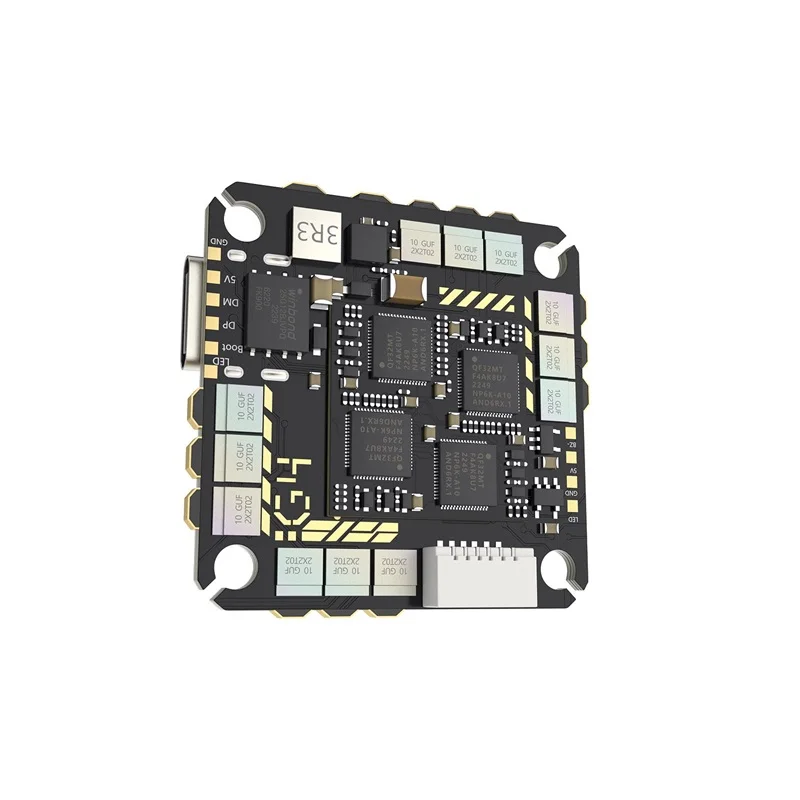

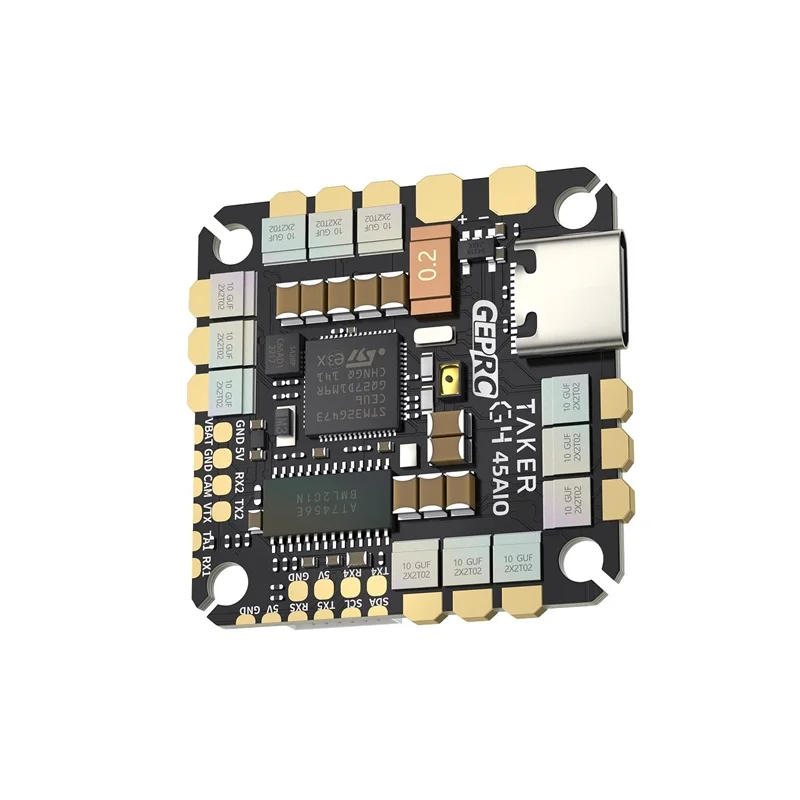

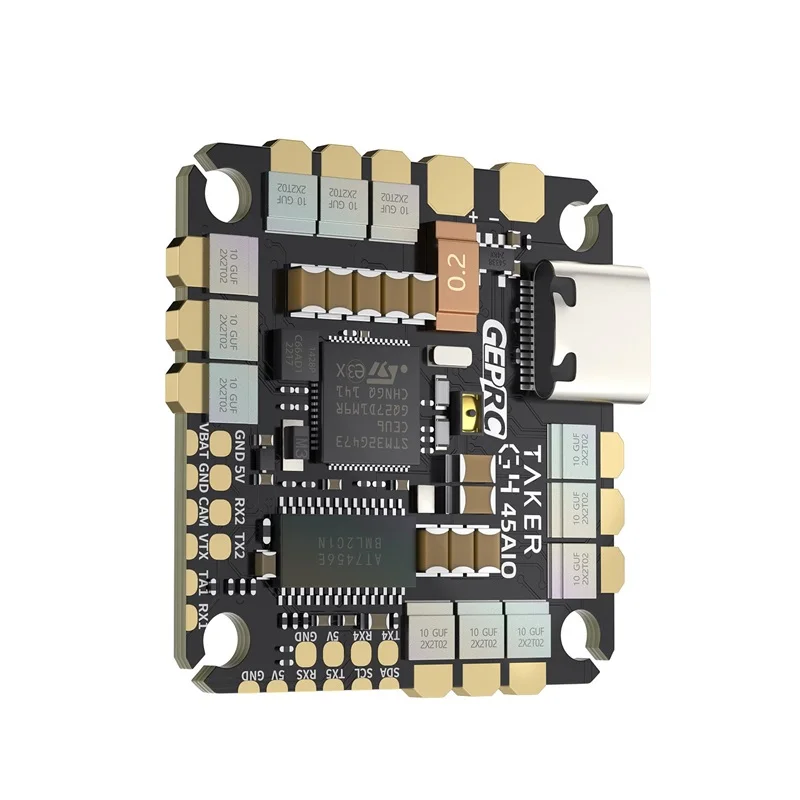

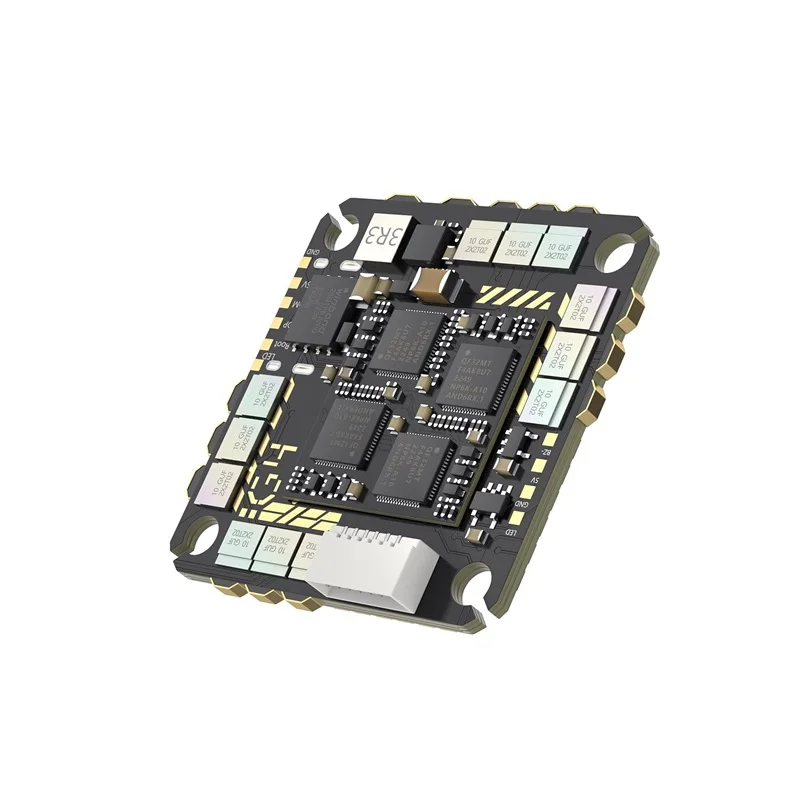

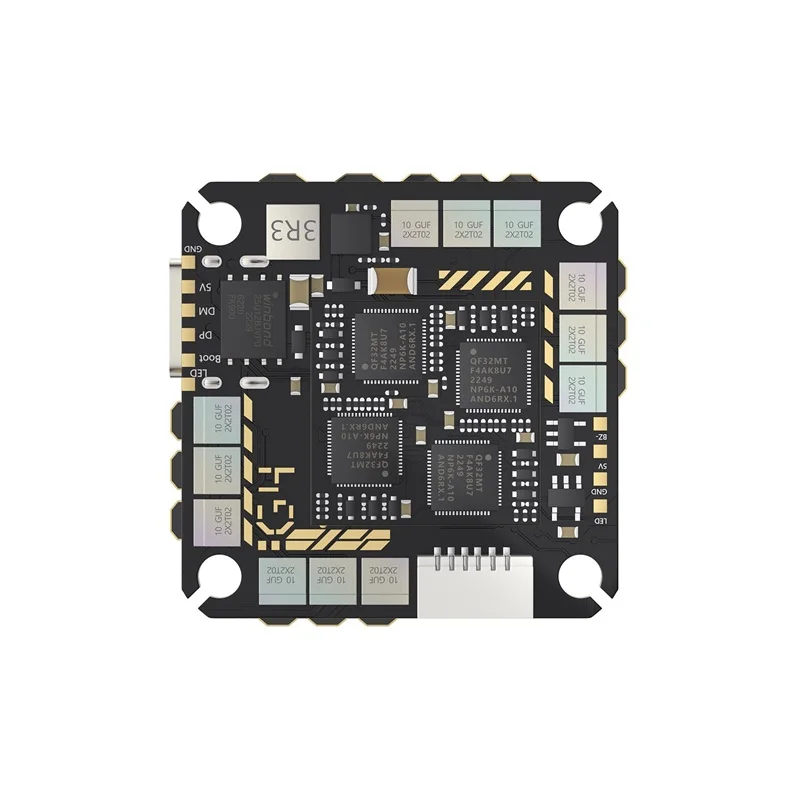

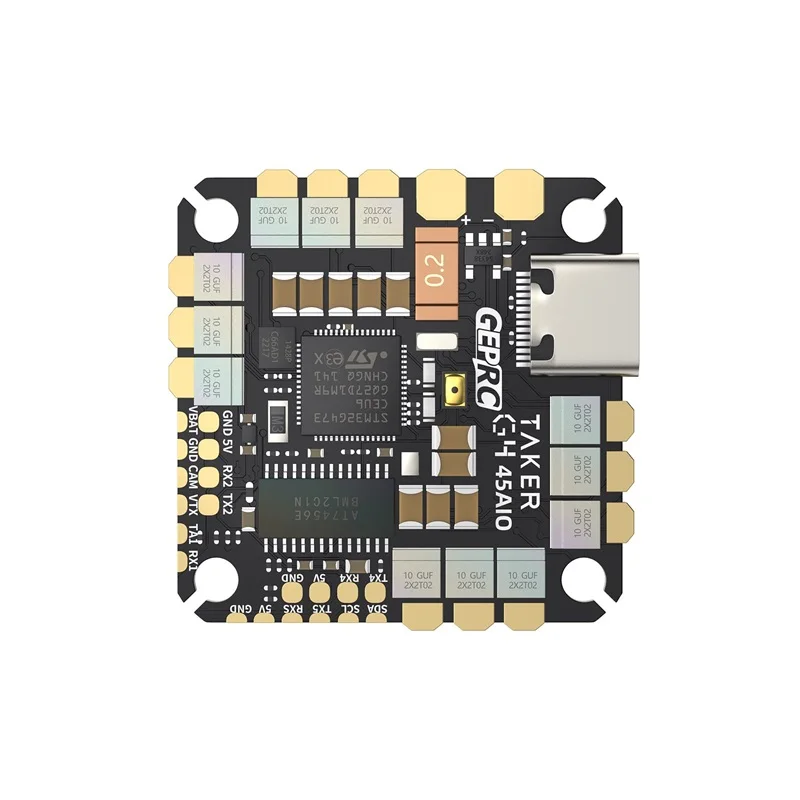

GEPRC GEP-TAKER G4 45A AIO ICM 42688-P Betaflight OSD W/AT7456EV

Summary

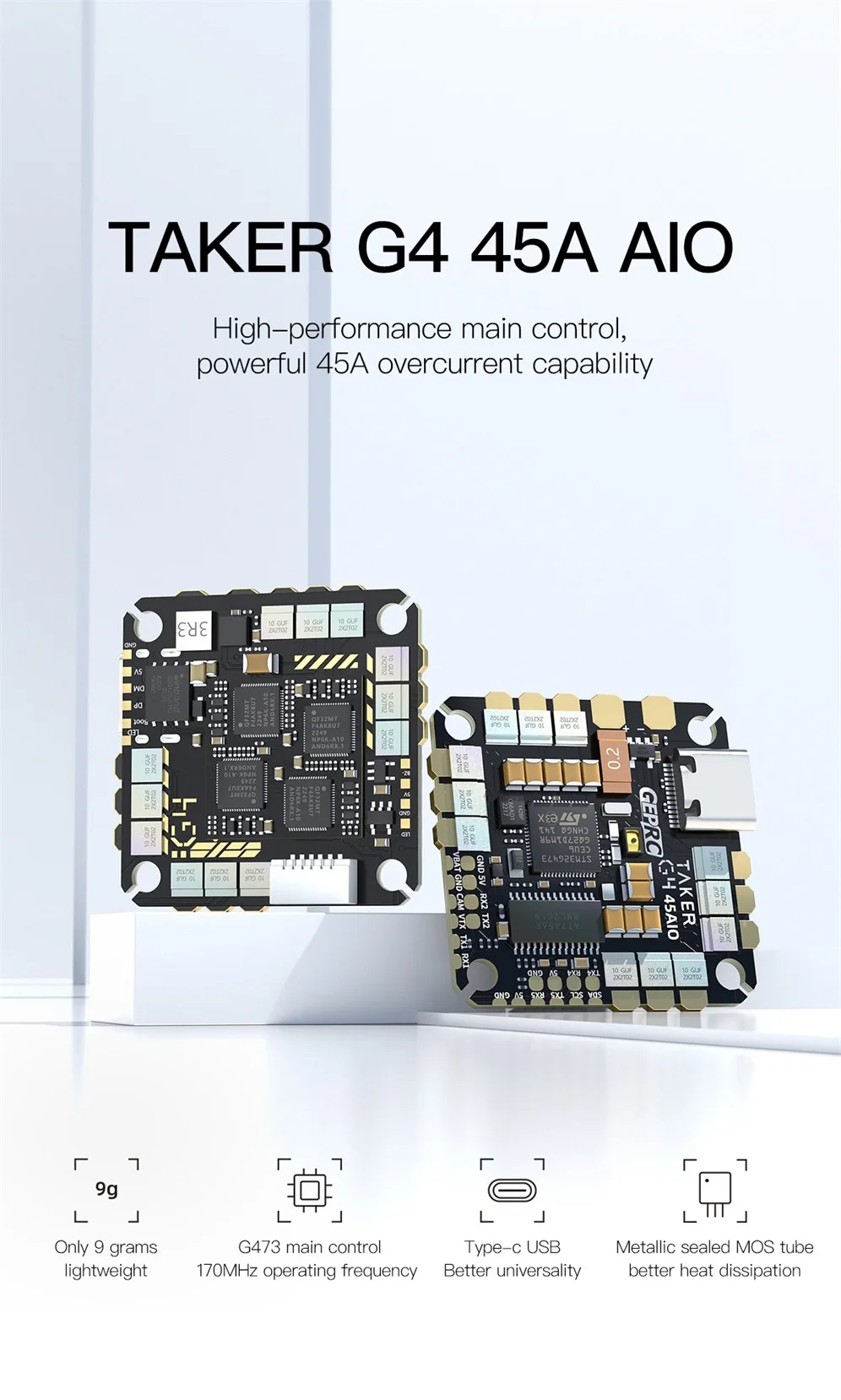

TAKER G4 45A AIO is a new AIO flight control developed by the GEPRC team. The FC adopts the G473 main control to achieve better computing power.
With its powerful overcurrent capability, the selectivity of the electrical setup is diversified. The whole board is covered with nano waterproof coating, which gives AIO the appearance of an aura glow and also makes the AIO waterproof. Adopts QF32MT chip, the integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.
We believe that TAKER G4 45A AIO can bring you boundless joy.

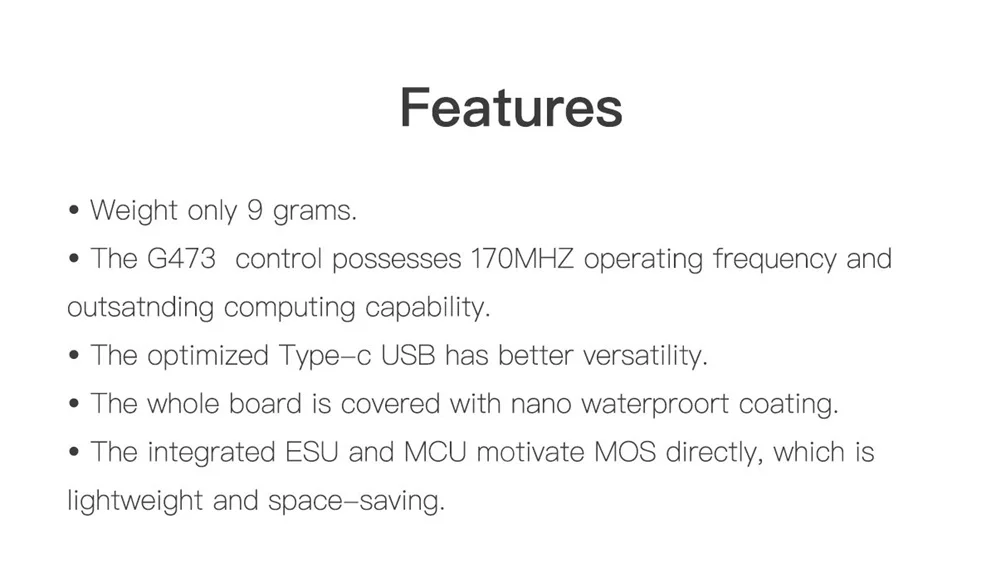

Feature
Weighs only 9 grams.
The G473 control possesses 170MHZ operating frequency and outsatnding computing capability.
The optimized Type-c USB has better versatility.
The whole board is covered with nano waterproort coating.
The integrated ESU and MCU motivate FET directly, which is lightweight and space-saving.
Specifications
Model Name：TAKER G4 45A AIO
MCU：STM32G473CEU6
IMU：ICM 42688-P
Firmware target：TAKERG4AIO
OSD：Betaflight OSD w/ AT7456Ev
Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer：YES
LED ：YES
USB ：Type-c USB
BEC output：5V 3A
ESC MCU：QF32MT
Continuous Current：45A
Burst Current：50A(5″)
lnput Voltage：2~6S (LIPO Battery)
Supports：Dshot600,Oneshot,Multishot
Current meter：YES
target：F4A AIO

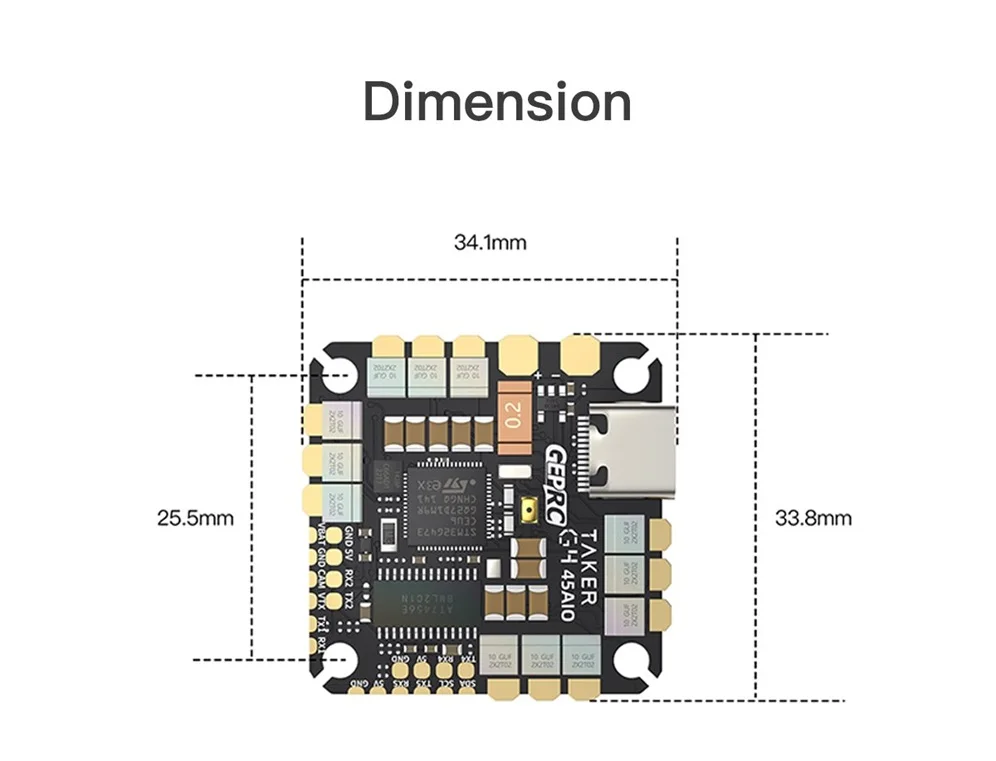

Size：33.8mm * 34.1mm Board
Install hole：25.5 mm * 25.5mm

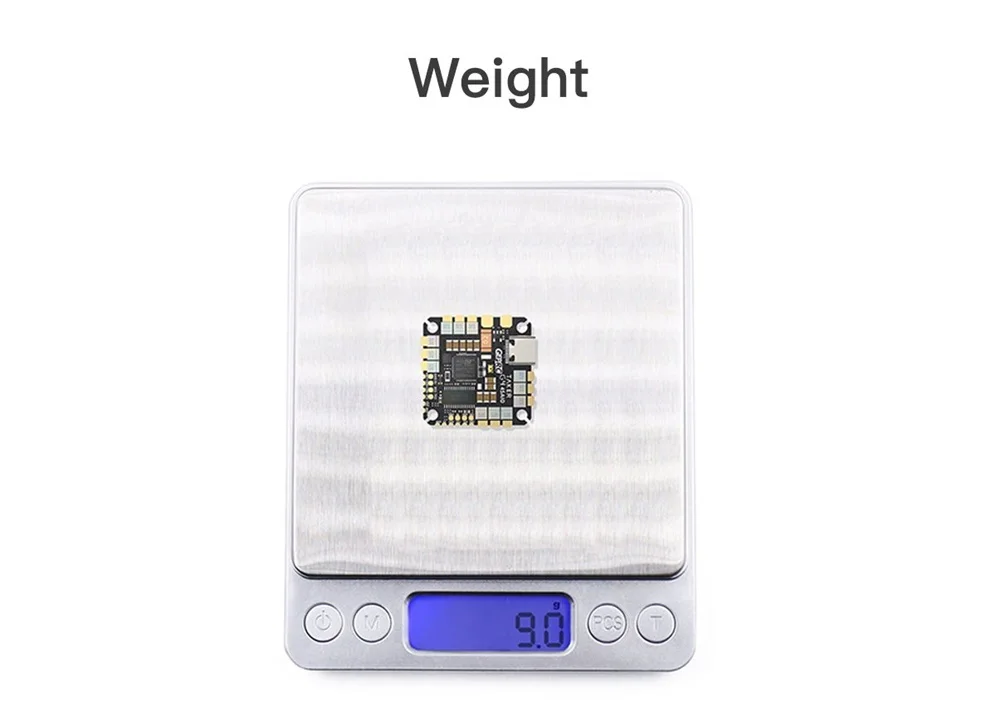

Weight：9g

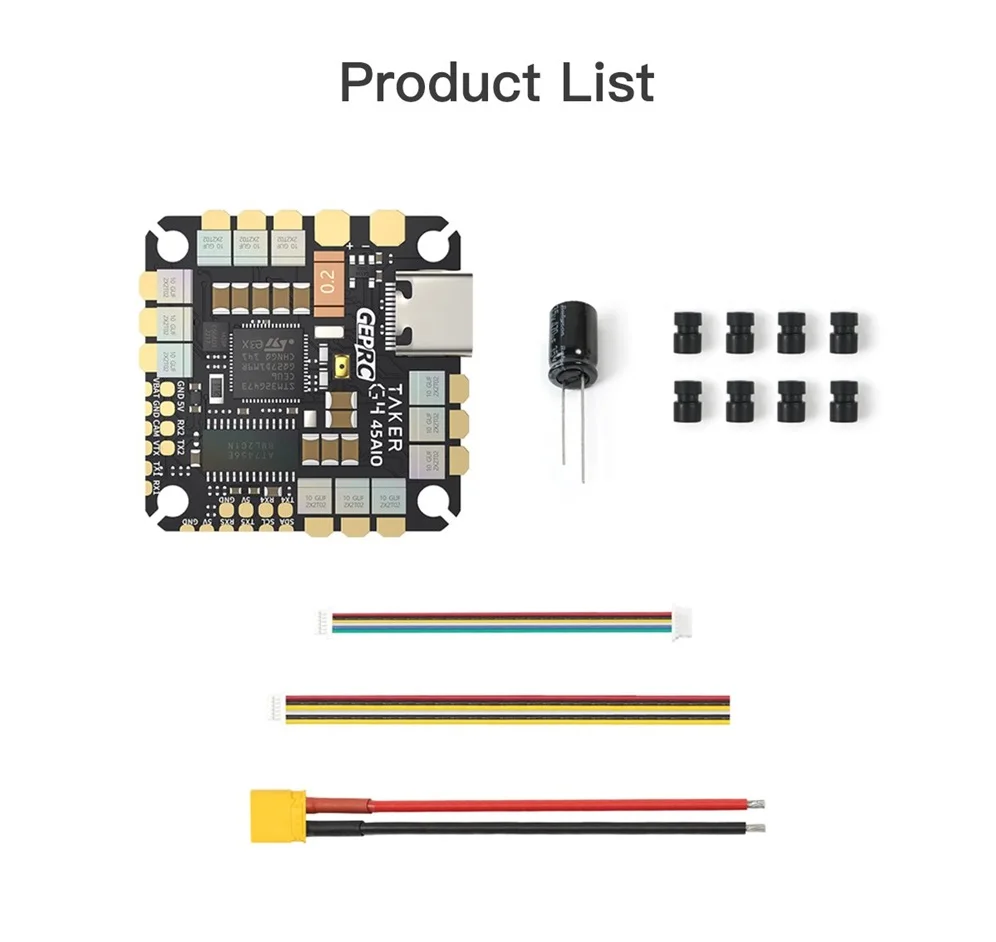

Includes
1 x GEP-TAKER G4 45A AIO
1 x Cable Set
