Summary:
The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarization for omnidirectional signal reception. It maintains strong connectivity during dynamic flight maneuvers. With excellent cross-polarization suppression, it performs well in high-interference environments, minimizing signal disruption.
Feature:
1.Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz
2.Optimized for stronger signal reception at a vertical angle
3.Durable, low-drag oval shape with an injection-molded ABS shell
4.High-quality SMA connector minimizes signal loss
5.Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards

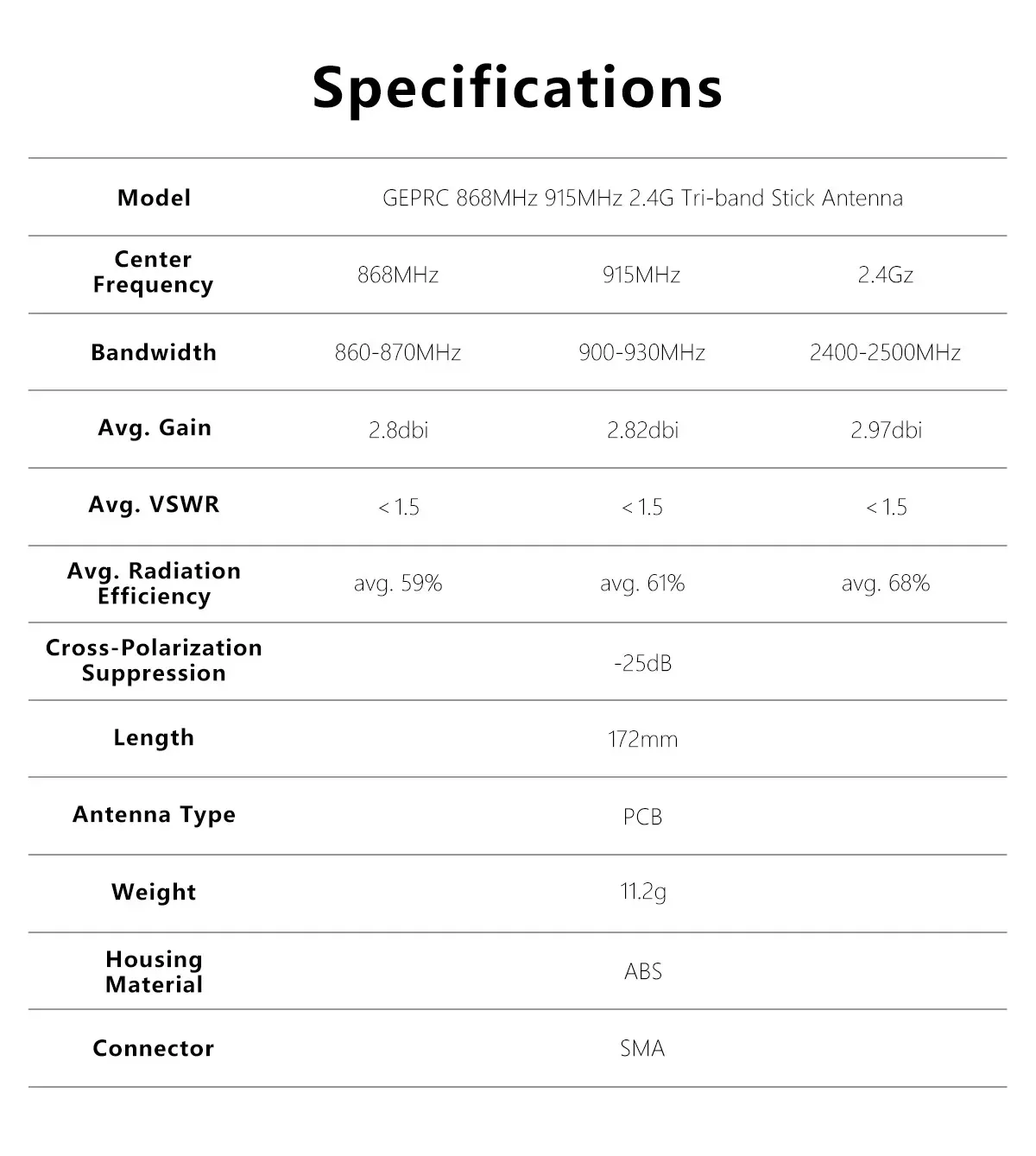

Specification:

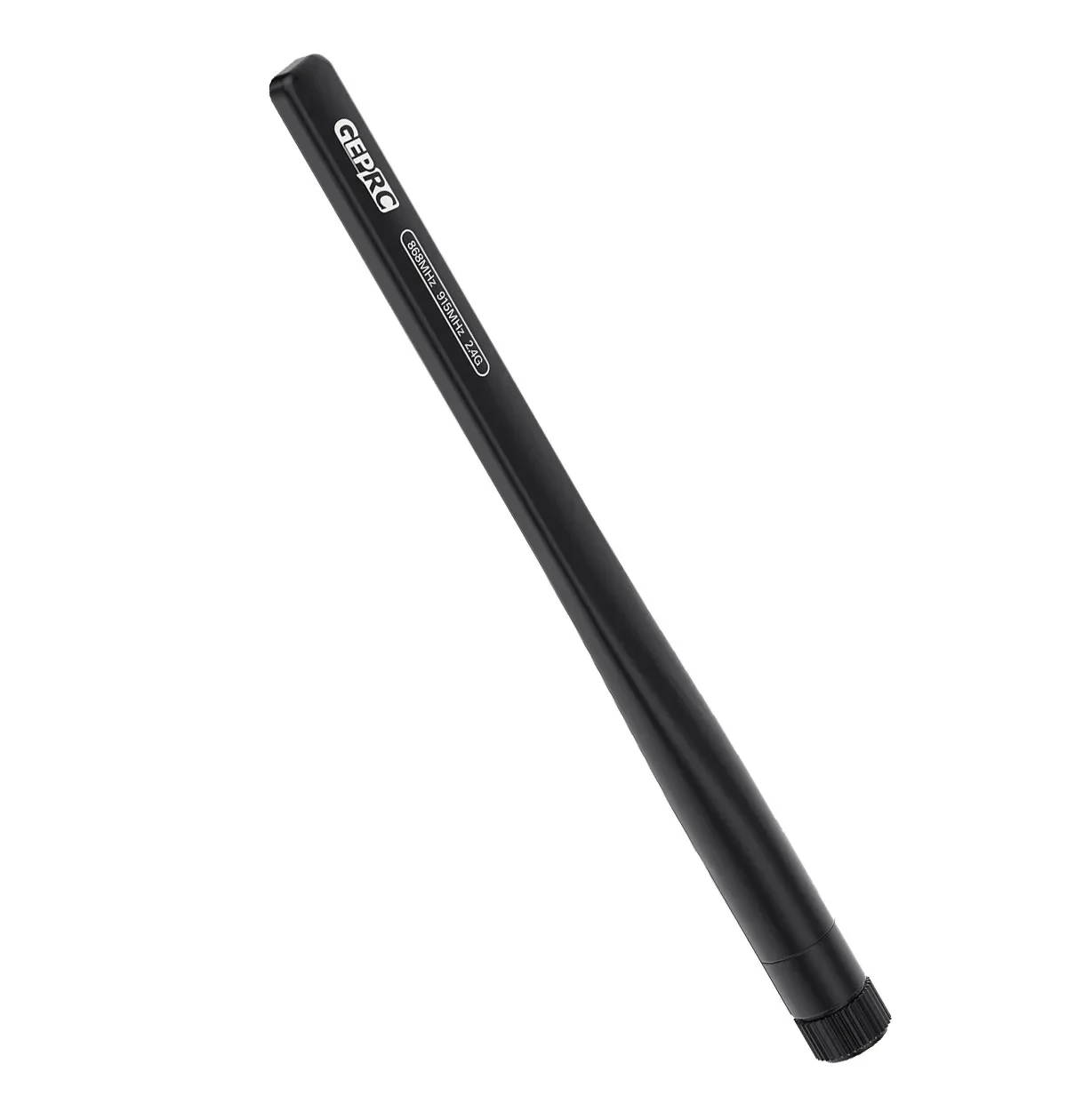

Model: GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna
868MHz Center Frequency: 865MHz
915MHz Center Frequency: 915MHz
2.4Gz Center Frequency: 2450MHz
Frequency Range: 868MHz / 915MHz / 2.4Gz

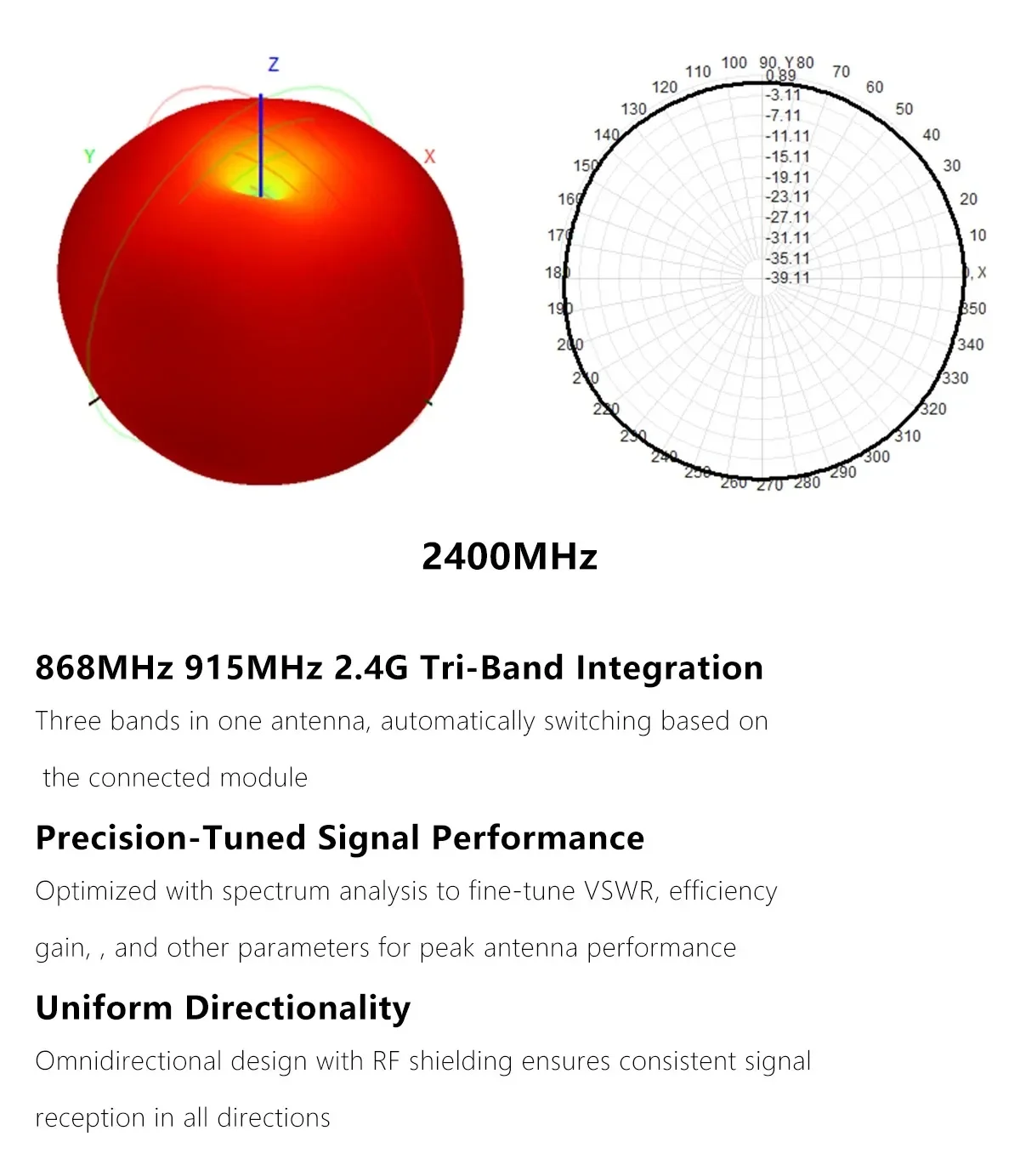

Polarization: Linear
868MHz Gain: 2.8dBi
915MHz Gain: 2.82dBi
2.4Gz Gain: 2.97dBi

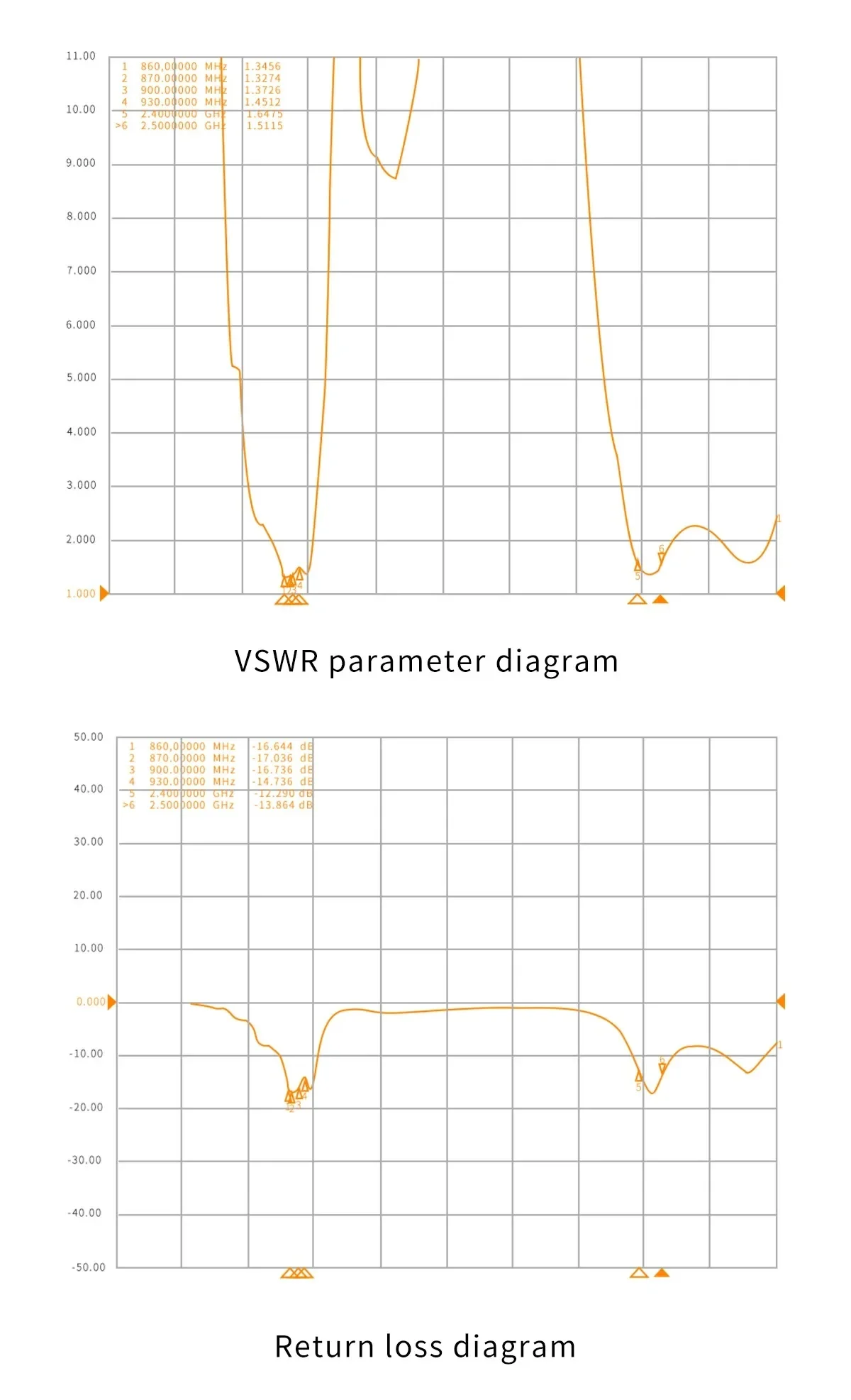

VSWR: ≤1.5
868MHz Radiation Efficiency: 49%
915MHz Radiation Efficiency: 51%
2.4Gz Radiation Efficiency: 68%
Cross-Polarization Suppression: -25dB

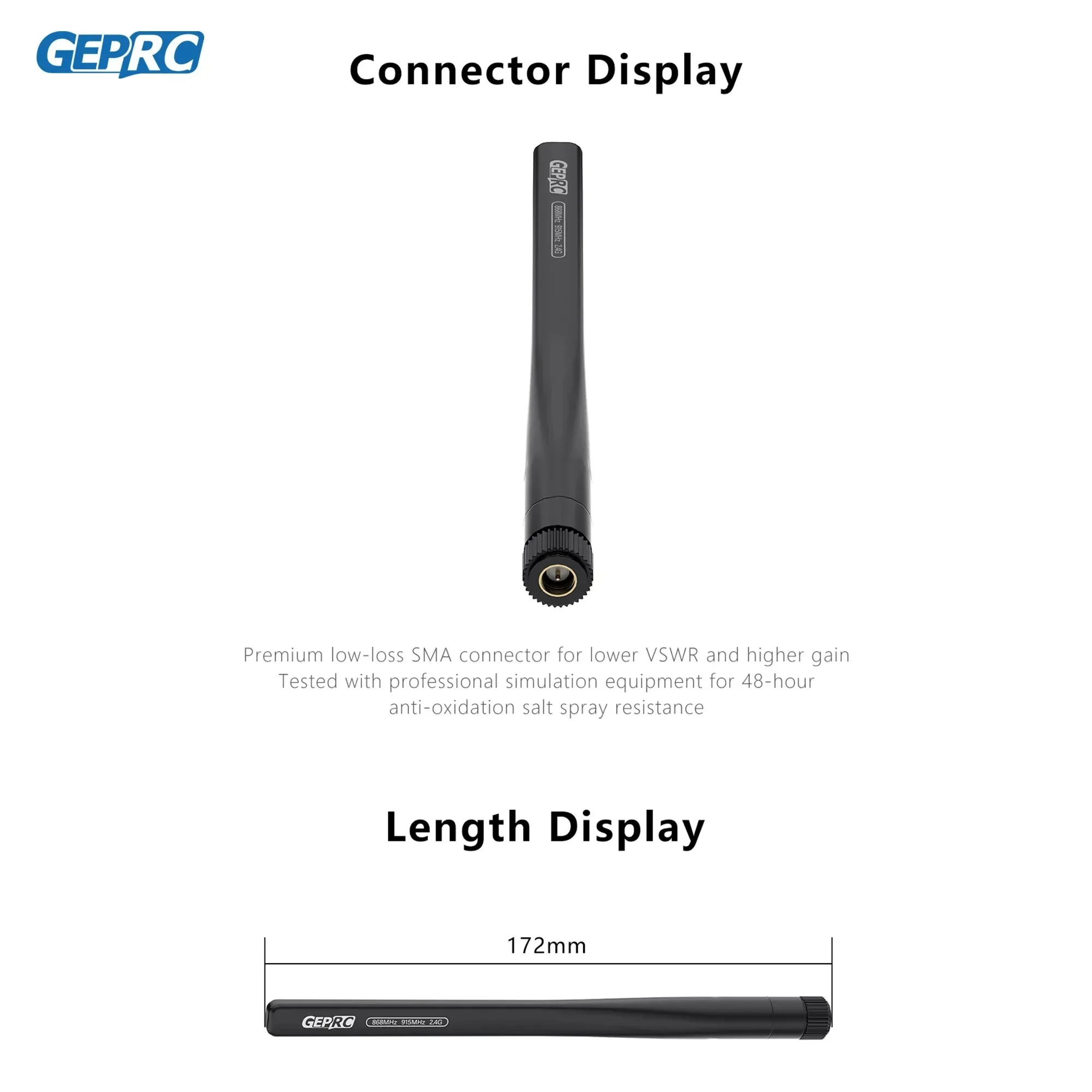

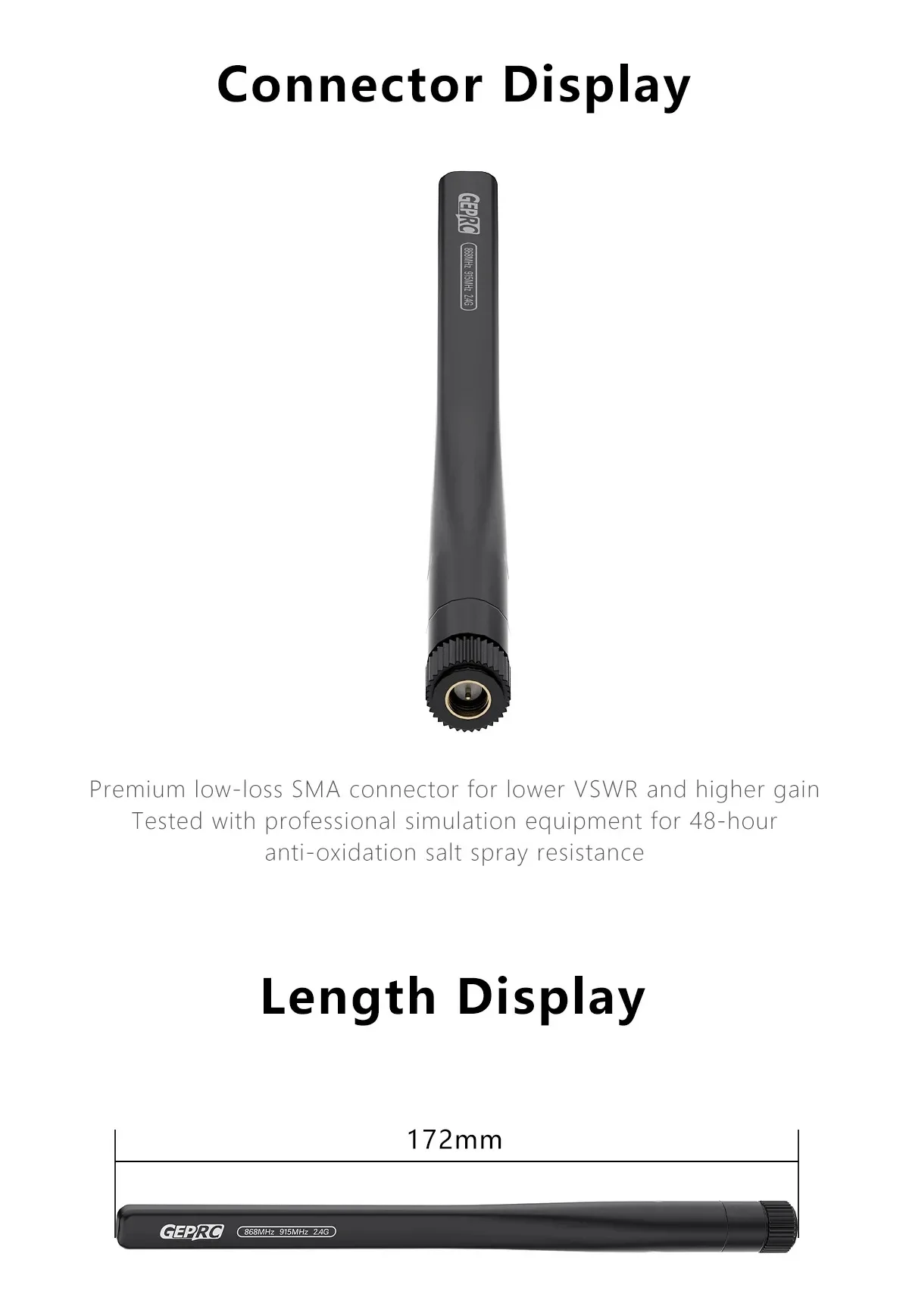

Length: 172mm
Antenna Type: PCB
Weight: 11.2g
Housing Material: ABS
Connector: SMA
Product List
GEPRC 868MHz / 915MHz / 2.4GHz Tri-Band Stick Antenna x1
Sale!
GEPRC 868MHz/915MHz/2.4GHz Tri-Band Stick Antenna – High Frequency Long Range for FPV DIY RC Quadcopter Freestyle Drone Parts Ac
$10.14
+ Free ShippingAvailability: 100 in stock
Weight | 0.05 kg |
---|---|
Dimensions | 12 × 10 × 2 cm |
Hign-concerned Chemical | None |
Is Electric | No Battery |
Quantity | 1 pcs |
Wheelbase | Screws |
Is it battery/power supply | N |
Is it charger/adapter | N |
Is Batteries Included | No |
Size | NA |
Technical parameters | value 2 |
Model Number | GEPRC 868MHz 915MHz 2.4G Tri-Band Stick Antenna |
For Vehicle Type | Airplanes |
Tool Supplies | Assembled class |
Four-wheel Drive Attributes | Assemblage |
Remote Control Peripherals/Devices | Remote Controller |
Upgrade Parts/Accessories | Antennas |
RC Parts & Accs | Antennas |
Material | Composite Material |
Brand Name | HawkSpeed |
Origin | Mainland China |
Recommend Age | 14+y |
Use | Vehicles & Remote Control Toys |
