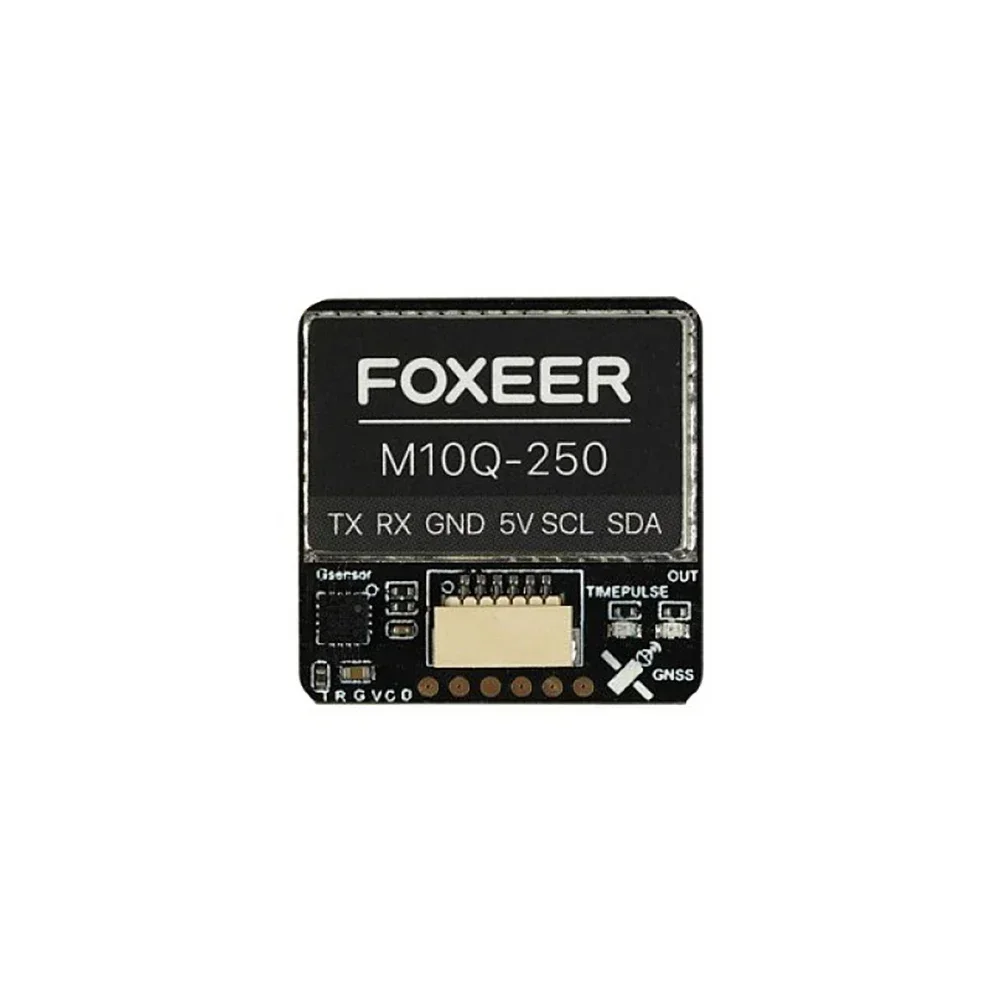

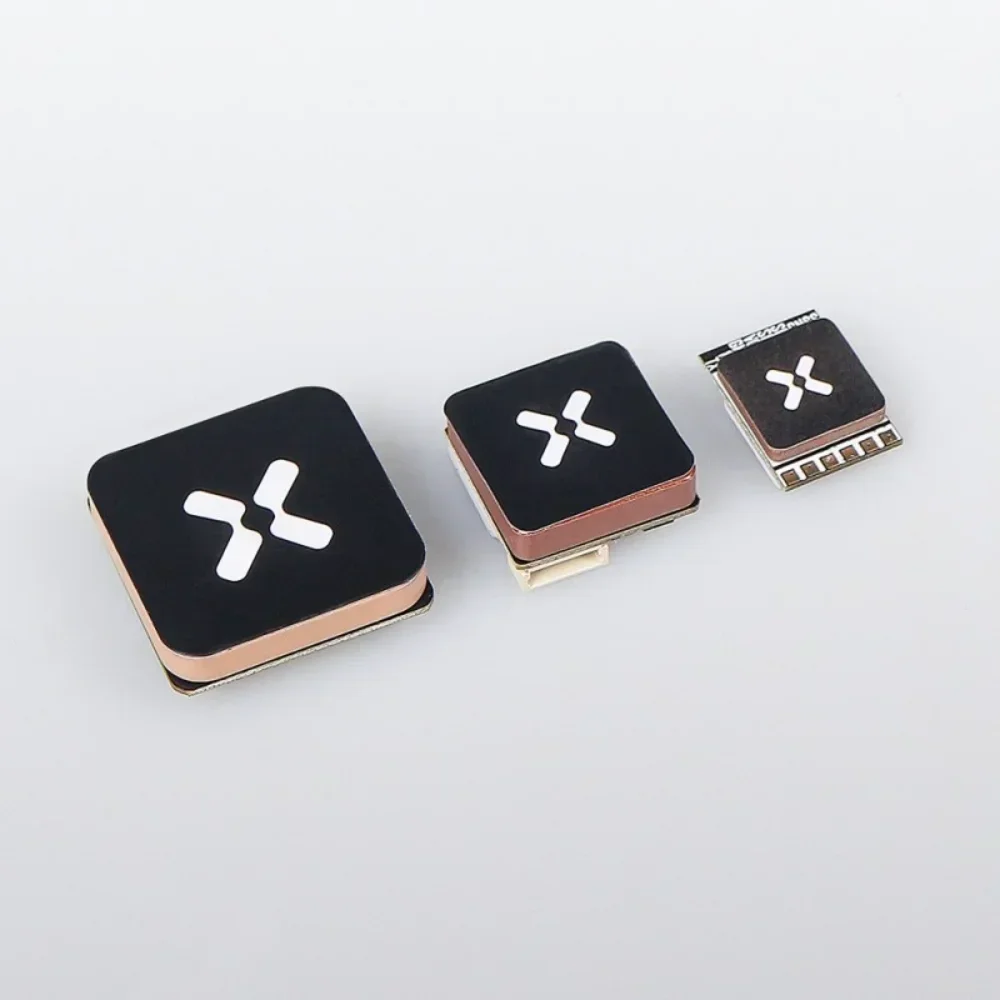

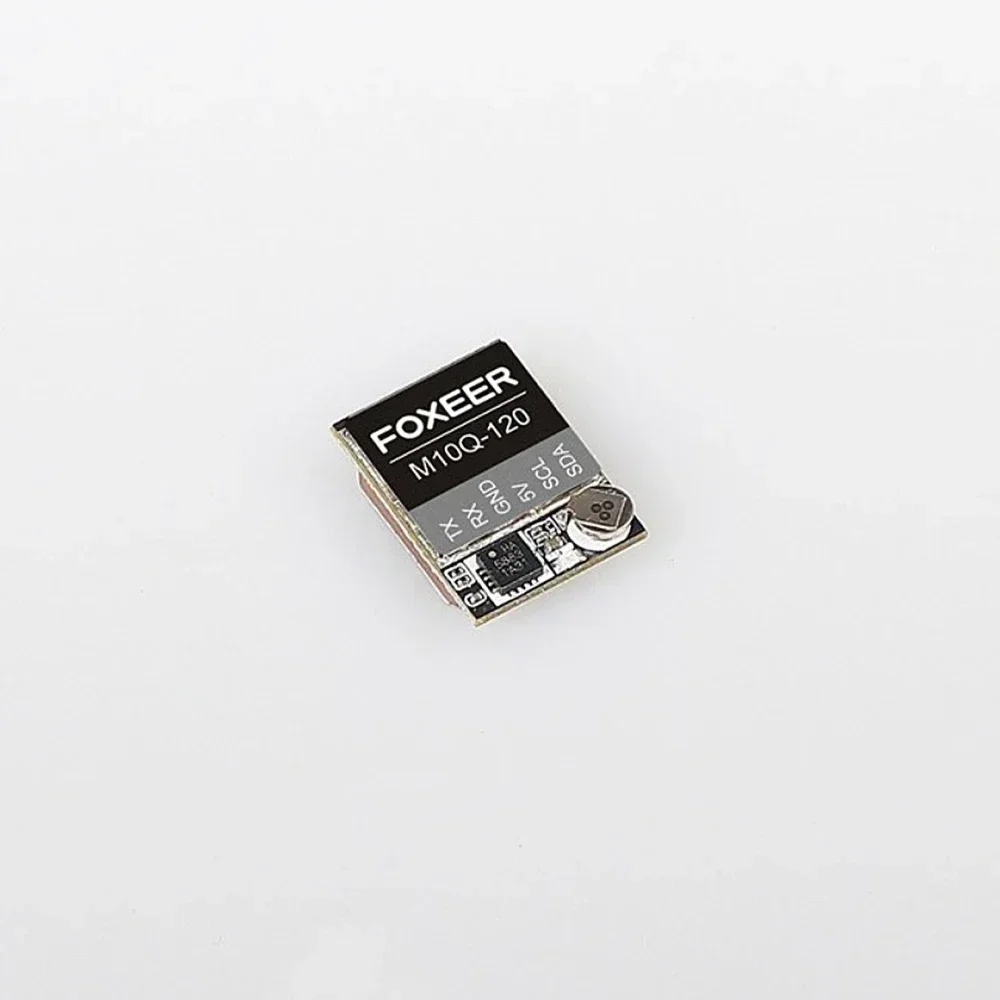

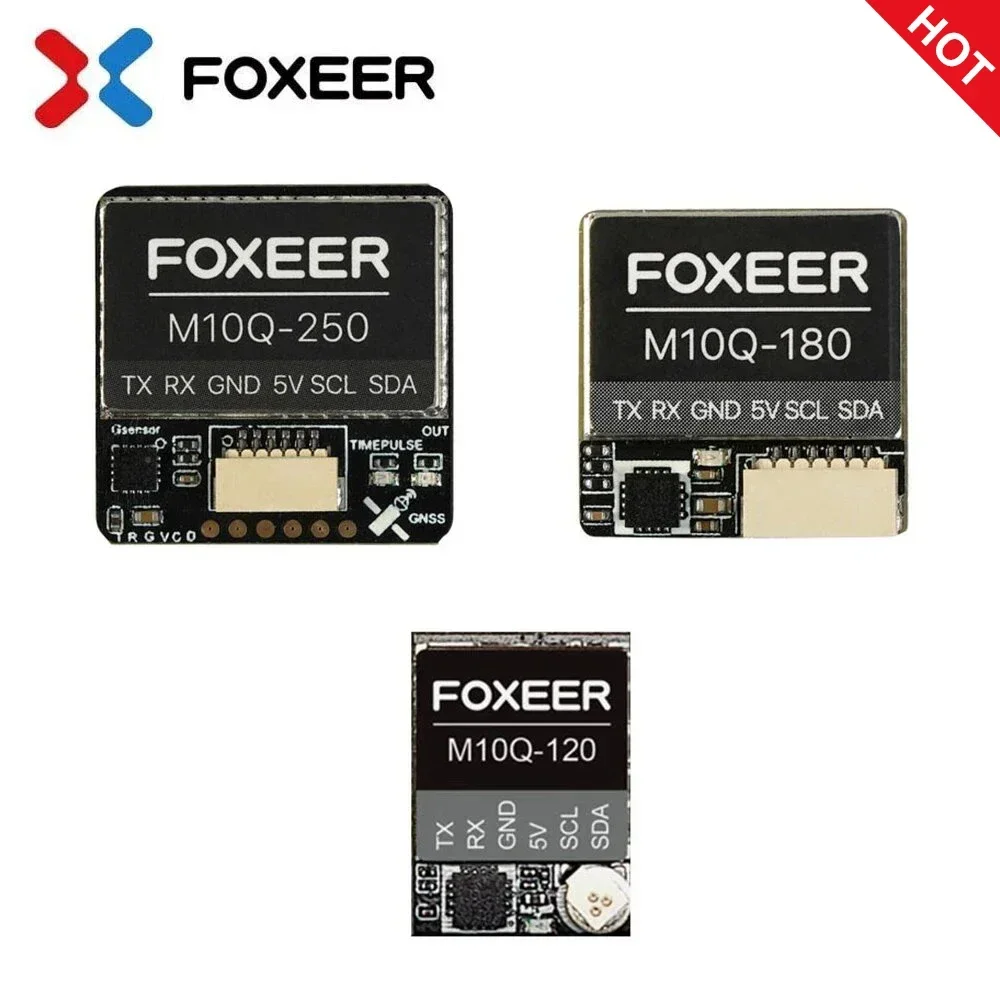

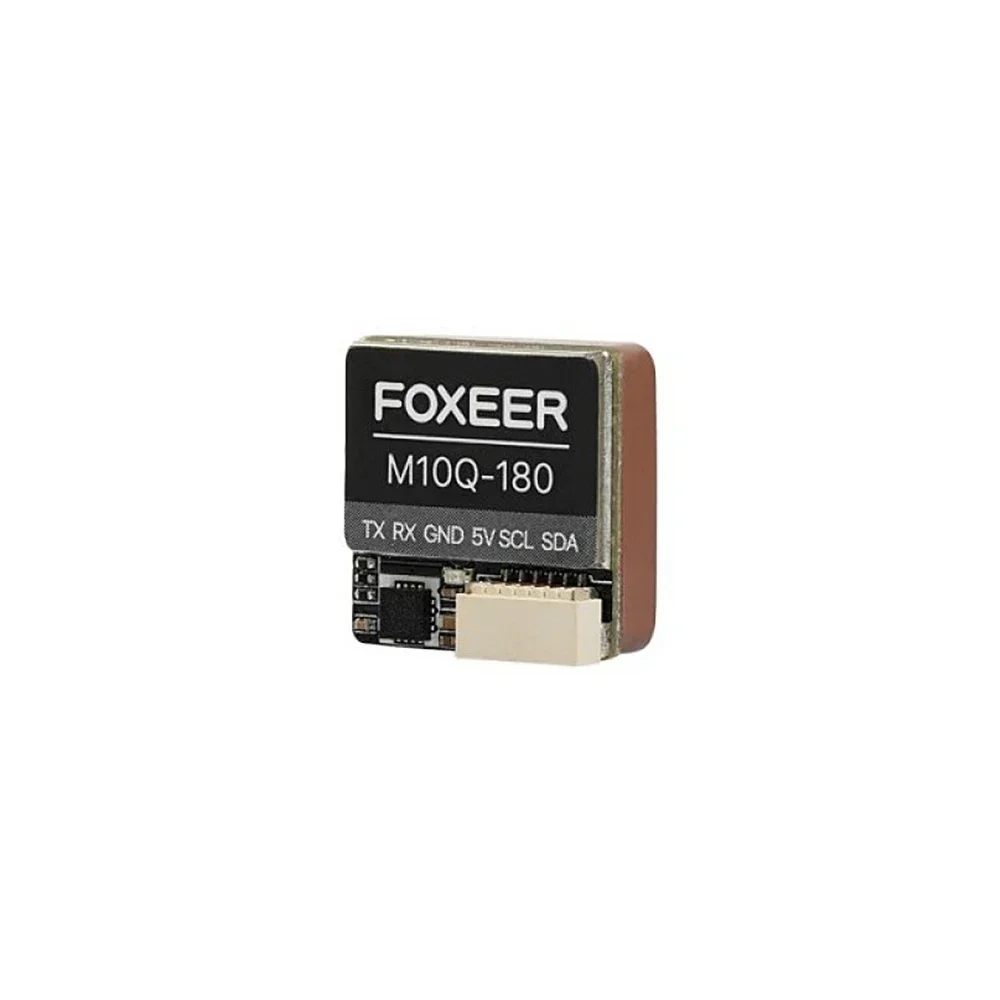

Foxeer M10Q-120 / M10Q-180 / M10Q-250 M10 Dual Protocol GPS FPV Built-in QMC5883 Compass Ceramic Antenna for RC Airplane Drone

Foxeer M10Q-120 / M10Q-180 / M10Q-250 M10 Dual Protocol GPS Built-in QMC5883 Compass Ceramic Antenna for RC Airplane FPV Drone
ChipM10(10th Generation Chip)
FrequencyGPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
Input Voltage5V
AntennaCeramic Antenna
Channel72
CompassQMC5883
Baud Rate115200bps
ProtocolDual NMEA/UBX
Output Frequency1Hz-10Hz,10Hz default
Speed Accuracy0.05m/s
Horizontal Positioning Accuracy2D ACC1.5m(outdoor)
Receiver SensitivityTrace -166dBm; Capture -160dBm
Dynamic CharacteristicsHeight 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature-40C-+85C
Storage temperature-40C-+105C
Weight 2.7g / 7.5g / 12g
Size 12.5*17*5mm(M10Q-120) / 18*18*8mm(M10Q-180) / 25*25*8mm(M10Q-250)
