Note: the full set is EDF set version, the other options are only spare part.
Description:
Brand Name: FMS

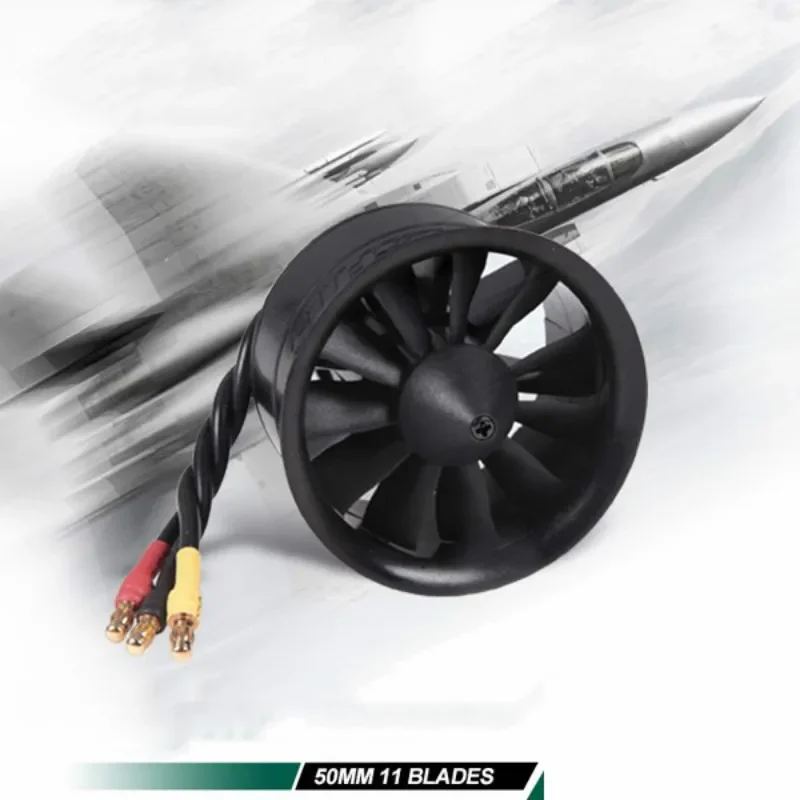

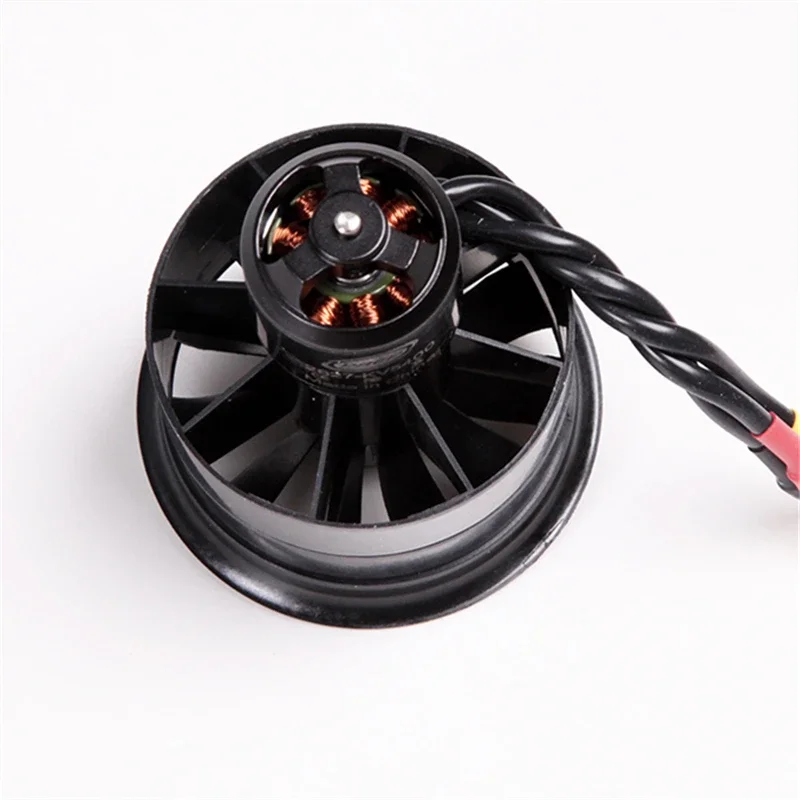

Item Name: 50mm 11 blades Ducted Fan

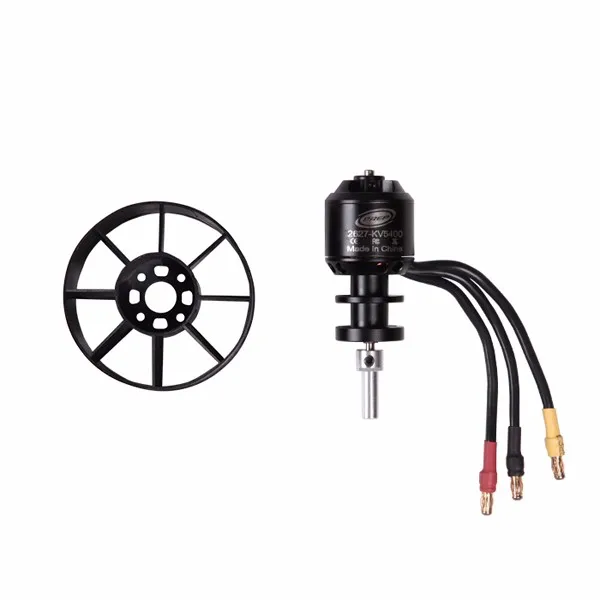

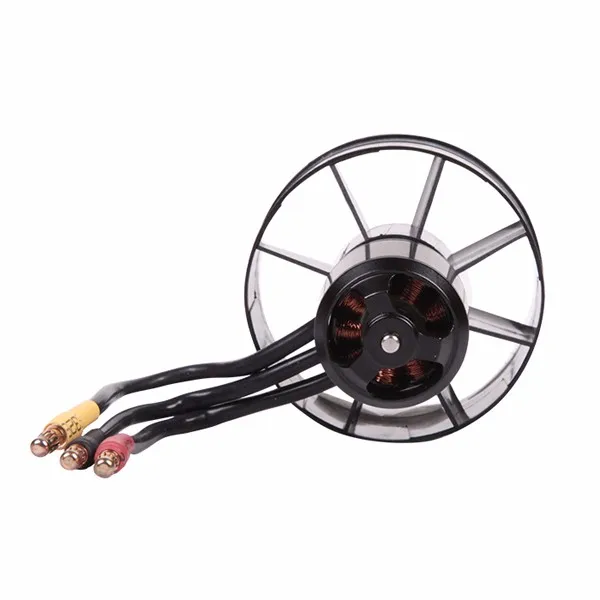

Motor: 2627 KV4500(4S)/ KV5400(3S) (Optional)
Weight: 75g
Usage: Suitable for RC Airplane
Features:
– All composite materials processing and injection molding processing, light weight, power system 327 g, has ultra high rigidity and toughness.
– First-class mold design,ensure the blades perfect dynamic balance,the balde cooperates the duct in place,sound effect and efficiency value are comparable to all metal duct on the market.
– FMS pioneering thermal design,in does not affect the efficiency of the case,ensure the motor’s normal working,no need to worry that the motor heating will affect the life and performance.
– Reasonable structure design,you can arbitrarily choose different manufacturers motor,this item can e assembled to all the 90 ducted airplane,no need to make too much manual changes to the aircraft.
Performance parameters:
Voltage
Current
Thrust
3S EDF unit
12.5V
40A
650g
4S EDF unit
16.5V
40A
850g
Recommended Parts For KV5400 Motor:
Battery: 3S 2200mAh 35C lipo
ESC: 40A brushless
Recommended Parts For KV4500 Motor:
Battery: 4S 2600mAh 35C lipo
ESC: 40A brushless
Note:
Some ducted inner tube wall may have test scratches,it will not affect the overall performance,and the ducted mounted inside the aircraft, it had no effect on the appearance. We don’t accept the returns or negative review due to the scratches.
Package Included:

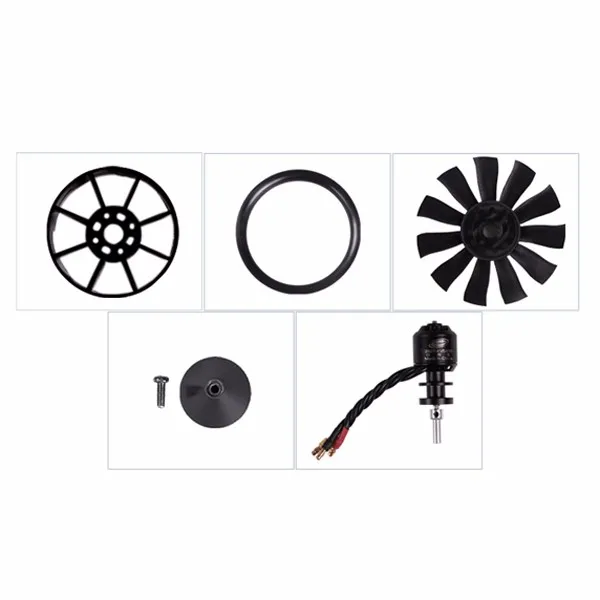

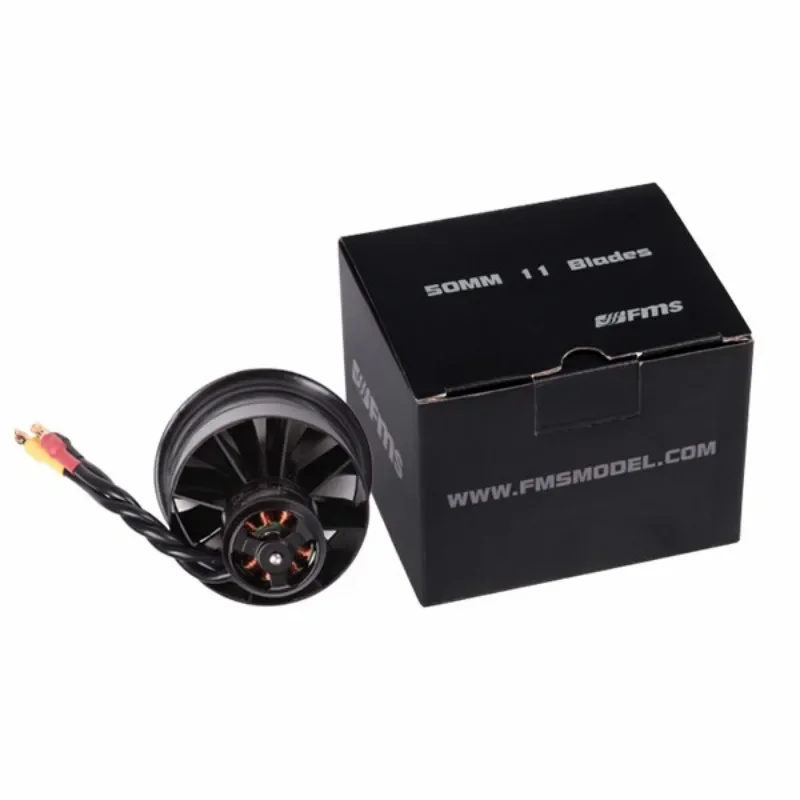

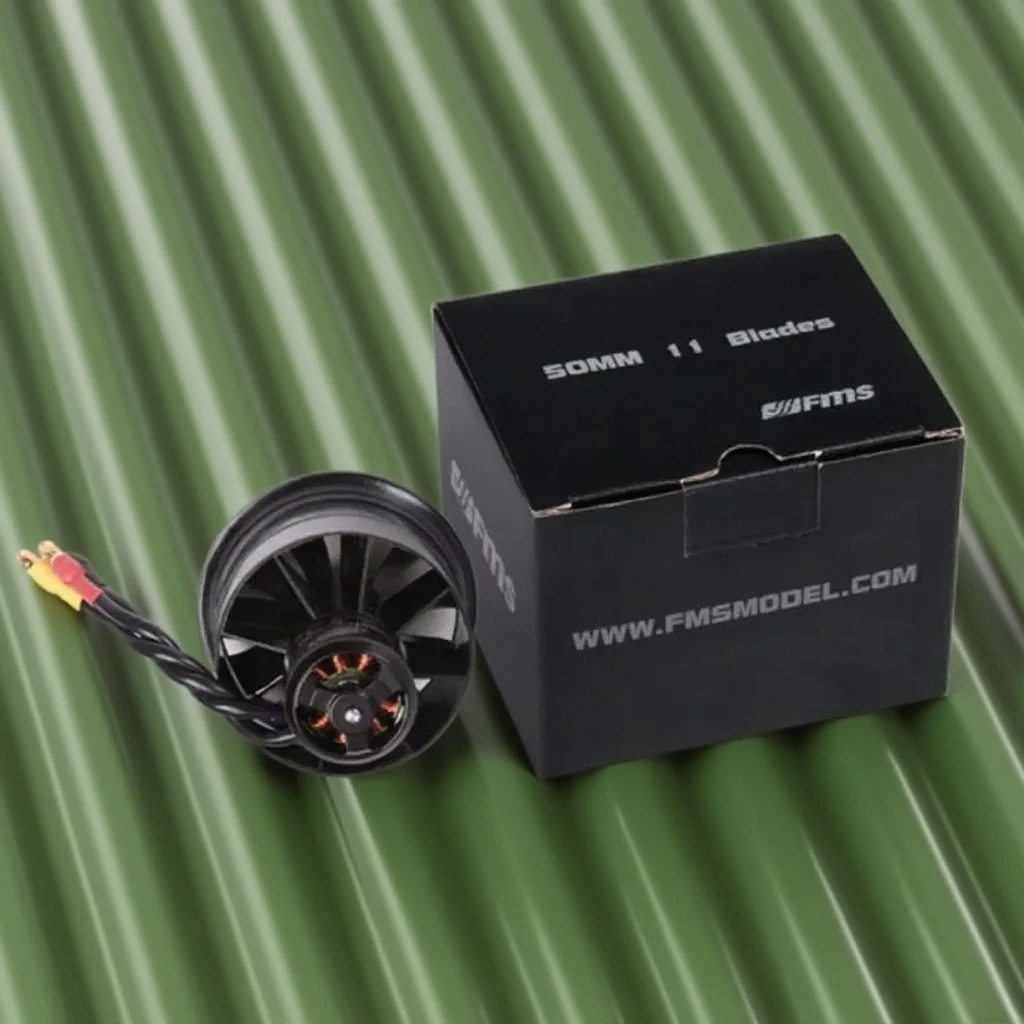

1X FMS 50mm 11 Blades Ducted Fan EDF With 2627 KV4500 Brushless Motor
or
1X FMS 50mm 11 Blades Ducted Fan EDF KV5400 3S 4S Brushless Motor
