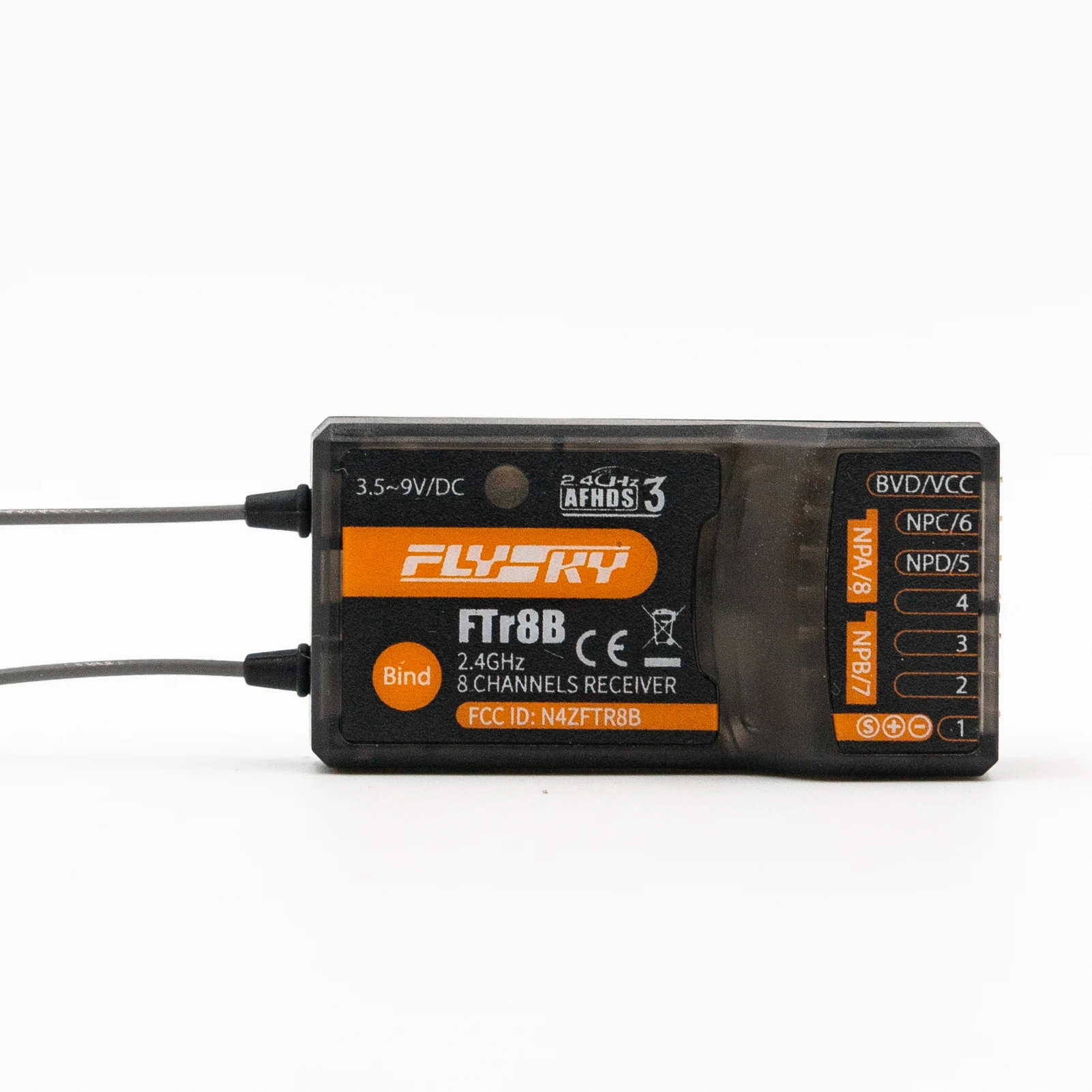

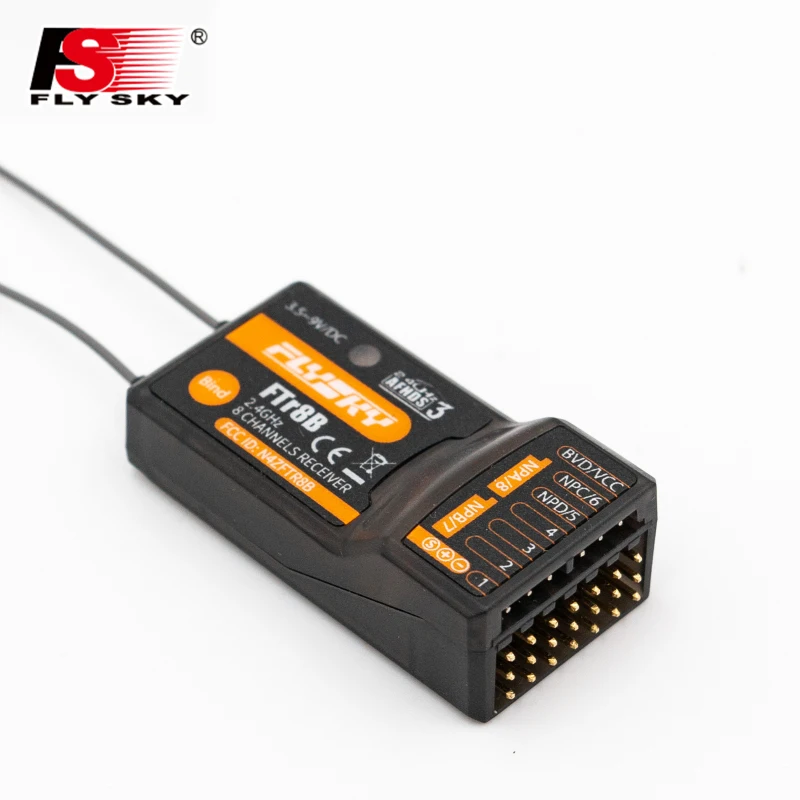

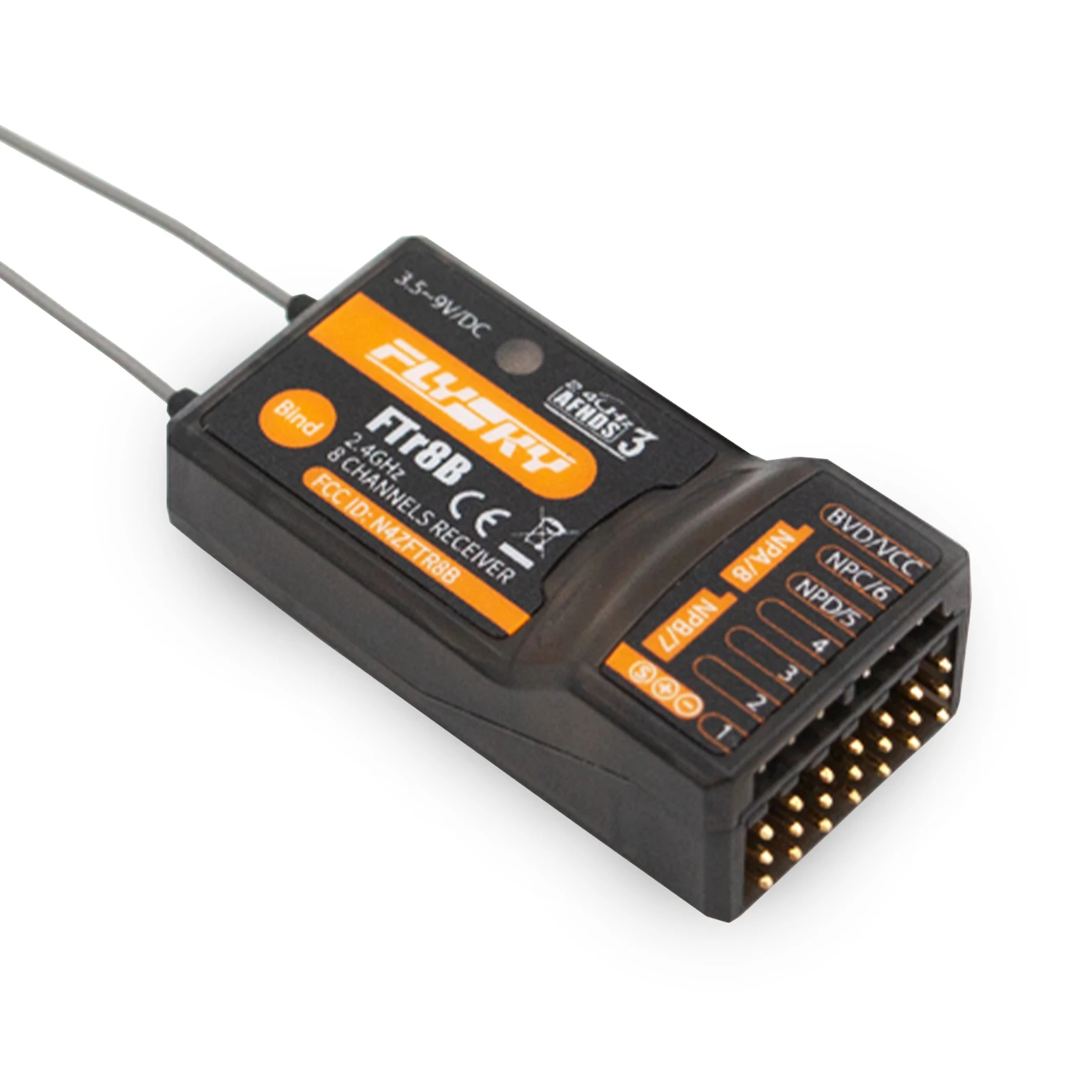

The FTr8B receiver adopts Flysky the third generation automatic frequency hopping digital system (AFHDS 3), which features dual antennas and bidirectional data transmission commonly known as telemetry plus an i-bus out/s.bus terminal and PWM/PPM switching at Channel 1. Compatible with all AFHDS 3 transmitters and RF modules.
Features:

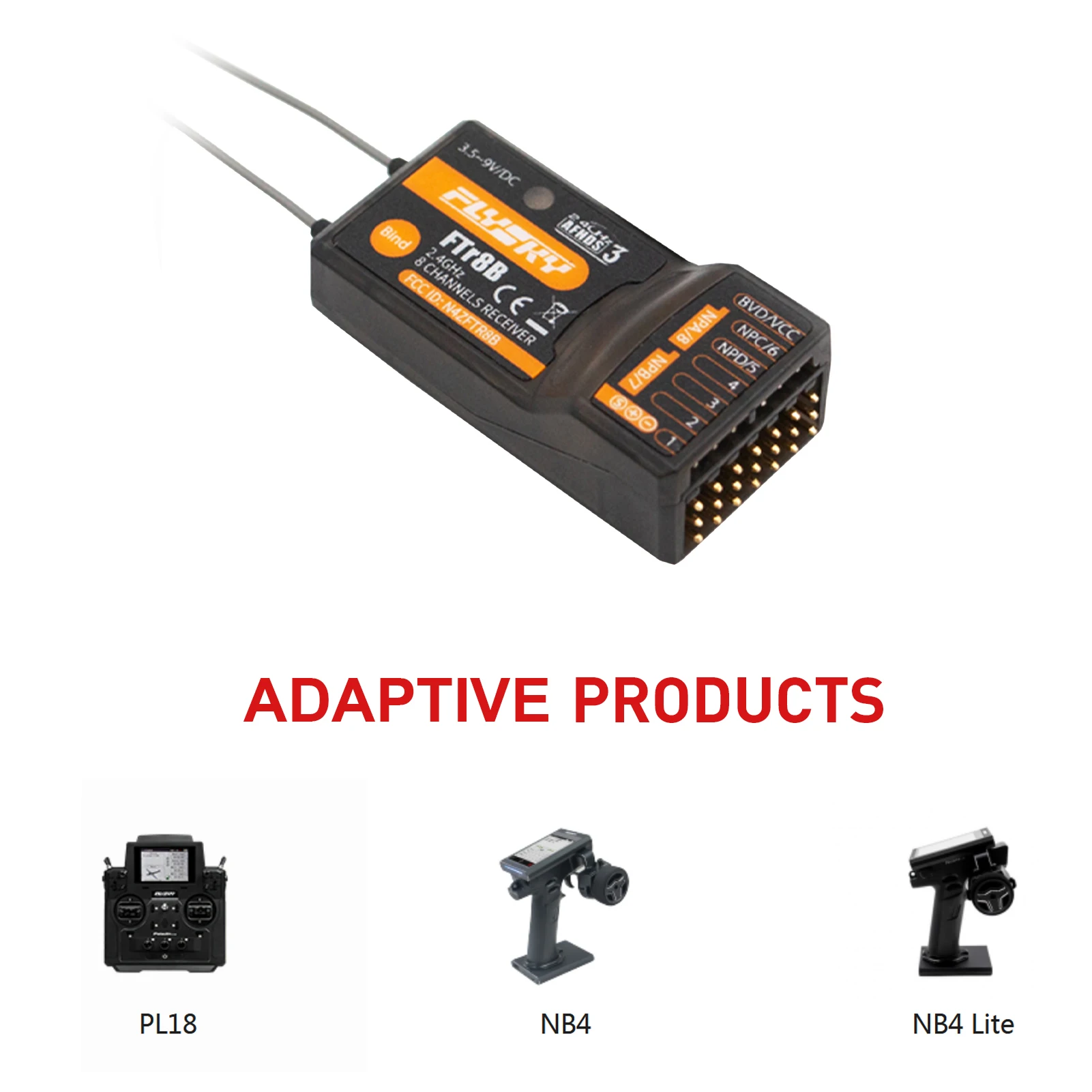

The FTr8B receiver is compatible with all AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302, etc.)

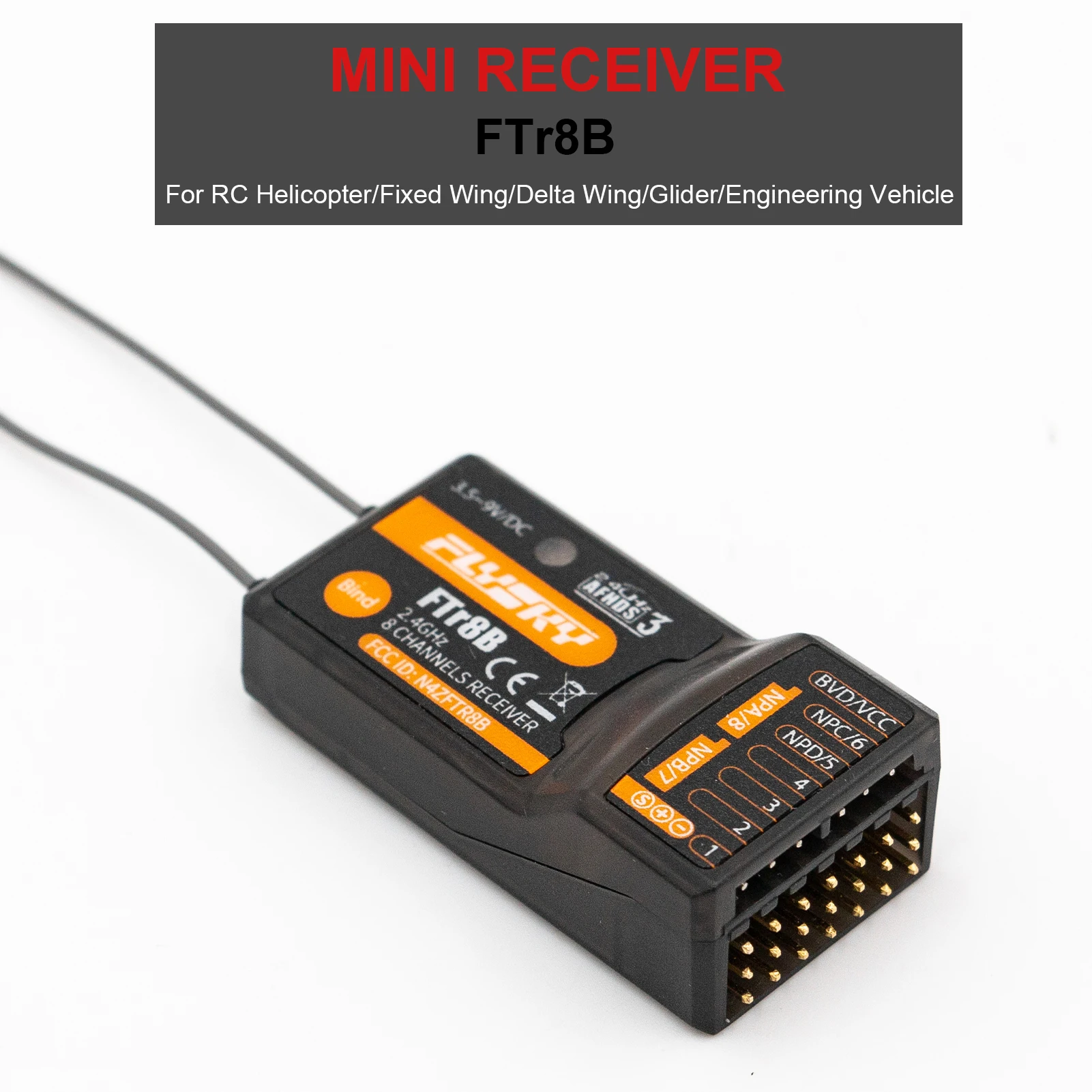

This product can be equipped with RC toys such as fixed-wing, glider, helicopter, delta wing engineering vehicle, etc.

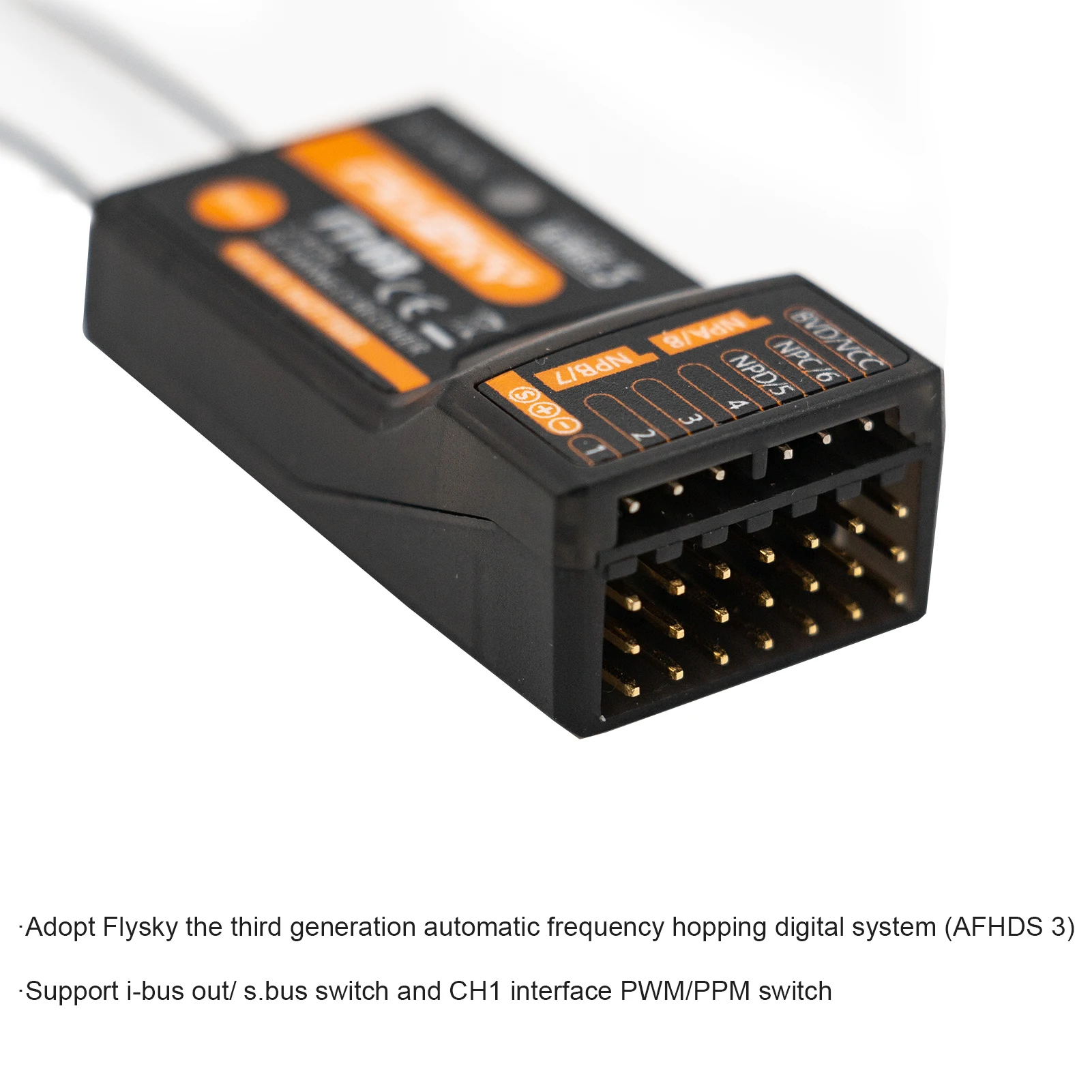

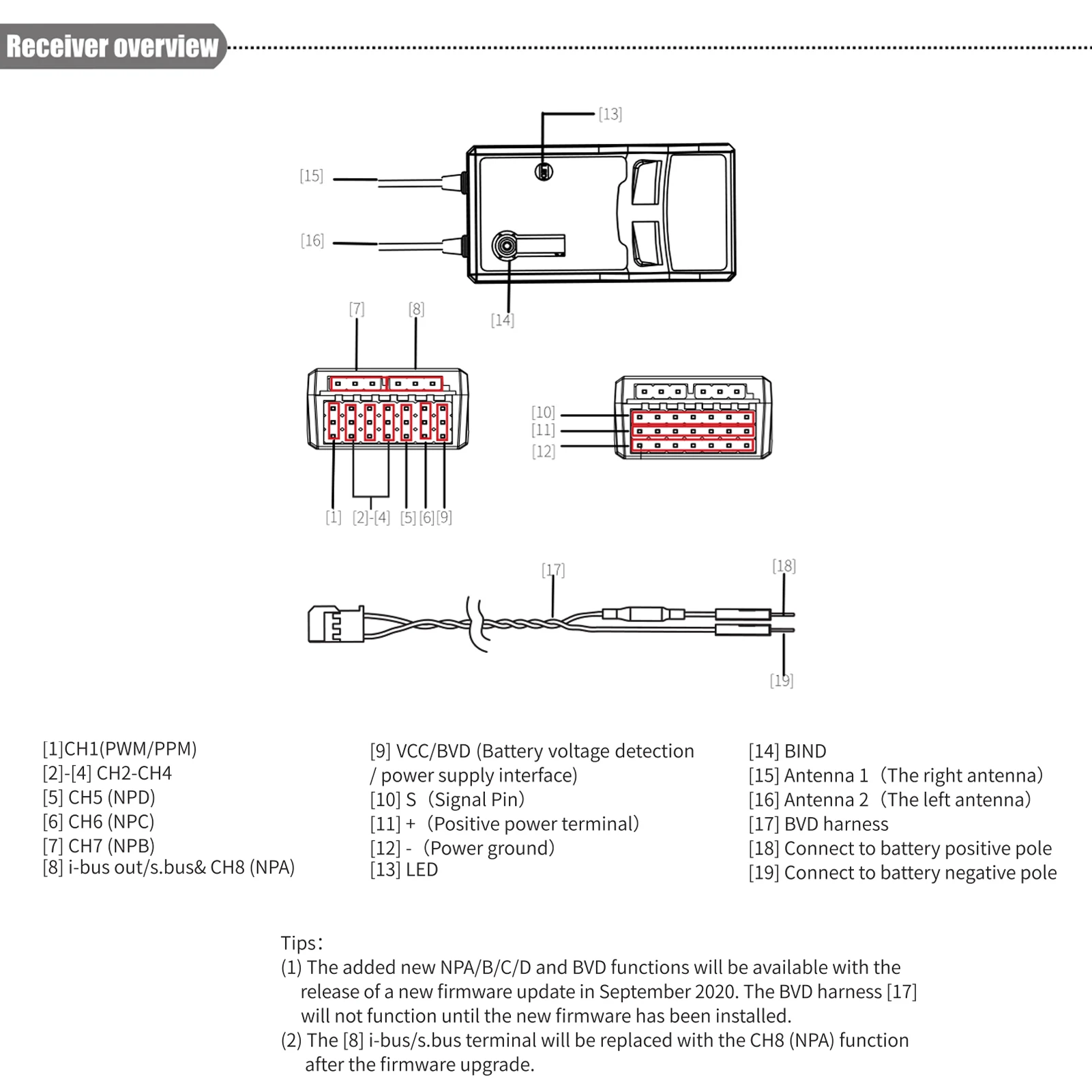

Adopting Flysky the third generation automatic frequency hopping digital system (AFHDS 3), the FTr8B receiver is provided with dual antennas, bidirectional data transmission, and support i-bus out/ s.bus switch and CH1 interface PWM/PPM switch.
With a compact size and light-weight, no worry to give any burden to your RC model.
Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution.
Specification:
Item Name: Receiver
Model Number: FTr8B
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, NB4, NB4 Lite, etc.)
Model Type: fixed-wing, glider, helicopter, delta wing engineering vehicle, etc
PWM Channels: 7(Version 2.0 will be upgraded to 8 channels)
RF:2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Dual Antennas.
Input Power: 3.5-9V
Data Output: PWM/PPM/.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Material: ABS

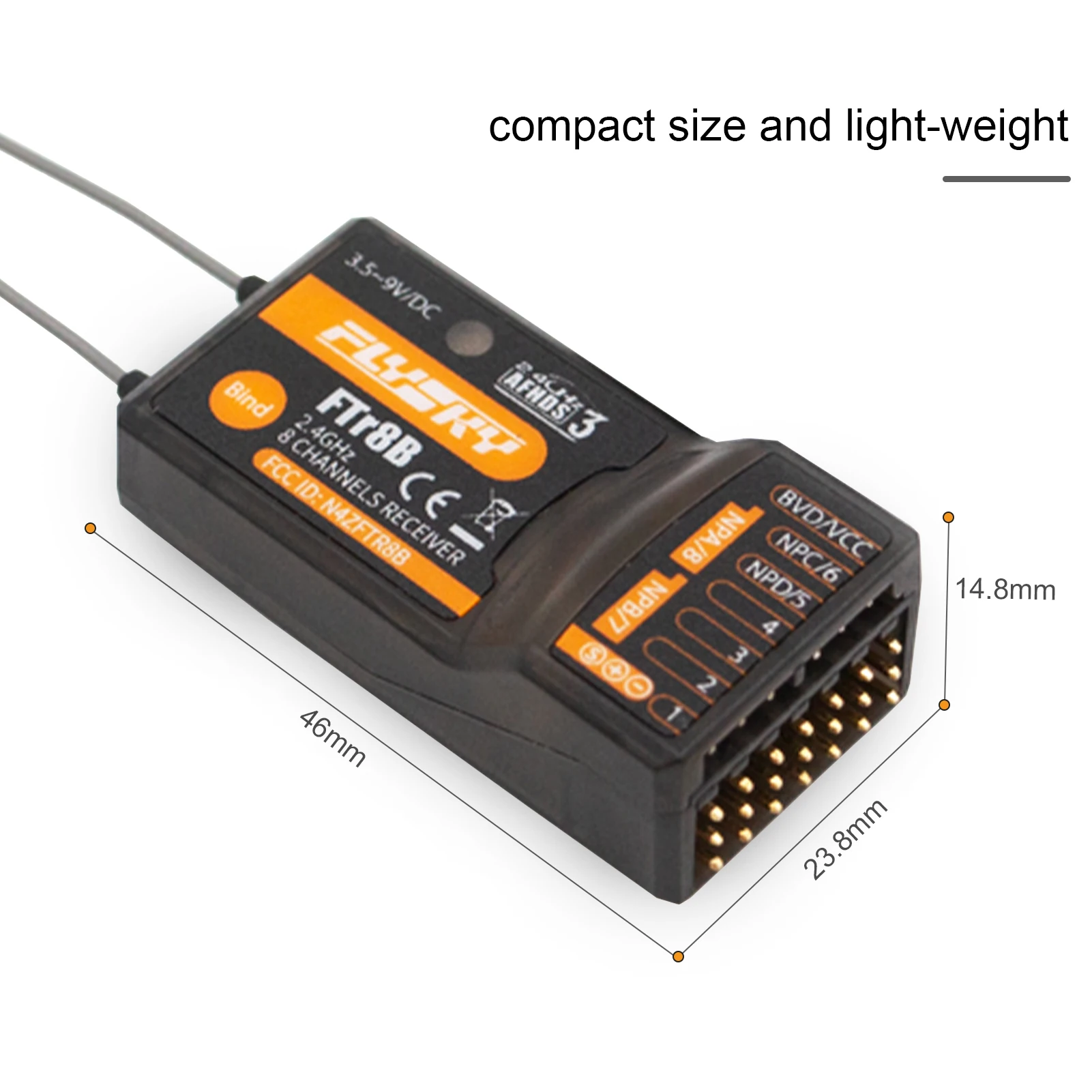

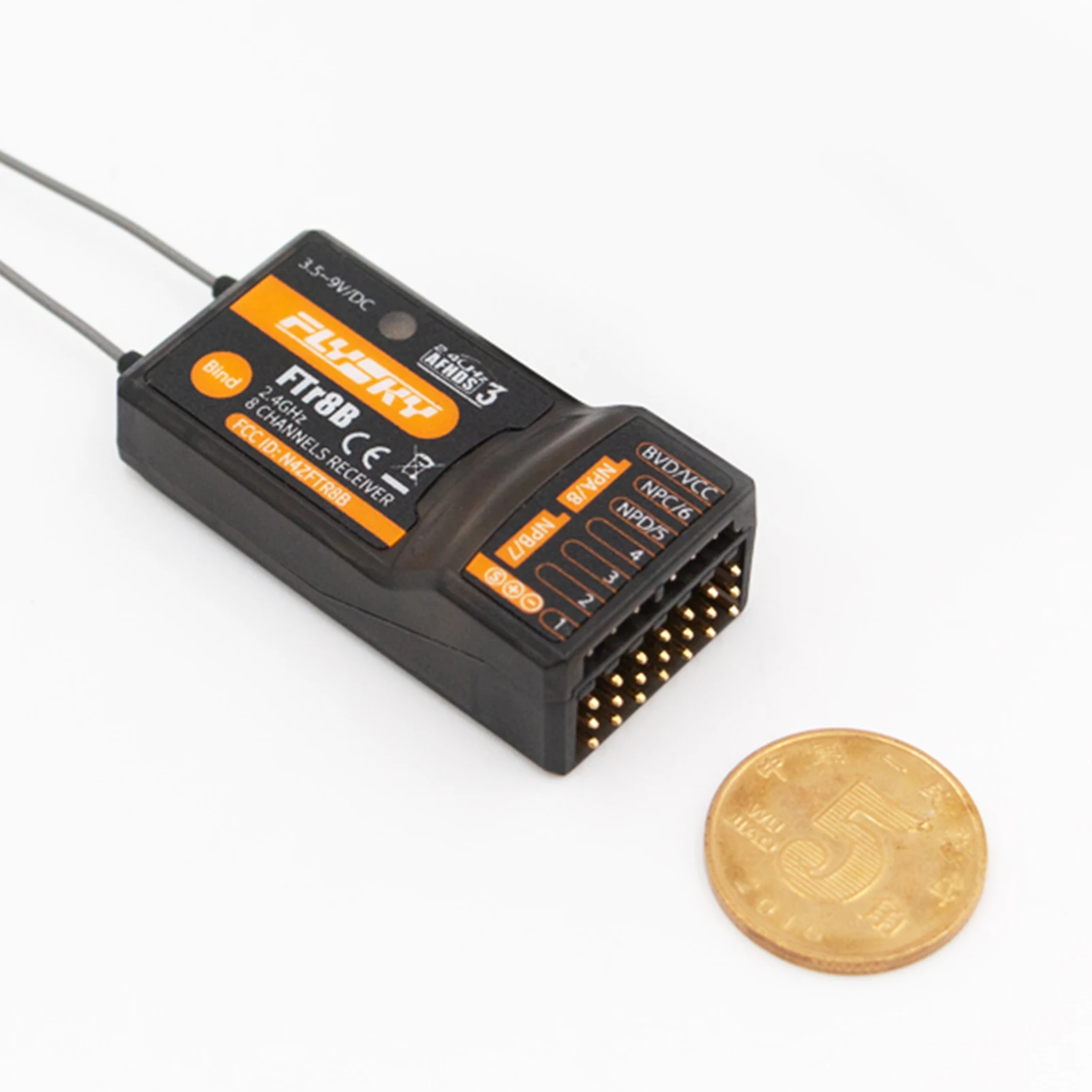

Size: 46 x 23.8 x 14.8mm
Weight: 11.3g
Package Information:
Size: 84 x 64 x 38.4 mm
Weight: 62g
Package List:
1 x FTR8B Receiver
