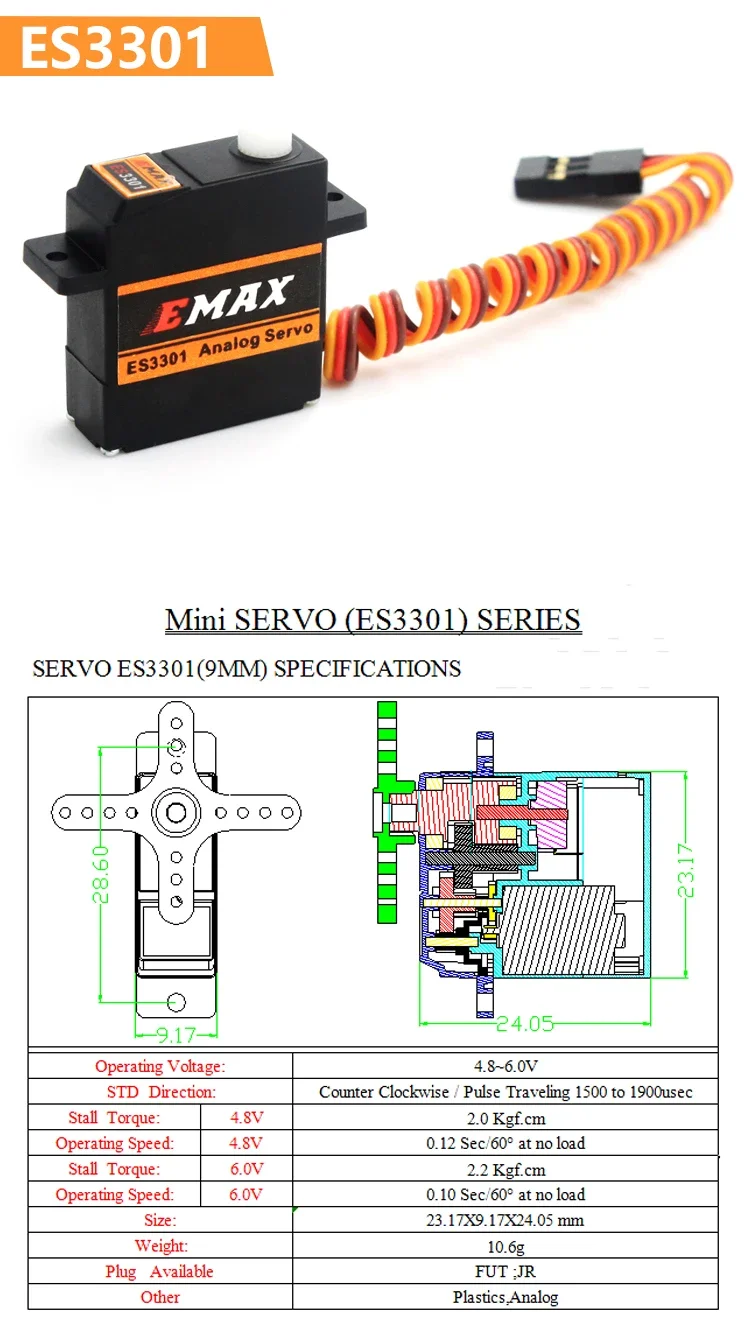

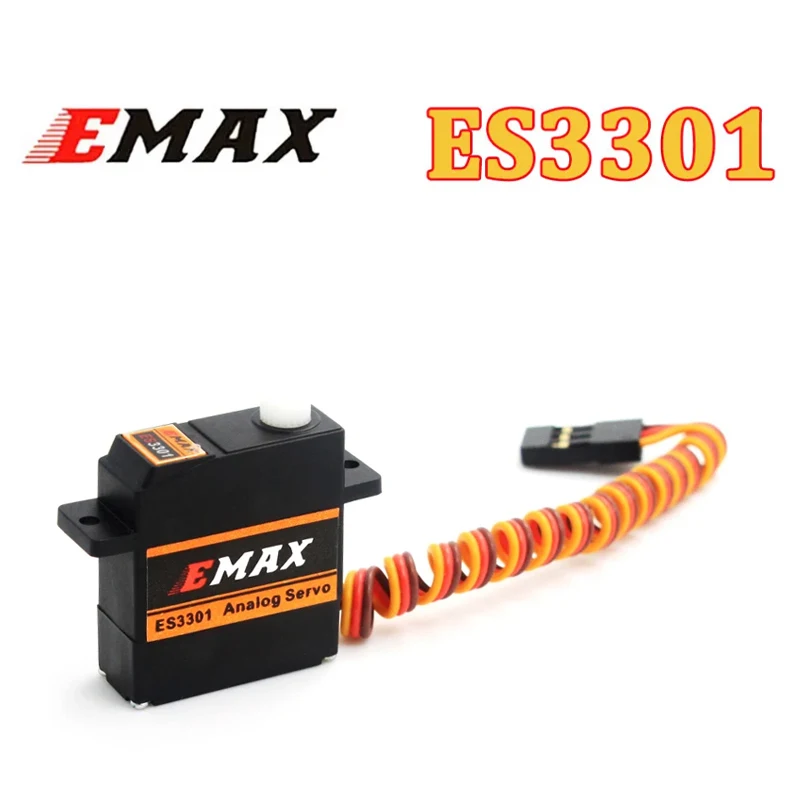

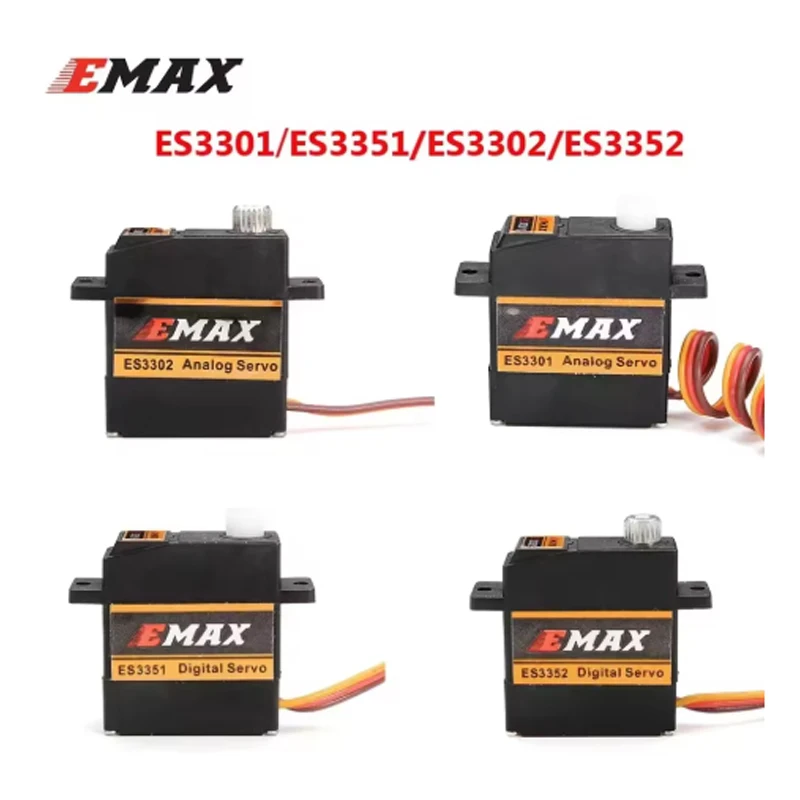

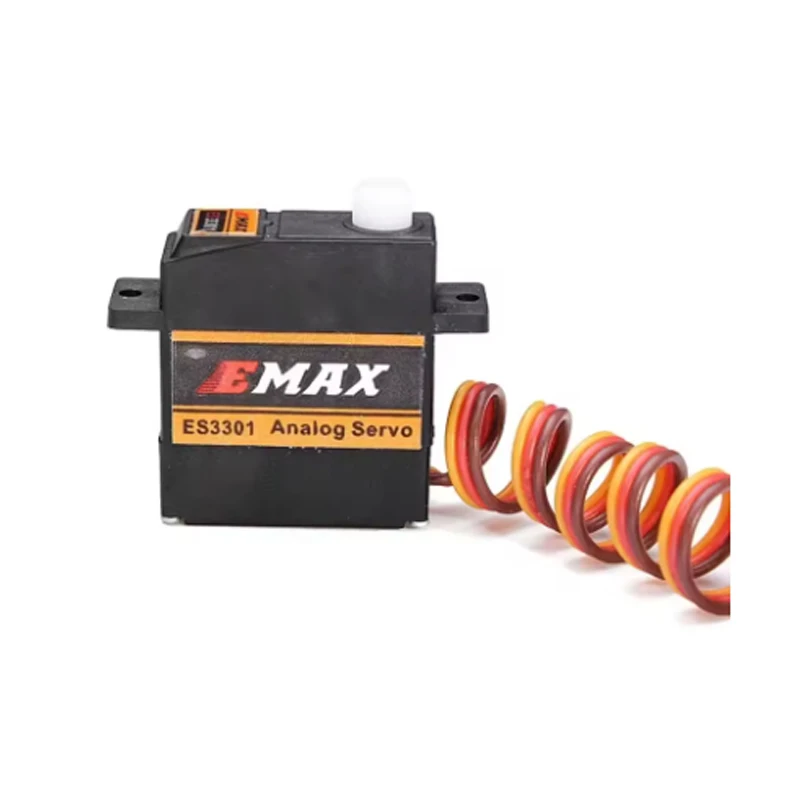

ES3301 Mini Analog Servo:
Feature:
–Ultra Thin Design, With A Width Of 9mm, This Servo Is An Ideal Choice For Gliders.
–Made Of Special Engineering Plastics. The Gear Set And Case Are Super Tough.
–NOBLE Potentiometer: Assuring High Accuracy And Coherence.
–Dual-bearing Design Maintains Low Backlash And Smoothness Of The Servo For A Long Time.
Specications:
Operating Voltage: 4.8-6.0V;
STD Direction: Counter Clockwise/Pulse Traveling 1500 To 1900u sec.
Stall Torque: 4.8V-2.0kgf.cm/ 6.0V-2.2kgf.cm;
Operating Speed: 4.8V-0.12sec/60° at no load;
6.0V-0.10sec/60° at no load;
Size&Weight: 23.17*9.17*24.05mm/ 10.6g;
Plug Available: Futaba, JR;
Other: Plastic,Analog;
Package Included:
1x EMAX ES3301 10.6g Servo

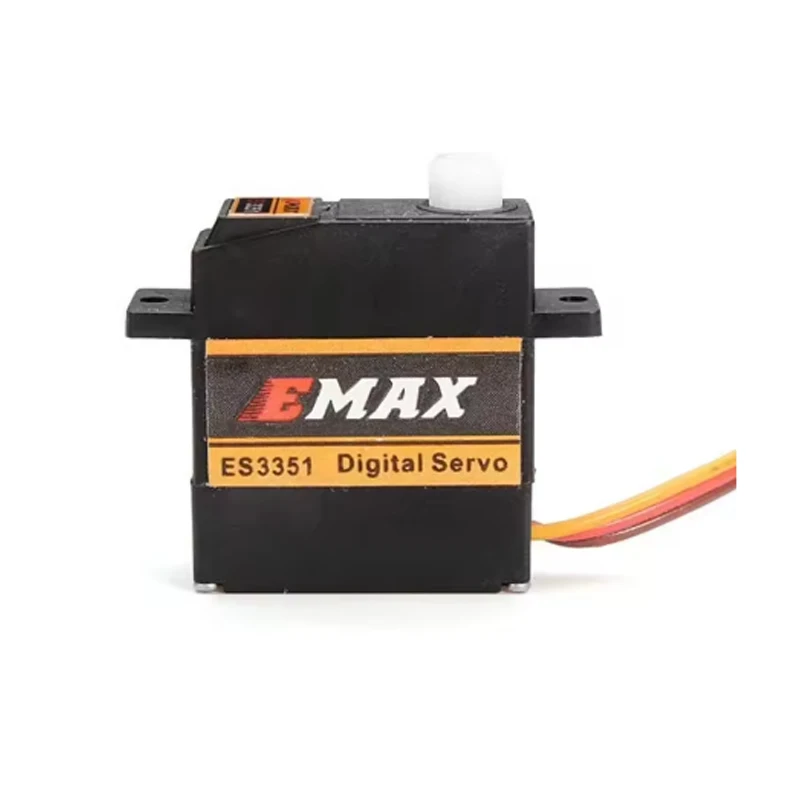

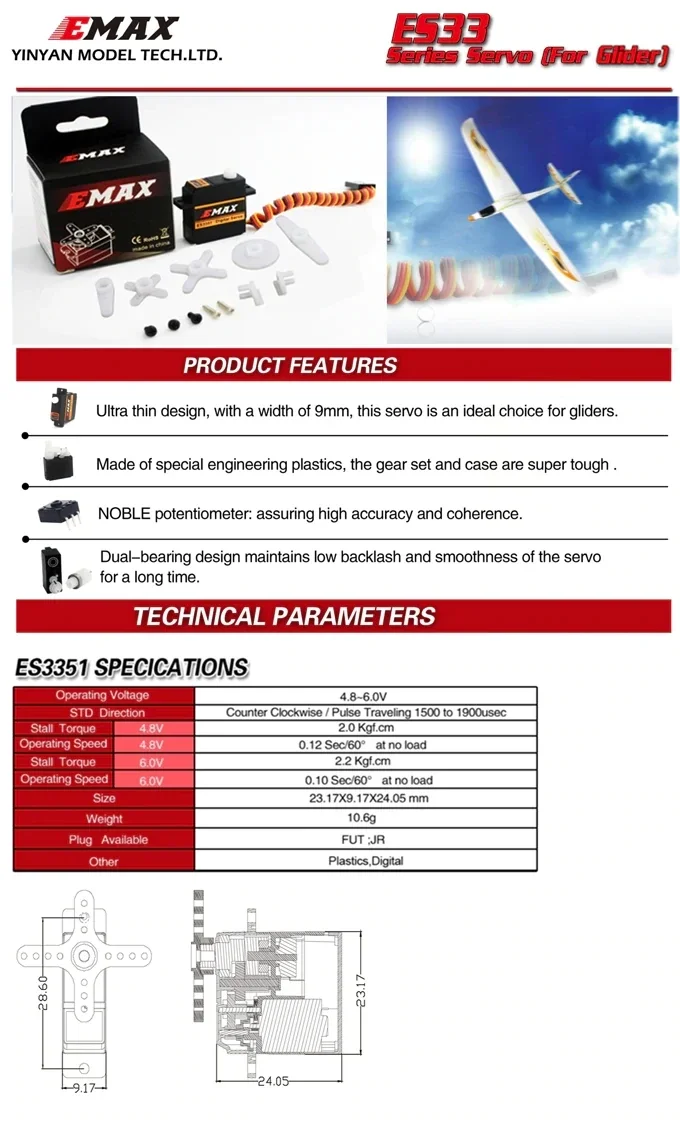

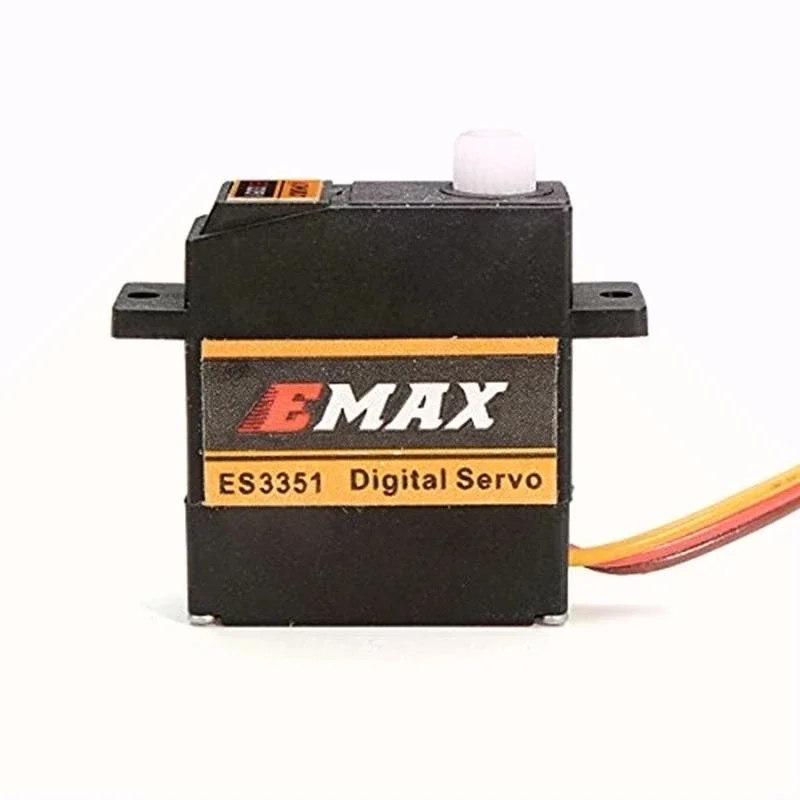

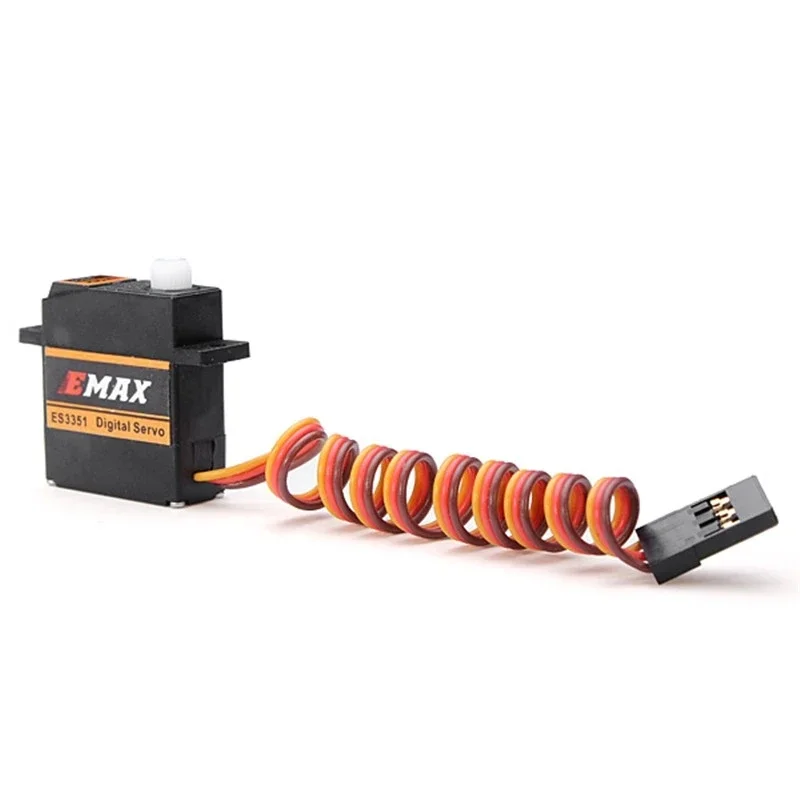

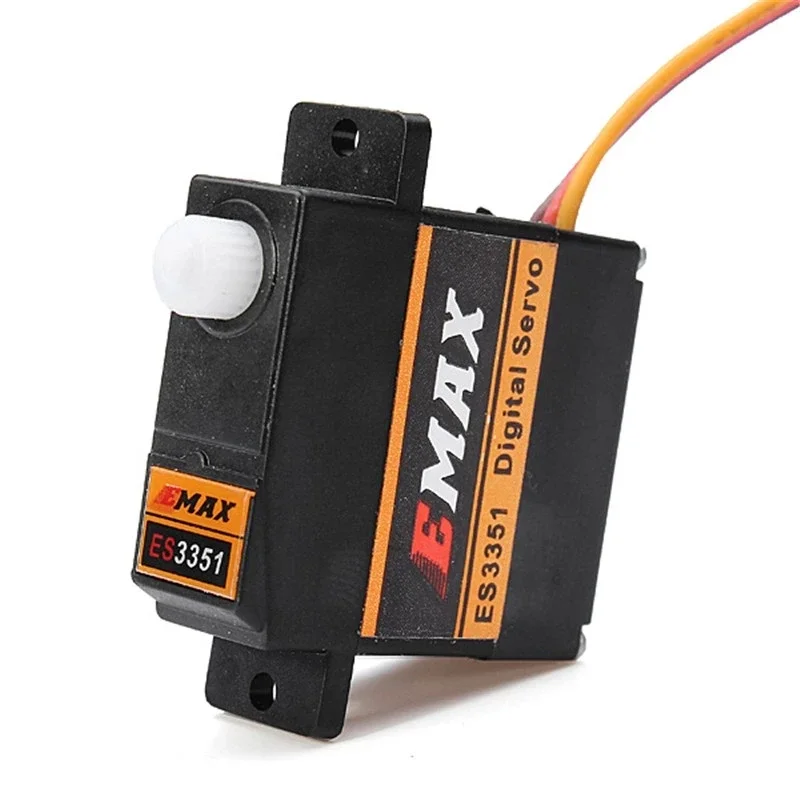

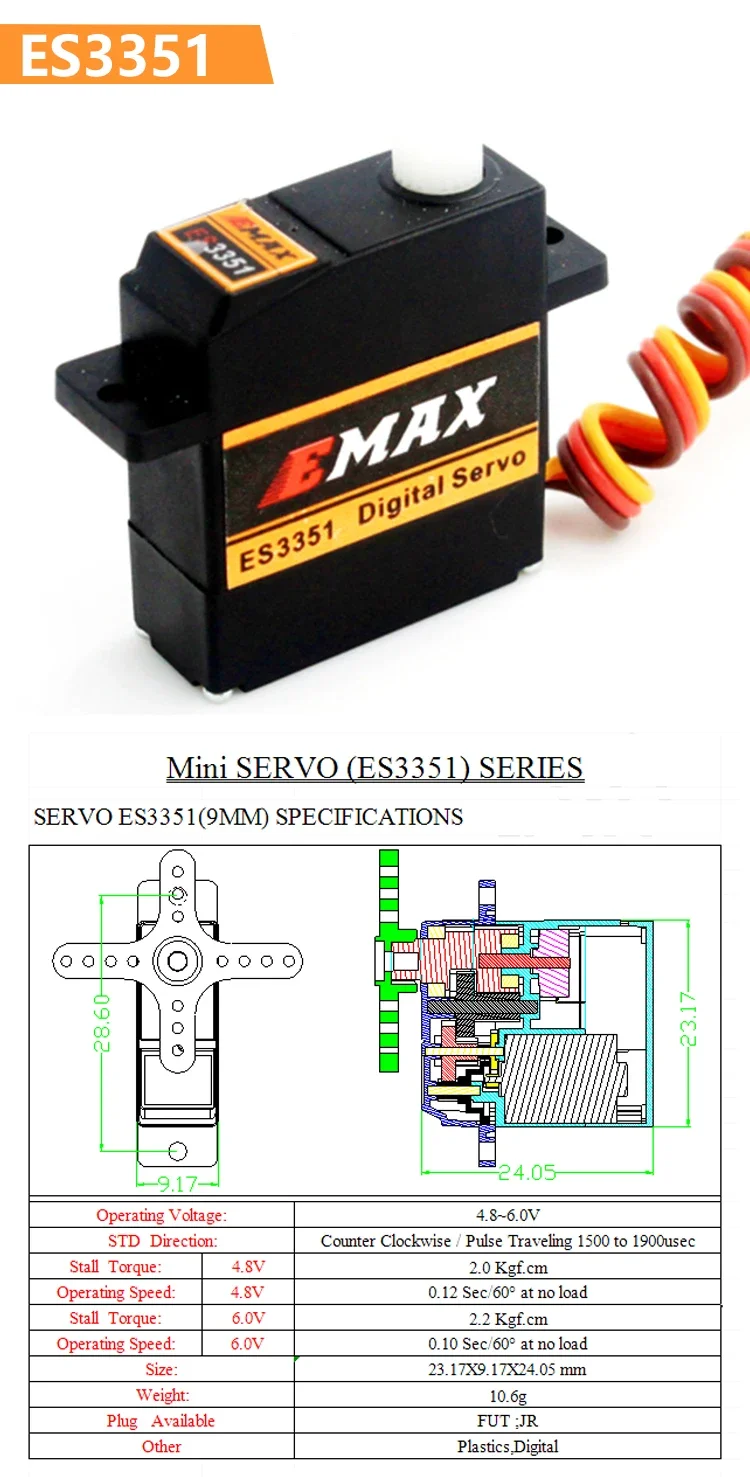

EMAX ES3351 10.6g Mini Plastic Gear Digital Servo for RC Airplane Glider
Description:
Brand: EMAX
Name: EMAX ES3351 Servo
Weight: 10.6g
Dimension: 23.17 x 9.17 x 24.05mm
Operating Voltage: 4.8V~6.0V
Operating Speed: 0.12 /0.10 Sec/60° at no load
Stall Torque: 2.0/2.2 Kgf.cm
Gear Type: Metal Gear
Plug Type: suitable for Futaba/JR
Features:
NOBLE potentiometer. assuring high accuracy and coherence
Dual-bearing design maintains low backlash and smoothness of the servo for a long time
2.0 Kgf.cm, 0.12 Sec/60° at no load under 4.8V and 2.2 Kgf.cm, 0.10 Sec/60° at no load under 6.0V
Package included:
1 x EMAX ES3351 Servo
1 x Rocker arm set
1 x screw pack

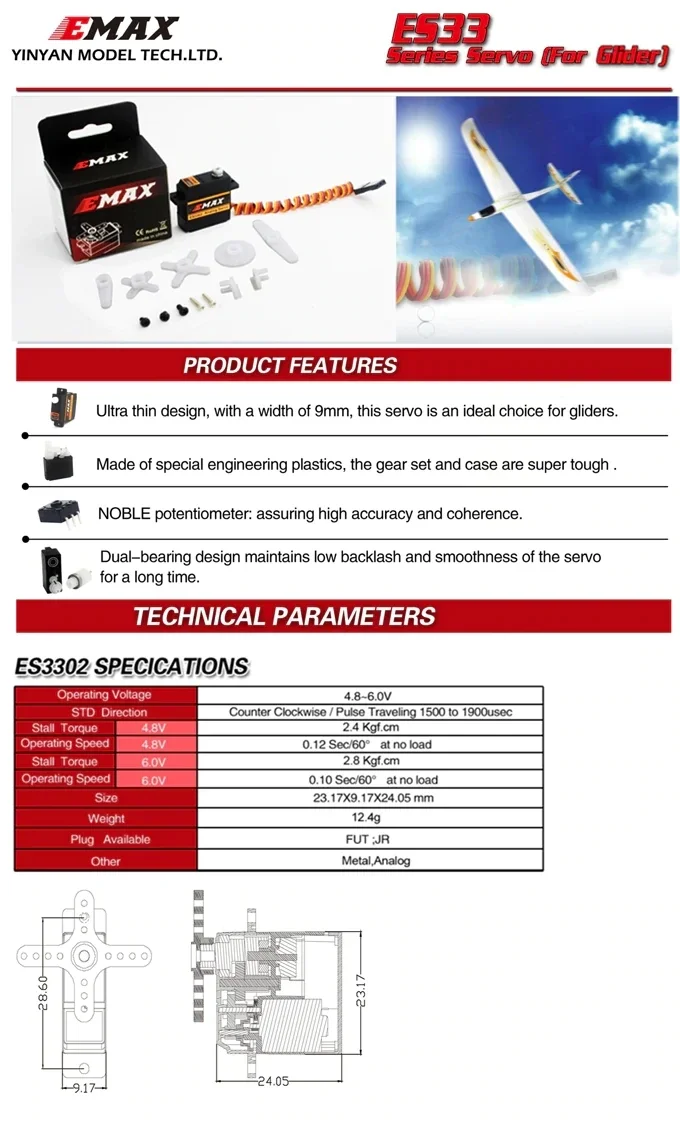

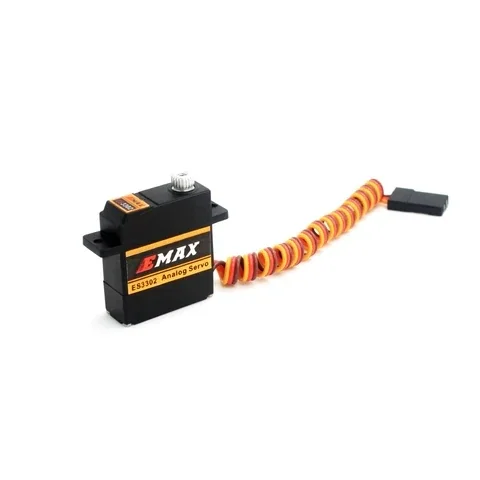

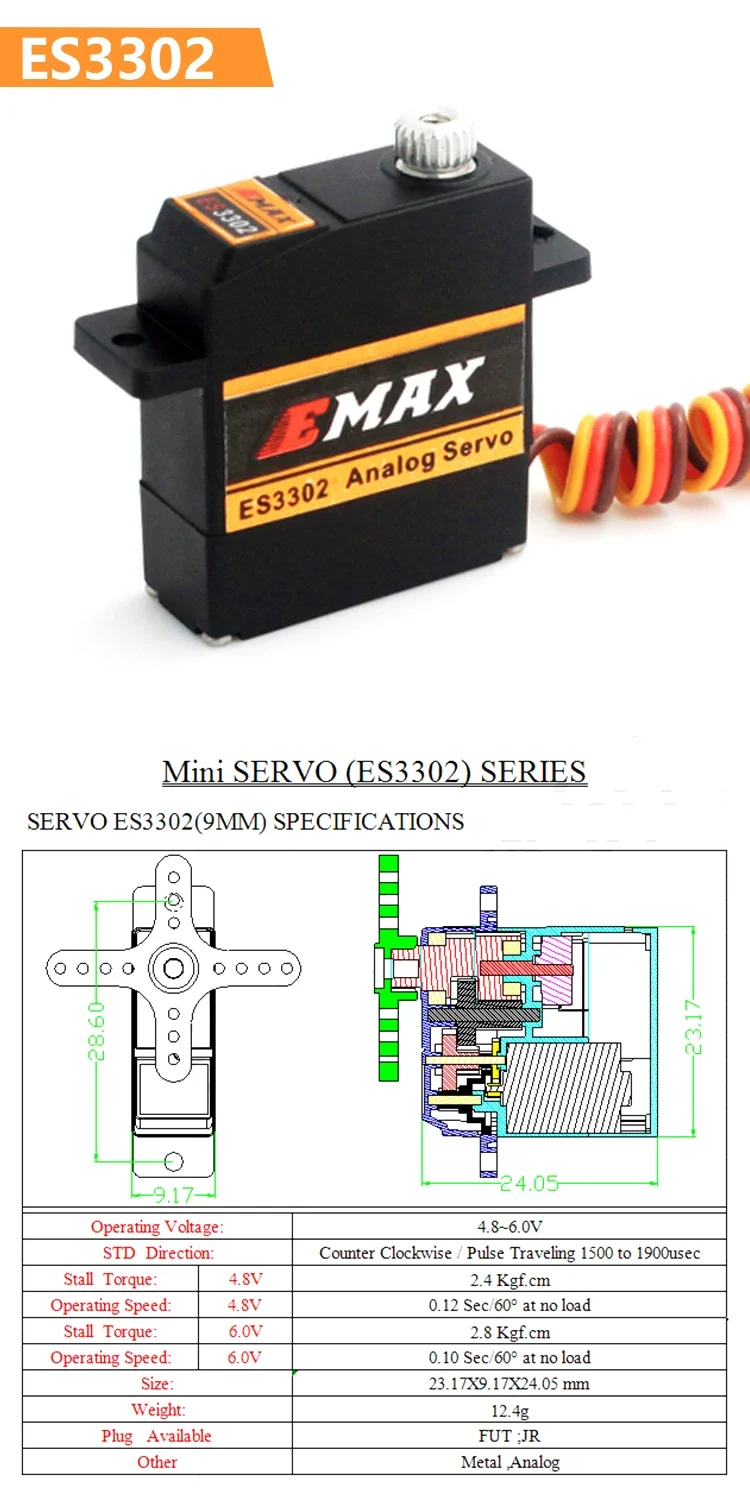

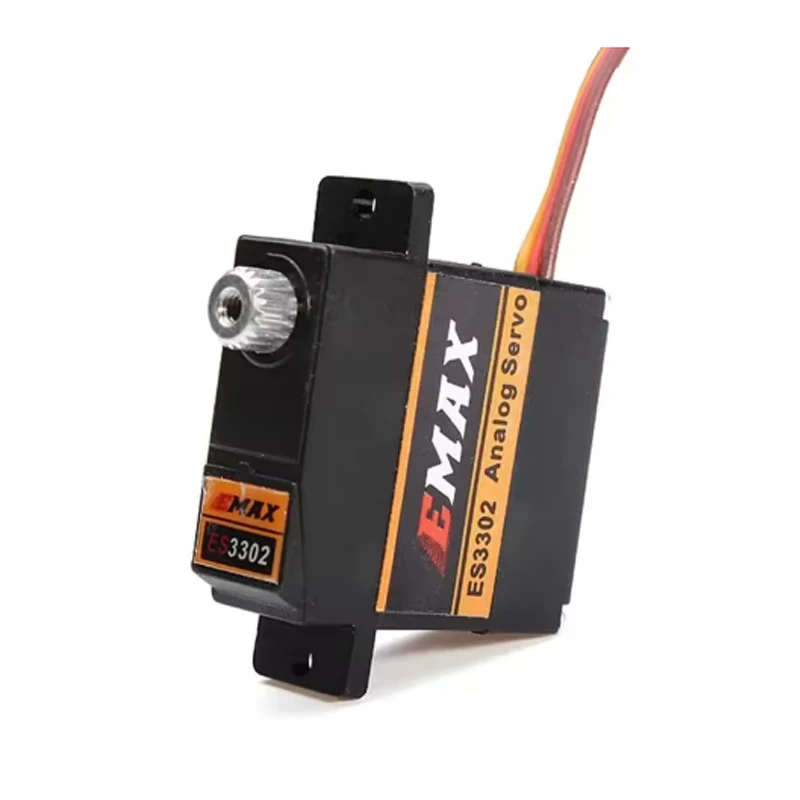

EMAX ES3302 12.4g Mini Metal Gear Analog Servo for RC Airplane
Description:
Brand: EMAX
Name:EMAX ES3302 Servo
Weight: 12.4g
Dimension: 21.17 x 9.17 x 24.05mm
Operating Voltage: 4.8V~6.0V
Operating Speed: 0.12 /0.10 Sec/60° at no load
Stall Torque: 2.4/2.8 Kgf.cm
Gear Type:Metal Gear
Plug Type: suitable for Futaba/JR
Features:
NOBLE potentiometer. assuring high accuracy and coherence
Dual-bearing design maintains low backlash and smoothness of the servo for a long time
2.4 Kgf.cm, 0.12 Sec/60° at no load under 4.8V and 2.8 Kgf.cm, 0.10 Sec/60° at no load under 6.0V

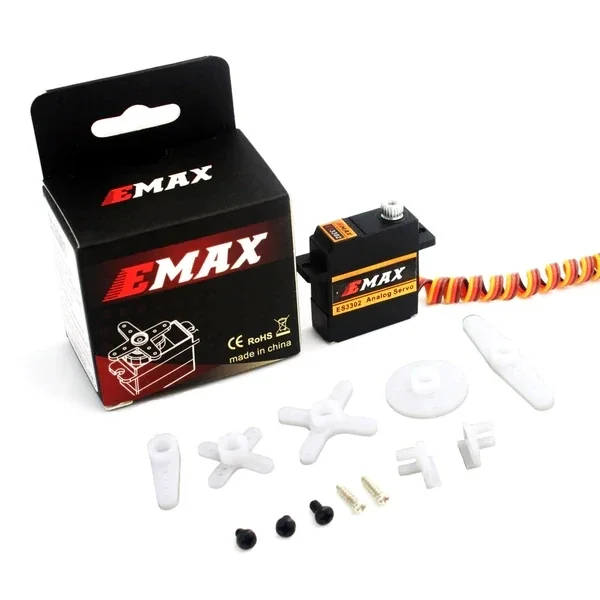

Package included:
1 x EMAX ES3302 Servo
1 x Rocker arm set
1 x screw pack

























Reviews
There are no reviews yet
