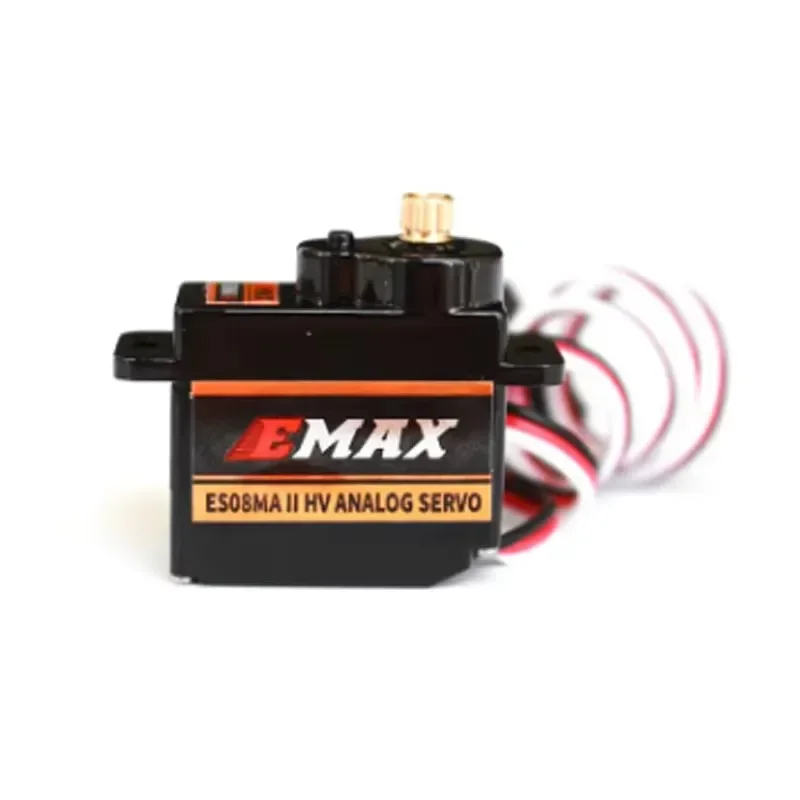

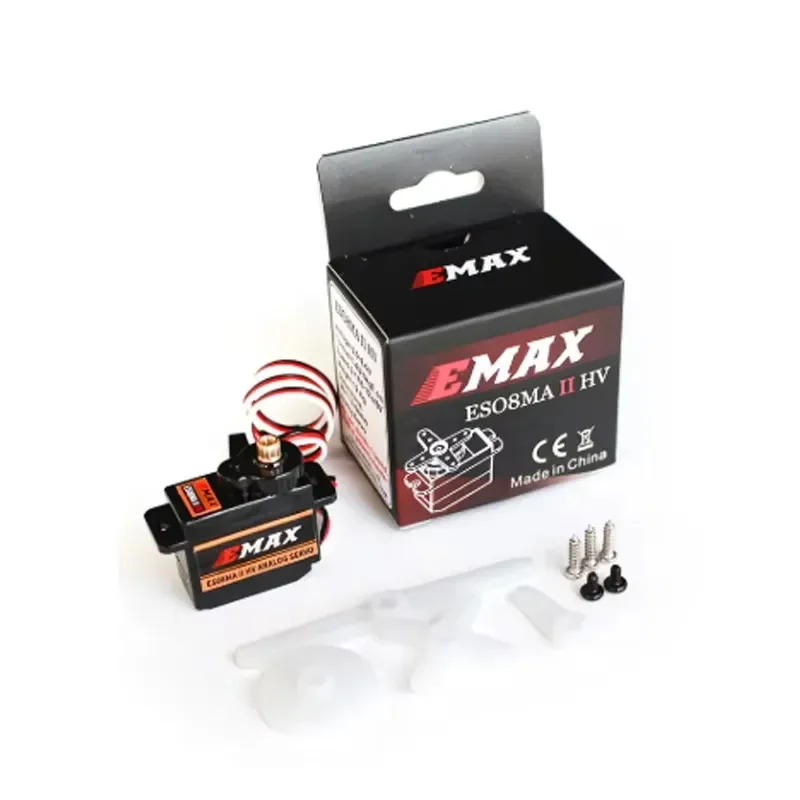

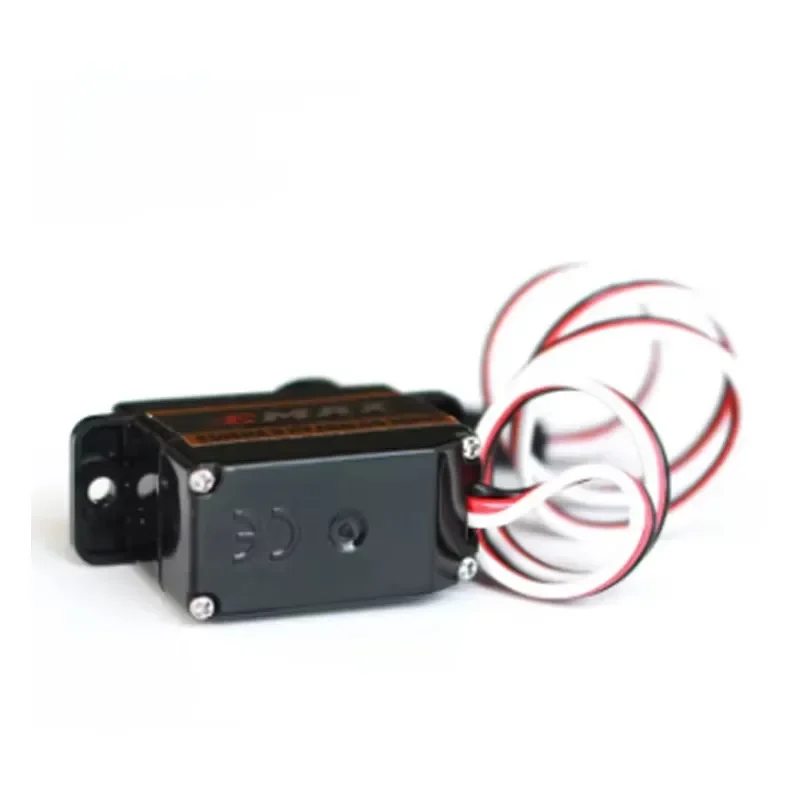

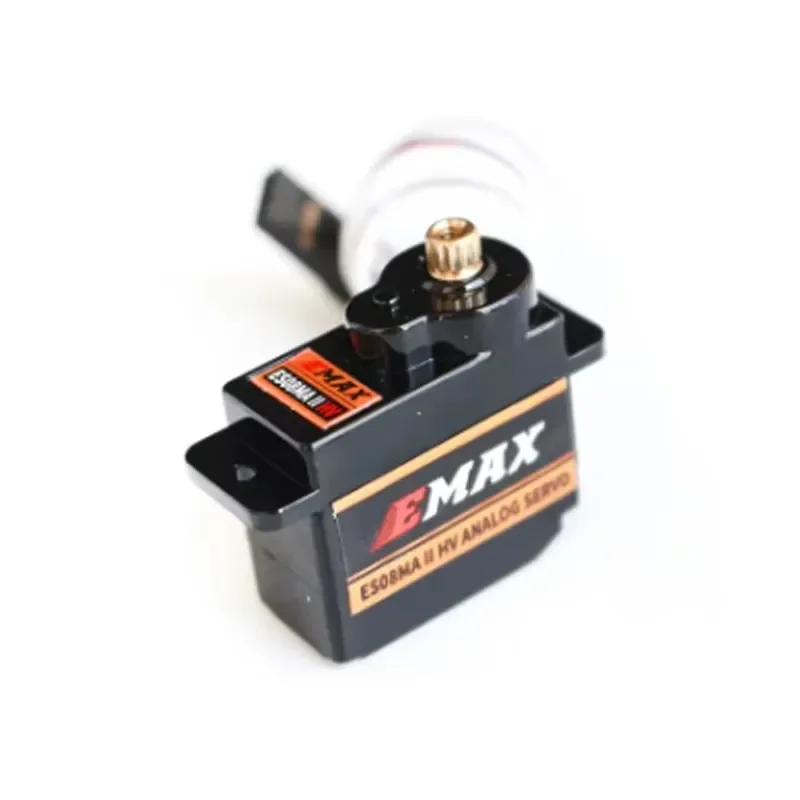

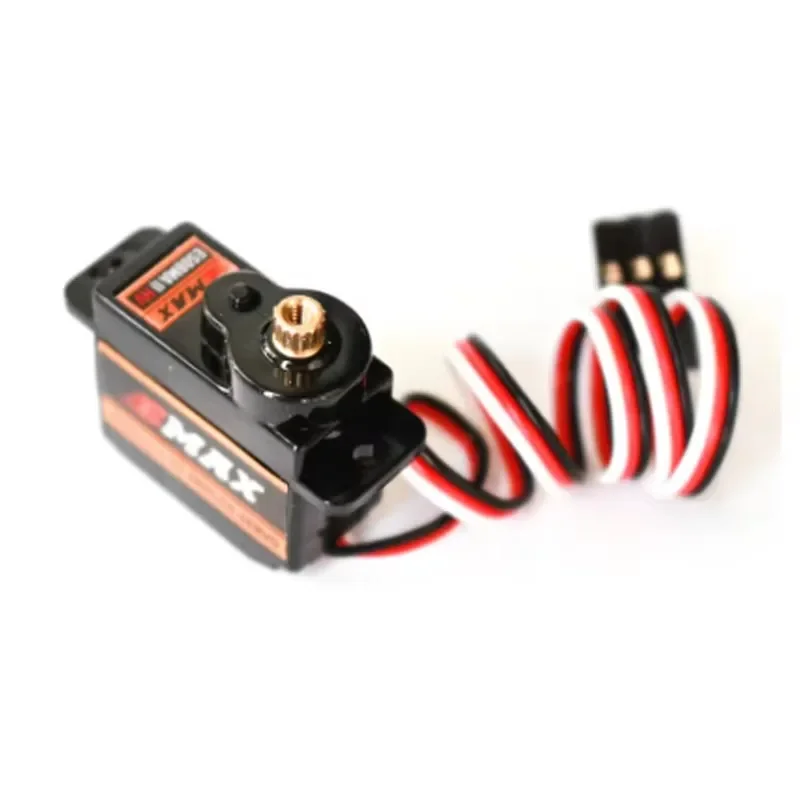

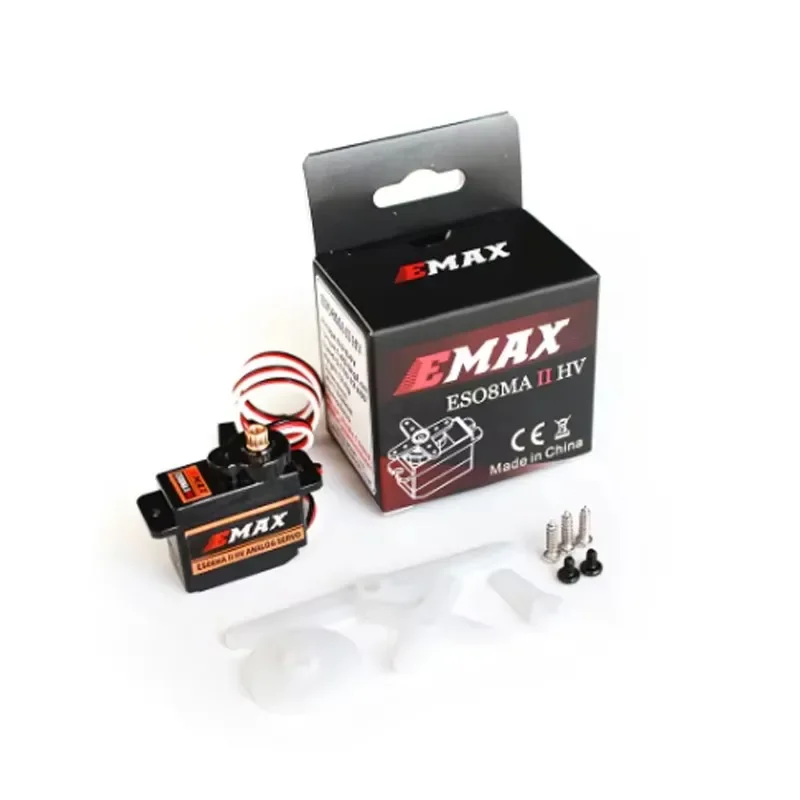

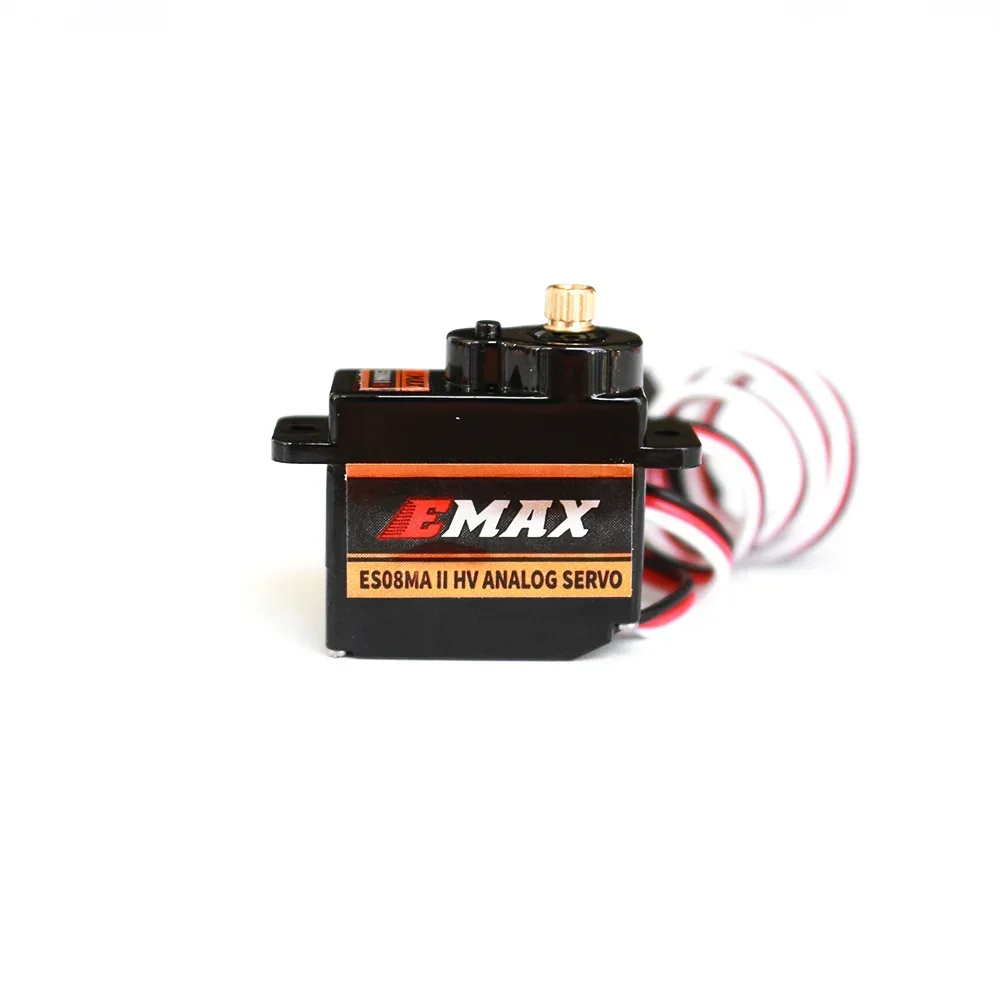

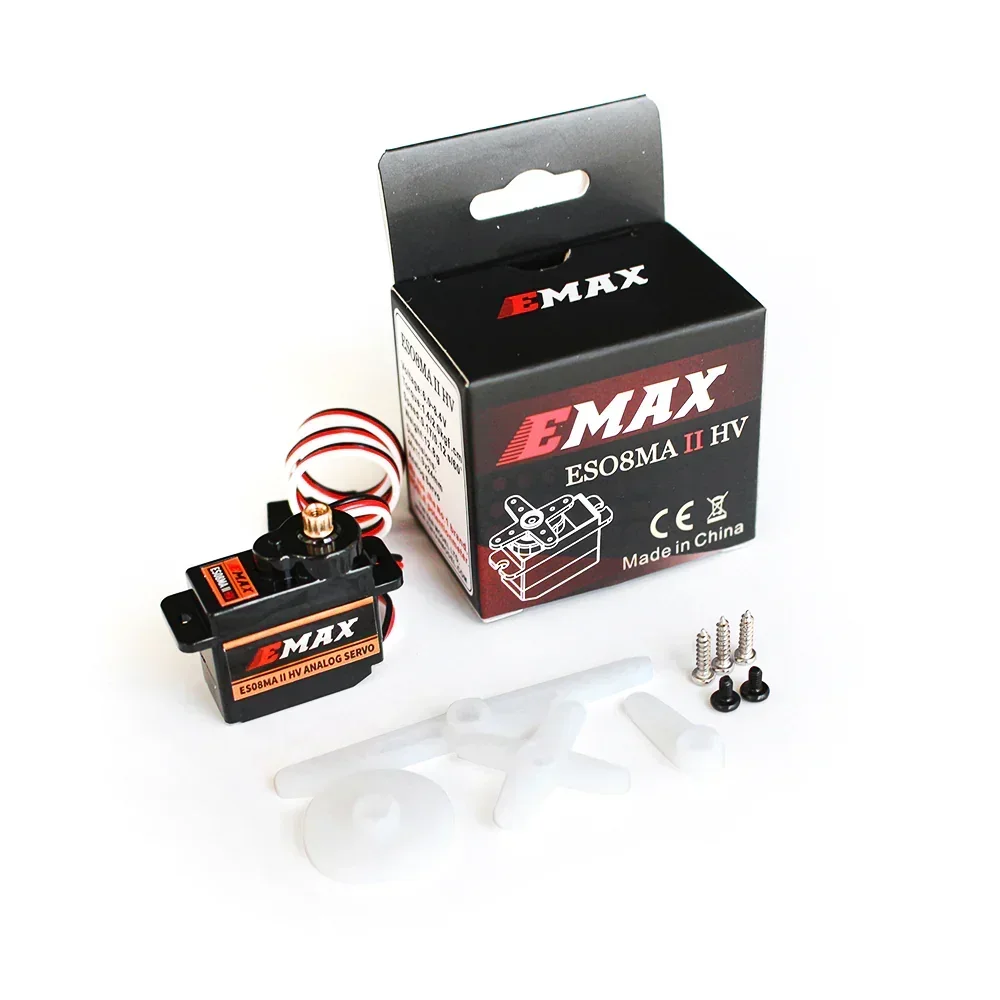

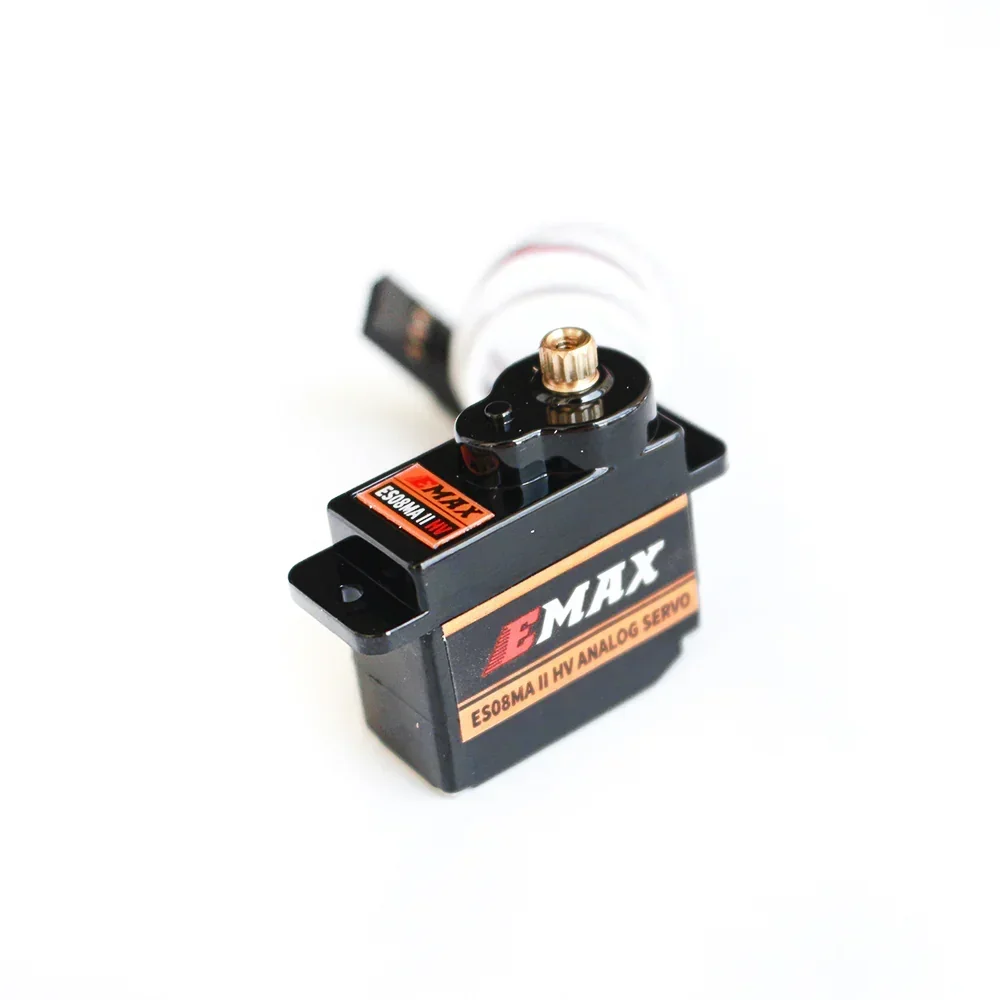

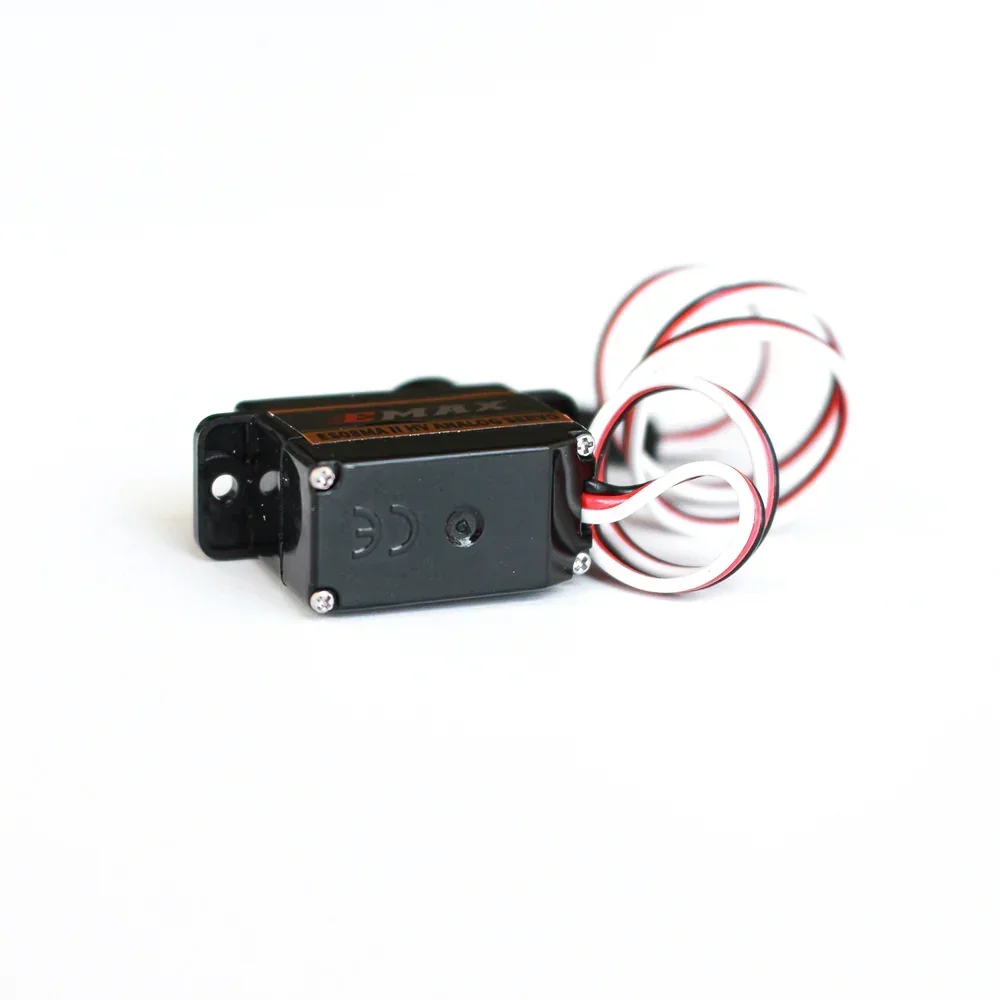

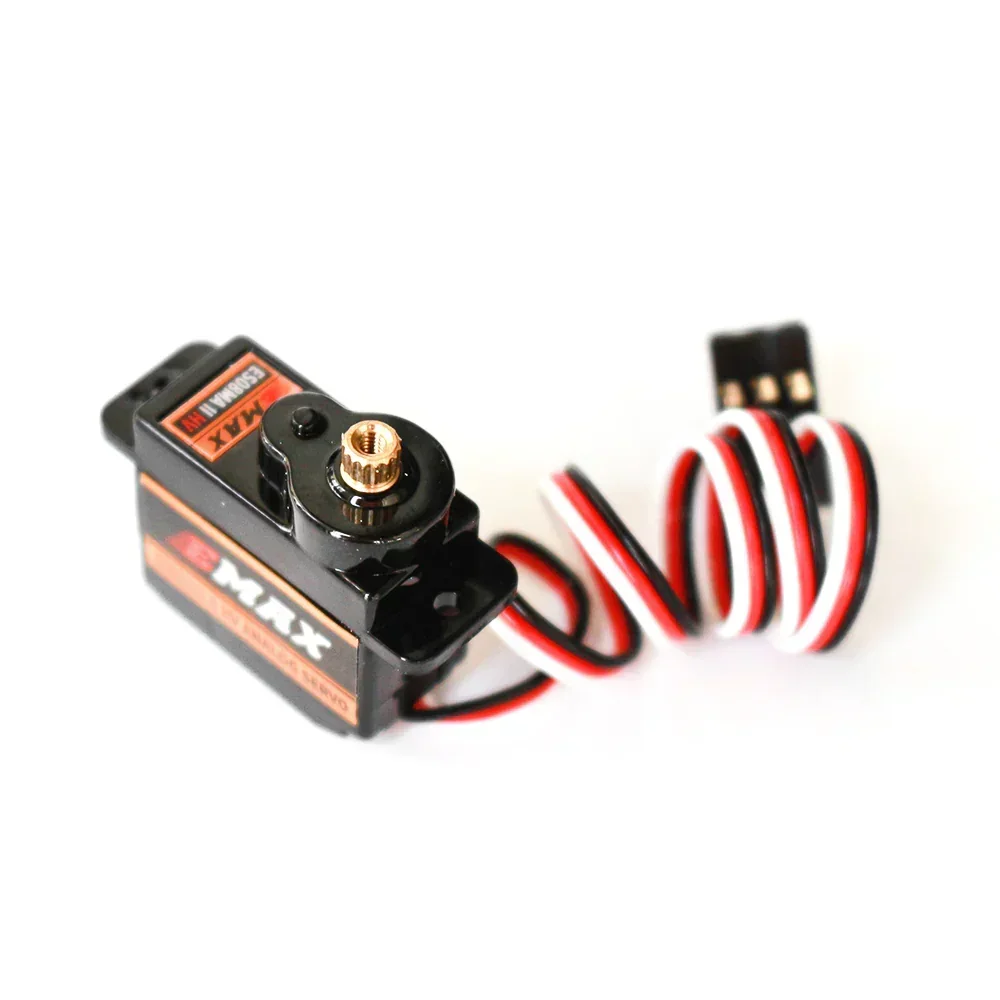

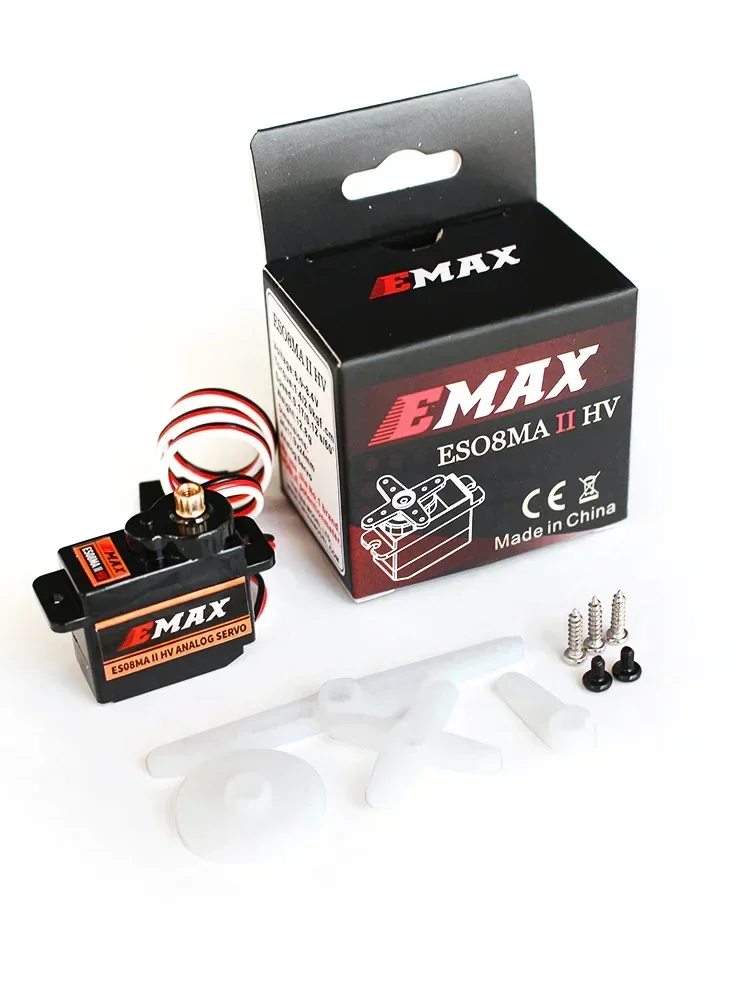

EMAX ES08MA II HV 6V-8.4V 12g Metal Gear Analog Servo For RC UAV/Helicopters/Airplane/Truck/Boat/Car Accessories

Application Fields: UAV ,remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys

Product Specification
Brand: EMAX
Mode Number: ES08MAII HV
Features: Compliant with most standard receiver
Connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.

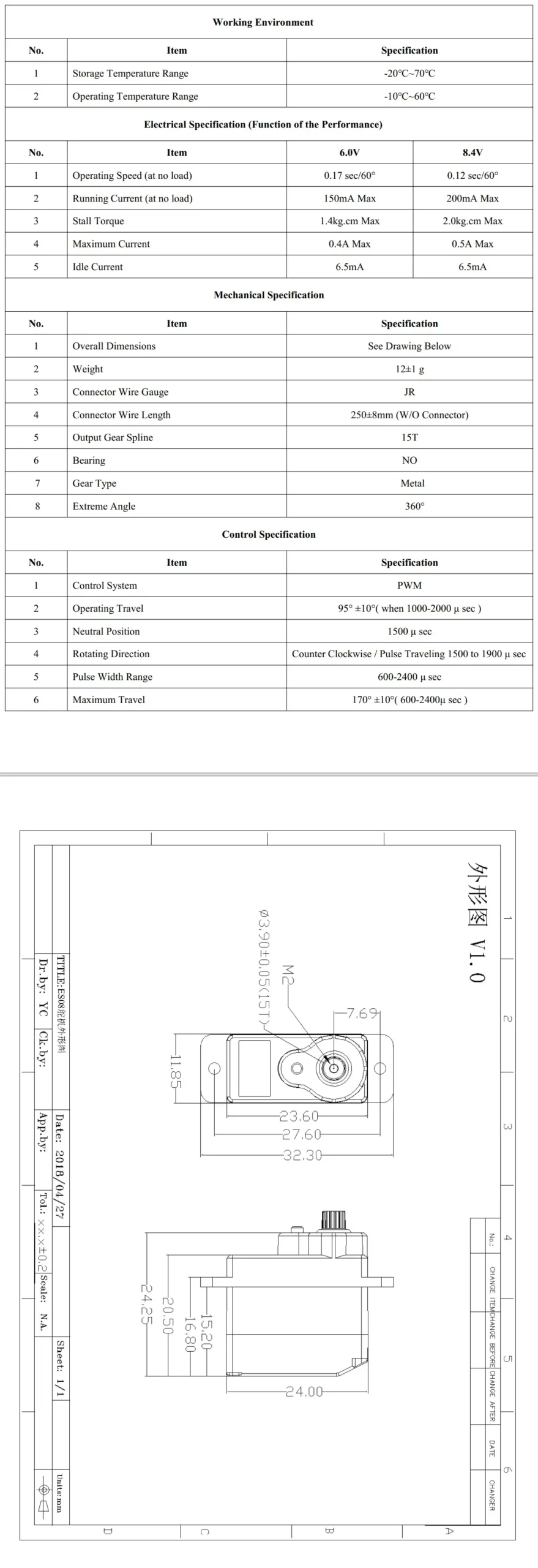

Specification:
Dead band: 5μs 1520μs / 330hz
Motor: Core motor
Operating Speed (6.0V): 0.17sec/60°
Operating Speed (8.4V): 0.12sec/60°
Stall Torque (6.0V) : 1.4 kgf.cm (19.4.ozf.in)
Stall Torque (8.4V) : 2kgf.cm (27.8 ozf.in)
Dimensions: 24X11.9X23.95mm /0.945X0.469X0.943 in
Gear Teeth: 15T
Control Angle: 170 Degree
Weight: 12.8g (0.45oz)
Connector Wire Length: JR 255 mm (10in)
Bearing: no
