DIATONE MAMBA F45/ F55/ F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5mm/M3 4-6S For RC FPV Racing Drone

DIATONE MAMBA F45/ F55/ F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5mm/M3 4-6S For RC FPV Racing Drone

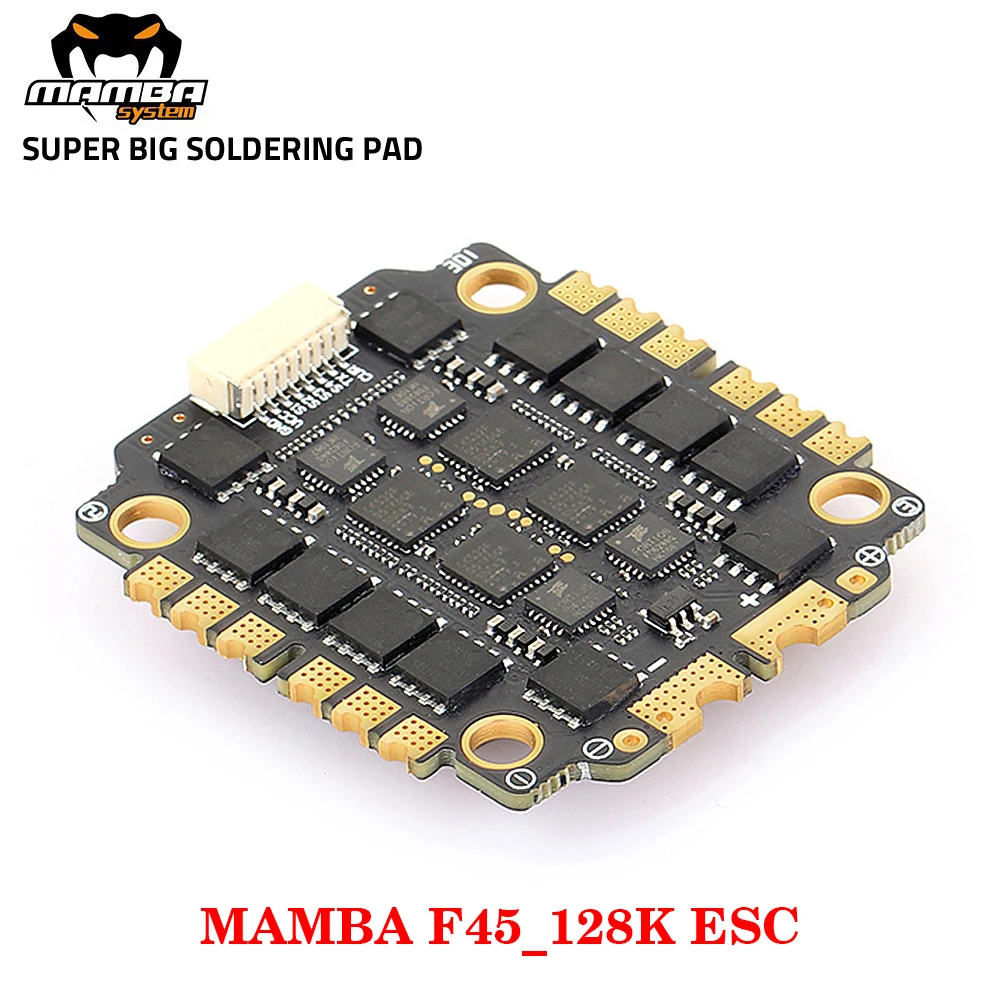

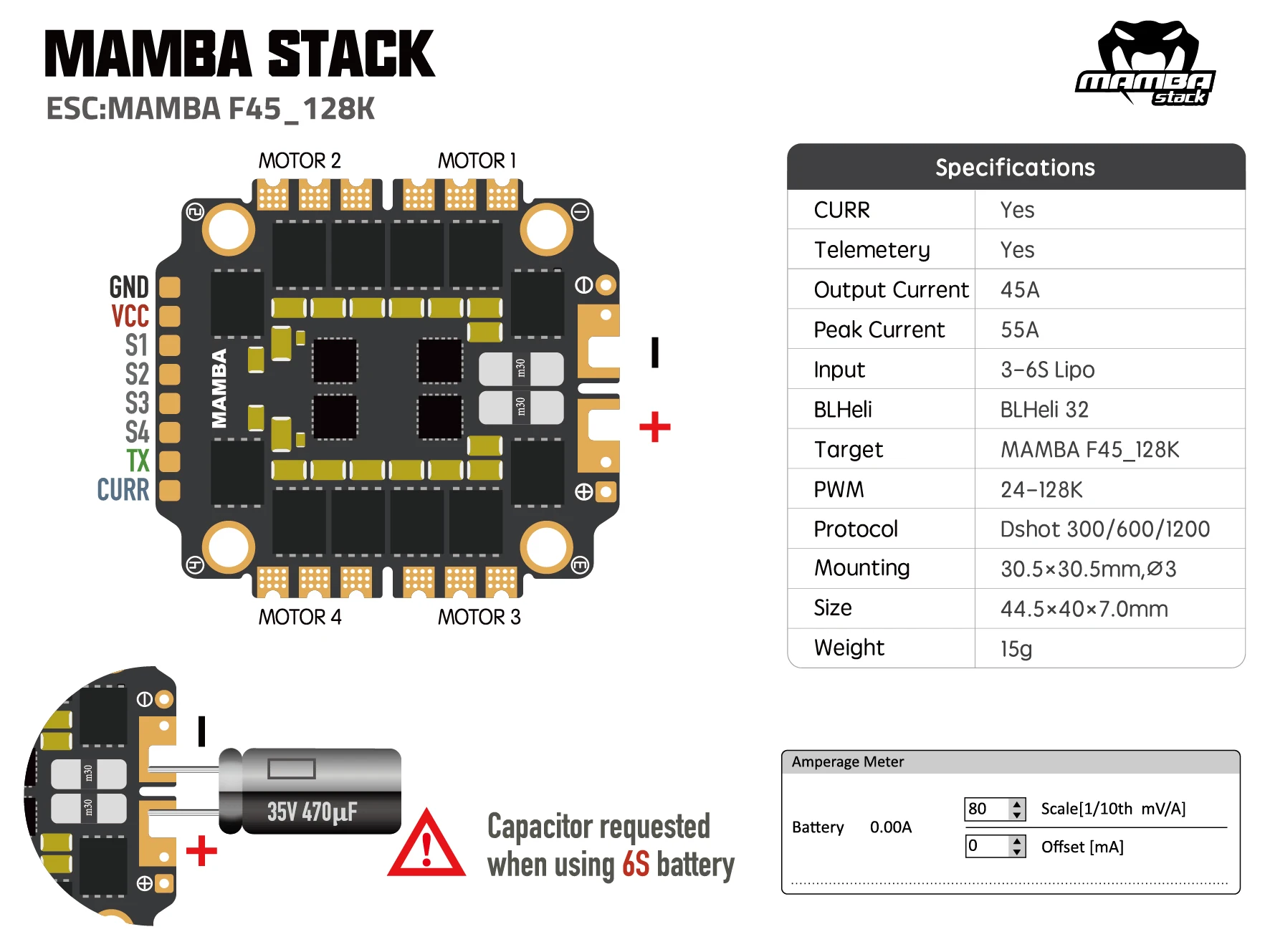

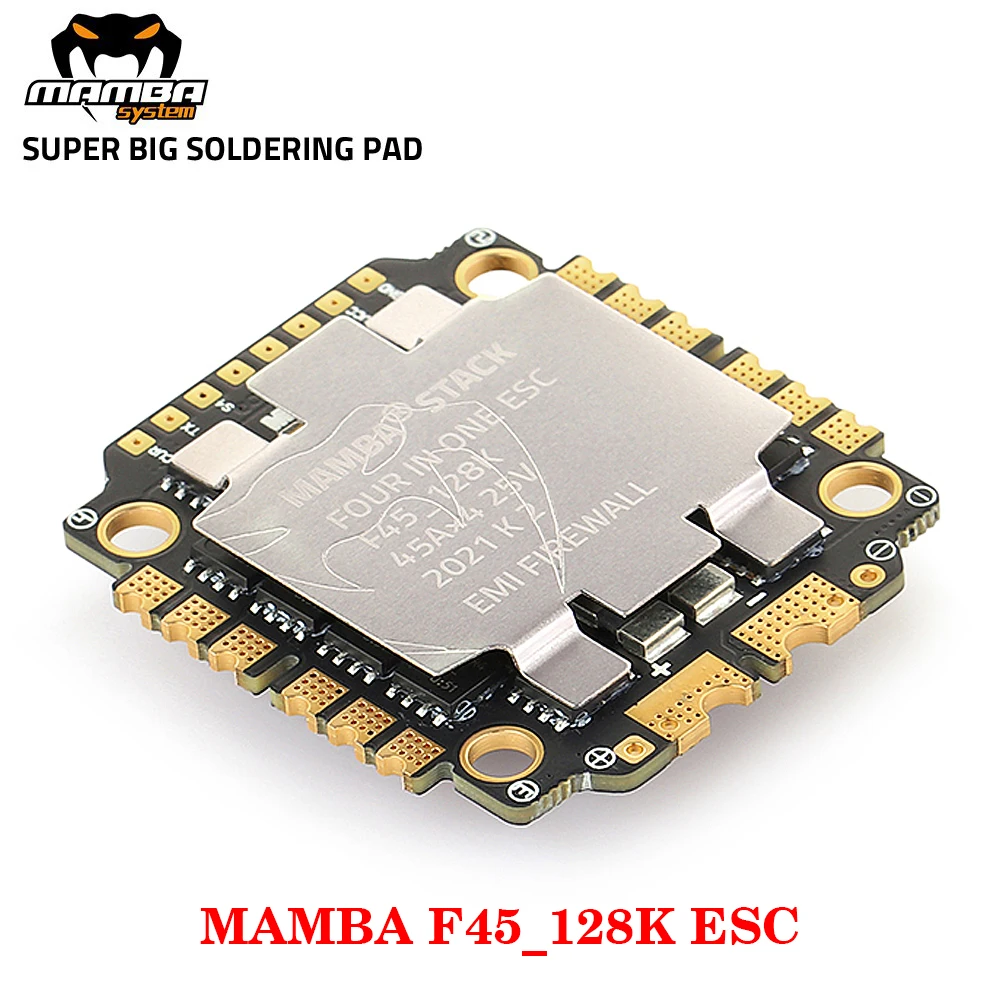

MAMBA F45_ 128K ESC

Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)

Work current: 45A × 4

Peak current: 55A (10S)

BEC output: NO

Firmware: BLHELI_32 MABA F45_128K

Agreement: DSHOT300/600/1200

PWM: 24 ~ 128K

TVS Power Protection: Yes

Installation size: 30.5mm/m3

Accessories:

High -frequency filter capacitance 1000uf/35V × 1

8Pin SH1.0 Flying Control Electrocontonal

Connection × 2

AMASS XT60 power plug × 1
MAMBA F55_ 128K ESC

Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)

Work current: 55A × 4

Peak current: 65A (10S)

BEC output: NO

Firmware: BLHELI_32 MABA F55_128K

Agreement: DSHOT300/600/1200

PWM: 24 ~ 128K

TVS Power Protection: Yes

Installation size: 30.5mm/m3

Accessories:

High -frequency filter capacitance 1000uf/35V × 1

8Pin SH1.0 Flying Control Electrocontonal

Connection × 2

AMASS XT60 power plug × 1

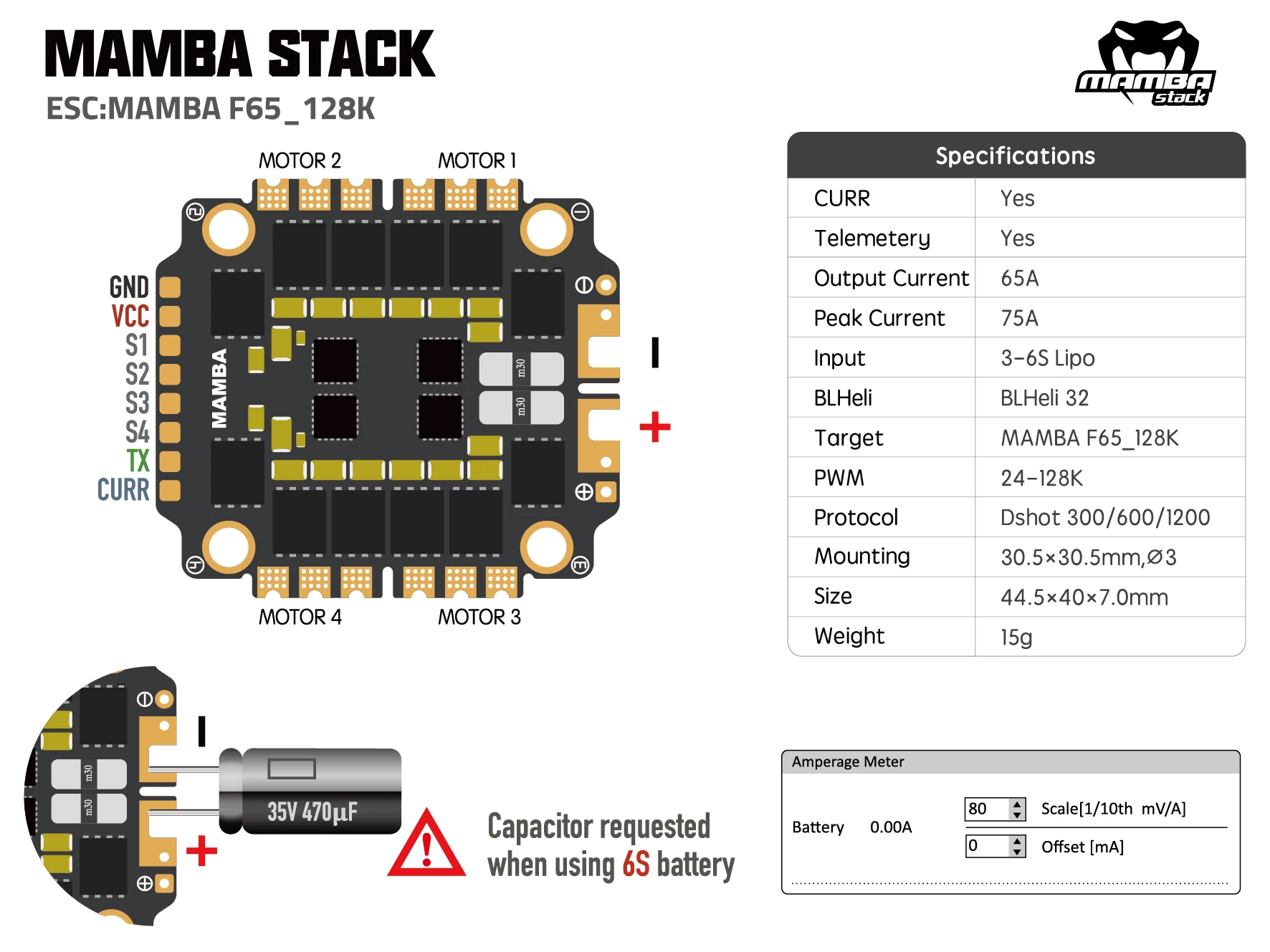

MAMBA F65_ 128K ESC

Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)

Work current: 65A × 4

Peak current: 75A (10S)

BEC output: NO

Firmware: BLHELI_32 MABA F65_128K

Agreement: DSHOT300/600/1200

PWM: 24 ~ 128K

TVS Power Protection: Yes

Installation size: 30.5mm/m3

Accessories:

High -frequency filter capacitance 1000uf/35V × 1

8Pin SH1.0 Flying Control Electrocontonal

Connection × 2

AMASS XT60 power plug × 1
