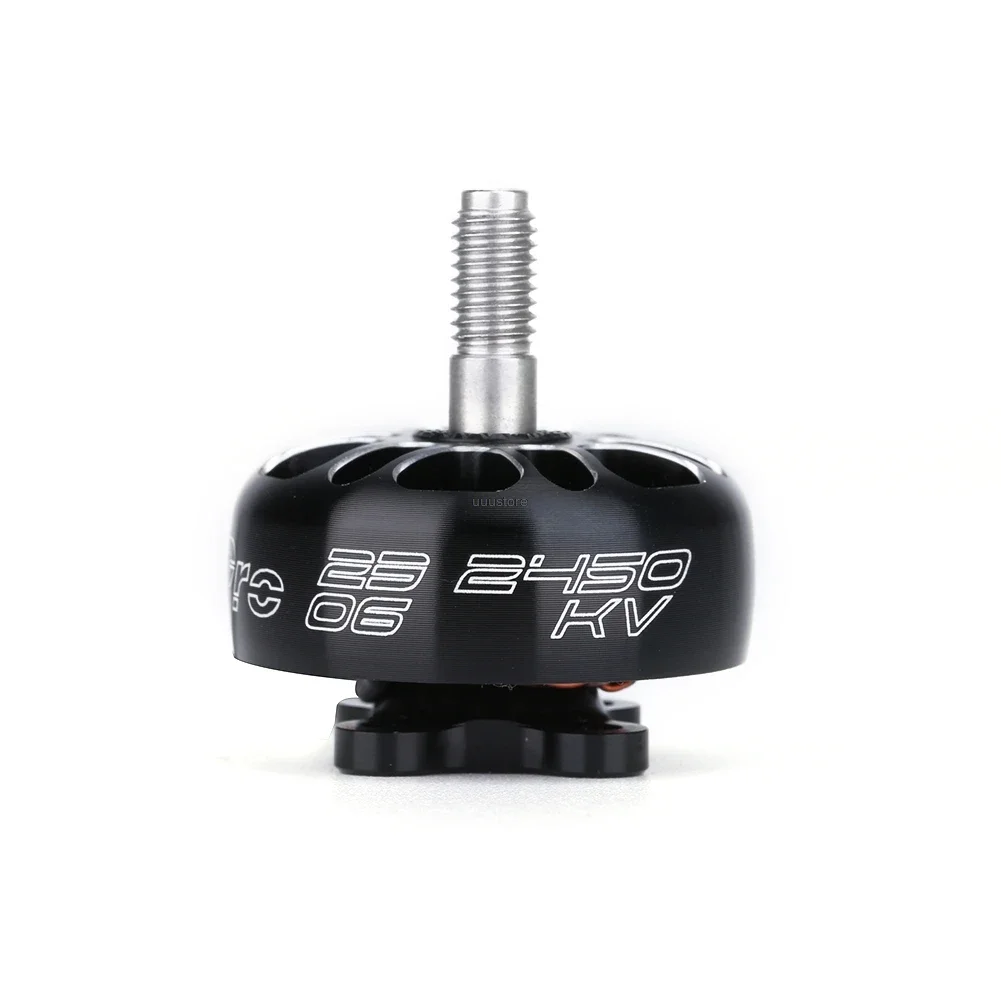

4PCS iFlight XING E PRO 2306 1700KV 2450KV 2-6S Brushless Motor for RC Models Multicopter FPV DIY Racing Parts Accs

+ Free Shipping
Contact Us on WhatsApp

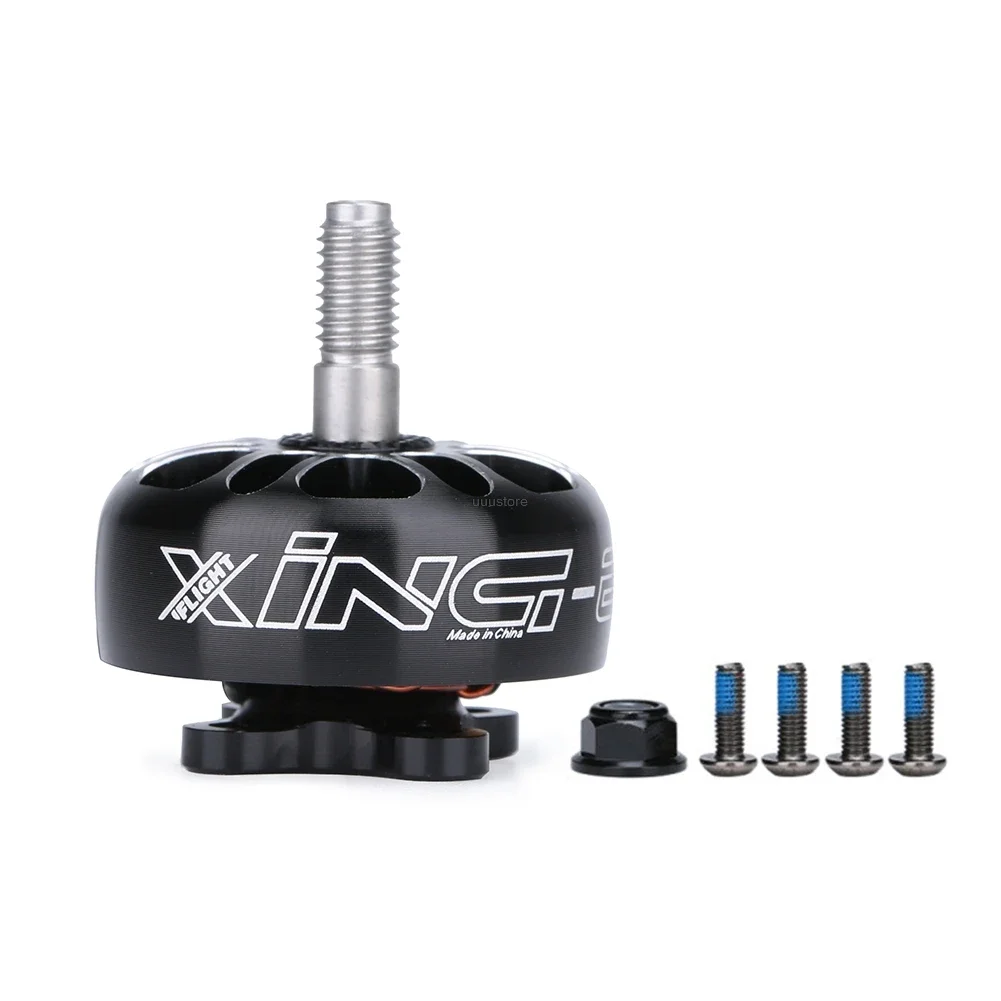

4PCS iFlight XING E PRO 2306 1700KV 2450KV 2-6S Brushless Motor for RC Models Multicopter FPV DIY Racing Parts Accs
Package included:

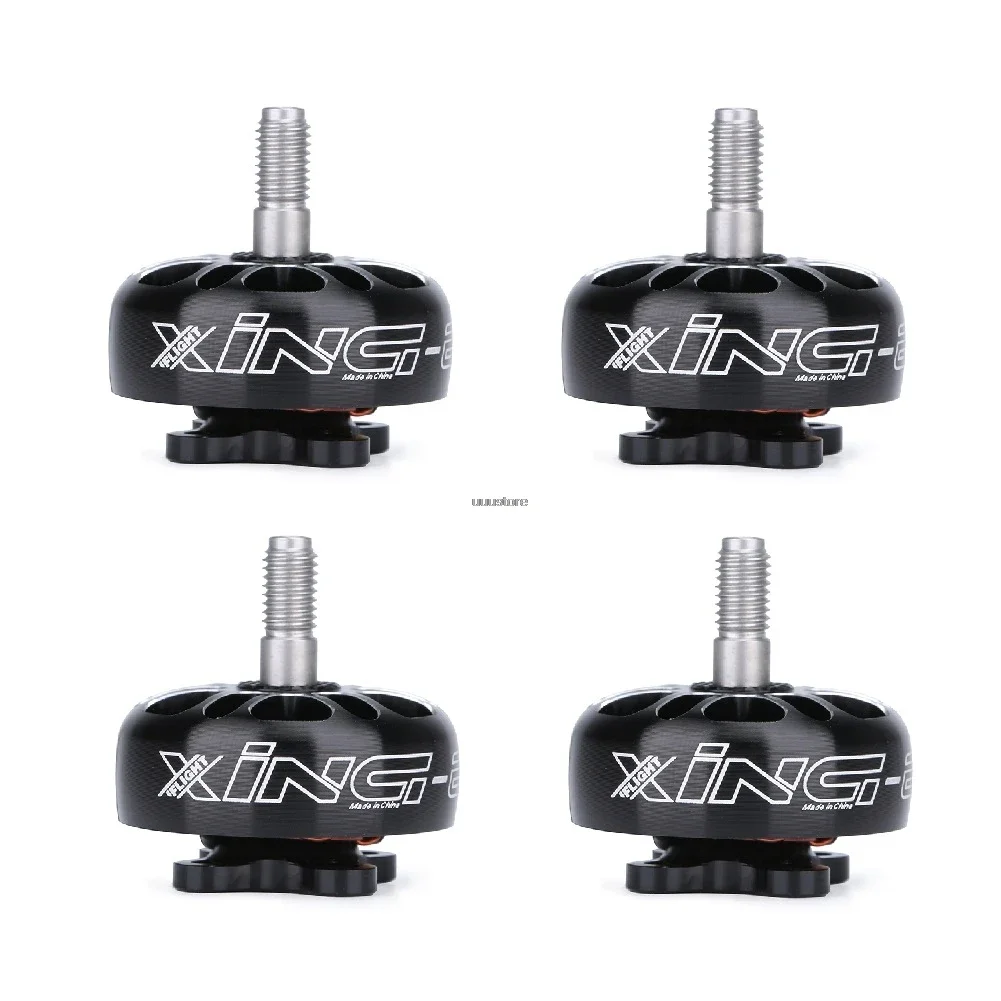

4pcs x MOTOR XING-E 2306 Pro motor
Description:

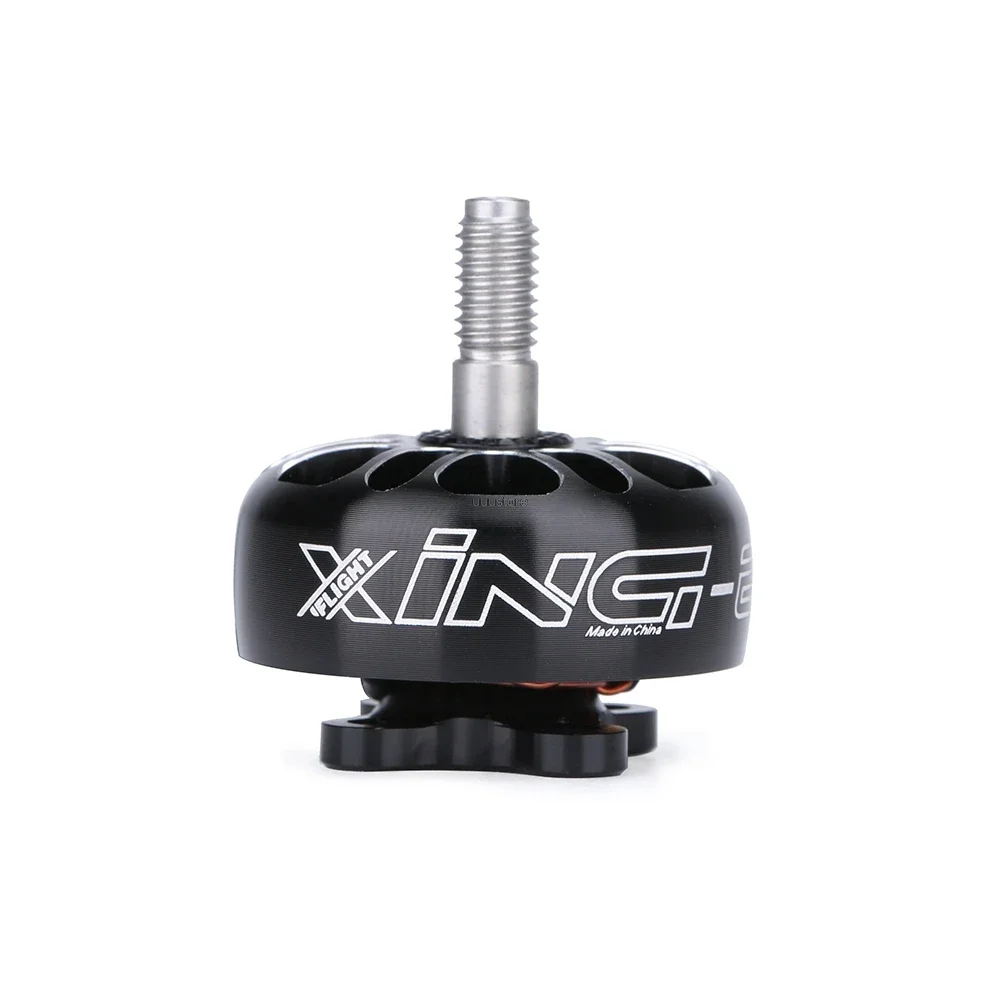

XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

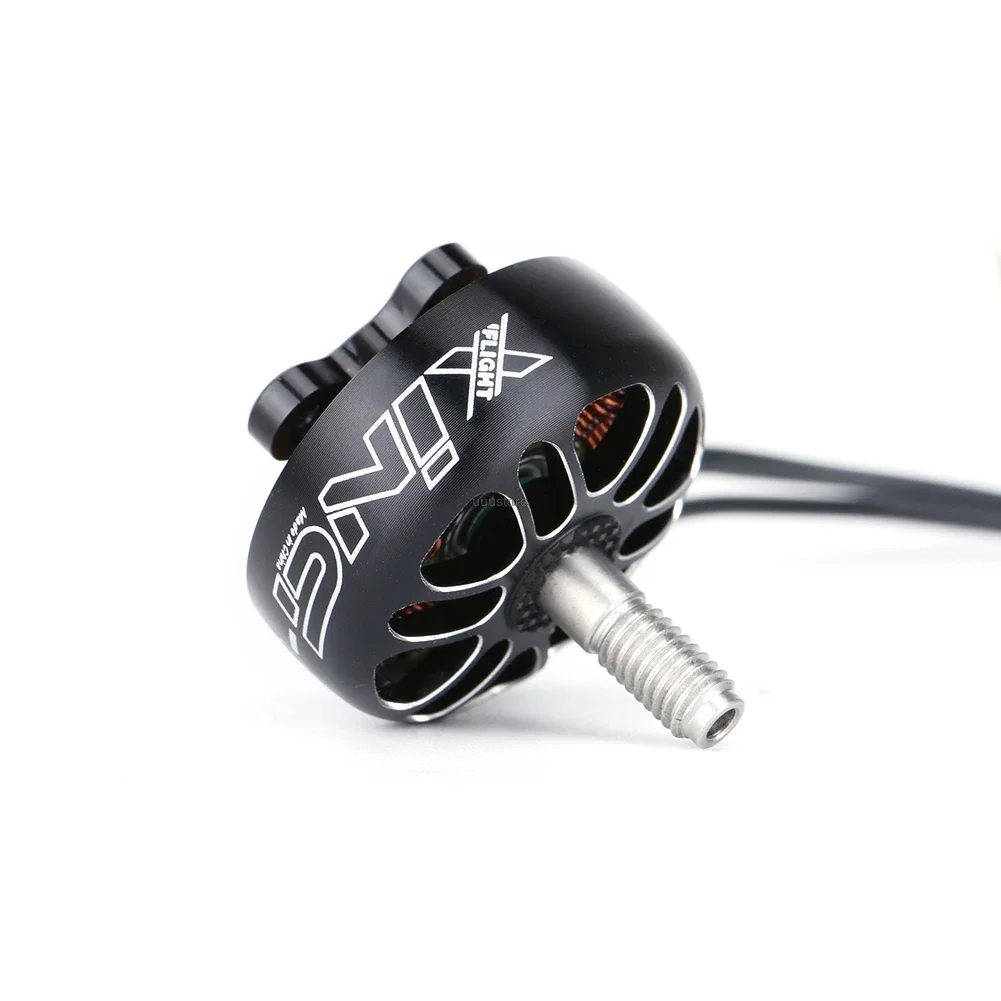

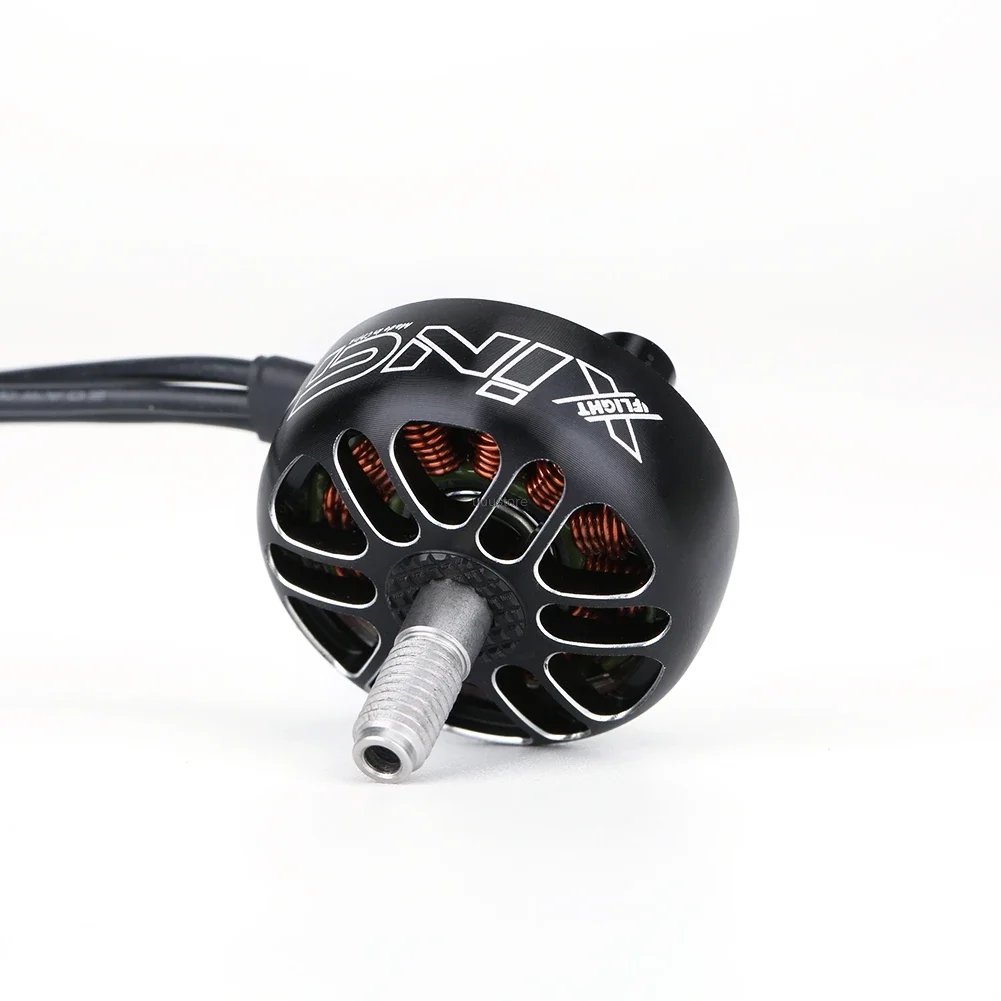

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

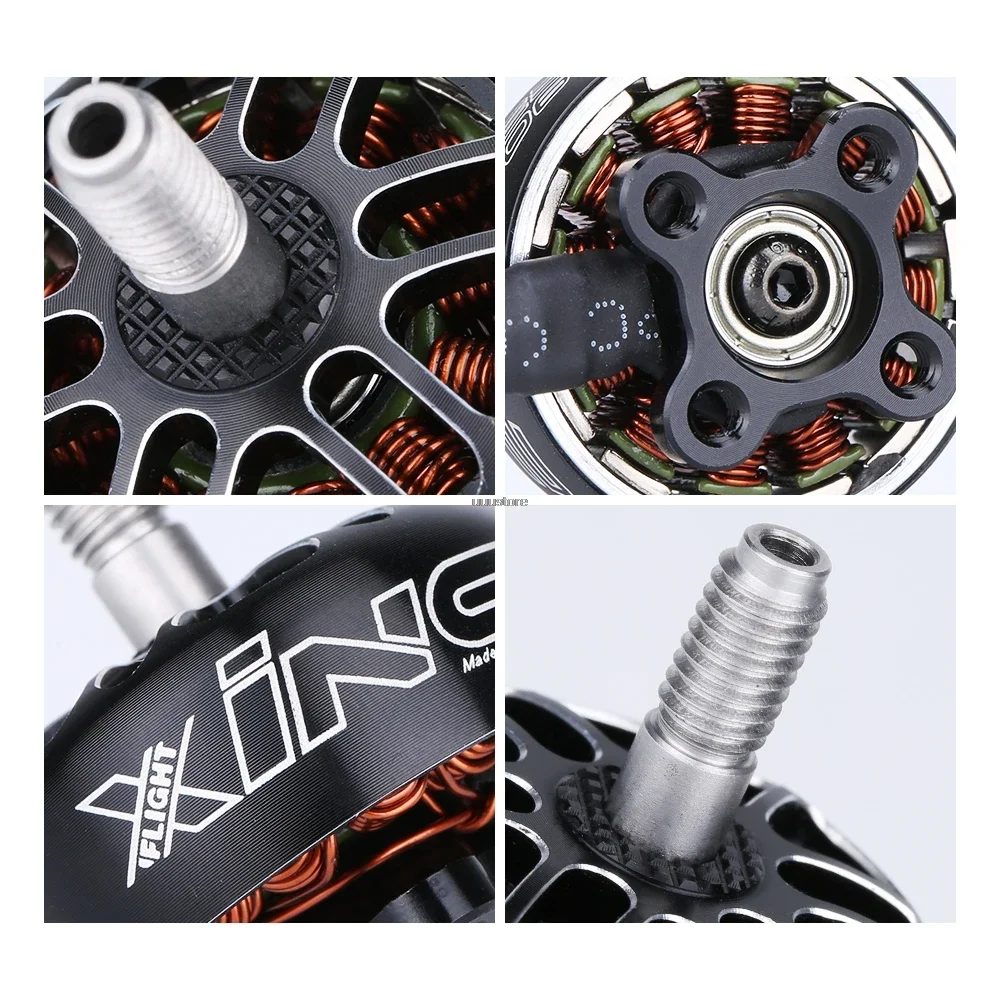

Features:
High-strength 4mm Steel shaft
N52SH High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
6061 CNC machined aluminum top and base parts
Hex bolt shaft set screw
Specifications:
Configuration: 12N14P
Stator Diameter:24mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 4mm / Steel

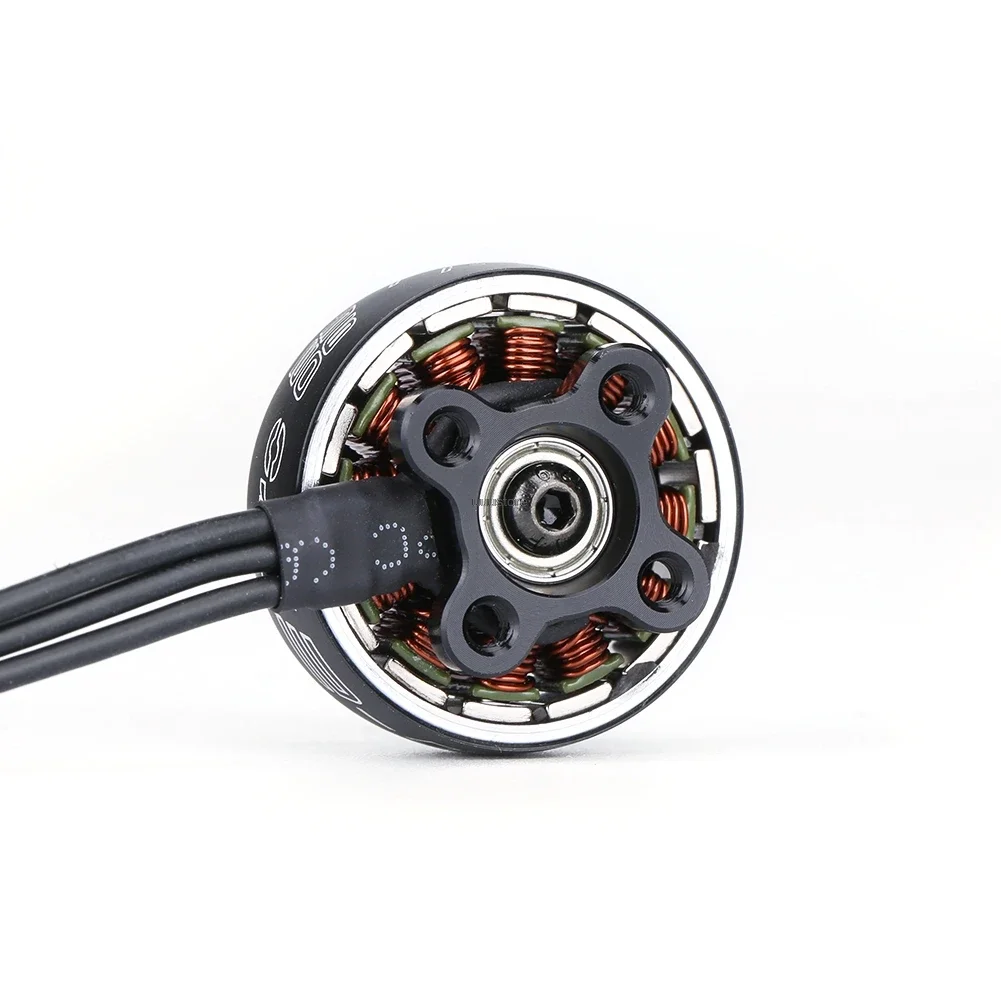

Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension:29.5×18.7mm

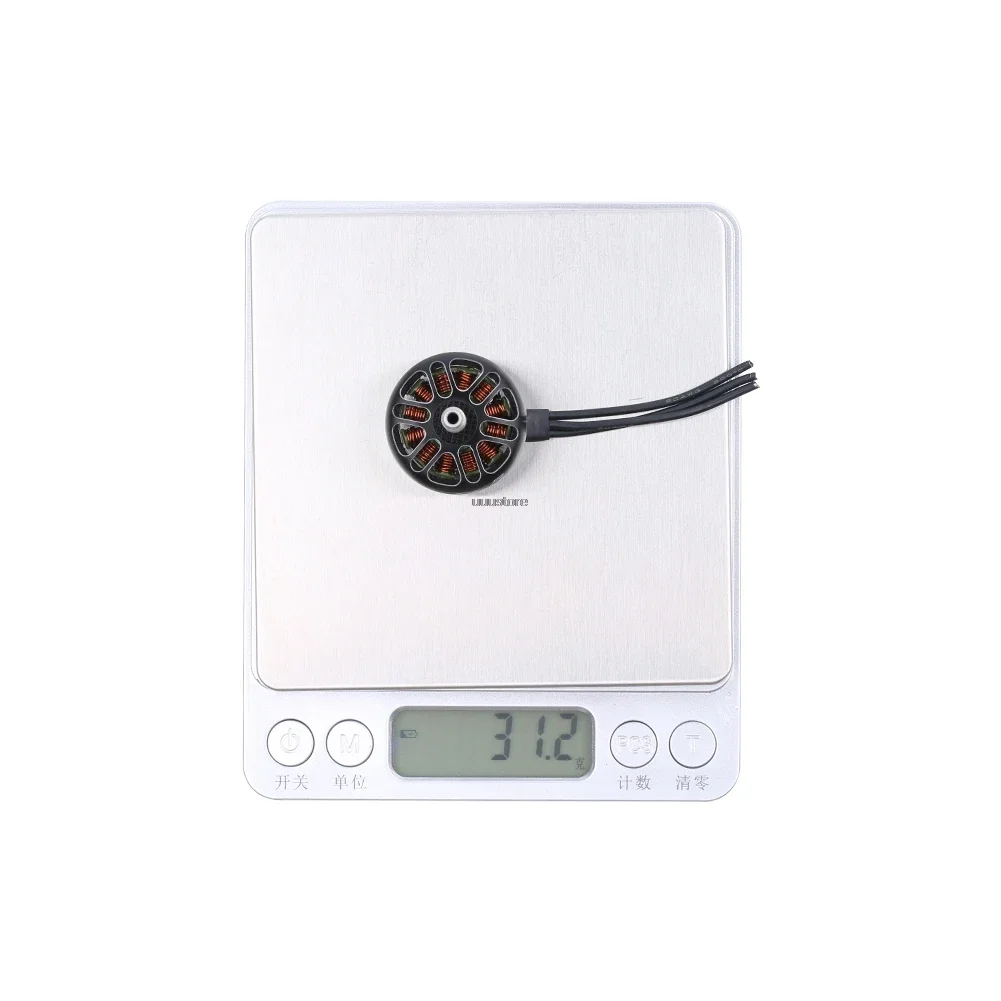

Weight:33.1g (150mm wires)
Idle Current @12.6v (Io):2.1A
Cells (LiPo): 2-6S
Max Burst Current <10s:55.22A
Max Power (W) 60s:885.4W
Internal Resistance (Rm):40.6mΩ
Motor Wire Length: 150mm / 20AWG

Weight 0.2 kg
Dimensions 30 × 20 × 10 cm
Hign-concerned Chemical

None

Is Electric

No Battery

Quantity

1 pcs

Wheelbase

Screws

Is it battery/power supply

N

Is it charger/adapter

N

Is Batteries Included

No

Size

As Show

Technical parameters

Value 5

Model Number

iFlight XING Eco 2306

For Vehicle Type

Helicopters

Tool Supplies

Motor

Four-wheel Drive Attributes

Motors

Remote Control Peripherals/Devices

Motor

Upgrade Parts/Accessories

Motor

RC Parts & Accs

engines

Material

Composite Material

Origin

Mainland China

Recommend Age

14+y, 3-6Y, 6-12Y

Use

Vehicles & Remote Control Toys

Brand Name

fpvking
