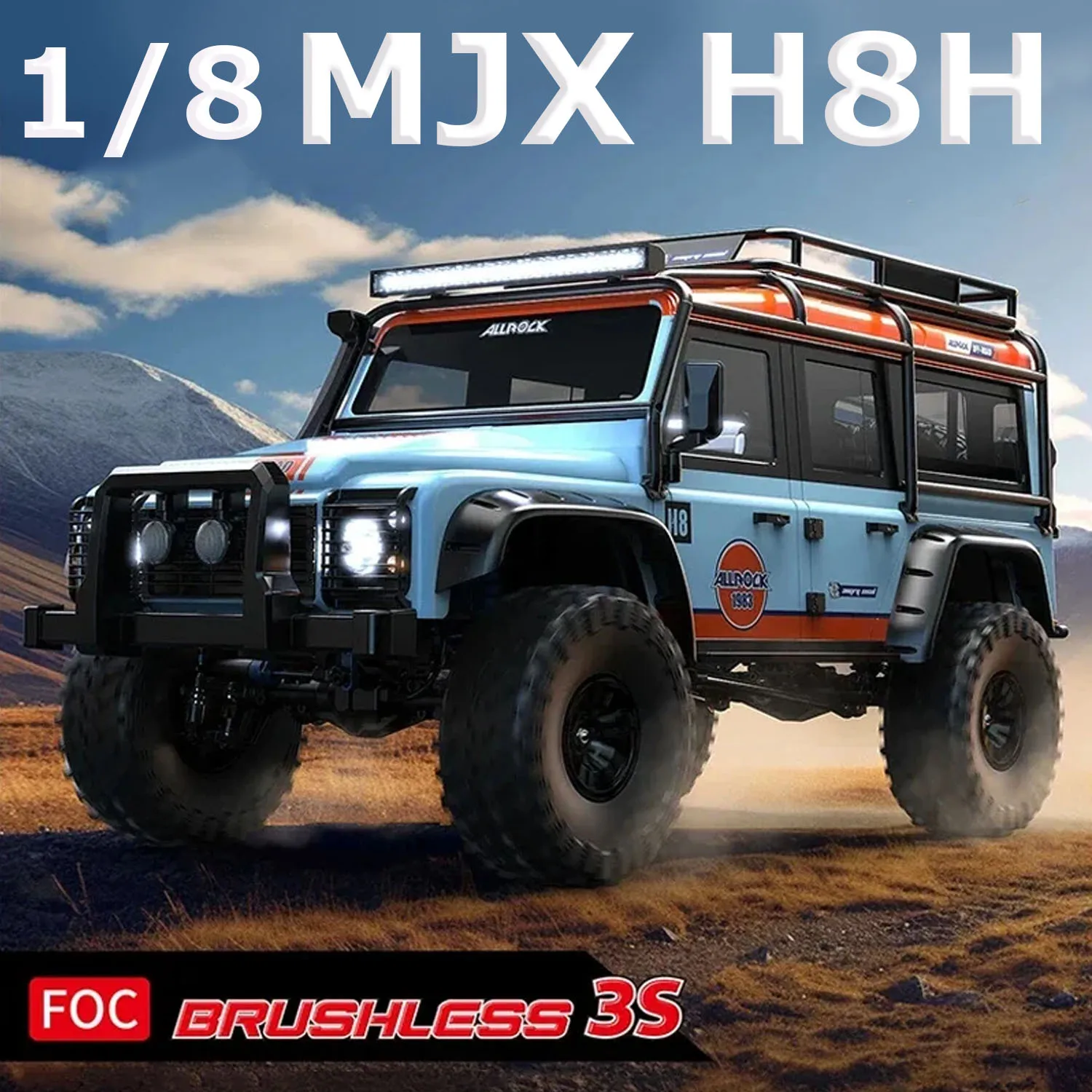

1/8 MJX H8H West V2 FOC brushless 4WD Off Road Vehicle High And Low Speed Differential Lock

MJX 1/8 H8H RC car brushless 4WD simulation high-speed off-road differential lock high and low range remote control vehicle model
Basic parameters
NOTE: The standard package does not include batteries and charger (the charging cable must be compatible with 2S3S)
Product model: H8H
Car shell color: blue/yellow/dark gray/pink
Receiving and transmitting frequency: 2.4GHz
Product size (mm): 680 x 298 x 325mm
Wheelbase (mm): 373mm
Track width (mm): 240mm
Tire diameter (mm): 132mm (2.2 inches)
Remote control battery: 3 * AA (not included)
Motor specifications: 3970-1500KV inductive brushless motor
Electric adjustment: 80A FOC inductive brushless electric adjustment
Specification of servo motor: 35KG steering servo motor
Note: The factory configuration of this model does not include a battery charger, and buyers need to purchase a separate battery charger themselves.
Product structure configuration
1. Front and rear differential locks, front and rear door bridge structure
2. Aluminum hydraulic shock absorber
3. Two speed mechanical transmission
4. Powder metallurgy gears for the entire vehicle (differential, front and rear axles, door axles, gearbox)
5. Steel transmission shafts and connecting rods for the entire vehicle
6. CNC integrated aluminum alloy beam
Electronic configuration
1. Bluetooth APP tuning – FOC sensing 80A brushless electric tuning (torque compensation function)
2.3970 Magnetic Encoding FOC Inductive Brushless Motor
3.8 Channel remote control and receiver (remote control distance of 120 meters)
4. Simulated headlight group (10 modes, 120 LED beads in the entire vehicle)
5.35KG stainless steel gear steering servo
Packaging configuration
Remote control car * 1
Remote control * 1
Instruction manual * 1
Hexagonal wrench * 1
Screwdriver * 1;
H8H Pro+ compared to H8H
Front and rear axle and wheels upgraded to aluminum alloy
